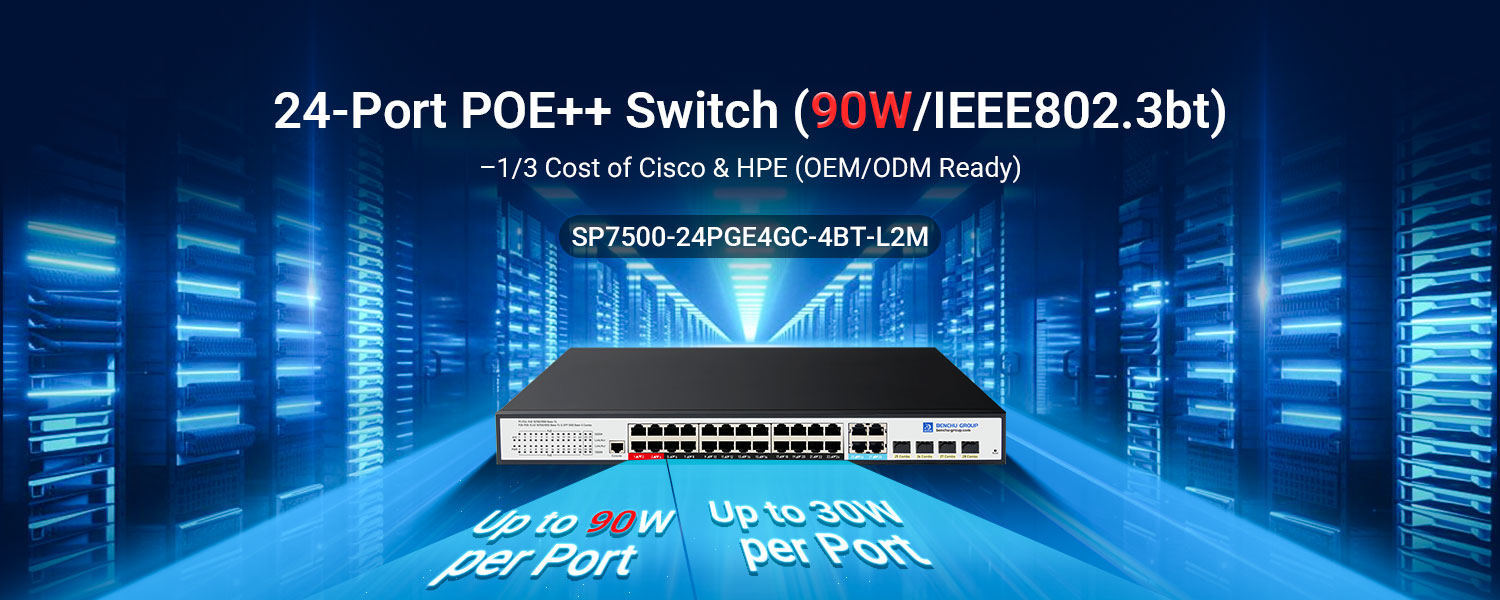

24 Port PoE++ Switch, IEEE802.3bt 90W, Layer 2 Managed, 500W/800W Power Budged Optional
Technical Specs (Quick Glance Table)
| Key Features | Benchu Group Solution | Big Brands (Cisco/HPE) |

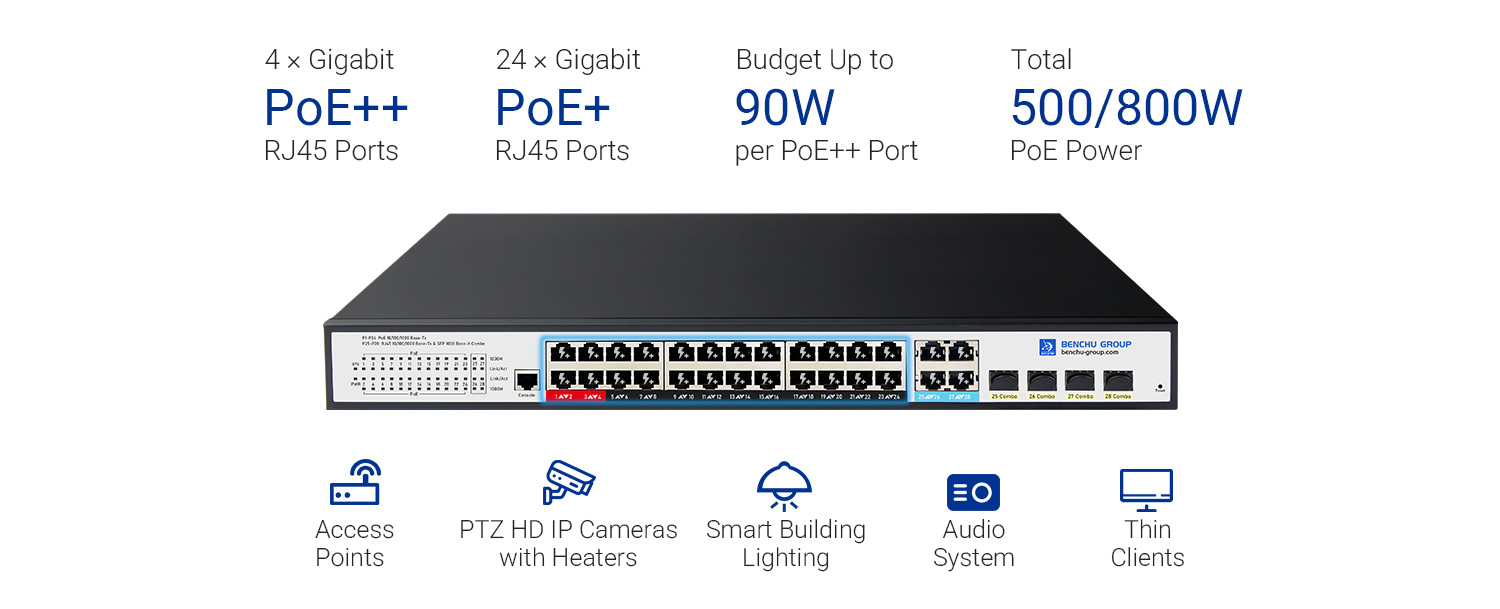

| Ports | 4 x PoE++ (90W) & 20 x PoE+(30W) | 24 x PoE++ (60-90W) Waste |
| Total PoE Budget | 500W (Standard) or 800W (Boost) | 720-740W (Fixed, No Options) |
| Management | L2+ (CLI/Web UI), SNMP | L2 (Limited Customization) |
| Operating Temp | -20°C to 55°C (Industrial Grade) | 0°C to 45°C (Commercial Grade) |
| Certifications | FCC/CE/UL/RoHS (Pre-Loaded) | Requires Extra Licensing |
Power & Performance
| Technical Capability | Real-World Impact |
| 4 × PoE++ Ports (90W max/port) | Deploys 4K PTZ cameras + WiFi 6E Aps without external power supplies |
| 500W/800W Configurable Power Budget | Supports high-wattage PoE loads (e.g., LED panels, access control) with 15% overhead |
| IEEE 802.3af/at/bt Auto-Sensing | Plug-and-play with legacy & next-gen PoE devices (No manual adjustment) |
AV-Optimized Networking
| Protocol Support | AV/IT Integration Advantage |
| Layer 2 QoS (DSCP/802.1p) | Prioritizes video streams (H.265/AVC) over bulk data traffic |
| IGMP Snooping v2/v3 | Prevents multicast flooding – ideal for IPTV, digital signage & video walls |
Rugged & Customizable
| Hardware Spec | Deployment Flexibility |
| Extended Temp. Range (-20°C~55°C) | Survives outdoor enclosures, factory floors, cold storage |
| OEM Branding & Firmware Control | Match your corporate identity (Custom CLI/Web UI, SNMP OIDs, laser-etched logos) |
Single-Cable Power for Demanding Devices

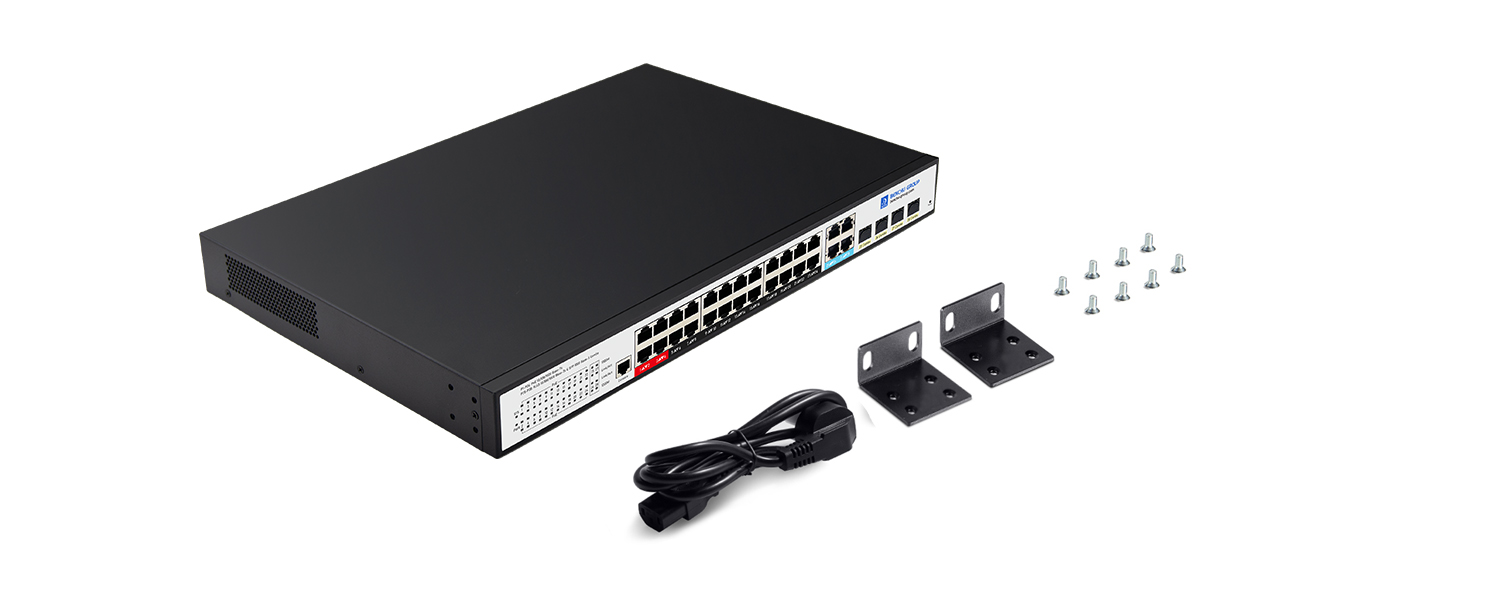

In The Box
Resources
Why Industry Professionals Trust Us?
Case Study:
Supplied 3,500 white-label 24 Port PoE++ switches to a european surveillance cameras manufacturer, replacing legacy Ubiquiti gear with 12% lower power consumption.
