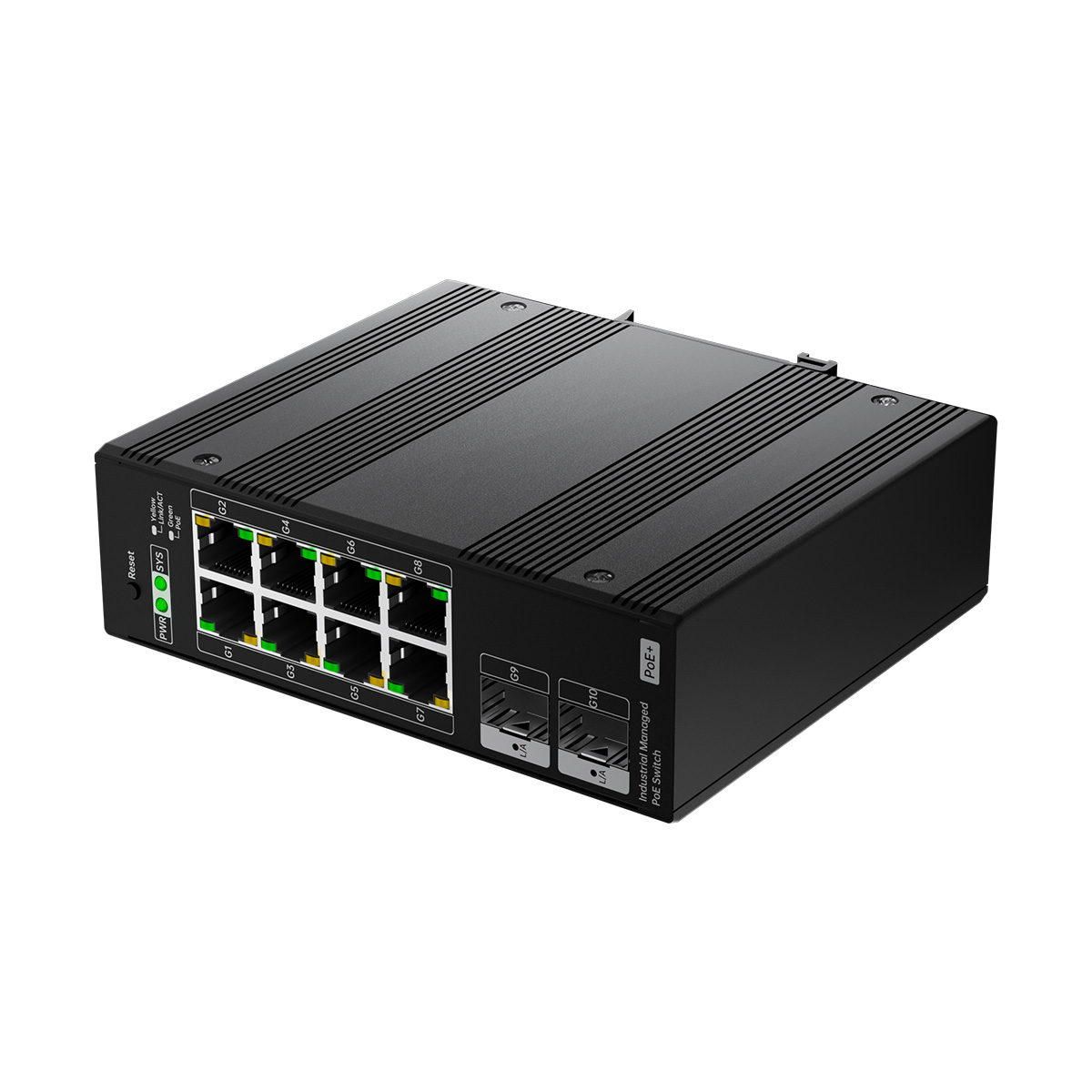

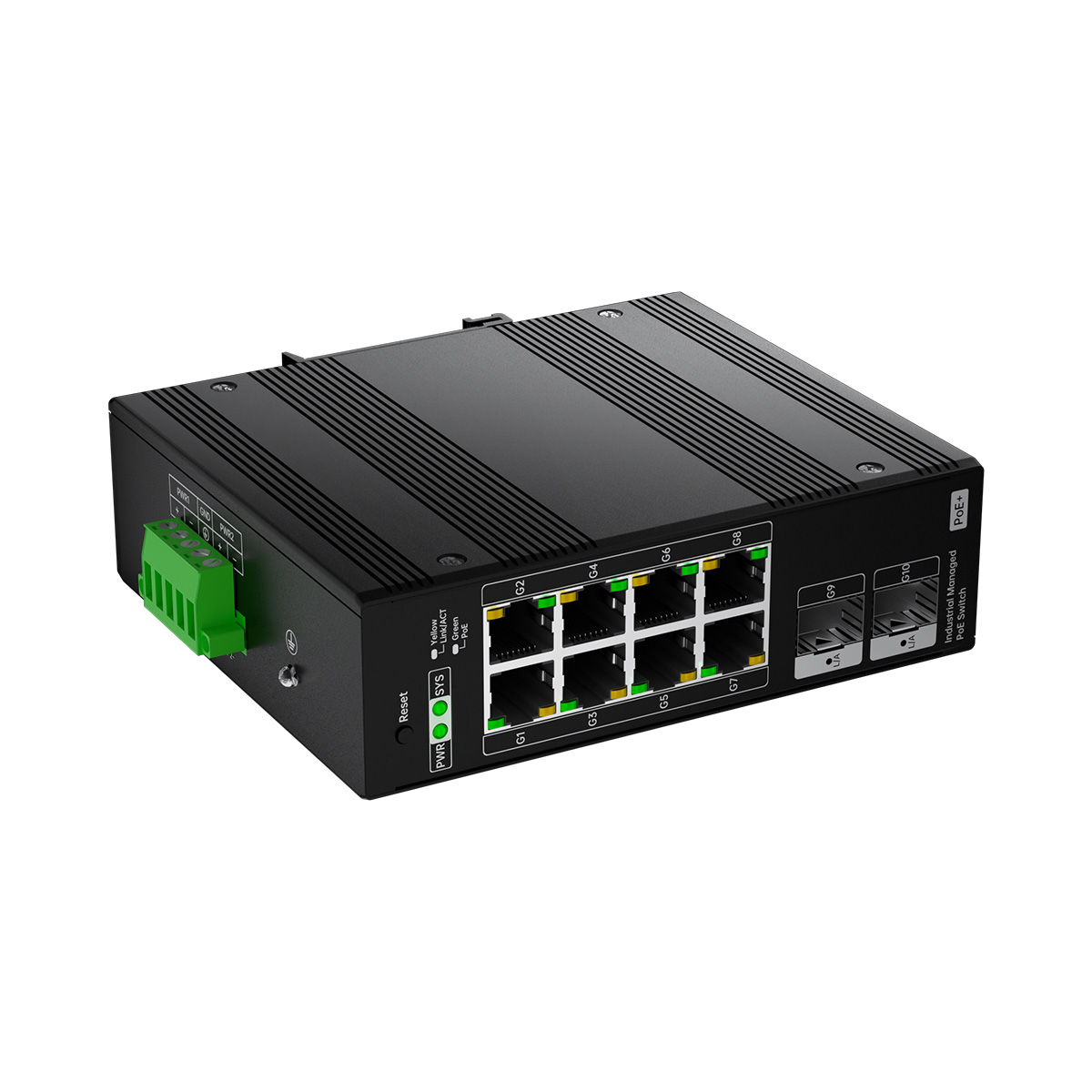

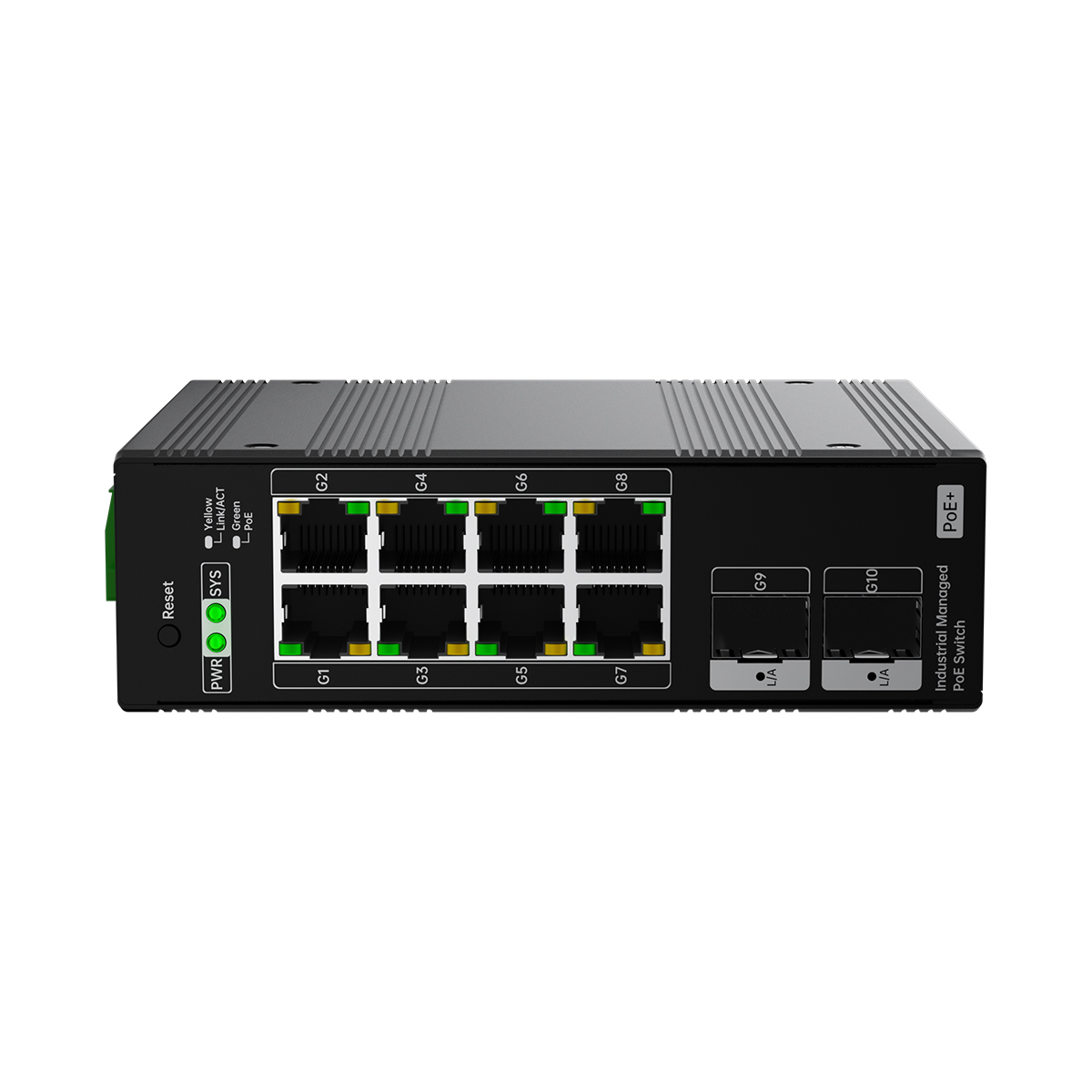

8 Port Industrial PoE Switch Web Managed with 2 Gigabit SFP Uplink, IES7512-8PGE2GF-DC

Specification

• Technical Specifications :

  IE7512-8PGE2GF-DC

• 10M/100M/1G RJ45 copper ports :

  8

• 1.25G SFP (fiber) ports :

  2

• PoE / PoE+ ports :

  8

• Reset button :

  Yes

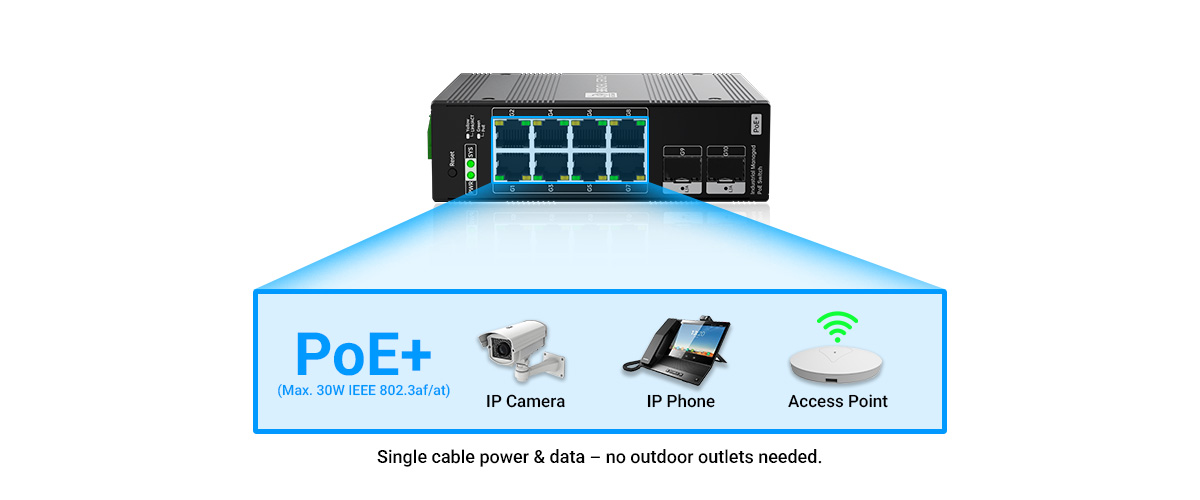

• Power over Ethernet :

  *

• PoE Standard :

  IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

• PoE Power Supply Type :

  End-span: 1/2 (+), 3/6 (-)

• PoE Power Output :

  Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

• PoE Power Budget :

  120 Watts

• Performance Specification :

  *

• Packet buffer memory :

  1.6 Mb

• Forwarding modes :

  Store-and-forward

• Bandwidth :

  24 Gbps

• Packet forwarding rate :

  14.88Mpps (64 byte packet size)

• MAC address database size :

  4K (48-bit MAC ad-dresses)

• Jumbo frame support :

  9K

• Mean Time Between Failures :

  181,365 hours (MTBF) @ 25°C

• L2 Services - VLANs :

  *

• IEEE 802.1Q VLAN tagging :

  Yes

• IP-based VLANs :

  Yes

• Protocol-based VLAN :

  Yes

• L2 Services - Availability :

  *

• Storm control :

  Yes （Broadcast, multicast, unknown unicast）

• IEEE 802.3ad - LAGs (LACP) :

  Yes

• IEEE 802.3x :

  Yes

• IEEE 802.1w Rapid Spanning Tree Protocol :

  Yes

• Link Aggregation :

  *

• Network Monitoring and Discovery Services :

  *

• SNMP :

  v1, v2c

• Network Security :

  Yes

• IEEE 802.1x :

  Yes

• Port-based security by locked MAC addresses :

  Yes

• Quality of Service (QoS) :

  *

• Port-based rate limiting :

  Yes ingress and egress

• Port-based QoS :

  Yes

• IEEE Network Protocols :

  *

• Protocols :

  • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

• Protocols 2 :

  • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1w (RSTP)

• Management, Monitoring & Troubleshooting :

  *

• Password management :

  Yes

• TLS/HTTPS Web-based access (version) :

  Yes (v1.2)

• HTTP upload/download (firmware) :

  Yes

• LEDs :

  Yes

• Per port :

  Speed, Link, Activity; PoE in different mode

• Per device :

  Power

• Physical Specifications :

  *

• Dimensions (Width * Depth * Height) :

  150 x 120 x 48 mm (5.91 x 4.72 x 1.89 in)

• Weight :

  0.9 kg (1.98 lb)

• Shell protection :

  P40 high-strength aluminum case

• Power Requirements :

  DC 48~56V, redundant power with reverse polarity protection

• Max power :

  240W

• Energy Efficient Ethernet (EEE) :

  Yes (deactivated by default)

• Fan :

  Fanless

• Environmental Specifications :

  *

• Operating Temperature :

  -40° to 85°C (-40° to 185°F)

• Operating Humidity :

  95% maximum relative humidity (RH), non-condensing

• Operating Altitude :

  10,000 ft (3,000 m) maximum

• Storage Temperature :

  -40° to 85°C (-40° to 185°F)

• Storage Humidity (relative) :

  95% maximum relative humidity, non-condensing

• Storage Altitude :

  10,000 ft (3,000 m) maximum

• Executive Standard & Protection :

  *

• Lightning Protection :

  *

• IEC61000-4-3 (RS) :

  10V/m (80~1000MHz)

• FCC Part 15/CISPR22 (EN55022) :

  Class B

• IEC61000-6-2 :

  Common Industrial Standard

• IEC61000-4-9 (Pulsed magnet field) :

  1000A/m

• IEC61000-4-10 (Damped oscillation) :

  30A/m, 1MHz

• IEC61000-4-12/18 (Shockwave) :

  CM 2.5kV, DM 1kV

• IEC61000-4-4(EFT) :

  Power cable:±4kV, Data cable: ±2kV

• IEC61000-4-16(Common-mode transmission) :

  30V, 300V, 1s

• IEC61000-4-2 (ESD) :

  ±8kV contact discharge, ±15kV air discharge

• IEC61000-4-6 (Radio frequency transmission) :

  10V(150kHz~80MHz)

• IEC61000-4-8 :

  100A/m, 1000A/m, 1s-3s

• IEC61000-4-5 (Surge): Power cable :

  CM±4kV/ DM±2kV, Data cable: ±4kV

• Mechanical Properties :

  *

• IEC60068-2-6 :

  Anti Vibration

• IEC60068-2-32 :

  Free Fall

• IEC60068-2-27 :

  Anti Shock

• Package Contents :

  *

• All models :

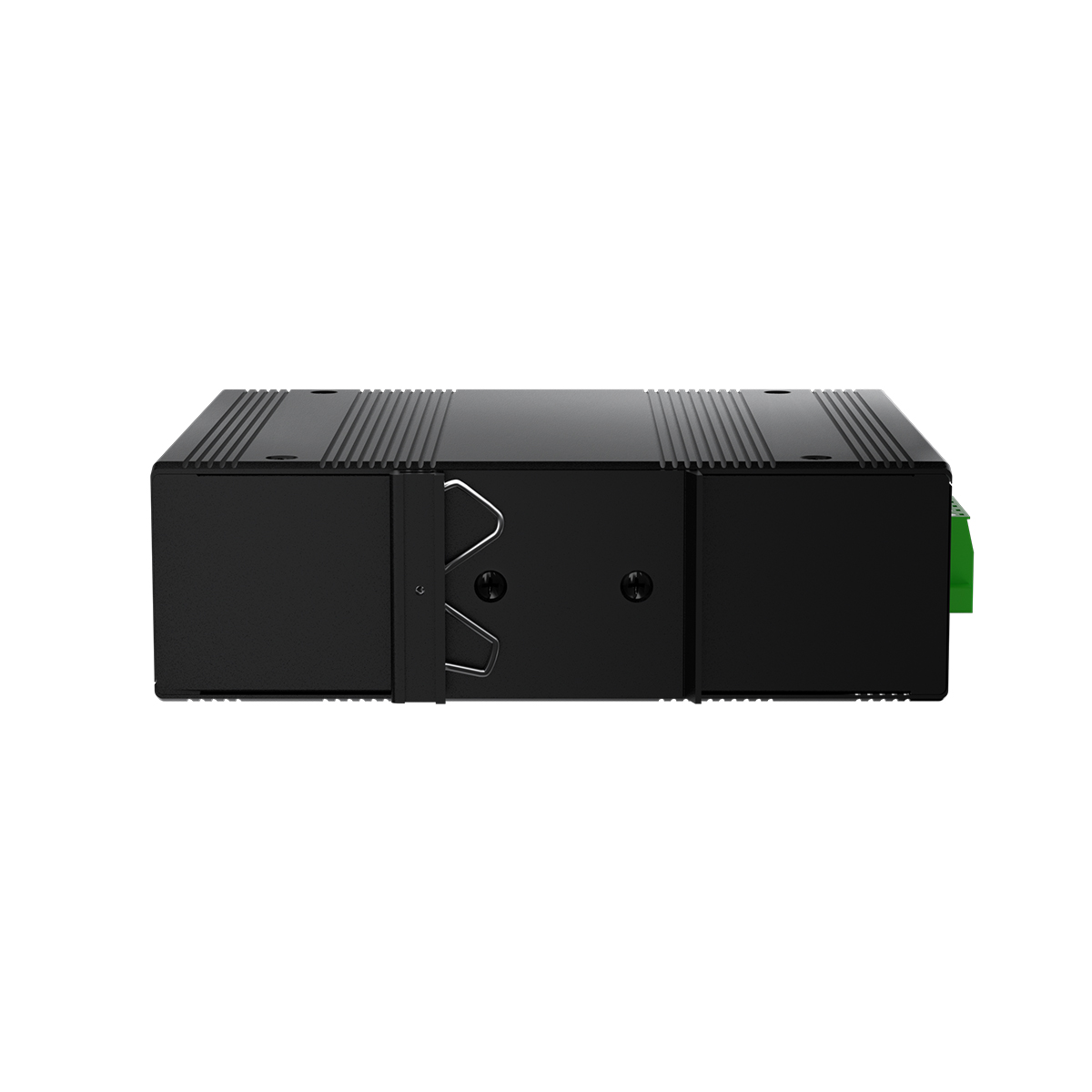

  Smart Industrial Switch ； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets Installation guide

• Business Type :

  Industrial

• Bandridth :

  1G

• More Filters :

  WEB Managed
