Overview

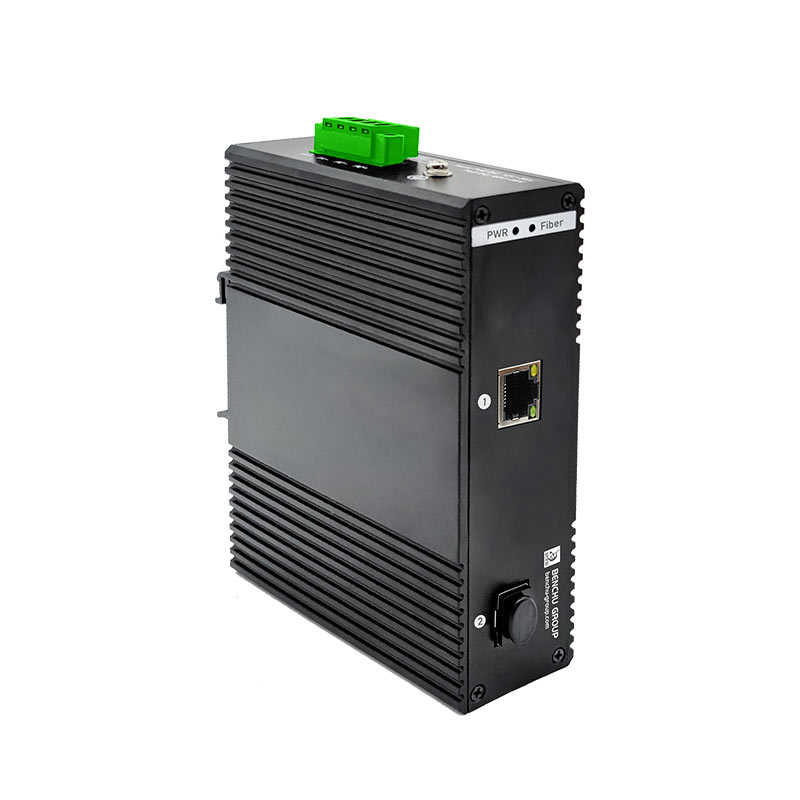

IES7211-1GE1GF-DC, Gigabit Industrial Fiber Converter,with 1 x 10/100/1000M RJ45 , with 1 x 1.25G SFP , DIN-Rail mount , Support Redundant Power
Features
High-Speed Data Conversion
This gigabit industrial fiber converter IES7211-1GE1GF-DC offers seamless data conversion between copper and fiber connections at speeds of up to 1 Gbps. By converting ethernet signals from copper cables to fiber optics, this converter helps in extending the distance to 550m/20Km/40Km/60Km/80Km/120Km that data can travel without degradation. Fiber optics are known for their ability to transmit data over long distances with minimal signal loss, making this converter an excellent choice for connecting remote devices or bridging long-distance links.
Durable and Reliable Design
Constructed with durability in mind, the IES7211-1GE1GF-DC is designed to withstand the rigors of various environments. Its IP40 robust aluminium housing protects the internal components from dust, moisture, and physical impacts, making it suitable for both indoor and outdoor use. This durability ensures that the converter can operate effectively in industrial settings, data centers, or any location subject to challenging conditions. By investing in a durable solution, organizations can minimize downtime and maintenance costs, allowing for uninterrupted operations and ensuring that critical data transmission is always secure and efficient.
Easy Installation and Plug-and-Play Operation
This gigabit industrial fiber converter IES7211-1GE1GF-DC is designed for easy installation and plug-and-play operation. Users can quickly set up the device without needing advanced technical skills or complex configurations. This simplicity allows for rapid deployment in various environments, whether in an office, industrial site, or data center. The straightforward nature of the installation process means that organizations can get their networks up and running quickly, saving valuable time and resources.
Wide Operating Temperature Range
The IES7211-1GE1GF-DC operates effectively across a wide temperature range, from -40°C to 85°C. By maintaining performance in extreme conditions, the Gigabit Fiber Converter ensures reliable connectivity and minimizes the risk of equipment failure due to overheating or freezing. The ability to function in challenging environments enhances the versatility of the converter, making it an ideal choice for a wide array of industrial and commercial applications.
Enhance Reliability and Ensure Continuous Operation
The dual power input feature of the Gigabit Industrial Fiber Converter enhance reliability and ensure continuous operation in demanding environments. By incorporating two independent power inputs, the converter can maintain functionality even if one power source fails. In practice, the dual power inputs allow users to connect the converter to separate power sources, such as different power grids or UPS (uninterruptible power supply) systems. This flexibility enables organizations to implement a more resilient network infrastructure that can withstand power fluctuations or outages.
Connectivity Solutions
Gigabit Industrial Fiber Converter Connectivity Solution
Specification
Technical Specifications :
IES7211-1GE1GF-DC10M/100M/1G RJ45 copper ports :
11.25G SFP (fiber) ports :
1Performance Specification :
*Packet buffer memory :
1.2 MbForwarding modes :
Store-and-forwardBandwidth :
10 GbpsPacket forwarding rate :
2.98Mpps (64 byte packet size)MAC address database size :
2K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
160,213 hours (MTBF) @ 25°C100M Copper Latency :
8.532µs; 8.613µs; 8.712µs1G Copper Latency :
3.435µs; 3.541µs; 3.643µs1G Fiber Latency :
2.993µs; 3.112µs; 3.183µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, ActivityPer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
135 x 95 x 35 mm (5.31 x 3.74 x 1.38 in)Weight :
0.35 kg (0.77 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 12~54VMax power :
6WIddle power consumption :
3WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
Questions & Answers
1. What ports are available on the IES7211-1GE1GF-DC Industrial Switch?
It features 1 Gigabit RJ45 port (10/100/1000M) and 1 SFP port (1.25G), enabling seamless Ethernet and fiber connectivity.
2. Can the IES7211-1GE1GF-DC operate in extreme environments?
Yes, it functions reliably in temperatures ranging from -40°C to 85°C, with an IP40-rated housing for dust and moisture protection.
3. Does this device support redundant power input?
Yes, it supports redundant power input to ensure uninterrupted operation even during power failures.
4. Is the IES7211-1GE1GF-DC easy to install?
Yes, it supports DIN-rail mounting for quick and secure installation, simplifying integration into industrial setups.
5. What applications is this fiber converter suitable for?
It is ideal for industrial automation, surveillance systems, and long-distance networking where fiber connectivity is required for reliability.
