Overview

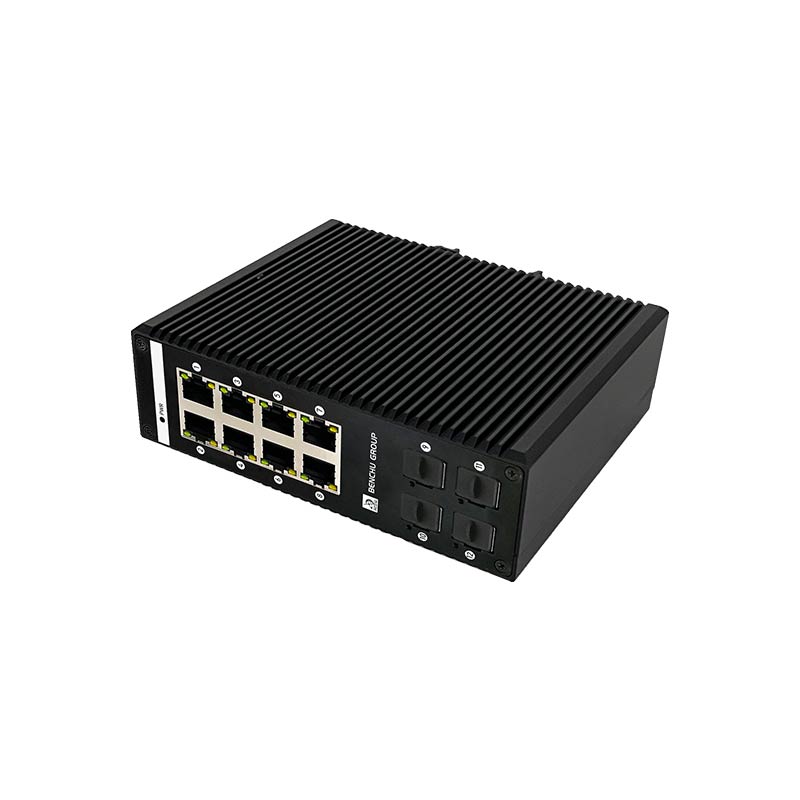

IES7211-8GE4GF-DC, 8 Ports Gigabit Industrial Ethernet Switch,with 4 Gigabit SFP Uplink, DIN-Rail mount , Support Redundant Power
-
Physical Port
8-10/100/1000BASE-TX Fast Ethernet RJ45 ports4-1.25GBASE-X mini-GBIC/SFP ports slotSwitchingBackplane bandwidth 24Gbps,Packet forwarding rate 17.86Mpps,MAC address 4kHardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation -
Hardware
Industrial Case and InstallationIP40 High- strength Aluminum caseDIN-rail mount design12~54V DC, redundant power with reverse polarity protectionSupports 8KV DC Ethernet ESD protection-40 to 85 degrees C operating temperatureLED indicators for Power,PoE Working and LINK/ACTMechanical PropertiesIEC60068-2-6:Anti VibrationIEC60068-2-32:Free FallIEC60068-2-27:Anti Shock -
Lightning Protection
IEC61000-4-3 (RS):10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022):Class BIEC61000-6-2:Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :1000A/mIEC61000-4-10 (Damped oscillation) :30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kVIEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :30V, 300V, 1sIEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kV
Features
8 Gigabit Ethernet Ports
The IES7211-8GE4GF-DC comes equipped with eight 10/100/1000BASE-T Gigabit Ethernet ports, providing robust and high-speed connectivity for various network devices. These ports enable seamless data transmission for IP cameras, wireless access points, and other critical devices in industrial settings. This makes it an ideal choice for users looking to enhance their network without the complexity of management features.
4 Gigabit SFP Uplink Ports
The IES7211-8GE4GF-DC features four Gigabit SFP uplink ports, allowing for flexible and high-speed fiber connections to expand the network. These uplink ports support various types of SFP transceivers, enabling compatibility with different fiber optic technologies. The availability of these uplink ports enhances the switch’s capability, making it suitable for a variety of applications, including interconnecting different network segments in large facilities or providing a connection to a data center.
Wide Operating Temperature Range
Engineered to perform in challenging environments, this 12 Port industrial switch operates effectively across a temperature range of -40°C to 85°C. This broad temperature tolerance makes it suitable for deployment in extreme conditions, such as factories, outdoor installations, or harsh industrial locations. The ability to maintain stable performance in varying temperatures minimizes the risk of device failure and ensures reliable operation even in the most demanding settings.
IP40-Rated Enclosure
This 12 Ports industrial switch features an IP40-rated enclosure, ensuring protection against dust and solid particles. This level of ingress protection helps keep internal components safe from contaminants that could degrade performance over time. By minimizing the risk of damage from environmental factors, this design enhances the switch's longevity and reduces maintenance needs, allowing businesses to focus on their core operations without worrying about the reliability of their network equipment.
Plug-and-Play Installation
As an unmanaged switch, this model offers simple plug-and-play installation, eliminating the need for complex configuration or setup procedures. Users can easily connect their devices to the switch and start enjoying high-speed network connectivity immediately. The ease of use makes it a convenient solution for those who may not have extensive networking knowledge, allowing organizations to implement effective networking solutions without requiring specialized IT resources.
Robust Power Supply and Redundancy
The IES7211-8GE4GF-DC supports dual power inputs for redundancy, ensuring continuous operation even in the event of a power supply failure. This feature is critical for maintaining uptime in industrial applications where network reliability is essential. By providing a reliable power solution, this switch helps protect against downtime, making it an excellent choice for mission-critical applications that demand consistent network availability.
Connectivity Solutions
12 Port Gigabit Industrial Switch Connectivity Solution
Specification
Technical Specifications :
IES7211-8GE4GF-DC10M/100M/1G RJ45 copper ports :
81.25G SFP (fiber) ports :
4Performance Specification :
*Packet buffer memory :
1.6 MbForwarding modes :
Store-and-forwardBandwidth :
24 GbpsPacket forwarding rate :
17.87Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
159,866 hours (MTBF) @ 25°C100M Copper Latency :
8.532µs; 8.613µs; 8.712µs1G Copper Latency :
3.435µs; 3.541µs; 3.643µs1G Fiber Latency :
2.993µs; 3.112µs; 3.183µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, ActivityPer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
48 x 110 x 150mm (1.89 x 4.33 x 5.91 in)Weight :
1 kg (2.2 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 12~54V, redundant power with reverse polarity protectionMax power :
11WIddle power consumption :
5WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial Switch;Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
Questions & Answers
1. What is the port configuration of the IES7211-8GE4GF-DC Industrial Switch?
This switch includes 8 Gigabit Ethernet ports and 4 SFP ports, supporting both copper and fiber connections for high-speed and long-distance networking.
2. Can the IES7211-8GE4GF-DC operate in harsh industrial conditions?
Yes, it functions reliably in temperatures ranging from -40°C to 85°C and has an IP40-rated housing for protection against dust and mechanical stress.
3. What are the benefits of the 4 SFP ports?
The 4 SFP ports allow for flexible and long-distance fiber connections, making it ideal for uplinking to backbone networks or extending the network over large areas.
4. Does the IES7211-8GE4GF-DC support redundant power?
Yes, it features dual power inputs to ensure continuous operation. If one power source fails, the backup takes over automatically.
5. Is the IES7211-8GE4GF-DC suitable for quick installation?
Absolutely, it supports DIN-rail mounting for fast, secure, and space-efficient installation in industrial setups.
