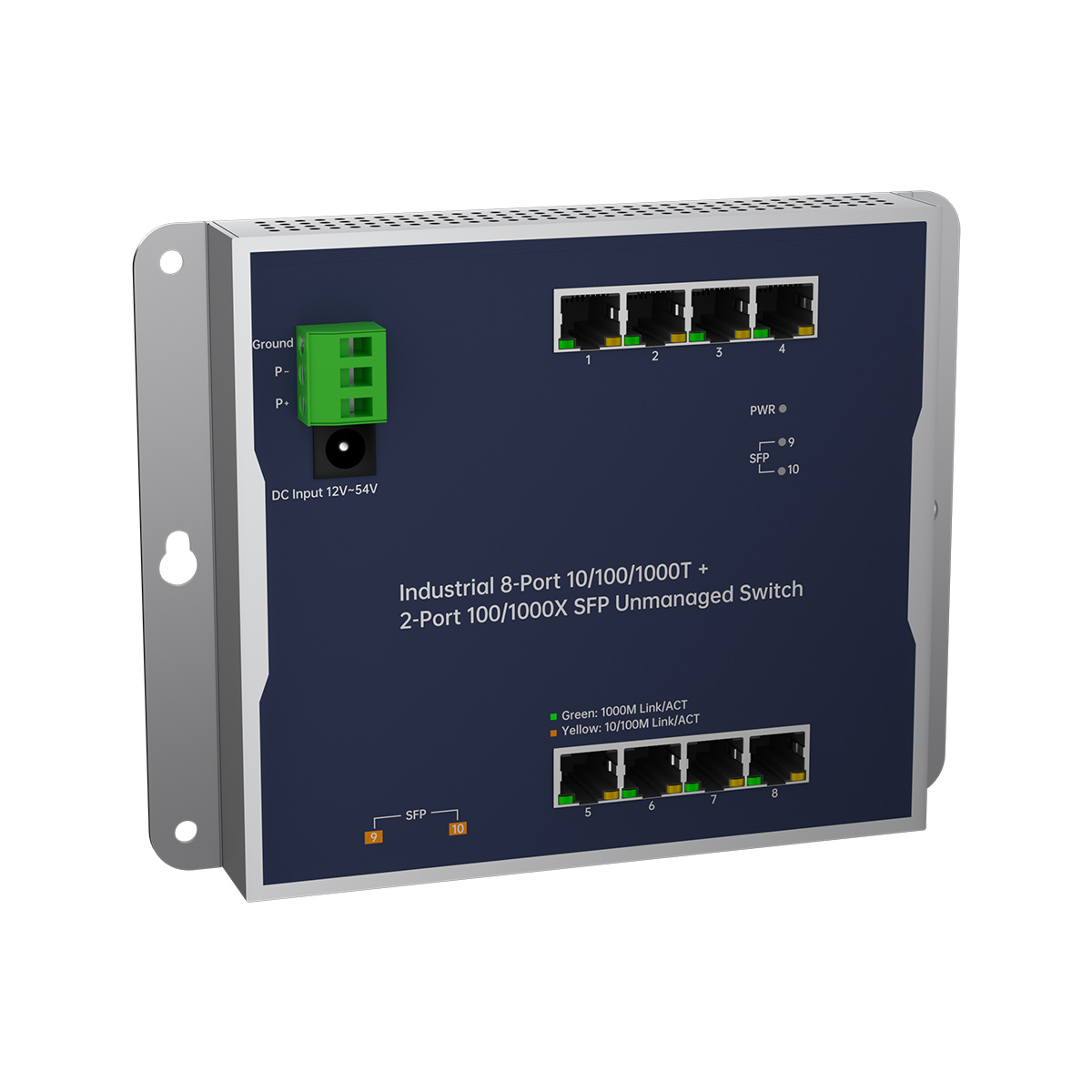

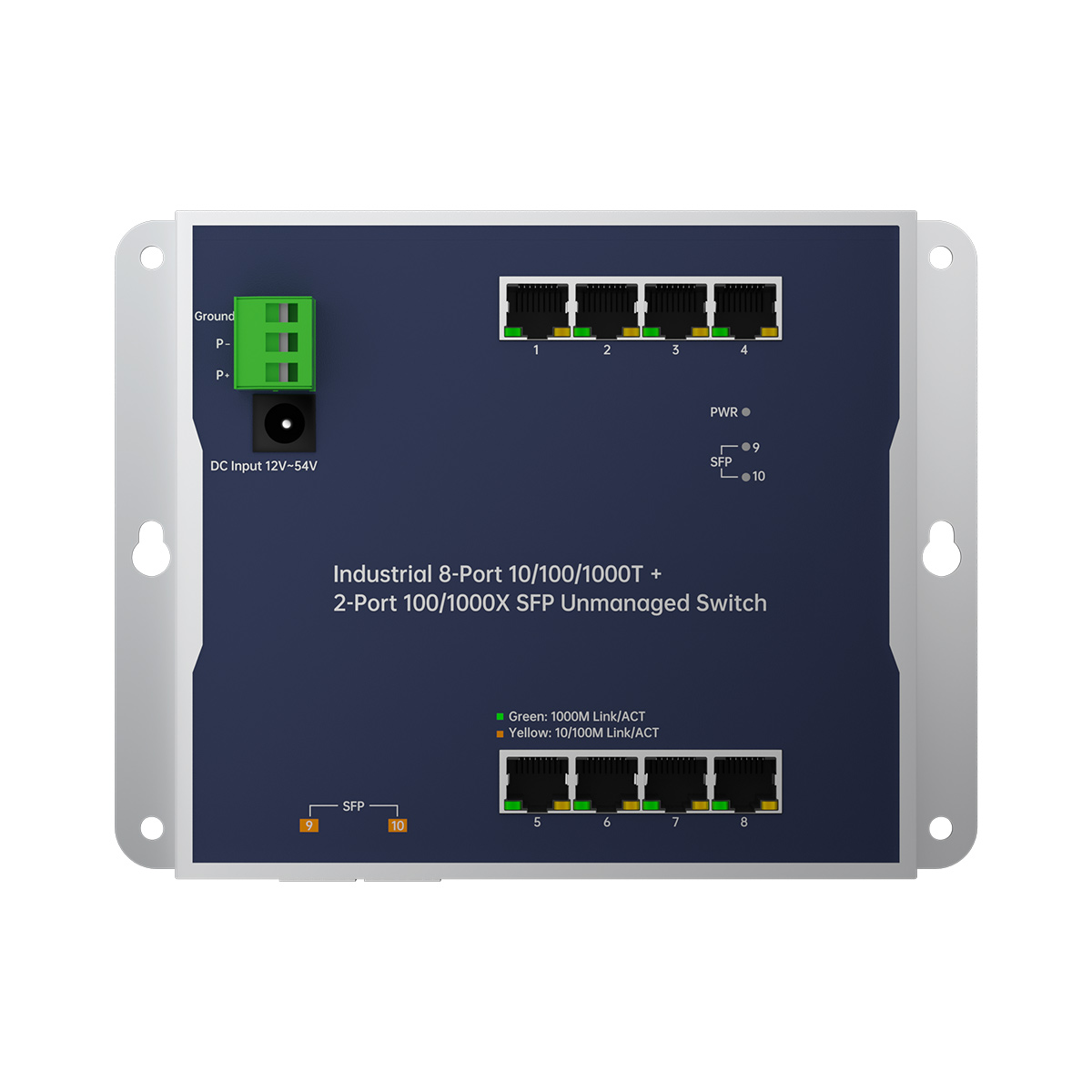

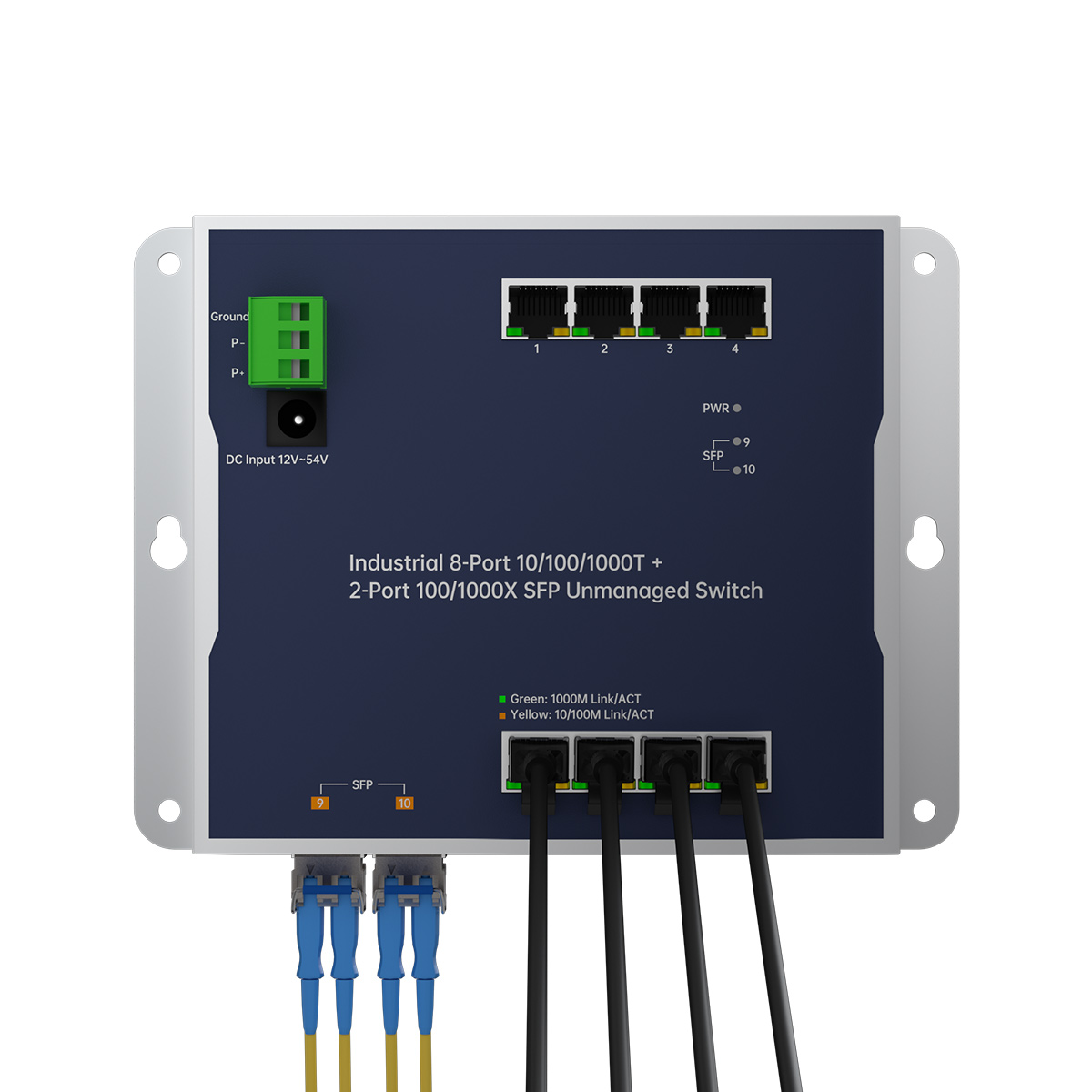

IES211W-8PGE2GF-DC, Flat-type 8 Port Gigabit Industrial PoE Switch,with 2 Gigabit SFP Uplink, Wall-mount or DIN-Rail Mount
Features
Ultra-Slim Flat Design for Space-Constrained Installations
The PoE switch’s flat, compact form factor minimizes footprint, making it ideal for tight spaces like control cabinets, utility poles, or narrow enclosures. Unlike bulky traditional switches, this design enables wall or DIN-rail mounting without obstructing airflow or adjacent equipment. Perfect for smart city, transportation, and industrial automation applications where space is limited. The sleek profile supports high-density deployment while maintaining serviceability and thermal efficiency—delivering enterprise-grade performance in a minimal footprint.
8-Port Gigabit PoE+ with Full Power Budget Support
Equipped with 8 IEEE 802.3af/at-compliant PoE+ ports, the switch delivers up to 30W per port, supporting high-power devices like PTZ cameras, wireless access points, and VoIP phones. With full gigabit speeds on all ports, it ensures zero latency and maximum throughput for bandwidth-intensive applications. The total power budget is optimized for simultaneous PoE operation, enabling reliable plug-and-play deployment across surveillance, building automation, and edge networks—reducing cabling complexity and power sourcing costs.

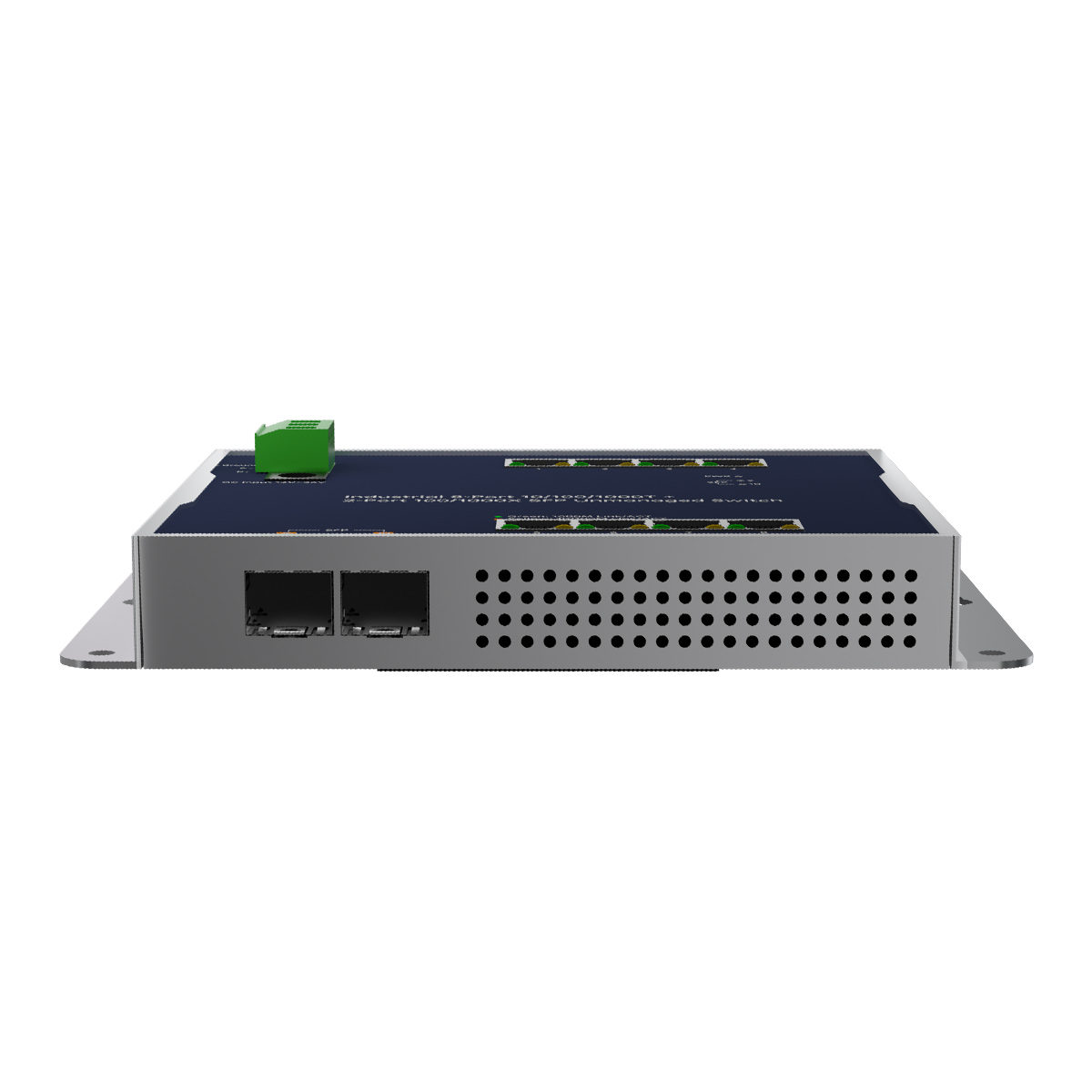

Dual Gigabit SFP Uplinks for Fiber Connectivity
Two 1.25G SFP slots support fiber optic uplinks for long-distance, EMI-immune backbone connections up to 80km (depending on fiber module). This enables seamless integration into ring or star topologies, ideal for industrial networks spanning multiple zones. Fiber uplinks enhance network reliability in high-noise environments such as substations, railways, or factories. Auto-negotiation and link-fault pass-through ensure fast failover and stable core connectivity—critical for mission-critical infrastructure requiring low latency and high availability.
Rugged Industrial Design with IP40 Rating & Redundant Power
Built for harsh environments, this flat-type industrial switch features an IP40-rated metal housing that protects against dust and solid contaminants. It supports dual DC power inputs (48–54V), enabling redundant power supply for uninterrupted operation during outages. Wide operating temperature range (-40°C to +75°C) ensures stability in extreme conditions—from freezing outdoor cabinets to overheated industrial sites. Conformal coating options are available for corrosion resistance, making it ideal for oil & gas, traffic systems, and renewable energy applications.
High-Level ESD and Surge Protection
Engineered for electromagnetic resilience, the flat-type industrial poe switch supports ±8kV contact and ±15kV air discharge ESD protection on all ports. This guards against static damage during installation and operation in dry, high-static environments. Integrated surge protection on power and data lines ensures durability in lightning-prone or high-interference areas. These protections extend device lifespan, reduce field failures, and lower maintenance costs—making it a trusted choice for outdoor and industrial deployments where reliability is non-negotiable.

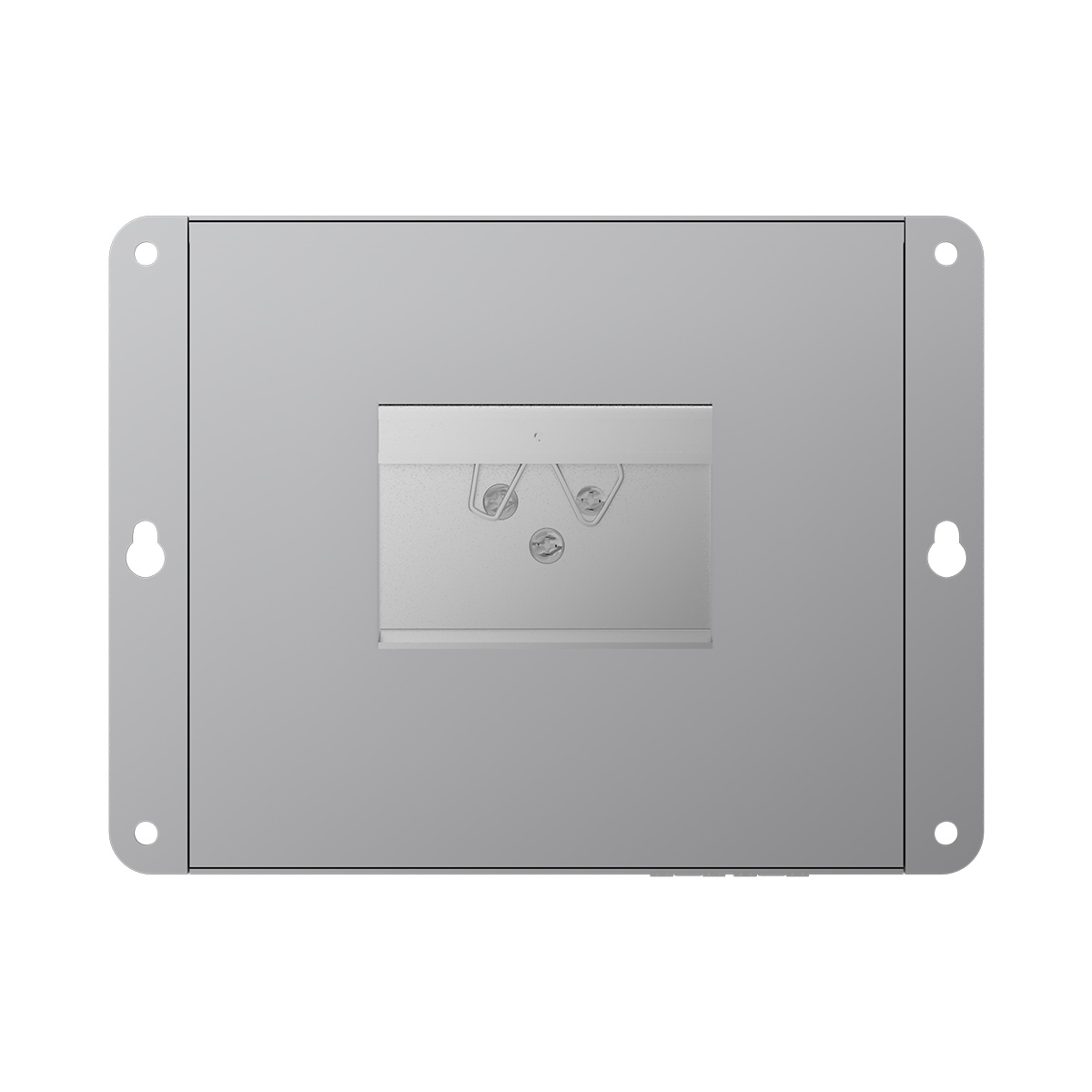

Flexible Mounting: Wall & DIN-Rail Options
Designed for versatile installation, this poe switch supports both wall mounting and standard 35mm DIN-rail attachment—ideal for control panels, junction boxes, or vertical surfaces. Tool-less rail clips enable quick deployment and easy maintenance. The mounting flexibility reduces integration time and supports rapid scalability across distributed networks. Whether deployed in a factory floor cabinet or roadside enclosure, its adaptability streamlines installation and improves service efficiency—perfect for system integrators and OEMs seeking plug-and-play readiness.
Connectivity Solutions

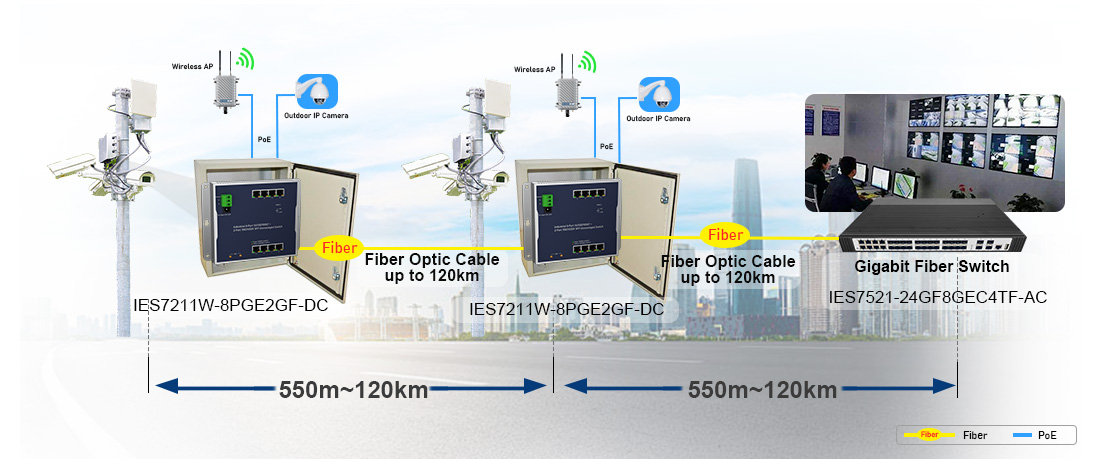

Flat-type Industrial PoE++ switch 8 Port with 2 Gigabit SFP Uplink of Application Solution
Specification
Technical Specifications :
IE7211W-8PGE2GF-DC10M/100M/1G RJ45 copper ports :
81.25G SFP (fiber) ports :
2PoE / PoE+ ports :
8Power over Ethernet :
*PoE Standard :
Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2(+), 3/6(-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
2.1 MbForwarding modes :
Store-and-forwardBandwidth :
24 GbpsPacket forwarding rate :
14.88Mpps (64 byte packet size)MAC address database size :
4K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
162,125 hours (MTBF) @ 25°C100M Copper Latency :
8.532µs; 8.613µs; 8.712µs1G Copper Latency :
3.435µs; 3.541µs; 3.643µs1G Fiber Latency :
2.993µs; 3.112µs; 3.183µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
178 x 134 x 24 mm (5.91 x 5.12 x 1.89 in)Weight :
0.69 kg (1.52 lb)Shell protection :
P40 high-strength casePower Requirements :
DC 48~54V, redundant power with reverse polarity protectionFan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 75°C (-40° to 176°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial PoE Switch； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets, Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
