Overview
IES7511-4PGE2GF-DC, 4 Ports Gigabit Managed Industrial PoE+ Switch,with 2 Gigabit SFP Uplink,4 PoE+ Ports@75W power budget, DIN-Rail mount
-
Physical Port
4-10/100/1000BASE-TX Fast Ethernet RJ45 ports with PoE+ (Ports 1 to 4)2-1.25GBASE-X mini-GBIC/SFP ports slot (Ports 5 to 6)1-RJ45 console interface for switch management and setup1-Reset button for system factory default and rebootPower over EthernetComplies with IEEE 802.3at Power over Ethernet Plus, end-span PSEBackward compatible with IEEE 802.3af Power over EthernetUp to 8 ports of IEEE 802.3af/802.3at devices poweredSupports PoE power up to 30 watts for each PoE portAuto detects powered device (PD)Remote power feeding up to 100 metersSwitchingBackplane bandwidth 24Gbps,Packet forwarding rate 14.88Mpps,MAC address 8kHardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operationHardwareIndustrial Case and InstallationIP40 High- strength Aluminum caseDIN-rail mount design48~56V DC, redundant power with reverse polarity protectionSupports 8KV DC Ethernet ESD protection-40 to 85 degrees C operating temperatureLED indicators for Power,PoE Working and LINK/ACT -
Lightning Protection
IEC61000-4-3 (RS):10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022):Class BIEC61000-6-2:Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :1000A/mIEC61000-4-10 (Damped oscillation) :30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kVIEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :30V, 300V, 1sIEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kVMechanical PropertiesIEC60068-2-6:Anti VibrationIEC60068-2-32:Free FallIEC60068-2-27:Anti ShockSecuritySupport IEEE 802.1xSupport RADIUS accountingSupport Access Control Lists (ACLs)Support MAC SecuritySupport IP Source Guard prevents IP spoofing attacksSupport DoS Attack PreventionSupport aaa authentication -
Layer 2 Features
Support IEEE 802.1Q VLANSupport MAC VLANSupport Surveillance VLANSupport Voice VLANSupports Spanning Tree ProtocolSupports Link Aggregation (LACP)Supports port mirrorSupports Multicast Filtering (IGMP)Supports DHCPSupports ERPSSupports RMONSupports MLD snoopingSupports MVRSupports Quality of Service (Qos)Supports Static routingSupports Port Error DisableSupports Rate LimitSupports Storm ControlSupports PoE ManagedManagementIPv4 and IPv6 dual stack managementWeb switch managementConsole/Telnet Command Line InterfaceSNMP v1 and v2c switch managementSSHv2, TLSv1.2 and SNMP v3 secure accessFirmware upload/download via HTTP/TFTPConfiguration upload / download through Web interfaceHardware reset button for system reboot or reset to factory defaultSNTP Network Time ProtocolNetwork DiagnosticLink Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
Features

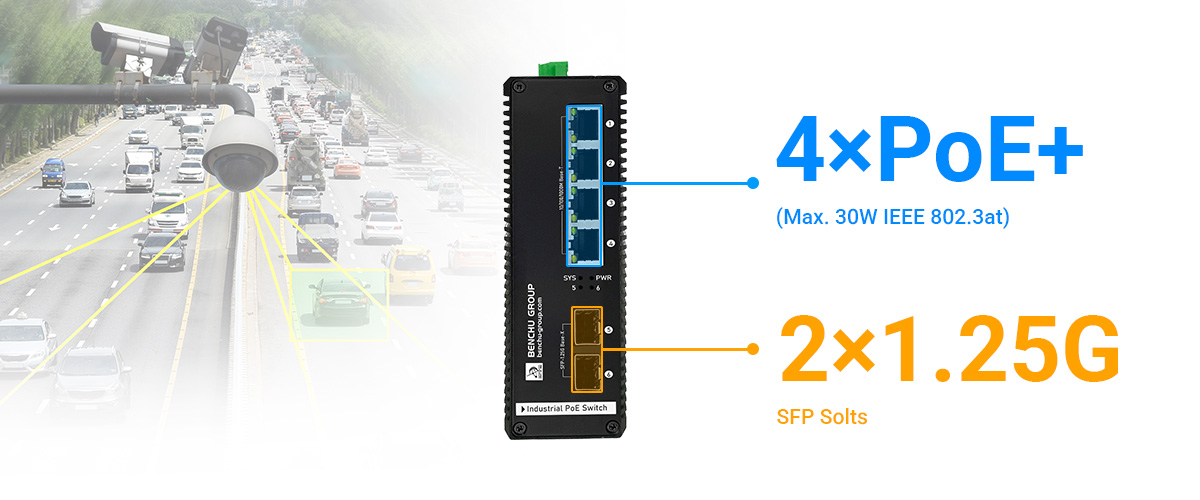

Gigabit Ethernet Port and Gigabit Fiber Port Configuration
The IES7511-4PGE2GF-DC gigabit managed industrial PoE switch provide 4 PoE+ 10/100/1000Mbps RJ45 ports and 2-1.25G SPF,with 1-RJ45 console interface for switch management and setup, with 1-Reset button for system factory default and reboot, support IEEE820.3af/at provide up to 30W per PoE port, support redundant power .

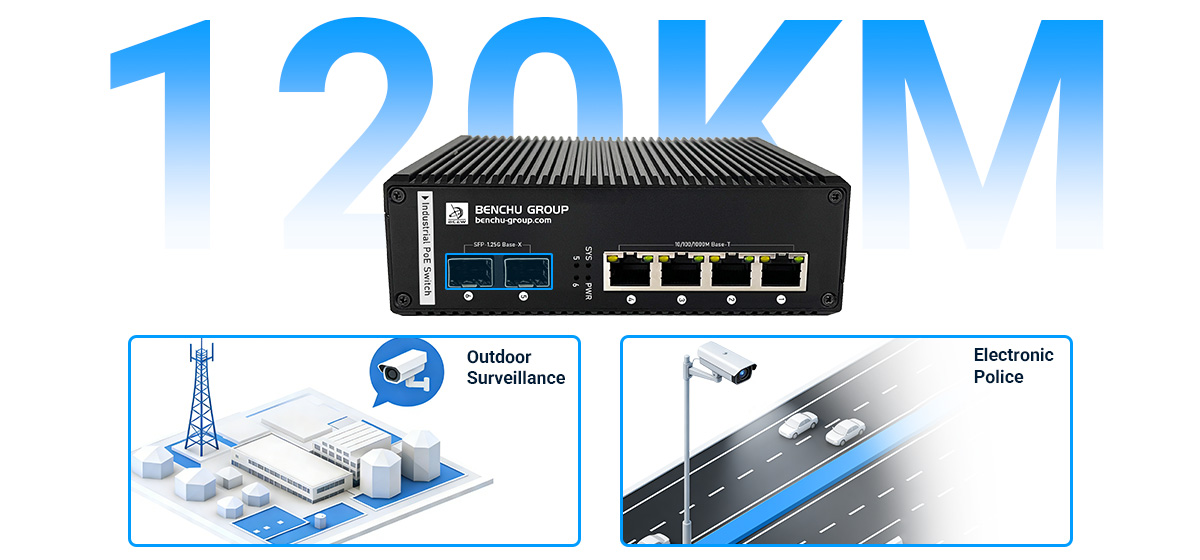

Two Gigabit SFP Uplink
The IES7511-4PGE2GF-DC Industrial PoE switch features two SFP port uplinks,With SFP transceivers, network links can extend over long distances, from 100 meters with copper cables to 2/20/40/60/80/120 kilometers with fiber optics. This extended reach makes SFP port uplinks ideal for connecting remote locations, such as Electronic police, outdoor surveillance, ensuring robust and reliable communication. SFP ports offer hot-swappable capabilities, allowing transceivers to be replaced or upgraded without disrupting network operations. This feature enhances network reliability and uptime, as maintenance and upgrades can be performed seamlessly. It also simplifies troubleshooting and reduces downtime in the event of a transceiver failure.
Ethernet Ring Protection Switching (ERPS) gives to Network Redundancy
Benchu group's IES7511-4PGE2GF-DC 4 Port Managed Industrial PoE switch support Ethernet Ring Protection Switching (ERPS) , Provides enhanced network redundancy by creating a ring topology that ensures continuous data flow. If a link fails, the network automatically reroutes traffic to maintain connectivity. This rapid failover mechanism minimizes downtime and maintains high availability, crucial for mission-critical applications. ERPS's self-healing capability ensures that network operations continue smoothly without manual intervention, providing a reliable and robust networking solution that meets the demands of modern enterprise environments.
SSH (Secure Shell) Gives to Secure Remote Access
The IES7511-4PGE2GF-DC support SSH (Secure Shell) , Provides secure remote access to network devices and servers. By encrypting the session, SSH ensures that data transmitted between the client and server is protected from eavesdropping, tampering, and interception. This secure channel allows administrators to manage and configure devices remotely with confidence, maintaining the confidentiality and integrity of sensitive information during remote operations.

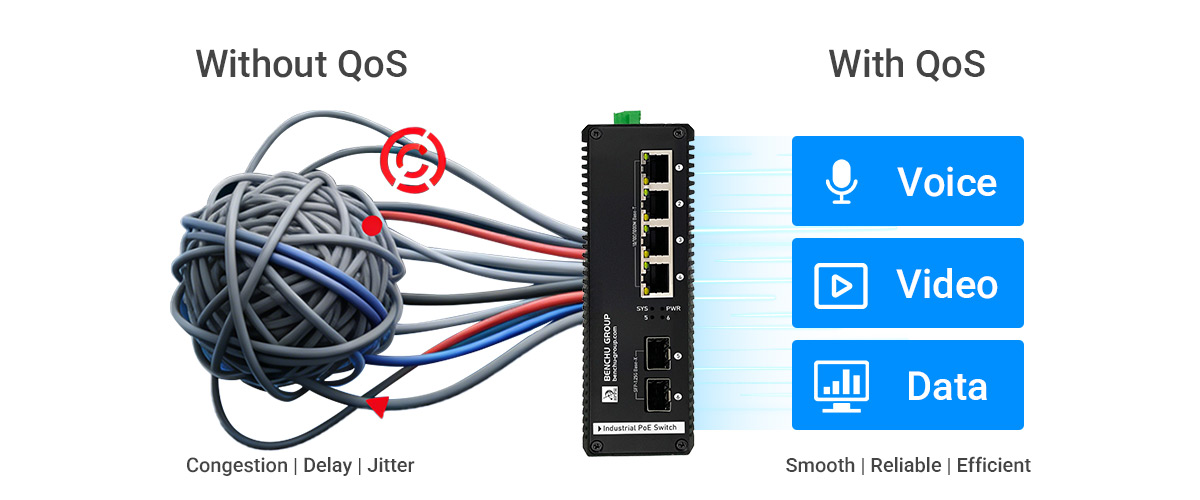

Quality of Service (QoS) gives to Improved Network Performance
Benchu group's IES7511-4PGE2GF-DC 4 Port Managed Industrial PoE switch support Quality of Service (QoS) protocols enhance network performance by prioritizing critical traffic, such as voice, video, and real-time applications. By managing bandwidth allocation and minimizing congestion, QoS ensures that high-priority traffic experiences lower latency, reduced jitter, and minimal packet loss. This prioritization results in smoother and more reliable performance for essential services, leading to improved user experience and overall network efficiency.
SNMP (Simple Network Management Protocol) Gives to Centralized Network Management
Benchu group's IES7511-4PGE2GF-DC 4 Port Managed Industrial PoE switch support SNMP (Simple Network Management Protocol) enables centralized management of network devices, providing administrators with a unified interface to monitor and control routers, switches, servers, and other networked equipment. This centralization simplifies network oversight, allowing for comprehensive visibility and streamlined management of diverse devices from a single location. By aggregating data and controls, SNMP enhances the efficiency and effectiveness of network operations.
IPV4/IPV6 gives to Seamless Transition
Benchu group's IES7511-4PGE2GF-DC 4 Port Managed Industrial PoE switch support IPV4/IPV6 dual stack protocol, Enables a seamless transition from IPv4 to IPv6 by allowing both protocols to coexist on the same network infrastructure. This coexistence ensures that existing IPv4 devices and applications can continue to operate without interruption while new IPv6 devices are gradually integrated. The dual stack approach minimizes the complexity and risk associated with a complete network overhaul, providing a smooth migration path and reducing potential disruptions during the transition period.
Connectivity Solutions
4 port Gigabit Managed Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution
4 port Gigabit PoE Managed Industrial switch with 2 Gigabit SFP Uplink of connectivity Solution 2
Specification
Technical Specifications :
IE7511-4PGE2GF-DC10M/100M/1G RJ45 copper ports :
41.25G SFP (fiber) ports :
2PoE / PoE+ ports :
4Console Port (For config ) :
YesReset button :
YesPower over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)PoE Power Budget :
68 WattsPerformance Specification :
*Packet buffer memory :
1.6 MbForwarding modes :
Store-and-forwardBandwidth :
24 GbpsPacket forwarding rate :
8.93Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
181,365 hours (MTBF) @ 25°C100M Copper Latency :
8.414µs; 8.612µs; 8.751µs1G Copper Latency :
3.414µs; 3.545µs; 3.628µs1G Fiber Latency :
2.982µs; 3.111µs; 3.176µsL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesQinQ VLAN tagging :
YesIP-based VLANs :
YesMAC-based VLANs :
YesProtocol-based VLAN :
YesVoice VLAN :
YesVLAN mapping :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE 802.3x :
YesRing (ERPS,complies with G.8032) :
Yes, Recovery time < 50msIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesIEEE 802.1s Multiple Spanning Tree Protocol :
YesLayer 2 DHCP Relay :
YesL2 Services - Multicast Filtering :
YesIGMP snooping (v1, v2 and v3) :
YesMLD snooping support (v1 and v2) :
YesIGMP snooping querier (v2) :
YesMLD snooping querier (v1) :
YesMulticast VLAN Registration (MVR) :
YesL3 Services - Routing :
*IPv4 static routing :
100IPv6 static routing :
100Link Aggregation :
*Manual LAG :
Yes# of LAGs / # of members in each LAG :
8 LAGs with max 8 members in each LAGNetwork Monitoring and Discovery Services :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3RMON group 1,2,3,9 :
YesNetwork Security :
YesIEEE 802.1x :
YesRADIUS accounting :
YesAccess Control Lists (ACLs) :
YesIP-based ACLs (IPv4 and IPv6) :
L2 / L3 / L4MAC-based ACLs :
YesTCP/UDP-based ACLs :
YesControl MAC # static entries :
48Port-based security by locked MAC addresses :
YesDynamic ARP inspection :
YesDoS protection :
YesDoS attacks prevention :
YesNetwork storm protection, DoS :
YesQuality of Service (QoS) :
*Port-based rate limiting :
Yes ingress and egressPort-based QoS :
YesSupport for IPv6 fields :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
YesDestination MAC and IP :
YesIPv4 and v6 DSCP :
YesTCP/UDP-based :
YesWeighted Round Robin (WRR) :
YesStrict priority queue technology :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocols 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D (STP) • IEEE 802.1s (MSTP) • IEEE 802.1w (RSTP) • ITU-T G.8032 (ERPS)Management, Monitoring & Troubleshooting :
*Password management :
YesAccess control via RADIUS and TACACS+ :
YesIPv6 management :
YesSNMP v1/v2c/v3 :
YesPort mirroring :
Yes ingress and egressMany-to-one port mirroring :
6Cable test utility :
YesTLS/HTTPS Web-based access (version) :
Yes (v1.2)File transfers (uploads, downloads) :
TFTP / HTTPHTTP upload/download (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
150 x 120 x 48 mm (5.91 x 4.72 x 1.89 in)Weight :
0.9 kg (1.98 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 48~56V, redundant power with reverse polarity protectionPower Consumption :
75WMax power :
7WIddle power consumption :
5WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
L2+ Managed
Questions & Answers
1. What devices can the IES7511-4PGE2GF-DC power through its PoE+ ports?
The switch can power PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones, providing up to 30W per port, all through a single Ethernet cable, eliminating the need for separate power supplies.
2. How do the SFP uplink ports enhance network connectivity?
The two Gigabit SFP uplink ports offer high-speed, long-distance fiber connections, enabling flexible and reliable connectivity to backbone networks or remote locations, ideal for expanding your network over long distances.
3. What advanced features does the IES7511-4PGE2GF-DC offer for network management?
This managed switch supports advanced features such as VLAN for network segmentation, Quality of Service (QoS) for traffic prioritization, and SNMP for remote monitoring, enabling optimized network performance and management.
4. Can this 4 port Gigabit Managed Industrial PoE swtich be used in harsh industrial environments?
Yes, the IES7511-4PGE2GF-DC is built for industrial use, with an IP-rated enclosure designed to withstand extreme temperatures, vibrations, and shocks, making it ideal for factory automation, outdoor installations, and other rugged environments.
5. How does the DIN-rail mount benefit installation?
The DIN-rail mounting feature allows for easy installation in space-constrained environments, simplifying deployment in industrial settings. The compact design ensures a secure, stable setup in control cabinets, racks, and other industrial systems.
