IES7521-24PGE4TF-AC, Layer 3 Managed 24 Ports Gigabit Industrial PoE+ Switch,with 4-10Gb SFP+ Uplink,24 PoE+ Ports,500W Power Budget
Physical Port
Power over Ethernet
Switching
Hardware
Lightning Protection
Mechanical Properties
|
Layer 3 Features
Layer 2 Features
Security
Management
|
Features
Layer 3 Advanced Routing
The IES7521-24PGE4TF-AC supports Layer 3 protocols like OSPF, RIP, and static routing, enabling efficient communication between different subnets and VLANs. This capability reduces network congestion by offloading traffic from central routers, ensuring faster data processing. Ideal for industrial environments, it supports seamless interconnectivity across geographically distributed networks, providing a scalable solution for expanding systems in smart cities, factories, and transport hubs.
High-Performance 10G SFP+ Uplinks
Equipped with 4 10G SFP+ uplinks, this 24 port industrial PoE Switch ensures ultra-fast connectivity for core network infrastructure, long-distance fiber links, and high-bandwidth applications like data centers. These uplinks deliver the speed and reliability required for HD surveillance, industrial IoT, and real-time monitoring systems. The flexibility of fiber and copper options supports diverse deployment scenarios, making it future-proof for expanding network needs.
Intelligent PoE Power Delivery
The IES7521-24PGE4TF-AC supports IEEE 802.3af/at PoE standards, delivering up to 30W per port with a high PoE budget. Administrators can prioritize power allocation for critical devices like PTZ cameras and wireless access points. Advanced management features such as PoE scheduling and real-time monitoring ensure efficient energy use, reducing operational costs while ensuring uninterrupted device performance in mission-critical environments.
Industrial-Grade Durability
Designed for extreme conditions, this Managed 24 port industrial PoE switch operates in a wide temperature range (-40°C to +75°C) and resists shock, vibration, and electromagnetic interference. Its rugged metal housing and fanless design enhance reliability in harsh industrial and outdoor environments. This durability ensures consistent performance, making it suitable for applications like manufacturing, mining, and transportation systems.
Robust Network Security
This managed 24 port industrial PoE switch integrates enterprise-grade security features, including 802.1X authentication, Access Control Lists (ACLs), and secure management interfaces. These tools protect sensitive data and prevent unauthorized access to the network. For industrial networks handling critical operations, these features provide peace of mind by safeguarding against cyber threats and maintaining system integrity.

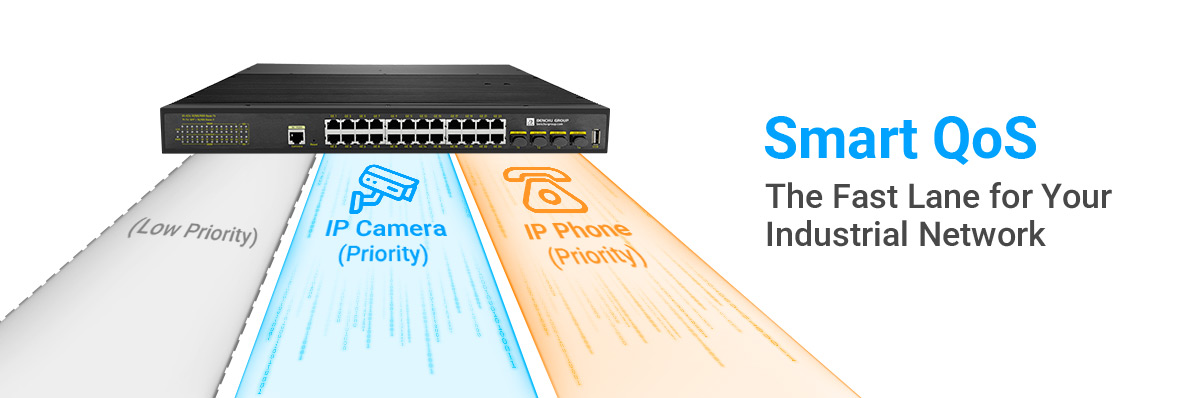

Traffic Optimization with QoS
Quality of Service (QoS) allows administrators to prioritize traffic based on application type, ensuring consistent performance for latency-sensitive tasks like VoIP and video surveillance. Advanced features like traffic shaping and bandwidth control enhance network efficiency by preventing bottlenecks. This functionality is critical for maintaining smooth operations in industrial environments with mixed traffic loads.
Simplified Network Management
This 24 port industrial PoE switch offers multiple management options, including web-based GUI, CLI, and SNMP, allowing users to monitor, configure, and troubleshoot the network with ease. Centralized management capabilities, such as real-time diagnostics and remote updates, simplify the operation of large-scale deployments. This reduces maintenance complexity, improving operational efficiency and ensuring maximum uptime for critical systems.
Connectivity Solutions
Layer 3 Managed 24 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Connection Solution
Layer 3 Managed 24 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Ring Network Connection Solution
Specification
Technical Specifications :
IE7521-24PGE4TF-AC10M/100M/1G RJ45 copper ports :
241G/2.5G/10G SFP+ (fiber) ports :
4PoE / PoE+ ports :
24Console Port (For config ) :
YesUSB port :
Yes (for firmware and config upload/ download)Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
12 MbForwarding modes :
Store-and-forwardBandwidth :
128 GbpsPacket forwarding rate :
96Mpps (64 byte packet size)MAC address database size :
16K (48-bit MAC ad-dresses)Jumbo frame support :
12KL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesQinQ VLAN tagging :
YesIP-based VLANs :
YesMAC-based VLANs :
YesProtocol-based VLAN :
YesVoice VLAN :
YesVLAN mapping :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE 802.3x :
YesRing (ERPS,complies with G.8032) :
Yes, Recovery time < 50msIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesIEEE 802.1s Multiple Spanning Tree Protocol :
YesLayer 2 DHCP Relay :
YesL2 Services - Multicast Filtering :
YesIGMP snooping (v1, v2 and v3) :
YesMLD snooping support (v1 and v2) :
YesIGMP snooping querier (v2) :
YesMLD snooping querier (v1) :
YesMulticast VLAN Registration (MVR) :
YesL3 Services - DHCP :
*DHCP client :
YesDHCP snooping :
YesDHCP Server :
YesL3 Services - Routing :
*IPv4 static routing :
100IPv6 static routing :
100VLAN routing :
YesRIP V1/V2 :
YesOSPF V2 :
YesNumber of IP VLAN interfaces :
YesPolicy routing :
YesVRRP :
YesLink Aggregation :
*Manual LAG :
Yes# of LAGs / # of members in each LAG :
8 LAGs with max 8 members in each LAGNetwork Monitoring and Discovery Services :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3RMON group 1,2,3,9 :
YesNetwork Security :
YesIEEE 802.1x :
YesRADIUS accounting :
YesAccess Control Lists (ACLs) :
YesIP-based ACLs (IPv4 and IPv6) :
L2 / L3 / L4MAC-based ACLs :
YesTCP/UDP-based ACLs :
YesControl MAC # static entries :
48Port-based security by locked MAC addresses :
YesDynamic ARP inspection :
YesDoS protection :
YesDoS attacks prevention :
YesNetwork storm protection, DoS :
YesQuality of Service (QoS) :
*Port-based rate limiting :
Yes ingress and egressPort-based QoS :
YesSupport for IPv6 fields :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
YesDestination MAC and IP :
YesIPv4 and v6 DSCP :
YesTCP/UDP-based :
YesWeighted Round Robin (WRR) :
YesStrict priority queue technology :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocols 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D (STP) • IEEE 802.1s (MSTP) • IEEE 802.1w (RSTP) • ITU-TG.8032 (ERPS)Management, Monitoring & Troubleshooting :
*Password management :
YesAccess control via RADIUS and TACACS+ :
YesIPv6 management :
YesSNMP v1/v2c/v3 :
YesPort mirroring :
Yes ingress and egressMany-to-one port mirroring :
28Cable test utility :
YesTLS/HTTPS Web-based access (version) :
Yes (v1.2)File transfers (uploads, downloads) :
TFTP / HTTPHTTP upload/download (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Weight :
<6.6 kg (11.55 lb)Power Consumption :
500W (when all ports used, line-rate traffic and max PoE)Max power :
18W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Iddle power consumption :
11W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-30° to 75°C (-22° to 167°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1G+10GMore Filters :
L3 Managed
