IES7521-24PGE8GFC4TF-AC, Layer 3 Managed 24 Ports Gigabit Industrial PoE+ Switch,with 8-1.25G SFP Combo, with 4-10Gb SFP+ Uplink,24 PoE+ Ports,500W Power Budget
Physical Port
Power over Ethernet
Switching
Hardware
Lightning Protection
Mechanical Properties
|
Layer 3 Features
Layer 2 Features
Security
Management
|
Features

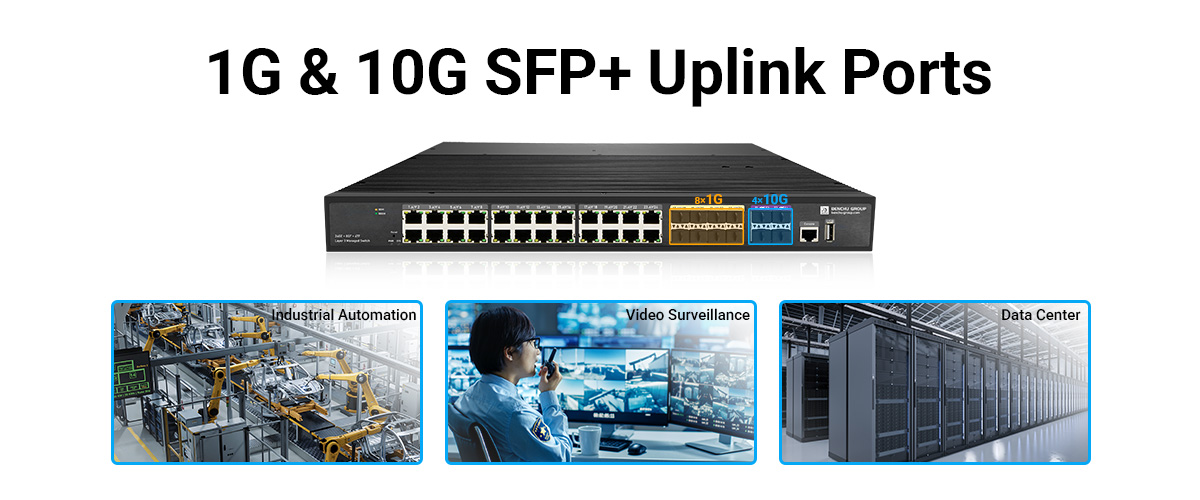

1G SFP and 10G SFP+ Uplink Ports
With 8 1G SFP and 4 10G SFP+ uplinks, the 24 port PoE industrial switch provides versatile connectivity options for extended networks. The 1G SFP ports are ideal for medium-distance links, while the 10G SFP+ uplinks ensure ultra-fast data transmission over long distances. This combination supports bandwidth-intensive applications, ensuring seamless performance in industrial automation, video surveillance, and data centers.
Advanced Layer 3 Management
This 24 port PoE industrial switch offers advanced Layer 3 features, including VLAN, QoS, IGMP Snooping, and Link Aggregation,RIP,OSPF,VRRP. These functions enable precise traffic control, optimize network performance, and enhance security. Administrators can configure and monitor the network efficiently through a user-friendly web interface, CLI, or SNMP, ensuring maximum reliability for mission-critical applications.

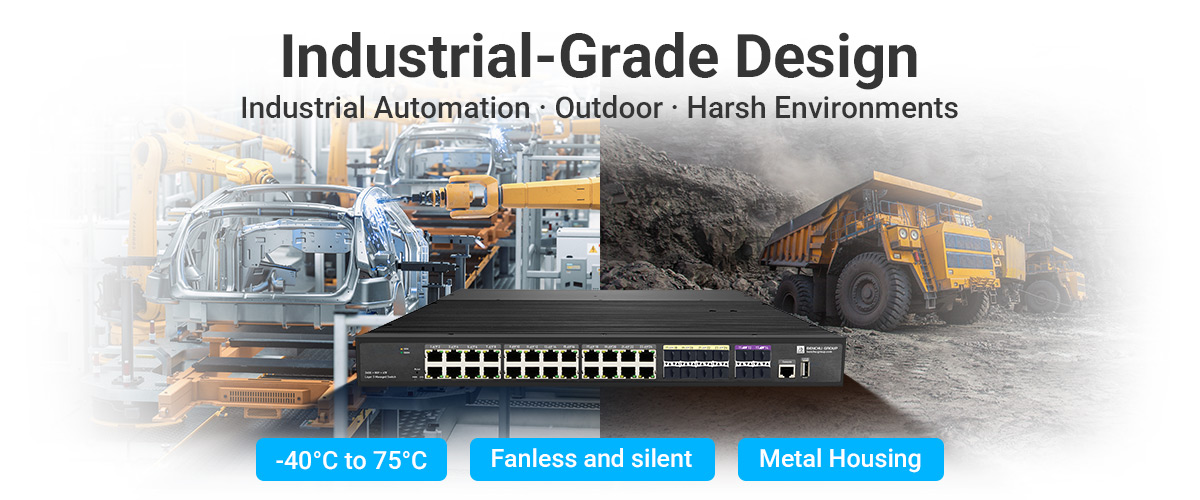

Industrial-Grade Design
Built for rugged environments, this 24 port poe industrial switch operates reliably in extreme conditions, with a wide operating temperature range of -40°C to 75°C. Its fanless design ensures silent operation, and the robust metal housing provides excellent durability. These features make it suitable for industrial automation, outdoor deployments, and harsh environments, ensuring consistent performance under demanding conditions.
Enhanced Network Security
The IES7521-24PGE8GFC4TF-AC includes advanced security features like port security, DHCP snooping, and ACLs to prevent unauthorized access and protect data integrity. These safeguards mitigate cyber threats and ensure secure communication across the network. Its comprehensive security suite is ideal for applications requiring high levels of data protection, such as financial systems or government networks.
High Bandwidth and Low Latency
The integration of 10G uplink ports ensures high-speed data transfer and reduced latency, crucial for applications like 4K video streaming, IoT, and industrial control systems. Its non-blocking architecture ensures all ports operate at full capacity simultaneously, supporting data-intensive workflows and ensuring smooth operation in high-traffic environments.
Easy Installation and Integration
With plug-and-play PoE capability and flexible SFP uplink options, the switch is easy to deploy and integrates seamlessly into existing networks. The intuitive management interface and smart features reduce setup time, allowing businesses to focus on scaling their operations with minimal effort.
Connectivity Solutions
Layer 3 24 Port PoE Industrial Managed Switch with 8-1G SFP and 4-10G SFP+ Uplink Connection Solution
Layer 3 24 Port PoE Industrial Managed Switch with 8-1G SFP and 4-10G SFP+ Uplink Ring Network Connection Solution
Specification
Technical Specifications :
IE7521-24PGE8GFC4TF-AC10M/100M/1G RJ45 copper ports :
16Gigabit R4J5 and SFP Combo :
8 RJ45/SFP Combo1G/2.5G/10G SFP+ (fiber) ports :
4PoE / PoE+ ports :
24Console Port (For config ) :
YesUSB port :
Yes (for firmware and config upload/ download)Reset button :
YesPower over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
12 MbForwarding modes :
Store-and-forwardBandwidth :
256 GbpsPacket forwarding rate :
118MppsMAC address database size :
16KJumbo frame support :
12KL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesQinQ VLAN tagging :
YesIP-based VLANs :
YesMAC-based VLANs :
YesProtocol-based VLAN :
YesVoice VLAN :
YesVLAN mapping :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE 802.3x :
YesRing (ERPS,complies with G.8032) :
Yes, Recovery time < 50msIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesIEEE 802.1s Multiple Spanning Tree Protocol :
YesLayer 2 DHCP Relay :
YesL2 Services - Multicast Filtering :
YesIGMP snooping (v1, v2 and v3) :
YesMLD snooping support (v1 and v2) :
YesIGMP snooping querier (v2) :
YesMLD snooping querier (v1) :
YesMulticast VLAN Registration (MVR) :
YesL3 Services - DHCP :
*DHCP client :
YesDHCP snooping :
YesDHCP Server :
YesL3 Services - Routing :
*IPv4 static routing :
100IPv6 static routing :
100VLAN routing :
YesRIP V1/V2 :
YesOSPF V2 :
YesNumber of IP VLAN interfaces :
YesPolicy routing :
YesVRRP :
YesLink Aggregation :
*Manual LAG :
Yes# of LAGs / # of members in each LAG :
8 LAGs with max 8 members in each LAGNetwork Monitoring and Discovery Services :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3RMON group 1,2,3,9 :
YesNetwork Security :
YesIEEE 802.1x :
YesRADIUS accounting :
YesAccess Control Lists (ACLs) :
YesIP-based ACLs (IPv4 and IPv6) :
L2 / L3 / L4MAC-based ACLs :
YesTCP/UDP-based ACLs :
YesControl MAC # static entries :
48Port-based security by locked MAC addresses :
YesDynamic ARP inspection :
YesDoS protection :
YesDoS attacks prevention :
YesNetwork storm protection, DoS :
YesQuality of Service (QoS) :
*Port-based rate limiting :
Yes ingress and egressPort-based QoS :
YesSupport for IPv6 fields :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
YesDestination MAC and IP :
YesIPv4 and v6 DSCP :
YesTCP/UDP-based :
YesWeighted Round Robin (WRR) :
YesStrict priority queue technology :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocols 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning TManagement, Monitoring & Troubleshooting :
*Password management :
YesAccess control via RADIUS and TACACS+ :
YesIPv6 management :
YesSNMP v1/v2c/v3 :
YesPort mirroring :
Yes ingress and egressMany-to-one port mirroring :
28Cable test utility :
YesTLS/HTTPS Web-based access (version) :
Yes (v1.2)File transfers (uploads, downloads) :
TFTP / HTTPHTTP upload/download (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Weight :
<6.6 kg (11.55 lb)Power Consumption :
500W (when all ports used, line-rate traffic and max PoE)Max power :
24W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Iddle power consumption :
12W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1G+10GMore Filters :
L3 Managed
