Industrial 90W Gigabit PoE Extender & Repeater | OEM

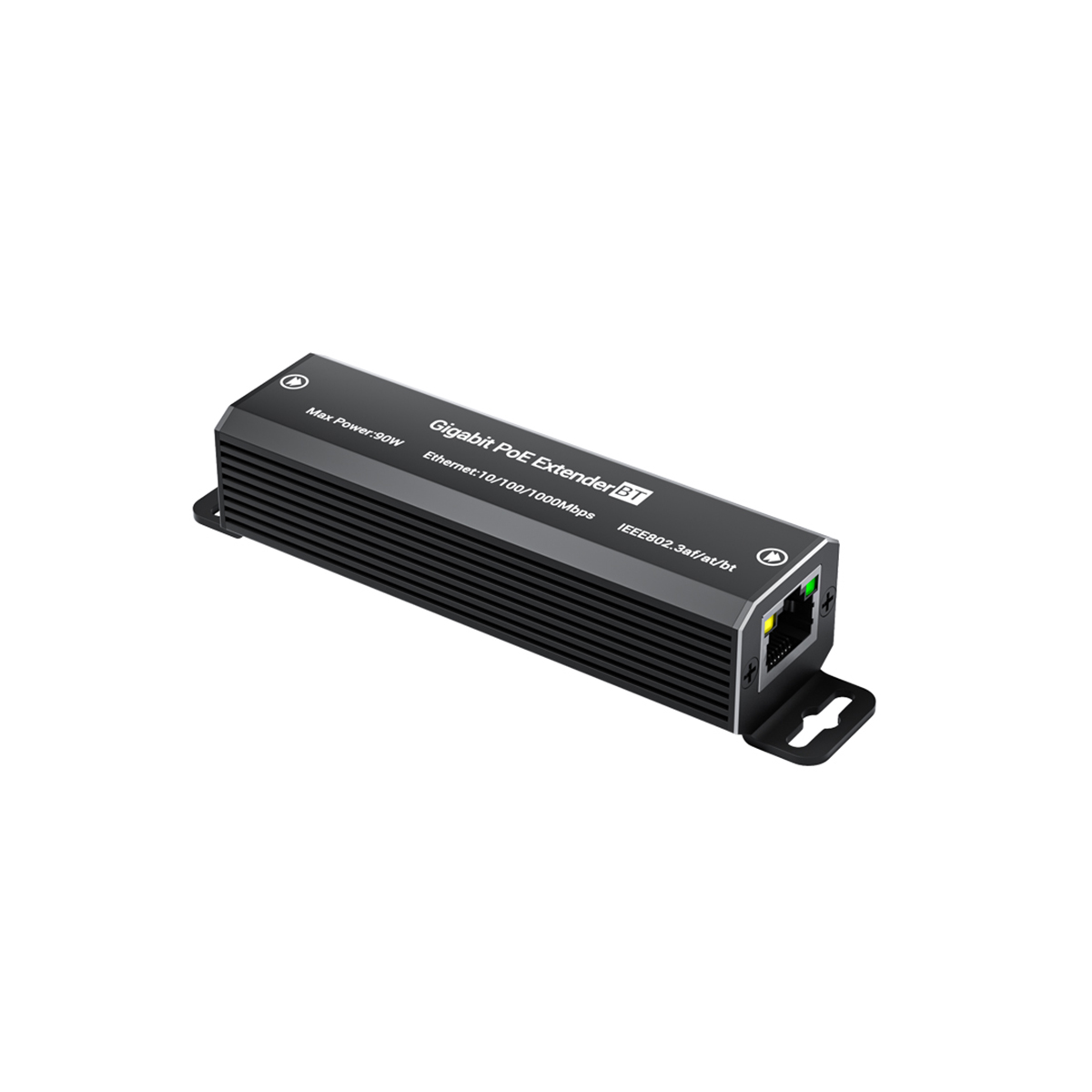

Left angled view of Benchugroup 90W industrial PoE repeater showing gigabit RJ45 input port and LED status indicators.

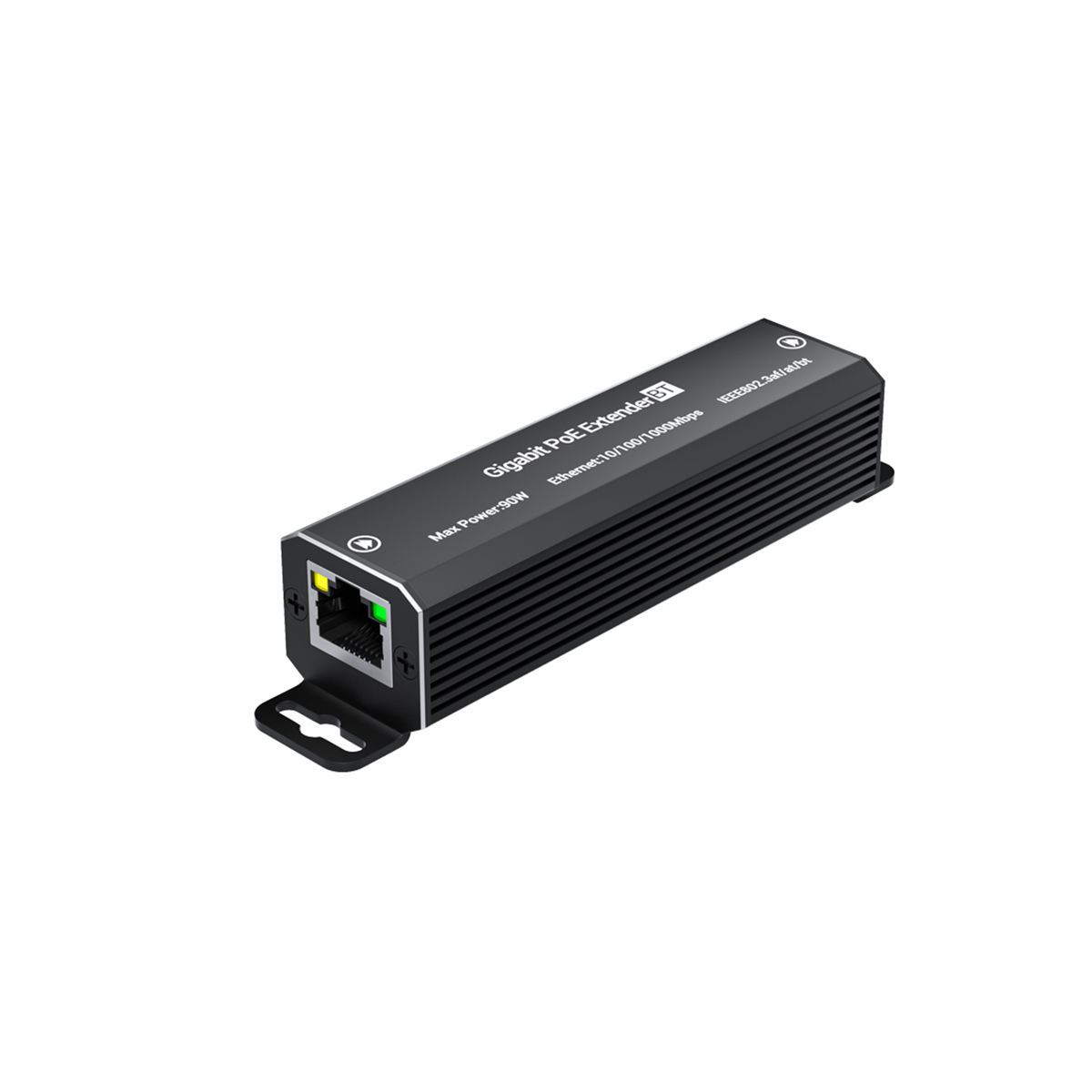

Right angled profile of 1-port 90W PoE extender switch highlighting the outdoor IP40 aluminum casing and PoE output port.

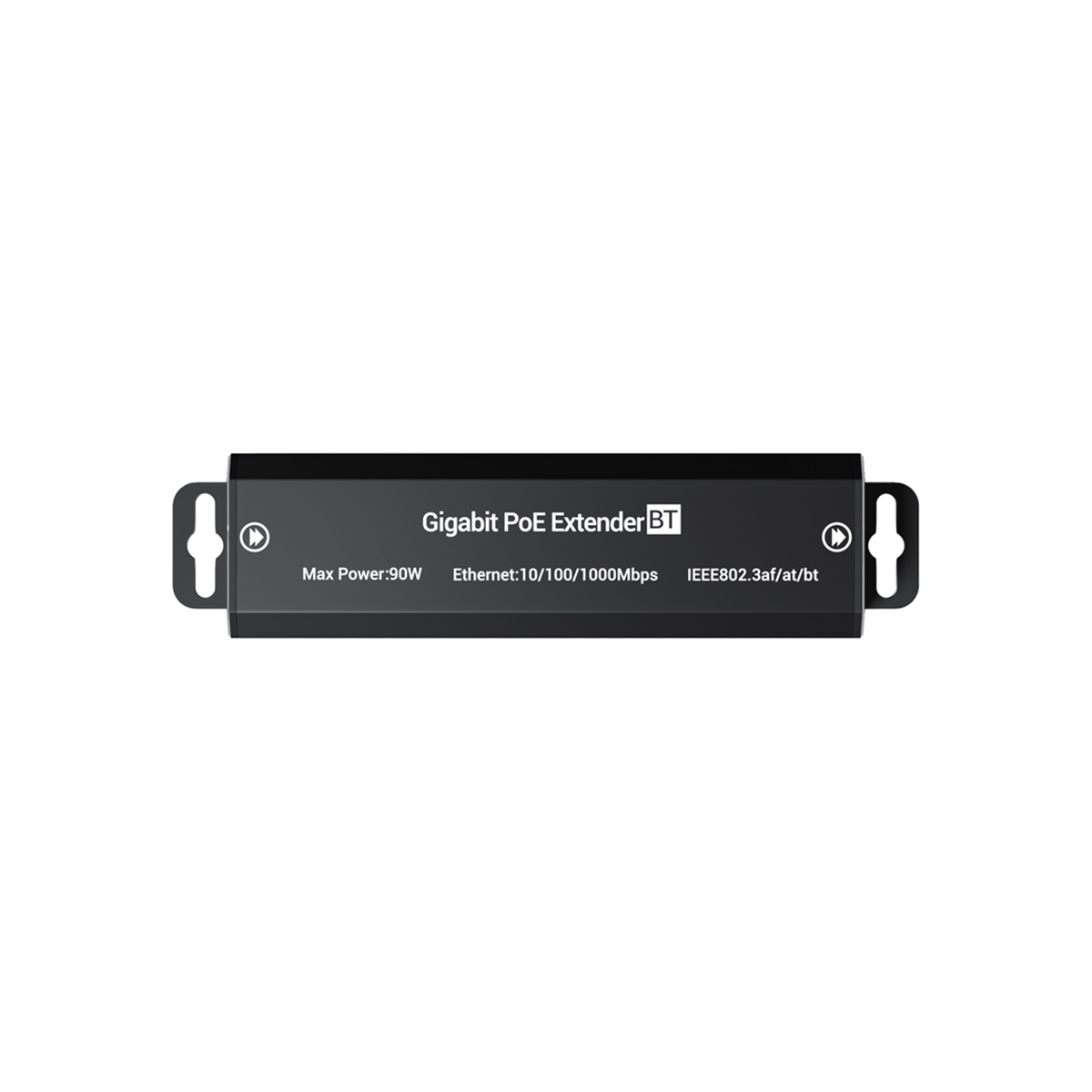

Top-down view of compact industrial 90W PoE repeater detailing the slim profile, and wall mount bracket.

Industrial 90W Gigabit PoE Extender & Repeater | OEM

Inquire Now

An industrial-grade gigabit poe extender and poe repeater delivering up to 90W IEEE 802.3bt input and 85W maximum output to a single high-power endpoint without local AC wiring (-40℃~75℃). Engineered with low internal insertion loss to guarantee up to 75W usable budget after 100 meters, making this poe ethernet repeater an ideal white-label solution for global brand owners and system integrators

Product Highlights

    High-Efficiency 90W Passthrough: Accepts up to 90W IEEE 802.3bt input, supplying a maximum local output of 85W and maintaining 75W guaranteed load power at 100 meters (328 ft).

    Single-Port Longspan PoE Extension: Designed as a heavy-duty poe repeater switch module to extend Gigabit data and high-wattage power beyond the standard 100m Ethernet limit.

    Industrial Hardening: IP40 aluminum alloy enclosure, fanless passive cooling, 6kV surge protection, and ESD protection (±8kV Contact , ±15kV Air).

    Plug-and-Play Auto-Sensing: Functions as an inline poe extender switch with auto-sensing IEEE 802.3af/at/bt protocol matching, preventing power-overload damage to legacy network gear.



Industrial 90W Gigabit PoE Extender & Repeater | Ultra-Rugged Outdoor Pass-Through Hub | OEM / ODM

High-Power 802.3bt Longspan Extension Delivering Up to 75W Guaranteed Load Power at 100 Meters Without Local AC Outlets

Bypass 100m Ethernet Limits & AC Wiring Costs: Inline High-Wattage Boosting for Field Edge Nodes

The Industrial 90W Gigabit PoE Extender & Repeater is an unmanaged, plug-and-play inline power booster built to overcome cable distance limits and heavy line-resistance voltage drops in remote outdoor sites. Powered directly by an upstream IEEE 802.3bt Type 4 (90W) PoE++ supply, it regenerates full-duplex 1000Mbps data and high-power electrical current, delivering an unprecedented 85W max local output and maintaining a steady 75W guaranteed load power at 100m. Encased in an IP40 aluminum wall-mount chassis with 6kV surge protection and wide temperature endurance (-40°C to 75°C), it eliminates costly local AC power trenching, bulky transformer boxes, and ground loops—providing global System Integrators and OEM brand partners with an ultra-reliable, zero-maintenance longspan networking solution.

Target Localized Zero-Grid Application Scenarios

This ruggedized 90W inline repeater is purpose-built for high-power long-distance edge deployments where installing local AC electrical lines is cost-prohibitive:

High-Power Perimeter PTZ & Thermal Cameras

Powers heavy-duty PTZ speed domes equipped with built-in wipers and IR illuminators over extended 200m runs. The guaranteed 75W payload prevents camera rebooting or heater failures during cold night operations.

Next-Gen Outdoor Wi-Fi 7 / 6E AP Backhaul

Supplies seamless Gigabit data and stable 802.3bt power to multi-radio outdoor wireless access points on high poles, highway gantries, or sports fields without running high-voltage AC cables up the tower.

Remote Industrial IoT & 5G Edge Gateways

Acts as an inline power booster for outdoor 5G CPEs, edge AI vision boxes, and smart city pole nodes in harsh industrial zones, withstanding severe electromagnetic interference (EMI) and broad thermal spikes.

Key Product Features & Technical Advantages

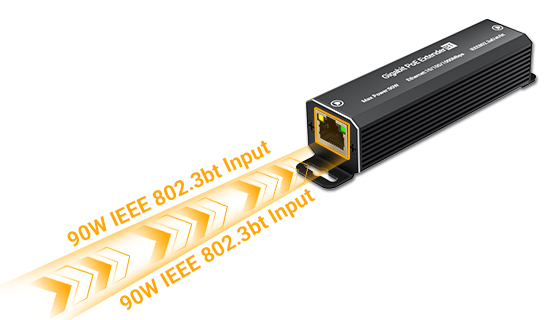

Industrial 90W PoE repeater upstream gigabit RJ45 port accepting IEEE 802.3bt power over ethernet.

90W IEEE 802.3bt Input

Accepts up to 90W continuous PoE++ wattage via its Gigabit uplink under IEEE 802.3bt Type 4 standard, powering both internal boosting circuits and high-draw downstream loads.

High-efficiency low line-loss PCB delivering guaranteed 75W output power at 100 meters cable length.

75W Guaranteed @ 100m

Engineered with heavy-copper PCBs to minimize line resistance, delivering up to 85W max local output and guaranteeing 75W actual load power at a 100-meter extended end.

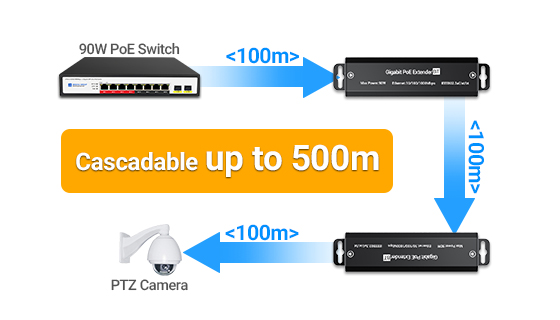

Multiple industrial PoE repeaters connected in series to extend gigabit network and power over 300m.

Multi-Hop Longspan Reach

Supports inline multi-stage daisy-chaining to push Gigabit data and PoE power beyond the 100m copper barrier to 200m, 300m, or further without line degradation.

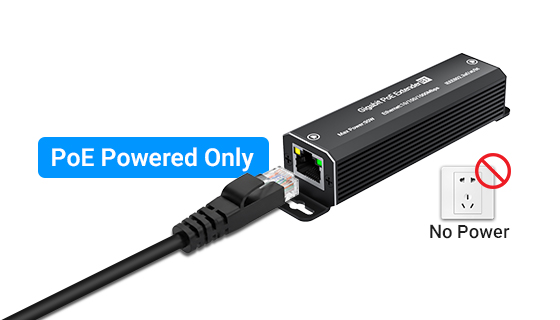

Inline 1-port gigabit poe extender powered entirely via Ethernet cable with zero AC power adapter.

Zero AC Mains Wiring

Operates as a 100% inline-powered extender hub. Totally eliminates costly field electrical conduit trenching, AC outlet drops, and external power adapters.

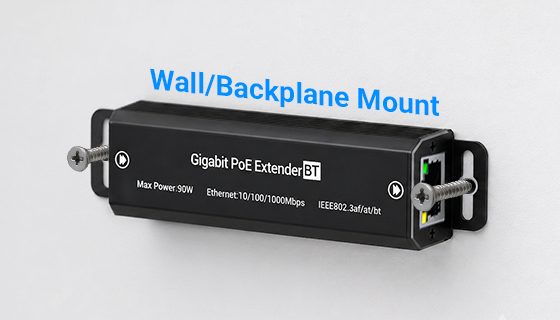

Industrial 90W PoE repeater with heavy-duty wall-mount flange ears for surface screw installation in outdoor cabinets.

Wall-Mount Heavy Brackets

Outfitted with dual heavy-duty side wall-mount flanges, enabling secure, anti-vibration screw-fastening directly onto flat walls, pole plates, or outdoor waterproof box backplanes.

Industrial-grade enterprise switching chipset providing 1000Mbps full-duplex wire-speed packet forwarding.

Wire-Speed Gigabit Chip

Powered by enterprise-grade switching controllers, guaranteeing non-blocking 1000Mbps full-duplex packet forwarding with zero latency and zero frame loss.

Industrial PoE extender operating reliably across wide temperature range from minus 40 to plus 75 celsius.

-40°C to 75°C Endurance

Built using pure industrial-grade semiconductor components, sustaining continuous 24/7 mission-critical operations under severe sub-zero cold or extreme desert heat.

Integrated 6KV surge suppressor protecting industrial poe repeater against lightning strikes and static.

6KV Surge Protection

Equipped with high-capacity TVS surge suppressors providing 6KV surge protection and ESD immunity on RJ45 ports to shield connected endpoints against outdoor lightning strikes.

Connectivity & Topology Solution

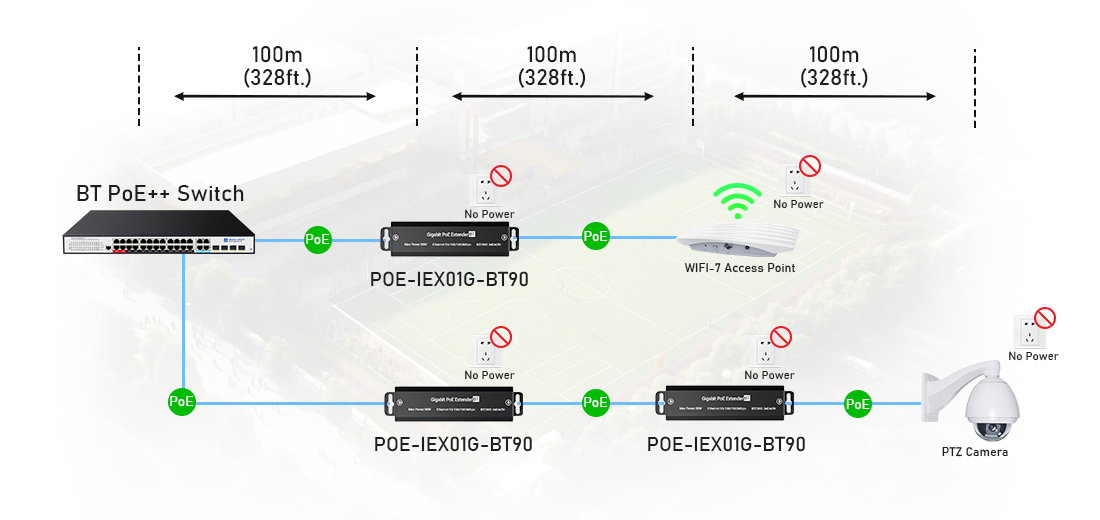

The diagram below illustrates how this 1-in-1-out poe extender switch extends both power and data to a high-power terminal device over a 200-meter total span without local AC power installation.

longspan poe repeater switch topology diagram 90w input 75w output at 100m
Step 1 (Power Input): 90W IEEE 802.3bt PoE++ Injector supplies power over standard Cat6 (Up to 100m).
Step 2 (Inline Boost): The poe repeater regenerates signal and power inline (0W local power drops).
Step 3 (High-Power Load): Delivers 75W guaranteed power to PTZ camera/AP at the 100m endpoint.

Technical Specifications

Parameter Specification Details
Product Type 1-Port 90W Industrial Gigabit PoE Extender / PoE Repeater
Interface 1x 10/100/1000M PoE++ Input (PD), 1x 10/100/1000M PoE Output (PSE)
Max Input Power 90W (IEEE 802.3bt Type 4)
Power Budget Performance 85W Max Output (Local) | 75W Guaranteed Load Power @ 100m Cat6
Transmission Reach 100 meters (328 ft) per hop; supports multi-hop Longspan PoE daisy-chaining
Surge / ESD Protection 6kV Surge Protection (IEC 61000-4-5); ESD 8kV Contact / 15kV Air
Operating Temperature -40°C to +75°C (-40°F to 167°F)
Enclosure & Mounting IP40 Aluminum Alloy Chassis; DIN-Rail or Wall-Mount
Certifications CE, FCC, RoHS, CB, ISO9001 Certified Factory

Frequently Asked Questions (FAQ)

Q1: How much usable power can this 90W gigabit poe extender deliver after a 100-meter cable run?

With a 90W IEEE 802.3bt input, this poe ethernet repeater delivers up to 85W max output locally and maintains a guaranteed 75W load power at 100 meters (using standard Cat6 oxygen-free copper cable), easily powering heavy PTZ cameras and Wi-Fi 7 APs.

Q2: Does this 1-port poe repeater switch require external DC power?

No. It operates completely on inline passthrough PoE power drawn from the upstream 802.3bt injector or switch, eliminating local electrical wiring costs.

Q3: What OEM/ODM customization options do you offer for overseas brand partners?

We offer complete turnkey OEM/ODM services including custom chassis silk-printing, enclosure color customization, private-label packaging, and customized datasheet design for volume orders with 4–6 week lead times.
