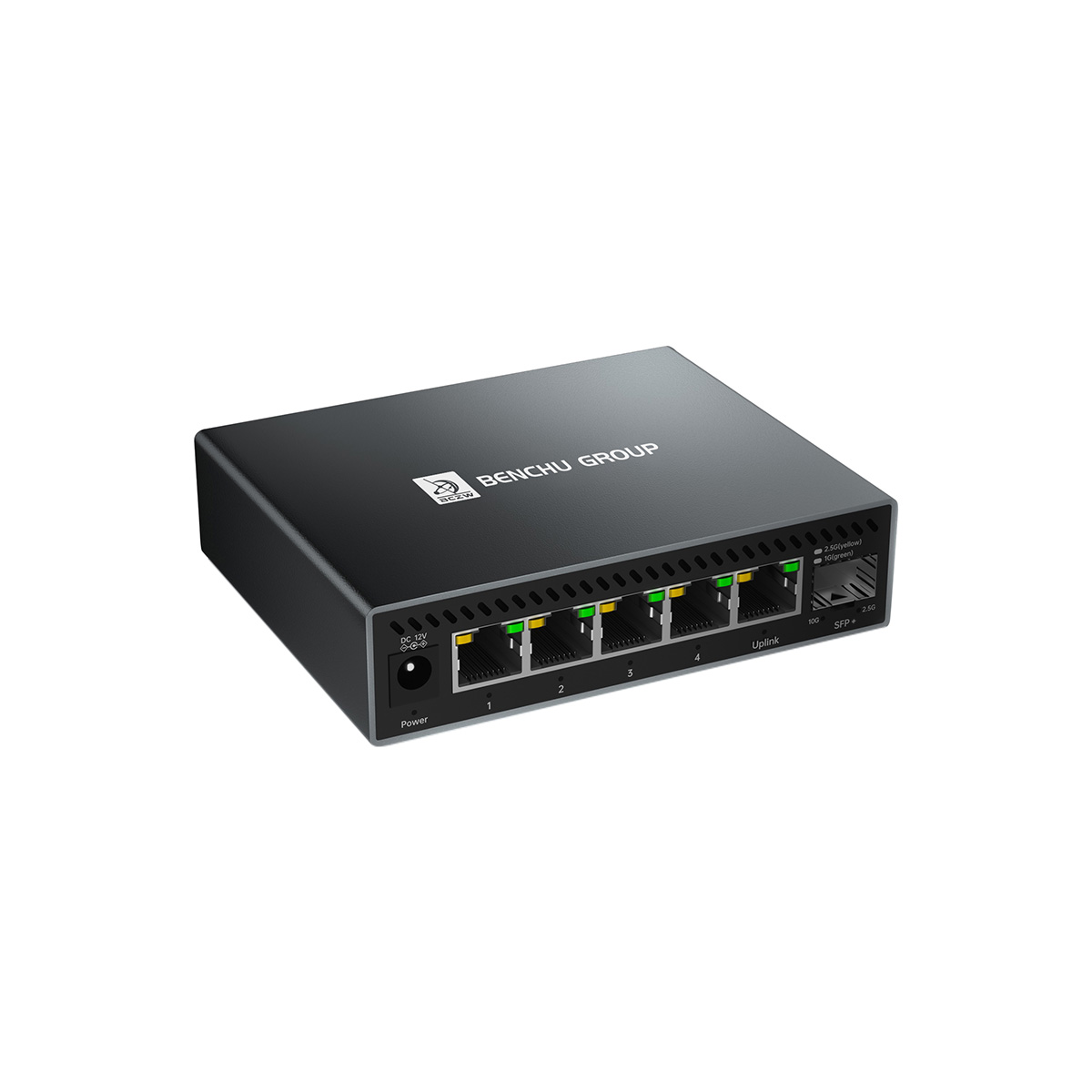

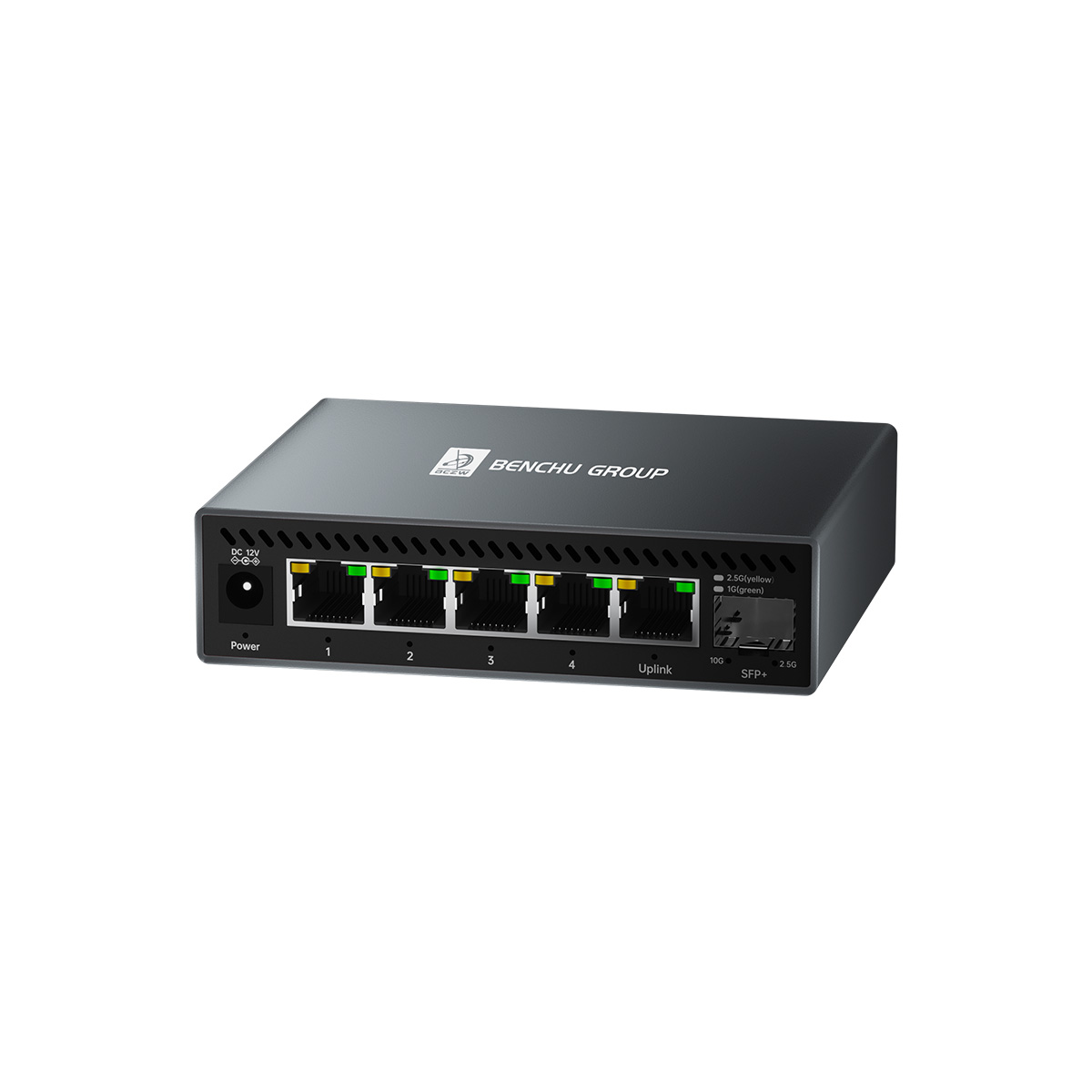

5 Port 2.5Gb Ethernet Switch with 10G SFP+ Port, Unmanaged Multi-Gig Switch for Gaming, NAS, 4K Streaming, Home & Office – Plug & Play, Fanless, Aluminum Housing，S7200-5XE1TF-DC

Specification

• Technical Specifications :

  S7200-4XE2TF-DC

• 10M/100M/1G/2.5G RJ45 copper ports :

  4

• 1G/2.5G/10G SFP+ (fiber) ports :

  2

• Performance Specification :

  *

• Packet buffer memory :

  8.2 Mb

• Forwarding modes :

  Store-and-forward

• Bandwidth :

  64 Gbps

• Packet forwarding rate :

  44.64Mpps

• MAC address database size :

  2K

• Mean Time Between Failures :

  120,116 hours (MTBF) @ 25°C

• IEEE Network Protocols :

  *

• Protocols :

  • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 100BASE-T • IEEE 802.3z 100BASE-X • IEEE 802.3bz 2.5GBASE-T • IEEE 802.3ae 10GBASE-X• IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

• Monitoring :

  *

• LEDs :

  Yes

• Per port :

  Speed, Link, Activity;

• Per device :

  Power

• Dimensions (Width * Depth * Height) :

  140 x 80 x 28mm (5.51 x 3.15 x 1.1 in)

• Weight :

  0.4 kg (0.88 lb)

• Power Requirements :

  DC12V 1A

• Max power :

  9W

• Iddle power consumption :

  5W

• Energy Efficient Ethernet (EEE) :

  Yes (deactivated by default)

• Fan :

  Fanless

• Environmental Specifications :

  *

• Operating Temperature :

  -20° to 50°C (-4° to 122°F)

• Operating Humidity :

  90% maximum relative humidity (RH), non-condensing

• Operating Altitude :

  10,000 ft (3,000 m) maximum

• Storage Temperature :

  -30° to 70°C (-22° to 158°F)

• Storage Humidity (relative) :

  95% maximum relative humidity, non-condensing

• Storage Altitude :

  10,000 ft (3,000 m) maximum

• Electromagnetic Emissions and Immunity :

  *

• Certifications :

  CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

• Safety :

  *

• Safety Certifications :

  CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

• Warranty and Support :

  *

• Hardware Limited Warranty :

  Limited Lifetime*

• Technical Support via Phone and Email* :

  Limited Lifetime*

• 24x7 Online Chat Technical Support :

  Limited Lifetime*

• Package Contents :

  *

• All models :

  Network Switch；Power adapter (localized to region of sale)

• Business Type :

  Commercial

• Bandridth :

  2.5G+10G

• More Filters :

  Unmanaged
