Overview

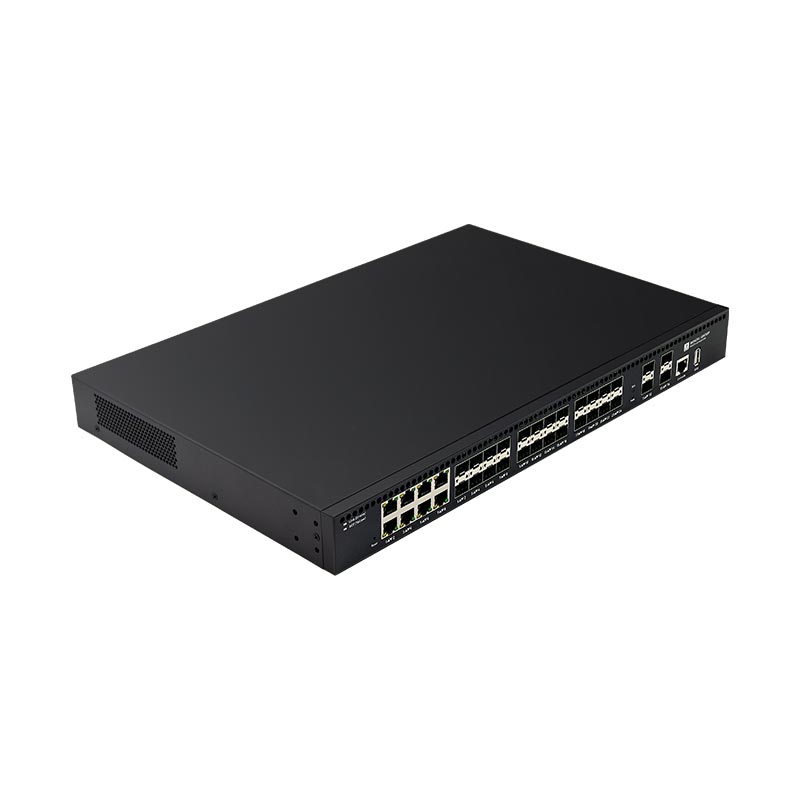

SP7500-24GF8GEC4TF-L3M, 24 Ports Gigabit SFP Managed Fiber Switch,with 4-10G SFP+ Uplink,Support IPV4/IPV6,Support ERPS,
BENCHU GROUP's SP7500-24GF8GEC4TF-L3M is designed for high-speed network environments that demand flexibility and scalability. Its 16 SFP ports allow for seamless fiber connectivity, ideal for long-distance data transmission, while the 8 RJ45/SFP combo ports offer flexibility between fiber and copper Ethernet connections. The 4 10G SFP+ uplinks enable future-proofing and high-performance data transfer, essential for businesses handling large volumes of data.
This 24 ports gigabit SFP managed fiber switch fiber switch supports VLAN, QoS, LACP, and advanced Layer 2 and Layer 3 functions like static routing and IPv6, ensuring optimal network traffic management. The switch is well-suited for data centers, enterprise networks, and ISPs that require robust data transfer capabilities with low latency and high throughput.
With a rugged design that operates in extended temperatures, this switch is reliable in harsh environments, offering redundancy and secure management features like SSH and SNMP. It delivers a powerful solution for demanding networks, ensuring future growth with minimal disruptions.
-
Physical Port
24-10/100/1000Mbps Gigabit Ethernet ports4-1.25G/2.5G/10Gbps mini-GBIC SFP+ interface1-RJ45 console interface for switch management and setup1-USB interface for switch setup1-Reset button for system factory default and rebootSwitchingSolid performance with non-blocking architecture ,256Gbps Backplane bandwidth96Mpps Switch Throughput12K Jumbo Framesupporting 16K MAC addressesAutomatic address learning and address agingHardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-XFlow control for full duplex operation and back pressure for half duplex operationSupports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)Hardware
High- strength metal casing.19-inch Rack-Mount, 1U heightLED indicators for Power, PoE Working and LINK/ACTTwo Fan design, Intelligent air coolingInternal AC power supply -
Management
IPv4 and IPv6 dual stack managementWeb switch managementConsole/Telnet Command Line InterfaceSNMP v1 and v2c switch managementSSHv2, TLSv1.2 and SNMP v3 secure accessFirmware upload/download via HTTP/TFTPConfiguration upload / download through Web interfaceHardware reset button for system reboot or reset to factory defaultSNTP Network Time ProtocolNetwork DiagnosticLink Layer Discovery Protocol (LLDP) Protocol and LLDP-MEDSecuritySupport IEEE 802.1xSupport RADIUS accountingSupport Access Control Lists (ACLs)Support MAC SecuritySupport IP Source Guard prevents IP spoofing attacksSupport DoS Attack PreventionSupport aaa authentication -
Layer 3 FeaturesSupport Static routingSupport RIPSupport OSPFSupport VRRPSupport IEEE 802.1Q VLANSupport MAC VLANSupport Surveillance VLANSupport Voice VLANSupport QinQ VLANSupports Spanning Tree ProtocolSupports Link Aggregation (LACP)Supports port mirrorSupports Multicast Filtering (IGMP)Supports DHCPSupports ERPSSupports RMONSupports MLD snoopingSupports MVRSupports Quality of Service (Qos)Supports Static routingSupports Port Error DisableSupports Rate LimitSupports Storm Control
Features
Flexible Connectivity with 16 SFP Ports and 8 RJ45/SFP Combo Ports
The S7500-24GF8GEC4TF-L3M offers 16 SFP ports, allowing long-distance data transmission over fiber, making it ideal for enterprise-level networks or data centers. The SFP slots support a variety of transceivers, ensuring flexible connectivity with gigabit Ethernet and fiber.The 8 RJ45/SFP combo ports provide the option to use either copper or fiber connections, ensuring maximum versatility. These ports facilitate smooth network scaling by accommodating both copper and fiber environments, offering unparalleled flexibility for future network expansion.
High-Speed Uplinks with 4x 10G SFP+
Four 10G SFP+ uplink ports ensure high-speed, low-latency data transfer across larger networks. This is crucial for businesses dealing with intensive data transfer or expanding networks. These uplinks offer superior bandwidth for backbone connections, ensuring smooth and reliable communications, making them ideal for growing businesses, data centers, and service providers.
Advanced Layer 2 and Layer 3 Features
Supporting advanced Layer 2 and Layer 3 network protocols such as VLAN, QoS, and static routing, the S7500-24GF8GFC4TF-L3M managed fiber switch allows administrators to optimize network performance. Features like LACP, ERPS, and spanning tree protocols enhance redundancy and improve reliability, making this switch an excellent solution for mission-critical applications where uninterrupted performance is key.
Enhanced Security with SSH and AAA Support
The S7500-24GF8GFC4TF-L3M provides robust security features, including SSH, AAA, ACL, and 802.1X authentication, ensuring that only authorized devices and users have access to the network. With RADIUS and TACACS+ protocols, administrators can monitor access and control resources securely, making this device suitable for environments requiring stringent security measures, such as financial institutions and government networks.
Seamless IPv4/IPv6 Dual Stack Compatibility
IPv4/IPv6 dual-stack support ensures smooth transition from IPv4 to IPv6 networks, providing future-proofing for growing businesses. This capability is vital for enterprises planning long-term infrastructure investments, ensuring compatibility with future IP protocols while optimizing current network operations, making it adaptable for both current and upcoming network demands.
Quality of Service (QoS) for Optimized Performance
QoS functionality allows the switch to prioritize network traffic, ensuring that critical services like VoIP, video streaming, and data-intensive applications receive the necessary bandwidth. This ensures smooth communication and enhances overall productivity by minimizing latency and jitter in business-critical applications, creating a more efficient and reliable network environment.
Support for ERPS and Network Redundancy
Ethernet Ring Protection Switching (ERPS) ensures rapid network recovery in case of a failure, with typical recovery times within 50 milliseconds. This redundancy is crucial for businesses where continuous network uptime is essential, providing a more resilient network infrastructure for industrial, corporate, and campus environments.
Connectivity Solutions
Managed 24 Port Gigabit SFP Switch with 4-10G SFP+ Uplink Connectivity Solutions
Specificatiions
Technical Specifications :
S7500-24GF8GEC4TF-L3M1.25G SFP (fiber) ports :
16Gigabit R4J5 and SFP Combo :
8 Pair1G/2.5G/10G SFP+ (fiber) ports :
4Console Port (For config ) :
Yes (For switch management and setup)USB port :
YesReset button :
Yes (For system factory default and reboot)Performance Specification :
*Packet buffer memory :
12Mb (Dynamically shared across only used ports)Forwarding modes :
Store-and-forwardBandwidth :
256 GbpsPacket forwarding rate :
128Mpps (64 byte packet size)MAC address database size :
16K (48-bit MAC ad-dresses)Jumbo frame support :
Up to 12K packet sizeL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesQinQ VLAN tagging :
YesIP-based VLANs :
YesMAC-based VLANs :
YesProtocol-based VLAN :
YesVoice VLAN :
YesVLAN mapping :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE 802.3x :
Yes (full duplex and flow control)Ring (ERPS,complies with G.8032) :
Yes, Recovery time < 50msIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesIEEE 802.1s Multiple Spanning Tree Protocol :
YesLayer 2 DHCP Relay :
YesL2 Services - Multicast Filtering :
*IGMP snooping (v1, v2 and v3) :
YesMLD snooping support (v1 and v2) :
YesIGMP snooping querier (v2) :
YesMLD snooping querier (v1) :
YesMulticast VLAN Registration (MVR) :
YesL3 Services - DHCP :
*DHCP client :
YesDHCP snooping :
YesDHCP Server :
YesL3 Services - Routing :
*IPv4 static routing :
YesIPv6 static routing :
YesVLAN routing :
YesRIP V1/V2 :
YesOSPF V2 :
YesNumber of IP VLAN interfaces :
YesPolicy routing :
YesVRRP :
YesLink Aggregation :
*Manual LAG :
Yes# of LAGs / # of members in each LAG :
8 LAGs with max 8 members in each LAGNetwork Monitoring and Discovery Services :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3RMON group 1,2,3,9 :
YesNetwork Security :
*IEEE 802.1x :
YesRADIUS accounting :
YesAccess Control Lists (ACLs) :
YesIP-based ACLs (IPv4 and IPv6) :
L2 / L3 / L4MAC-based ACLs :
YesTCP/UDP-based ACLs :
YesControl MAC # static entries :
48Port-based security by locked MAC addresses :
YesDynamic ARP inspection :
YesDoS protection :
*DoS attacks prevention :
YesNetwork storm protection, DoS :
YesQuality of Service (QoS) :
*Port-based rate limiting :
Yes ingress and egressPort-based QoS :
YesSupport for IPv6 fields :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
YesDestination MAC and IP :
YesIPv4 and v6 DSCP :
YesTCP/UDP-based :
YesWeighted Round Robin (WRR) :
YesStrict priority queue technology :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX• IEEE 802.3bz 2.5G BASE-X • IEEE 802.3ae 10G BASE-X• IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP)Protocols 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D (STP) • IEEE 802.1s (MSTP) • IEEE 802.1w(RSTP)Management, Monitoring & Troubleshooting :
*Password management :
YesAccess control via RADIUS and TACACS+ :
YesIPv6 management :
YesSNMP v1/v2c/v3 :
YesPort mirroring :
YesMany-to-one port mirroring :
24Cable test utility :
YesTLS/HTTPS Web-based access (version) :
Yes (v1.2)File transfers (uploads, downloads) :
TFTP / HTTPHTTP upload/download (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPer port :
Speed, Link, Activity;Per device :
Power, systemPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440 x 190 x 44.5 mm (17.32 x 11.42 x 1.75 in)Weight :
3.75kg (8.27 lb)Max power :
45W (worst case, all ports used, line-rate traffic) (Watts)Iddle power consumption :
12W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
2 internal fans, fixedEnvironmental Specifications :
*Operating Temperature :
-20° to 50°C (-4° to 122°F)Operating Humidity :
90% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
–20° to 70°C (– 4° to 158°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005; (ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Switch; AC Power cord with C13 connector (localized to region of sale) ; Brackets and screws for rack mounting; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
CommercialBandridth :
1G+10GMore Filters :
L3 Managed
Questions & Answers
1. What types of ports does this 24 port gigabit managed SFP swtich offer?
The switch has 16 Gigabit SFP ports for fiber connectivity, 8 RJ45/SFP combo ports for copper or fiber connections, and 4 10G SFP+ uplink ports for high-speed data transfer.
2. What Layer 2 and Layer 3 features are supported?
It supports advanced features like VLAN, QoS, LACP (Link Aggregation Control Protocol), static routing, and IPv6, ensuring efficient traffic management and scalability.
3. Is this 24 port gigabit managed SFP swtich suitable for large-scale or long-distance networks?
Yes, with its fiber SFP ports and 10G uplinks, the switch is perfect for data centers, enterprise networks, and ISPs requiring long-distance, high-speed data transmission.
4. How does this 24 port gigabit managed SFP swtich ensure reliability in harsh environments?
It is designed to operate in extended temperature ranges, making it reliable for use in demanding environments like industrial spaces or outdoor locations.
5. What security features does this 24 port gigabit managed SFP swtich include?
The switch supports SSH and SNMP for secure management, along with redundancy features to ensure network stability and protection against unauthorized access.
Related Products
-

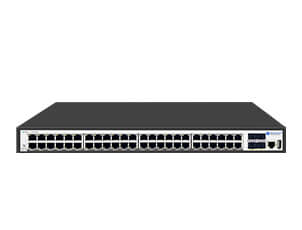

S7500-48GE4TF-L3M48 Ports Gigabit Managed Ethernet Switch With 4-10G SFP+ Uplink
-
