4 Ports 2.5G PoE+ Switch, with 2-10Gb SFP+, 4 PoE+ Ports@96W Power budget，Desktop and wall-Mount, SP5200-4PXE2TF

2.5G PoE Switch 4 port
4 port 2.5G PoE Switch
2.5G ethernet switch 4 port poe
2.5g nework switch 4 port poe

4 Ports 2.5G PoE+ Switch, with 2-10Gb SFP+, 4 PoE+ Ports@96W Power budget，Desktop and wall-Mount, SP5200-4PXE2TF

Inquire Now

Designed for WIFI-6 Wireless Access Point / Gaming Computer

Product Highlights
    • 4-10/100/1000/2500Mbps RJ45 ports with PoE+
    • 2-1G/2.5G/10Gbps mini-GBIC SFP+ interface
    • 4 ports supporting PoE+ to PD device(Port 1-port 4)
    • Complies with IEEE 802.3af/at Power over Ethernet
    • Supports PoE power up to 30 watts for each PoE port
    • 87-watt PoE budget,96-watt total power budget
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
    • Backplane bandwidth 80Gbps，Packet forwarding rate 44.64Mpps，MAC address 8k
    • 11-inch Rack-Mount size, 1U height，Internal AC power supply

2.5G PoE Switch 4 port

Overview



SP5200-4PXE2TF, 4 Ports 2.5G PoE+ Switch，with 2-10Gb SFP+，4 PoE+ Ports@96W Power Budget, Desktop and Wall-mount

Benchu group's 4-Port 2.5G Unmanaged PoE Switch SP5200-4PXE2TF is an advanced networking solution designed to meet the high-speed and connectivity demands of modern home networks. The SP5200-4PXE2TF with four 2.5G Ethernet ports, this switch offers significantly higher data transfer rates compared to standard Gigabit switches. This ensures smooth and uninterrupted streaming of 4K videos, seamless online gaming, and fast file transfers, enhancing the overall user experience in a connected home.Each of the four RJ45 ports supports Power over Ethernet (PoE), allowing the switch to power devices such as IP cameras, VoIP phones, and wireless access points directly through the Ethernet cables. This eliminates the need for separate power supplies, simplifying installation and reducing cable clutter.This switch combines power over Ethernet (PoE) functionality with ultra-fast data transfer rates, making it ideal for households with multiple smart devices, high-definition streaming, and gaming needs.



Benchu group's 4-Port 2.5G Unmanaged PoE Switch SP5200-4PXE2TF is equipped with two 10G SFP+ uplink ports, providing ultra-fast uplink connections to the main router or network core. These ports enable high-speed data transmission and reduce latency, ensuring efficient and reliable communication between different segments of the home network.



With support for 2.5G and 10G speeds, The SP5200-4PXE2TF 4 Ports 2.5G PoE Switch is well-equipped to handle future bandwidth demands as home network devices continue to evolve and require higher data transfer rates. This ensures that the network remains efficient and effective for years to come. The SP5200-4PXE2TF multi-gig Switch is an excellent choice for households looking to enhance their network performance and support a growing number of smart devices.



Designed for ease of use, this unmanaged 2.5G switch requires no configuration. Simply plug in the Ethernet cables, and the 2.5G PoE switch is ready to operate. The SP5200-4PXE2TF is an ideal choice for users who need a quick and hassle-free way to upgrade their home network.



  • Physical Port
    4-10/100/1000/2500Mbps Multi-Gigabit Ethernet ports with PoE+
    2-1G/2.5G/10Gbps mini-GBIC SFP+ interface

    Power over Ethernet
    4 ports supporting PoE+ to PD device (Port 1 to port 4)
    Complies with IEEE 802.3af/at Power over Ethernet
    Supports PoE Power up to 30 watts for each PoE port
    87-watt PoE budget, 96-watt total power budget
    Auto detects powered device (PD)
    Remote power feeding up to 100m in standard mode
    Circuit protection prevents power interference between ports
  • Switching
    Solid performance with non-blocking architecture
    80Gbps Backplane bandwidth, 44.64Mpps Switch Throughput，9216 bytes Jumbo Frame
    supporting 8K MAC addresses
    Automatic address learning and address aging
    Hardware-based 10/100/1000/2500Mbps auto-negotiation and auto MDI/MDI-X
    Flow control for full duplex operation and back pressure for half duplex operation
    Integrates address look-up engine, supporting 8K absolute MAC addresses
    Automatic address learning and address aging
    Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
    High-strength metal casing.
    11-inch Rack-Mount, 1U height
    LED indicators for Power,PoE Working and LINK/ACT
    Fanless design, Silent Operation
    Internal AC power supply





Features

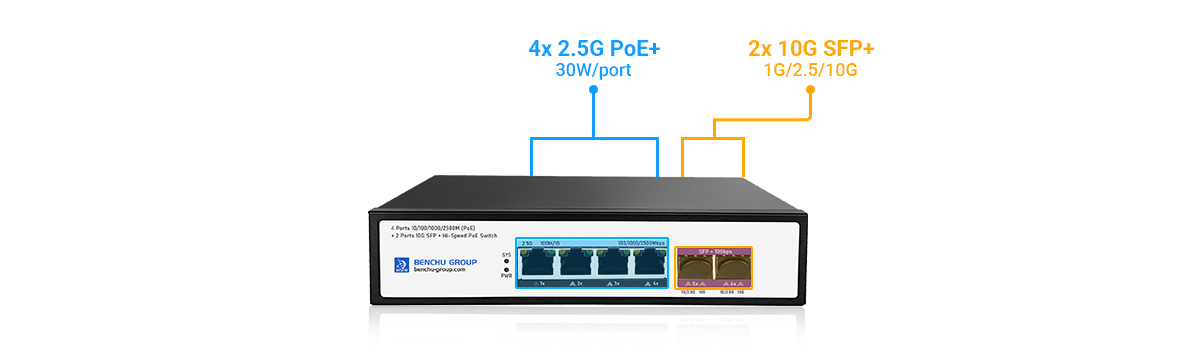

Multi-Gigabit Ethernet port and 10Gb Fiber port configuration

Benchu group's Unmanaged 4 Port 2.5G PoE Switch SP5200-4PXE2TF provide  4 ports 10/100/1000/25000Mbps RJ45 and 2 ports 1G/2.5G/10Gbps SFP+ Uplink, 4 PoE Ports support IEEE802.3af/at standart provide up to 30W per port and Power budget of 120W.





Smart PoE Enhanced Network Efficiency

Benchu group's Intelligent Detection 2.5G PoE switch SP5200-4PXE2TF significantly improves network efficiency by automatically detecting and classifying connected devices. This capability ensures that power is only supplied to compatible PoE devices, such as IP cameras, VoIP phones, and wireless access points, thereby avoiding wastage of power on non-PoE devices. The 2.5G PoE unmanaged switch SP5200-4PXE2TF dynamically allocates power based on the needs of each device, optimizing the overall power distribution and ensuring that high-priority devices receive adequate power for uninterrupted operation. This automated detection reduces the need for manual configuration and monitoring, streamlining network management.





6KV Lightning Protection Increased Network Reliability

With 6KV lightning protection, Benchu group's 4 Ports 2.5Gb PoE switch SP5200-4PXE2TF can maintain stable and reliable network performance during storms and power surges. This uninterrupted connectivity is crucial for homes that rely on continuous internet access for work, entertainment, and smart home systems, ensuring minimal disruption.





Wide temperature design are built to withstand harsh conditions

Benchu group's 8 port 2.5Gb PoE switches SP5200-4PXE2TF  wide temperature design, The ability to function in a wide range of temperatures means the switch can be placed in various locations around the home, including attics, basements, or unconditioned spaces like garages. This flexibility allows homeowners to optimize their network setup without worrying about the ambient temperature affecting the device’s performance.





Connectivity Solutions



4 port 2.5G PoE switch with 2-10Gb SFP+ Connectivity Solution



4 port 2.5G poe switch unamanged conneciton diagram









Specification





  • Technical Specifications :

    SP5200-4PXE2TF

  • 10M/100M/1G/2.5G RJ45 copper ports :

    4

  • 1G/2.5G/10G SFP+ (fiber) ports :

    2

  • PoE / PoE+ ports :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Power over Ethernet :

    *

  • PoE Standard :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    *

  • PoE Power Budget :

    90 Watts

  • Number of PDs, 7 watts :

    4

  • Number of PDs, 15 watts :

    4

  • Number of PDs, 30 watts :

    4

  • Performance Specification :

    *

  • Packet buffer memory :

    4.2 Mb

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    80 Gbps

  • Packet forwarding rate :

    44.64Mpps (64 byte packet size)

  • MAC address database size :

    8K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    Up to 9K packet size

  • Mean Time Between Failures :

    126,312 hours

  • 100M Copper Latency :

    8.312µs; 8.425µs; 8.461µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Copper Latency :

    3.422µs; 3.533µs; 3.615µs (64-byte; 1518-byte; 9216-byte frames)

  • 2.5G Copper Latency :

    3.112µs; 3.245µs; 3.328µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Fiber Latency :

    2.982µs; 3.112µs; 3.180µs (64-byte; 1518-byte; 9216-byte frames)

  • 2.5G Fiber Latency :

    2.831µs; 2.995µs; 3.012µs (64-byte; 1518-byte; 9216-byte frames)

  • 10G Fiber Latency :

    2.722µs; 2.883µs; 2.923µs (64-byte; 1518-byte; 9216-byte frames)

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX• IEEE 802.3bz 2.5GBASE-T• IEEE 802.3ae 10G BASE-X • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) •

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Dimensions (Width * Depth * Height) :

    202x 140 x 44.5mm (7.95 x 5.51 x 1.75 in)

  • Weight :

    1 kg (2.21 lb)

  • Power Consumption :

    90W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    9W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    7W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005； (ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart PoE Switch； AC Power cord with C13 connector (localized to region of sale) ； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    2.5G+10G

  • More Filters :

    Unmanaged

Questions & Answers

What devices can this 4 Port 2.5G Multi Gigabit PoE swtich power with its PoE+ ports?

The four PoE+ ports deliver up to 30W each, ideal for powering IP cameras, VoIP phones, and wireless access points without separate power adapters.



What is the maximum PoE power budget for this 4 Port 2.5G Multi Gigabit PoE swtich?

The SP5200-4PXE2TF has a 96W total PoE power budget, sufficient to support multiple connected PoE devices simultaneously.



What are the advantages of 2.5G Ethernet ports?

The 2.5G ports provide faster data transfer rates than standard Gigabit ports, ensuring smooth 4K streaming, online gaming, and fast file sharing.



What is the role of the 10Gb SFP+ uplink ports?

The two 10Gb SFP+ uplinks enable high-speed connections to routers or core networks, ensuring efficient data flow and reducing network latency.



Is configuration required to use this 4 Port 2.5G Multi Gigabit PoE swtich?

No, this is an unmanaged switch. Simply plug in the cables, and it’s ready to use—perfect for quick and hassle-free network upgrades.
