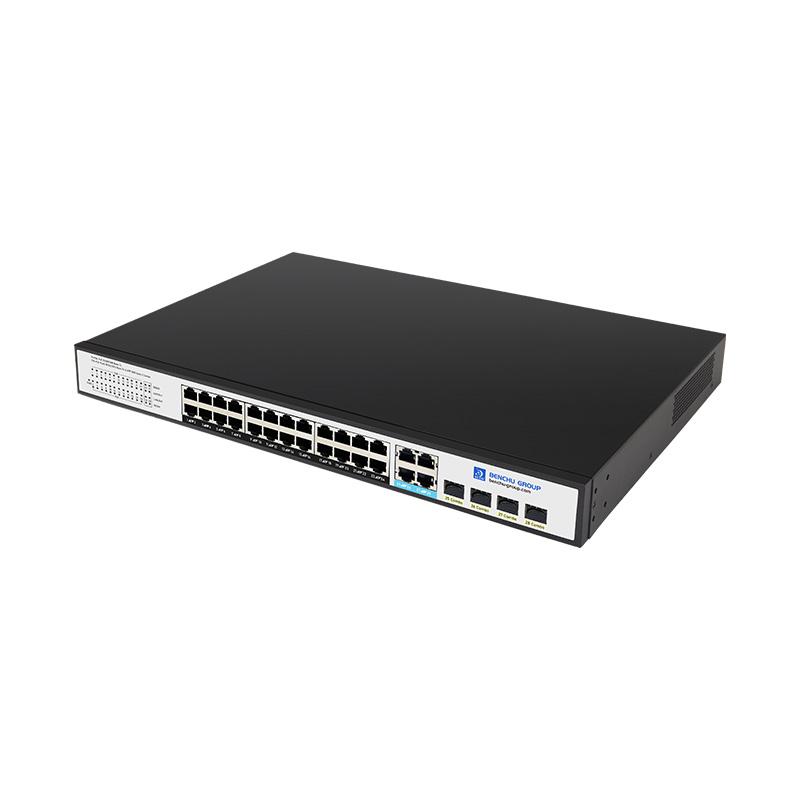

24 Ports Gigabit PoE Switch, with 4-1Gb RJ45 and 4-1Gb SFP Combo, 24 PoE+ Ports@400W power budget, Rack-Mount, SP5220-24PGE4GC

24 port gigabit poe switch
24 port poe switch with 4 sfp
24 port gigabit poe switches
24 port poe gigabit switch

24 Ports Gigabit PoE Switch, with 4-1Gb RJ45 and 4-1Gb SFP Combo, 24 PoE+ Ports@400W power budget, Rack-Mount, SP5220-24PGE4GC

Inquire Now

Designed for IP Camera/Wireless Access Point/VOIP Telephone

Product Highlights
    • 24-10/100/1000Mbps RJ45 ports with PoE+
    • 4-10/100/1000Mbps RJ45 ports
    • 4-1.25Gbps mini-GBIC SFP interface
    • 24 ports supporting 52V DC power to PD device(Like:IP Camera,Wireless AP, VOIP etc.)
    • Complies with IEEE 802.3af/at Power over Ethernet
    • Supports PoE power up to 30 watts for each PoE port，370-watt PoE budget
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
    • Backplane bandwidth 64Gbps，Packet forwarding rate 47.62Mpps，MAC address 16k
    • 19-inch Rack-Mount size, 1U height，Internal AC power supply

24 port gigabit poe switch with 4 gigabit rj45/sfp combo

Overview



SP5220-24PGE4GC, 24 Ports Gigabit PoE+ Switch，with 4-1Gb RJ45 and 4-1Gb SFP Combo，24 x PoE+ Ports@400W Power Budget，Rack-Mount

The SP5220-24PGE4GC is a high-performance, 24-port Gigabit PoE switch from Benchu Group, designed to deliver both high-speed data transfer and power to a wide range of network devices. With twenty-four 30-watt PoE+ ports, this switch is ideal for powering IP cameras, wireless access points, and VoIP phones, while also offering reliable network connectivity. It is equipped with 4 Gigabit RJ45 ports and 4 Gigabit SFP combo uplink ports, providing versatile options for both copper and fiber uplinks, ensuring flexibility in network expansion.



With a robust 400W power budget, the SP5220-24PGE4GC can efficiently manage high-power devices and extended PoE ranges, making it an excellent choice for larger installations or enterprise environments. It simplifies network setups by combining power and data delivery in one device, eliminating the need for separate power supplies and reducing installation costs. Additionally, it supports a rack-mount design, allowing for easy integration into server rooms or data centers.



This switch optimizes power management and network efficiency, freeing devices from the limitations of power outlets and reducing the need for additional AC wiring. The SP5220-24PGE4GC provides businesses with a cost-effective, scalable solution to power and connect multiple devices, streamlining network infrastructure management.



  • Physical Port
    24-10/100/1000Mbps Gigabit Ethernet ports with PoE
    4-10/100/1000Mbps Gigabit Ethernet port and 4-1.25Gbps mini-GBIC SFP interface combo

    Power over Ethernet
    Up to 24 IEEE 802.3af/at devices powered(Port 1-Port 24）
    Complies with IEEE 802.3af/at Power over Ethernet end-span
    Supports PoE Power up to 30 watts for each PoE port
    All power up to 400W，370W for PoE budget.
    24 ports supporting PoE power to PD device (Port 1 to port 24)
    Auto detects powered device (PD)
    Circuit protection prevents power interference between ports
    Remote power feeding up to 100m in standard mode
  • Switching
    Solid performance with non-blocking architecture
    64Gbps Backplane bandwidth, 47.62Mpps Switch Throughput，9216 bytes Jumbo Frame
    supporting 16K MAC addresses
    Automatic address learning and address aging
    Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
    Flow control for full duplex operation and back pressure for half duplex operation
    Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
    High-strength metal casing.
    19-inch Rack-Mount, 1U height
    LED indicators for Power,PoE Working and LINK/ACT
    Two Fan design, Intelligent air cooling
    Internal AC power supply




Features



Gigabit RJ45 and Gigabit SFP Port Configuration

24 PoE+ 10/100/1000Mbps RJ45 ports provide up to 30W per port and Power budget of 400W, together with 4-10/100/1000Mbps RJ45 and 4-1.25G SFP combo uplink

Unmanaged gigabit PoE Switches 24 Port with 4 Gigabit RJ45/SFP Combo



Four Gigabit RJ45 and Four Gigabit SFP Uplink Ports

The SP5220-24PGE4GC with four RJ45/SFP Combo uplink ports with gigabit transfer rate to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the 24 PoE+ ports can be used to their full potential.The SFP slot meaning the administrator now can flexibly choose the suitable SFP transceiver based on the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.



24 port poe unmanaged switch with 4 SFP







Wide temperature design are built to withstand harsh conditions

Benchu group's Wide temperature range PoE switches are built to withstand harsh conditions, leading to higher network uptime. Their resilience to temperature extremes reduces the likelihood of temperature-induced failures, ensuring continuous operation. This increased uptime is critical for mission-critical applications where network downtime can result in significant disruptions and financial losses. Industries such as telecommunications, transportation, and emergency services benefit from the enhanced reliability, as it ensures that their networks remain operational, providing uninterrupted services and maintaining the integrity of essential operations.



gigabit unmanaged poe+ switch 24 port with 4 gigabit RJ45/SFP Combo







6KV Lightning Protection Increased Network Reliability

Implementing 6KV lightning protection in Benchu group's 16 port gigabit PoE switch ensures continuous network operation during adverse weather conditions, such as thunderstorms. This level of protection minimizes the likelihood of network outages caused by electrical surges, maintaining stable data transmission and power supply to connected devices. Reliable network performance is critical for businesses and organizations that depend on constant connectivity for their operations. By reducing downtime and disruptions, lightning-protected PoE switches support uninterrupted access to essential services, ensuring that networks remain functional and dependable even during severe weather events.



24 Port Gigabit PoE+ Switches with 4 Gb RJ45 and 4 SFP Combo




Connectivity Solutions



24 Port Gigabit PoE Switch with 4 Gigabit RJ45/SFP Combo Uplink of Connectivity Solution

24 port gigabit poe switch unmanged





Specificatiions



  • Technical Specifications :

    SP5220-24PGE4GC

  • 10M/100M/1G RJ45 copper ports :

    24

  • Gigabit R4J5 and SFP Combo :

    4

  • PoE / PoE+ ports :

    24

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • PoE Power Budget :

    370 Watts

  • Number of PDs, 7 watts :

    24

  • Number of PDs, 15 watts :

    24

  • Number of PDs, 30 watts :

    12

  • Performance Specification :

    *

  • Chip :

    Realtek

  • Packet buffer memory :

    4 Mb

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    64 Gbps

  • Packet forwarding rate :

    47.62Mpps (64 byte packet size)

  • MAC address database size :

    16K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    Up to 9K packet size

  • Mean Time Between Failures :

    137,411 hours (MTBF) @ 25°C

  • 100M Copper Latency :

    8.311µs; 8.413µs; 8.452µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Copper Latency :

    3.416µs; 3.546µs; 3.623µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Fiber Latency :

    2.980µs; 3.112µs; 3.189µs (64-byte; 1518-byte; 9216-byte frames)

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX• IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    440 x 290 x 44.5 mm (17.32 x 11.42 x 1.75 in)

  • Weight :

    3.8 kg (9.28 lb)

  • Power Consumption :

    400W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    22W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    17W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    2 Fans

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 131°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005； (ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale)； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged

Questions & Answers

Can the SP5220-24PGE4GC power all 24 PoE+ ports at the same time?

Yes, the 400W power budget allows powering all 24 PoE+ ports. Ensure the total power consumption of connected devices remains within this limit for efficient operation.



What types of devices are compatible with this 24 Port Gigabit PoE swtich?

This switch supports IEEE 802.3af/at PoE+ devices such as IP cameras, VoIP phones, and wireless access points, providing both power and data through Ethernet connections.



What uplink options does this 24 Port Gigabit PoE swtich offer?

The SP5220-24PGE4GC includes 4 Gigabit RJ45 ports and 4 Gigabit SFP combo ports, offering flexible options for copper or fiber uplinks to connect to core networks or expand the setup.



Is this 24 Port Gigabit PoE swtich suitable for large-scale installations?

Yes, with a 400W power budget and 24 PoE+ ports, it is perfect for large installations, enterprise environments, or projects requiring reliable and scalable network solutions.



How does this 24 Port Gigabit PoE swtich simplify network deployment?

By combining power and data delivery in one device, it eliminates the need for separate power supplies, reducing installation costs and enabling efficient, centralized network management.
