Overview

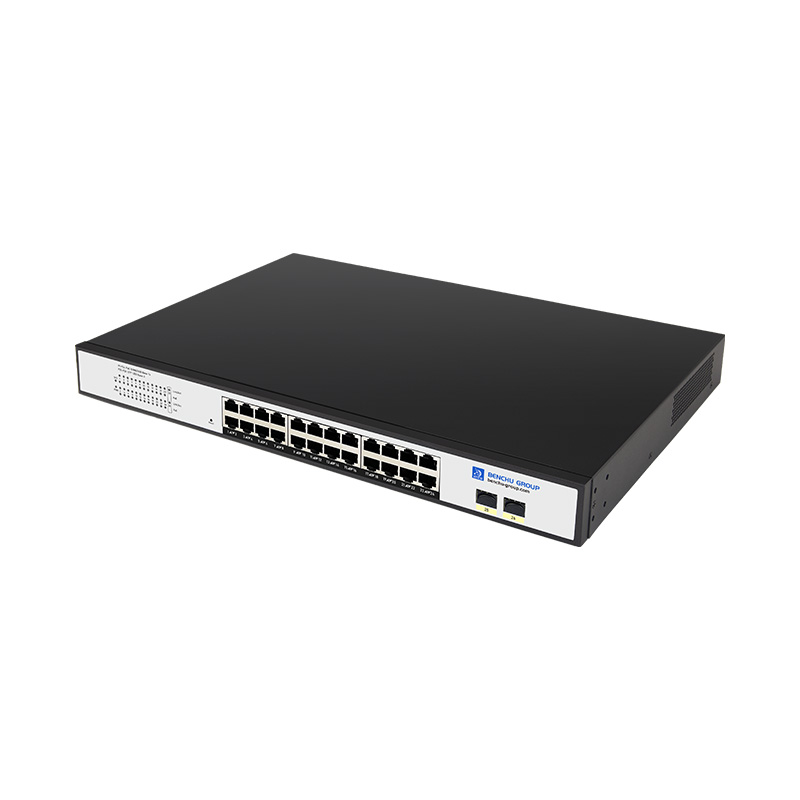

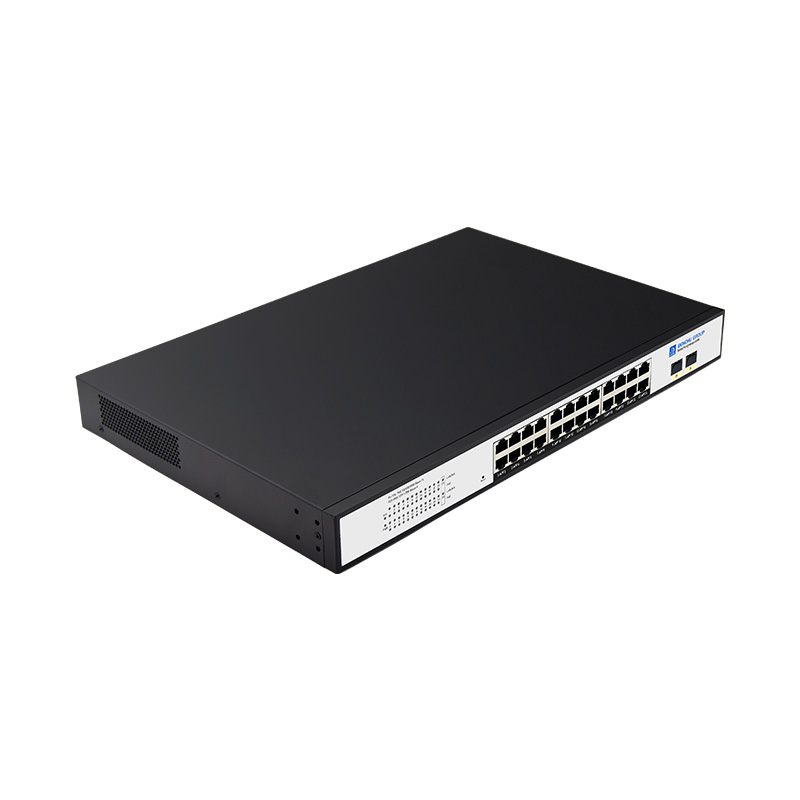

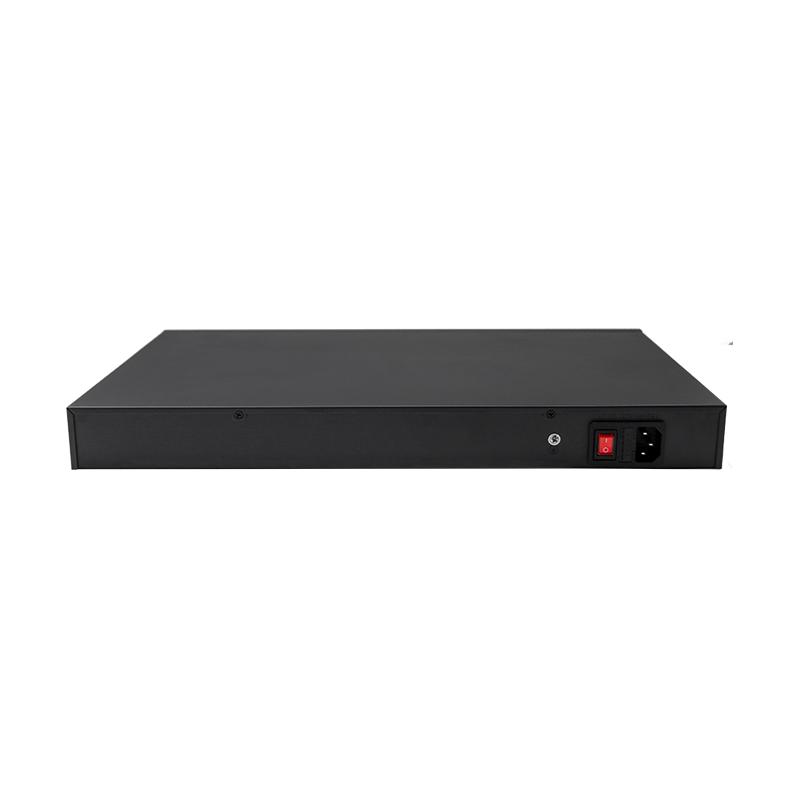

SP6500-24PGE2GF, 24 Ports Gigabit WEB Managed PoE+ Switch,with 2 Gigabit SFP Uplink,24 PoE+ Ports@400W power budget,Support IPV4/IPV6
BENCHU GROUP's SP6500-24PGE2GF WEB Managed 24-Port PoE Switch with 24 Gigabit PoE ports and 2 Gigabit SFP optical uplink ports is designed for simplified yet effective network management. Compliant with IEEE802.3af/at standards, it provides reliable PoE support for various devices like IP cameras, access points, and VoIP phones, supplying both data and power through a single cable for easier installations.
With its web-based interface, this switch offers streamlined control over essential functions like VLAN, QoS, traffic control, and STP. Unlike fully managed switches loaded with complex, often unused features, this model maintains straightforward usability, focusing on core functions that are practical for everyday network management. This balance between managed and unmanaged capabilities offers businesses a more accessible solution that enhances control and reliability without overwhelming users with intricate settings.
Ideal for small to mid-sized organizations and simplified deployments, this WEB managed 24-Port PoE Switch brings substantial value by allowing network customization, improving traffic management, and enhancing stability at a highly competitive price point. This makes it a cost-effective solution that meets essential networking needs while reducing overhead and complexity.
-
Physical Port24-10/100/1000Mbps Gigabit Ethernet ports with PoE2-1.25Gbps mini-GBIC SFP interface1-Reset button for system factory default and rebootPower over Ethernet24 ports supporting PoE power to PD device (Port 1 to port 24)Support IEEE 802.3at Power over Ethernet Plus/PSEBackward compatible with IEEE 802.3af Power over EthernetSupports PoE Power up to 30 watts for each PoE portAll power up to 400W,370W for PoE budget.Auto detects powered device (PD)Circuit protection prevents power interference between portsRemote power feeding up to 100m in standard modePoE managementPer port PoE function enable/disablePD classification detection
-
SwitchingSolid performance with non-blocking architecture ,56Gbps Backplane bandwidth38.69Mpps Switch Throughput9216 bytes Jumbo Framesupporting 8K MAC addressesAutomatic address learning and address agingHardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-XFlow control for full duplex operation and back pressure for half duplex operationHardwareHigh- strength metal casing,19-inch Rack-Mount, 1U height .LED indicators for Power, PoE Working and LINK/ACTInternal AC power supplySecuritySupport IEEE 802.1xSupport MAC Security -
Layer 2 FeaturesSupport IEEE 802.1Q VLANSupports Spanning Tree ProtocolSupports port mirrorSupports IGMP snoopingSupports Loopback detectionSupports Quality of Service (Qos)Supports Port Error DisableSupports Storm ControlSupports PoE ManagedManagementWeb switch managementTelnet Command Line InterfaceSNMP v1 and v2c switch managementConfiguration upload / download through Web interfaceHardware reset button for system reboot or reset to factory default
Features
24 Gigabit PoE Ports
Each port supports IEEE 802.3af/at standards, providing both power and data transmission over a single cable. This eliminates the need for separate power sources for devices such as IP cameras and access points, simplifying installations and reducing setup time.
2 Gigabit SFP Uplink Ports
These uplink ports offer high-speed connectivity to core network devices or other switches, ensuring smooth data flow across different network segments. Ideal for integrating with backbone networks or expanding network coverage.
Web-Based Management Interface
This 24 port PoE switch is managed via an intuitive web interface, allowing for easy configuration without complex command lines. This interface simplifies network setup and maintenance, enabling quick adjustments to network settings for users without in-depth technical expertise.
Essential VLAN Support
This WEB smart PoE switch includes VLAN functionality for segmenting the network, improving security, and reducing broadcast traffic. This feature allows businesses to set up distinct network segments, optimizing bandwidth usage for specific departments or functions.
QoS for Traffic Prioritization
Quality of Service (QoS) ensures that important traffic, like VoIP or video conferencing, receives priority over regular data. This minimizes latency and improves performance for critical applications, leading to a smoother user experience.
STP for Enhanced Network Stability
With Spanning Tree Protocol (STP), this 24 Port PoE switch prevents network loops that can cause instability. STP automatically detects potential loops and reroutes traffic, maintaining consistent connectivity and reducing downtime.
Cost-Effective, Semi-Managed Solution
Positioned between unmanaged and fully managed switches, this WEB managed 24 port PoE switch offers key management features without the complexity or higher cost of fully managed options. It provides small-to-medium businesses with essential control at an affordable price, combining ease of use and effective network oversight.
Connectivity Solutions
24 Port Gigabit WEB Smart PoE Switch with 2 Gigabit SFP Uplink of Connectivity Solutions
Specificatiions
Technical Specifications :
SP6500-24PGE2GF10M/100M/1G RJ45 copper ports :
241.25G SFP (fiber) ports :
2PoE / PoE+ ports :
24Reset button :
Yes (For system factory default and reboot)Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
4.2Mb (Dynamically shared across only used ports)Forwarding modes :
Store-and-forwardBandwidth :
56 GbpsPacket forwarding rate :
38.69Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
Up to 9K packet sizeL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesIP-based VLANs :
YesProtocol-based VLAN :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3x :
YesIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesL2 Services - Multicast Filtering :
*IGMP snooping (v1, v2 and v3) :
IGMP snooping (v1, v2)Network Monitoring and Discovery Services :
*SNMP :
v1, v2cIEEE 802.1x :
YesPort-based security by locked MAC addresses :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXManagement, Monitoring & Troubleshooting :
*SNMP v1/v2c/v3 :
SNMP v1/v2cMany-to-one port mirroring :
24HTTP upload/download (firmware) :
YesLEDs :
YesPer port :
Speed, Link, Activity; or PoE in different modePer device :
Power, systemPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440 x 290 x 44.5 mm (17.32 x 11.42 x 1.75 in)Weight :
4.35 kg (9.59 lb)Power Consumption :
400W (when all ports used, line-rate traffic and max PoE)Max power :
12W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Iddle power consumption :
9W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
2 internal fans, fixedEnvironmental Specifications :
*Operating Temperature :
-20° to 50°C (-4° to 122°F)Operating Humidity :
90% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
–20° to 70°C (– 4° to 158°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005; (ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart PoE Switch; AC Power cord with C13 connector (localized to region of sale) ; Brackets and screws for rack mounting; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
CommercialBandridth :
1GMore Filters :
WEB Managed
Questions & Answers
What is the maximum PoE power output for this 24-port PoE switch?
Support up to 30W per port , with total PoE budget of 360W,with total Power budget of 400W,Max operation power 12W.
Can this 24-port PoE switch power multiple devices simultaneously?
Yes, 24-port PoE switches are designed to power up to 24 devices, like IP cameras and WAPs, simultaneously.
How do I configure VLANs on this 24-port managed PoE switch?
VLAN configuration is done via the switch's web-based interface, CLI, or SNMP, allowing you to segment network traffic for security.
What is the advantage of having SFP uplink ports?
SFP uplinks provide flexibility for fiber connections, enabling long-distance data transmission beyond 100 meters,By using different types of SFP optical modules, it can be extended to 500m/20Km/40Km/60Km/80Km/100Km.
Does the SP6500-24PGE2GF support Quality of Service (QoS)?
Yes, this 24 Port managed PoE switch support QoS, allowing prioritized traffic for applications like VoIP and video.
Can this 24 Port Gigabit WEB Managed PoE swtich be used in an outdoor environment?
This 24-port POE switch is designed for commercial use and is intended for indoor environments. For applications that require outdoor installation, it's recommended to opt for industrial-grade switches.
What type of power supply does this 24 Port PoE switch require?
This 24-port PoE switches require a standard AC input 100-240V 50/60Hz, and provide PoE output to connected devices.
How do I monitor network traffic on this 24 Port Gigabit WEB Managed PoE swtich?
Managed switches offer SNMP, or a web interface to monitor traffic, device status, and network performance.
Can I use this 24 Port Gigabit WEB Managed PoE swtich for VoIP deployments?
Yes, with support for PoE and QoS, it’s ideal for powering VoIP phones and ensuring clear voice communication.
