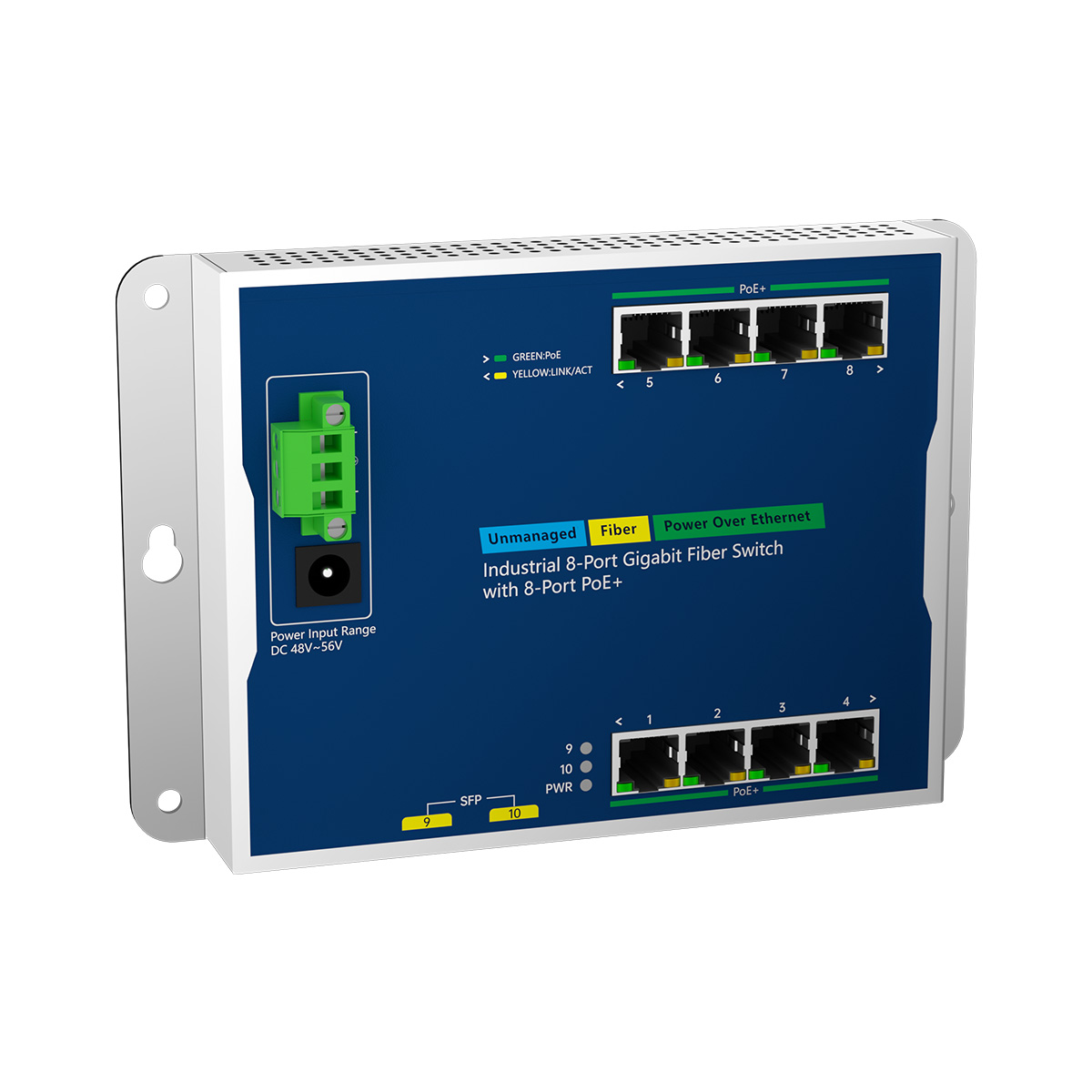

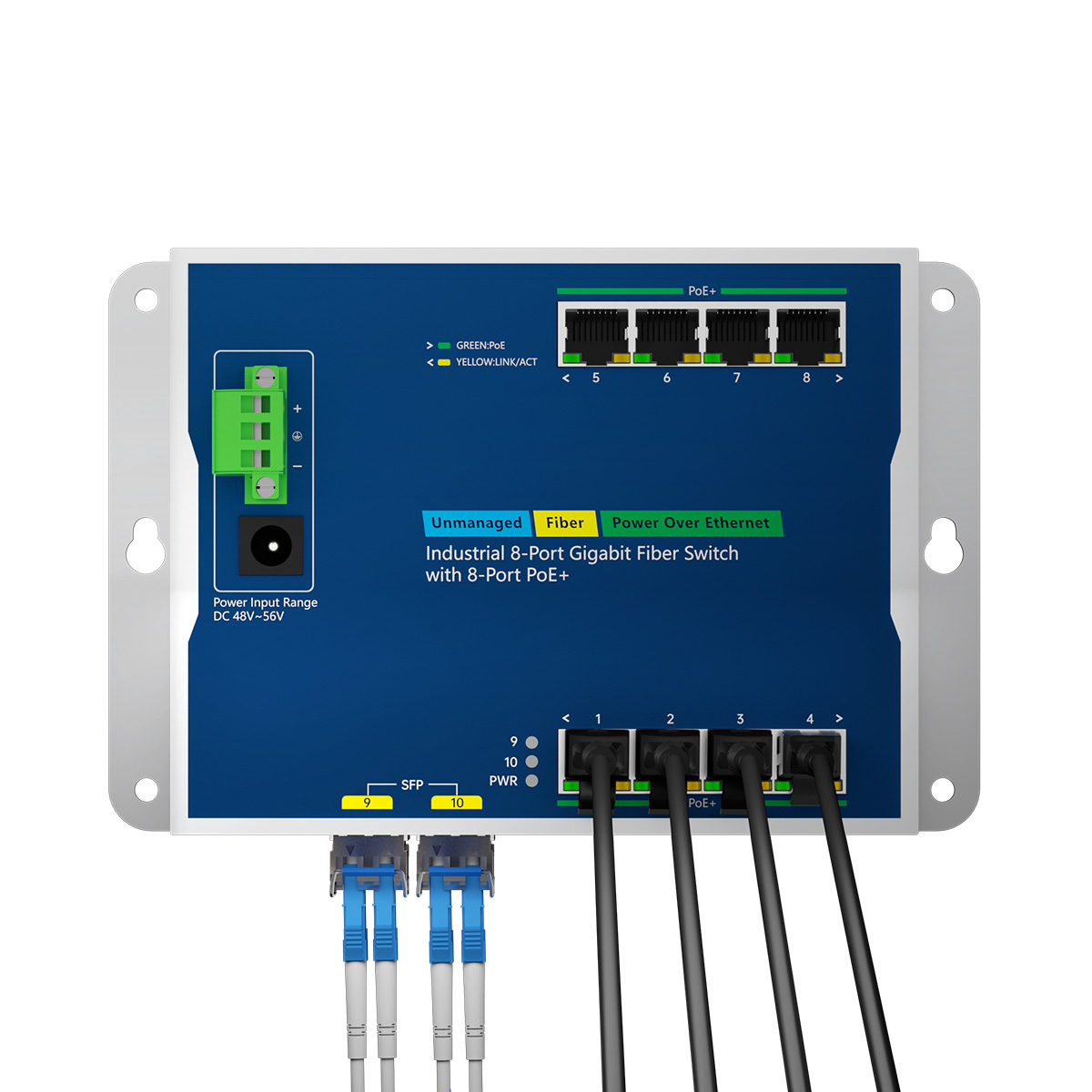

Ultra-Slim 8-Port PoE Gigabit Industrial Switch with Dual SFP Uplinks | -40°C to +75°C

Specification

• Technical Specifications :

  IE7211W-8PGE2GF-DC

• 10M/100M/1G RJ45 copper ports :

  8

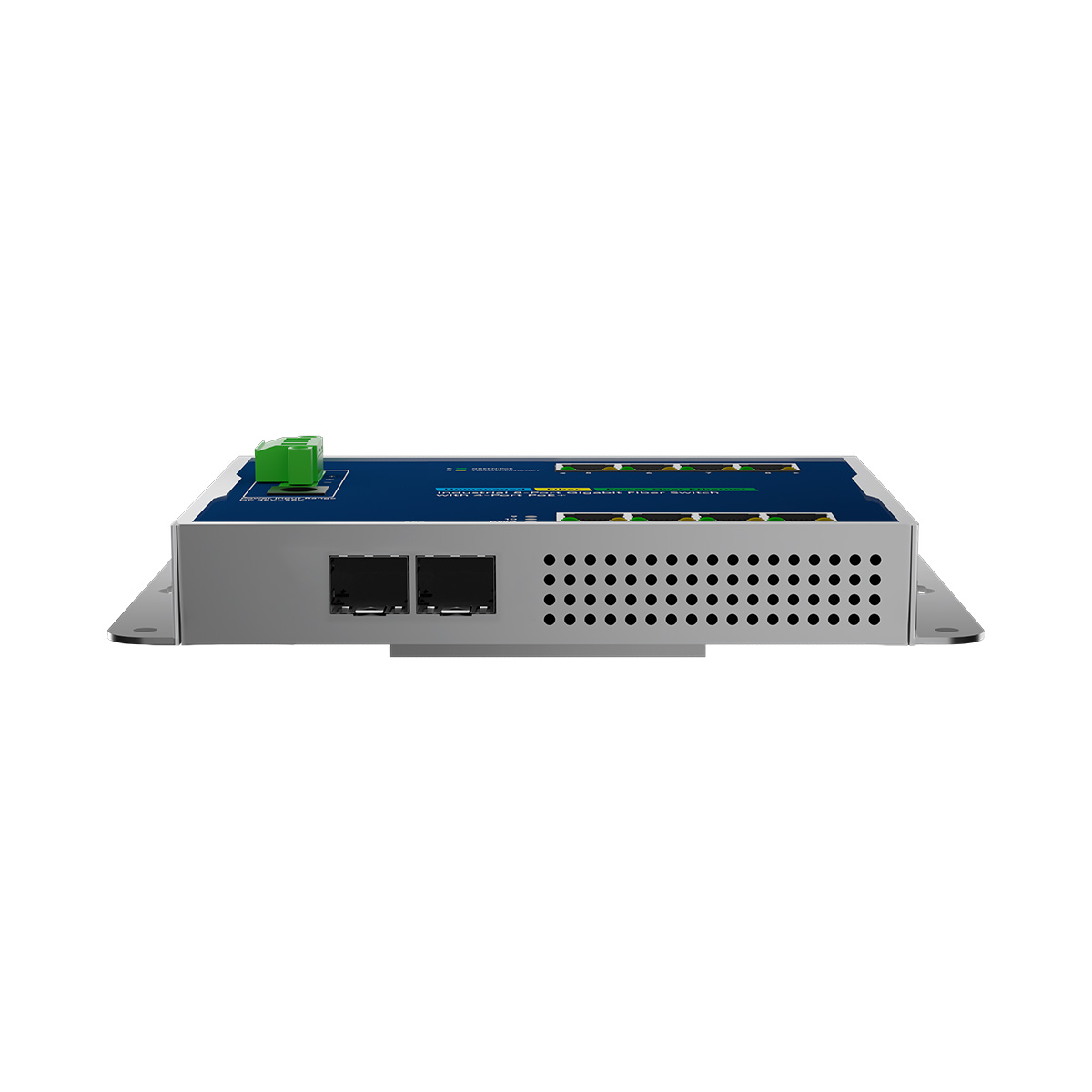

• 1.25G SFP (fiber) ports :

  2

• PoE / PoE+ ports :

  8

• Power over Ethernet :

  *

• PoE Standard :

  Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

• PoE Power Supply Type :

  End-span: 1/2(+), 3/6(-)

• PoE Power Output :

  Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

• Performance Specification :

  *

• Packet buffer memory :

  2.1 Mb

• Forwarding modes :

  Store-and-forward

• Bandwidth :

  24 Gbps

• Packet forwarding rate :

  14.88Mpps (64 byte packet size)

• MAC address database size :

  4K (48-bit MAC ad-dresses)

• Jumbo frame support :

  9K

• Mean Time Between Failures :

  162,125 hours (MTBF) @ 25°C

• 100M Copper Latency :

  8.532µs; 8.613µs; 8.712µs

• 1G Copper Latency :

  3.435µs; 3.541µs; 3.643µs

• 1G Fiber Latency :

  2.993µs; 3.112µs; 3.183µs

• IEEE Network Protocols :

  *

• Protocols :

  • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)

• LEDs :

  Yes

• Per port :

  Speed, Link, Activity; PoE in different mode

• Per device :

  Power

• Physical Specifications :

  *

• Dimensions (Width * Depth * Height) :

  178 x 134 x 24 mm (5.91 x 5.12 x 1.89 in)

• Weight :

  0.69 kg (1.52 lb)

• Shell protection :

  IP30 high-strength case

• Power Requirements :

  DC 48~56V, redundant power with reverse polarity protection

• Fan :

  Fanless

• Environmental Specifications :

  *

• Operating Temperature :

  -40° to 75°C (-40° to 176°F)

• Operating Humidity :

  95% maximum relative humidity (RH), non-condensing

• Operating Altitude :

  10,000 ft (3,000 m) maximum

• Storage Temperature :

  -40° to 85°C (-40° to 185°F)

• Storage Humidity (relative) :

  95% maximum relative humidity, non-condensing

• Storage Altitude :

  10,000 ft (3,000 m) maximum

• Executive Standard & Protection :

  *

• Lightning Protection :

  *

• IEC61000-4-3 (RS) :

  10V/m (80~1000MHz)

• FCC Part 15/CISPR22 (EN55022) :

  Class B

• IEC61000-6-2 :

  Common Industrial Standard

• IEC61000-4-9 (Pulsed magnet field) :

  1000A/m

• IEC61000-4-10 (Damped oscillation) :

  30A/m, 1MHz

• IEC61000-4-12/18 (Shockwave) :

  CM 2.5kV, DM 1kV

• IEC61000-4-4(EFT) :

  Power cable:±4kV, Data cable: ±2kV

• IEC61000-4-16(Common-mode transmission) :

  30V, 300V, 1s

• IEC61000-4-2 (ESD) :

  ±8kV contact discharge, ±15kV air discharge

• IEC61000-4-6 (Radio frequency transmission) :

  10V(150kHz~80MHz)

• IEC61000-4-8 :

  100A/m, 1000A/m, 1s-3s

• IEC61000-4-5 (Surge): Power cable :

  CM±4kV/ DM±2kV, Data cable: ±4kV

• Mechanical Properties :

  *

• IEC60068-2-6 :

  Anti Vibration

• IEC60068-2-32 :

  Free Fall

• IEC60068-2-27 :

  Anti Shock

• Electromagnetic Emissions and Immunity :

  *

• Certifications :

  CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

• Safety :

  *

• Safety Certifications :

  CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

• Warranty and Support :

  *

• Hardware Limited Warranty :

  Limited Lifetime*

• Technical Support via Phone and Email* :

  Limited Lifetime*

• 24x7 Online Chat Technical Support :

  Limited Lifetime*

• Package Contents :

  *

• All models :

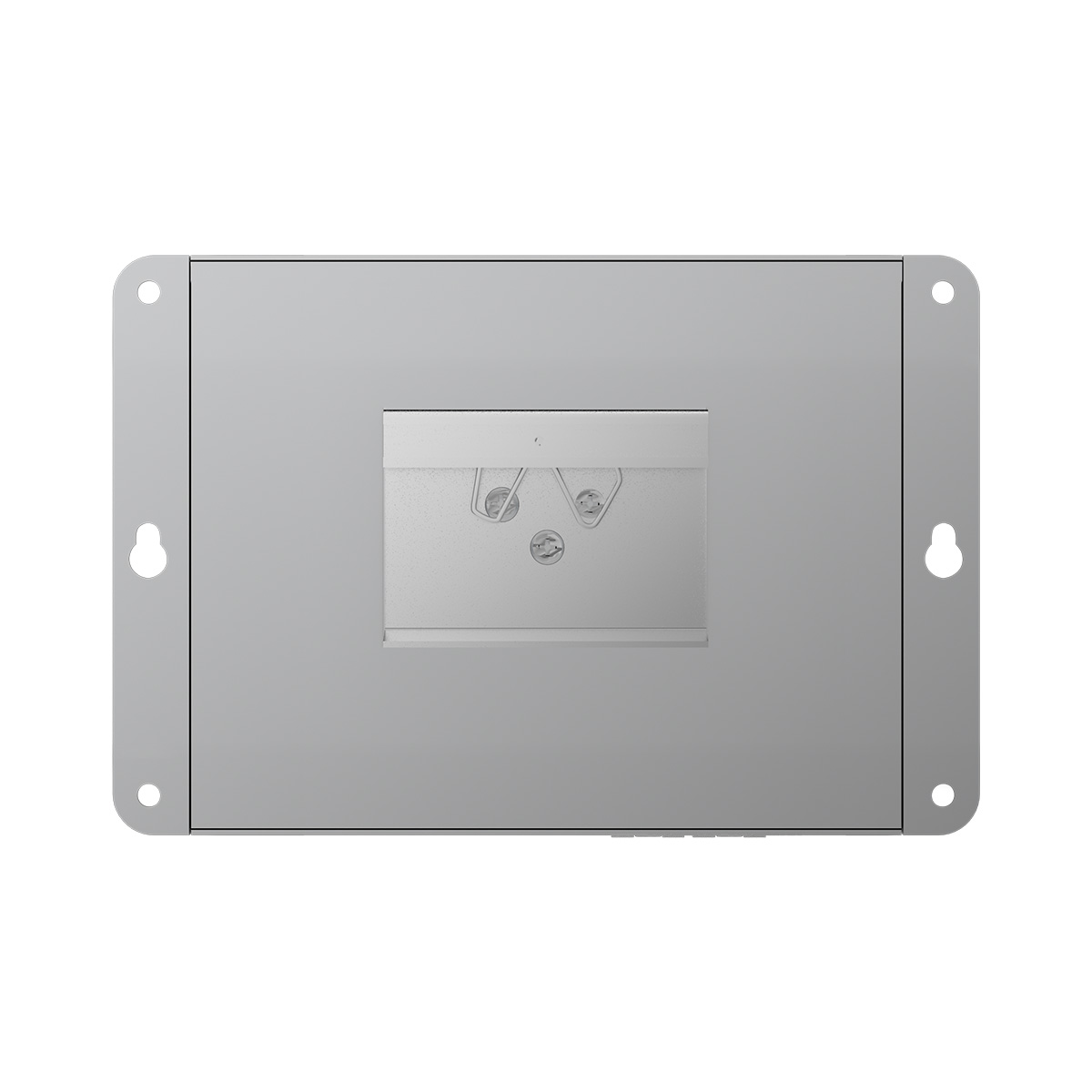

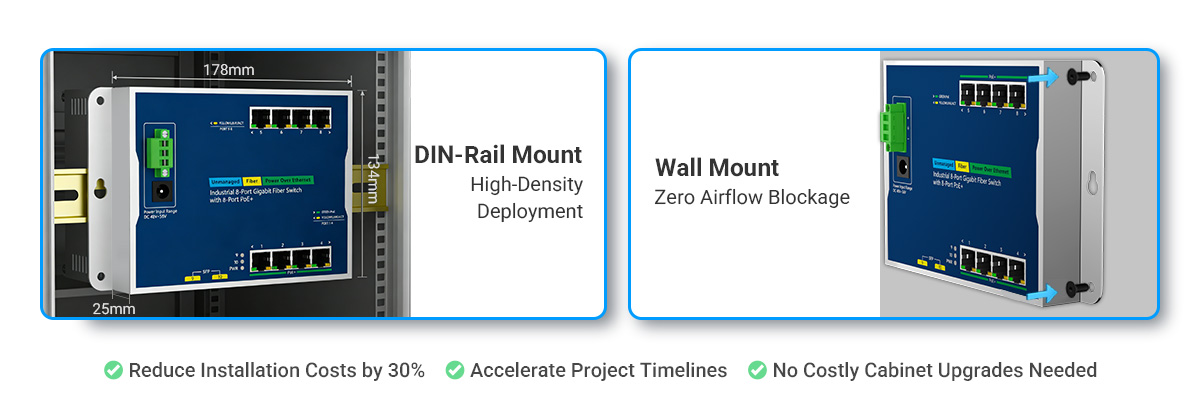

  Industrial PoE Switch； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets, Installation guide

• Business Type :

  Industrial

• Bandridth :

  1G

• More Filters :

  Unmanaged
