2.5 Gb PoE Injector, 802.3bt Max.90W, PSE102-2.5G-90W

2.5GbE 90W PoE injector
2.5GbE PoE injector with AC power input

2.5 Gb PoE Injector, 802.3bt Max.90W, PSE102-2.5G-90W

Get Editable Specs & Price List →

Designed to power high-speed Wi-Fi 6e & Wi-Fi 7 access points and other high-power PoE devices, this 2.5GbE PoE injector delivers up to 90W of PoE power while maintaining 2.5Gbps data connectivity for high-bandwidth network applications.

Product Highlights

    2.5G Multi-Gig Passthrough: Delivers full 2.5Gbps wire-speed data throughput (up to 100m) for bandwidth-heavy Wi-Fi 7/6E APs and high-res IP cameras.

    IEEE 802.3bt 90W Ultra PoE++: Supports 4-pair Class 8 active handshake (up to 90W), fully backward compatible with 802.3af/at standards.

    IP40 Flame-Retardant ABS Enclosure: Precision injection-molded from high-impact fire-resistant ABS polymer, offering robust IP40 dust protection.

    6kV Surge & Industrial Immunity: Built-in 6kV lightning and 8kV ESD surge protection, engineered for reliable continuous operation (-20°C to +50°C).

    Direct Factory OEM/ODM Customization: Direct Shenzhen manufacturer supply with low MOQs, supporting custom logo branding, private packaging, and tailored specs for global partners.

ce fcc rosh authentication

2.5G Multi-Gigabit 90W Ultra PoE++ Injector | IEEE 802.3bt Class 8 | OEM / ODM

Unleashing 2.5Gbps Wire-Speed Performance and High-Power 90W Delivery for Next-Gen Edge Infrastructure

The PSE102-2.5G-90W Ultra PoE++ Injector bridges the performance gap between non-PoE network switches and high-demand multi-gigabit terminal devices. Designed for global system integrators and telecom brand owners, this single-port injector injects up to 90W IEEE 802.3bt Class 8 power and 2.5Gbps Multi-Gigabit passthrough over standard Cat5e/6 cables up to 100 meters—eliminating bandwidth bottlenecks for Wi-Fi 7/6E APs and heavy-duty 8K PTZ cameras without forcing a costly core switch replacement. Housed in a precision injection-molded flame-retardant ABS enclosure (IP40 rated) with integrated wall-mounting ears and 6kV surge immunity, it delivers high reliability for commercial projects. As a direct Shenzhen manufacturer, we offer turnkey OEM/ODM customization—including private labeling, custom enclosures, and packaging—to help global partners expand their branded product line seamlessly.

Target Application Scenarios & Flexible Deployment

Engineered to solve high-bandwidth and power-hungry deployment challenges for global brand partners and engineering contractors:

Wi-Fi 7 & Enterprise AP Upgrade

Provides full 2.5Gbps throughput and up to 90W power budget to high-throughput tri-band Wi-Fi 7 and Wi-Fi 6E access points, bypassing 1G PoE switch limitations without infrastructure overhauls.

High-Power PTZ & Security Systems

Delivers 802.3bt Class 8 power to outdoor 4K/8K PTZ speed domes equipped with long-range IR lasers, heaters, and wipers, protecting video links with built-in 6kV surge and ESD immunity.

Turnkey OEM / ODM Customization

Tailored specifically for overseas communication/security brand owners and regional distributors, supporting low-MOQ logo silkscreening, customized giftbox/carton packaging, and modified specs.

Key Product Features & Technical Advantages

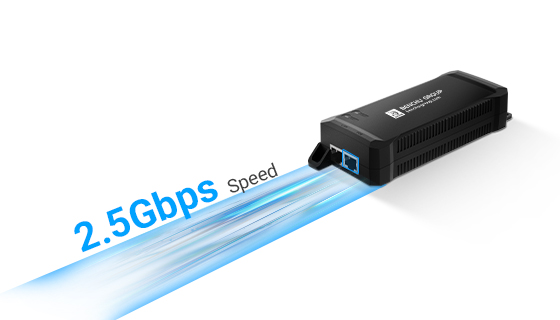

2.5G Multi-Gigabit RJ45 port delivering wire-speed Ethernet passthrough up to 100 meters.

2.5G Multi-Gig Passthrough

Delivers full 2.5Gbps Multi-Gigabit wire-speed data throughput over standard Cat5e/6 cables up to 100m (328ft), eliminating bandwidth bottlenecks for Wi-Fi 7/6E APs and 4K/8K video feeds.

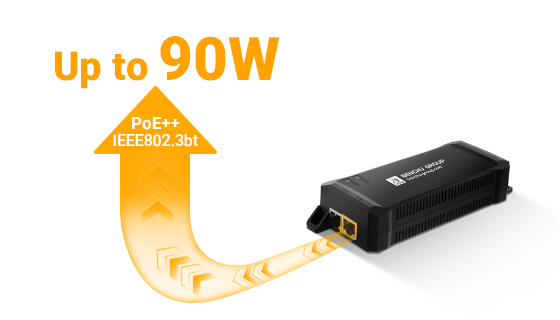

IEEE 802.3bt Class 8 90W Ultra PoE injector active power handshake protocol.

IEEE 802.3bt 90W PoE++

Utilizes 4-pair powering (Pins 1,2,3,6 + 4,5,7,8) to inject up to 90W output safely. Fully backwards compatible with 802.3af (15.4W) and 802.3at (30W) standards.

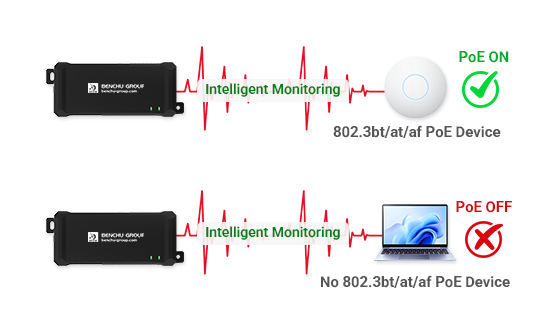

Active PoE auto sensing technology performing hardware handshake before delivering power.

Active Smart Auto-Sensing

Features active hardware handshake recognition. It automatically detects connected PD power requirements before energizing, preventing electrical damage to legacy non-PoE network devices.

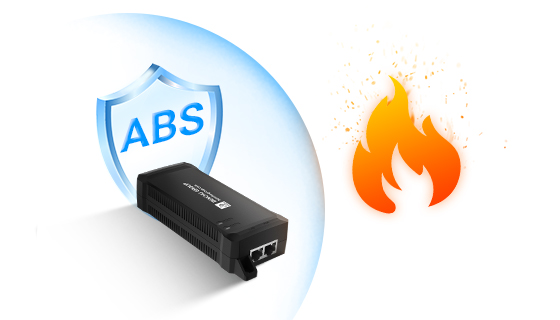

Flame retardant high impact ABS plastic injection molded enclosure for 2.5G 90W PoE injector.

Flame-Retardant ABS Casing

Precision injection-molded from high-impact, fire-resistant ABS polymer. Features a sleek, durable, fanless design that ensures silent, maintenance-free indoor operation.

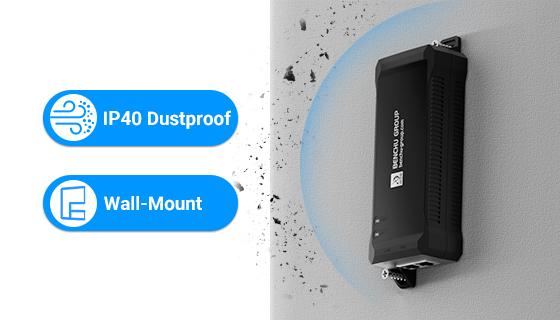

IP40 dust protected enclosure with integrated wall mount ears for flexible installation.

IP40 & Wall-Mountable

IP40 dustproof rating protects internal components against solid objects. Integrated mounting ears allow secure wall, cabinet, or desktop installation in tight installation spaces.

Integrated 6kV surge lightning protection and TVS ESD immunity circuits.

6kV Lightning Surge Immunity

Built-in 6kV differential/common mode lightning surge protection and 8kV ESD immunity protect connected downstream IP cameras and APs against electrical transients.

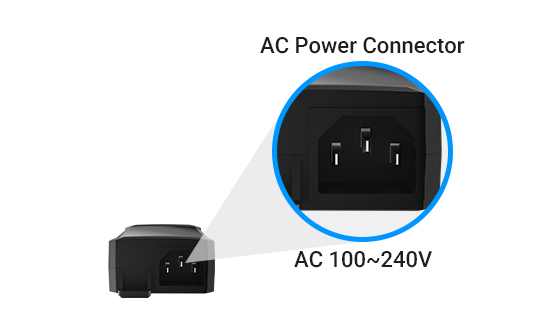

Integrated 100-240V AC internal power module with standard AC C14 power socket.

Internal AC Power Supply

Features a built-in AC 100V–240V power module with a standard C14 AC inlet. Eliminates bulky external power adapters for clean, direct AC mains power connection.

Commercial injector designed for reliable 24/7 continuous operation from -20C to +50C.

-20°C to +50°C Operation

Engineered with industrial-grade components to ensure stable, 24/7 uninterrupted operation across extended temperature environments from -20°C to +50°C.

2.5G Multi-Gigabit & 90W High-Power Connectivity Solutions



Upgrade existing non-PoE network infrastructure seamlessly: Deliver up to 90W IEEE 802.3bt Ultra PoE power and full 2.5Gbps Multi-Gigabit wire-speed throughput over a single Cat5e/6 cable up to 100 meters.

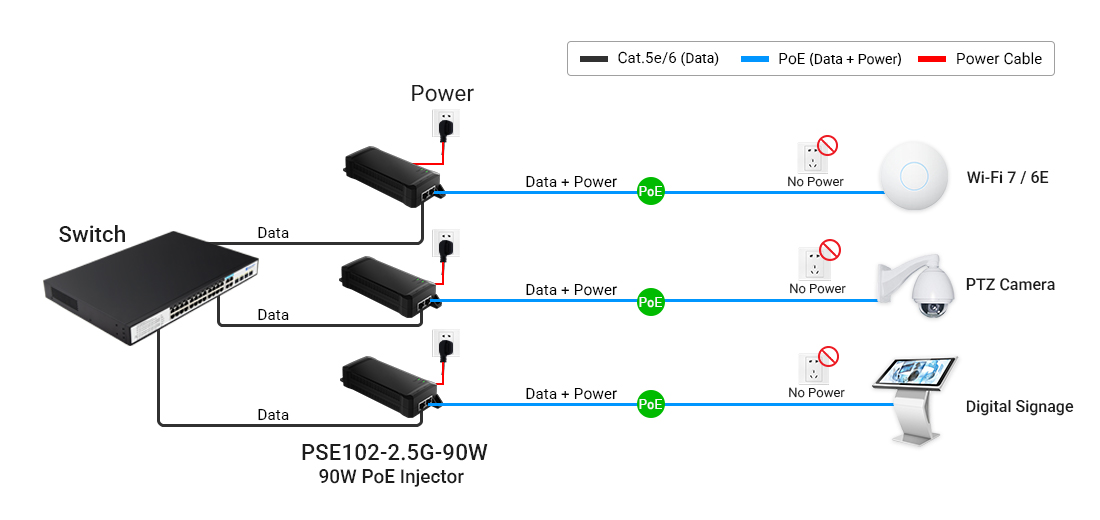

Network topology diagram showing non-PoE Gigabit/2.5G switch connected via RJ45 data input, powered by 100-240V AC internal PSU, and delivering 90W PoE++ power plus 2.5G data over 100m Ethernet cable to Wi-Fi 7 AP, PTZ Camera, and PoE Splitter.

Optimized Deployment Scenarios

  • 1. Next-Gen Wi-Fi 7 / 6E Enterprise AP Deployment Eliminates bandwidth bottlenecks and power deficits for multi-band Wi-Fi 7 and Wi-Fi 6E access points. By injecting IEEE 802.3bt Class 8 (90W) power alongside 2.5Gbps Multi-Gigabit passthrough over a single 100m Cat5e/6 cable, it ensures maximum wireless throughput without replacing core non-PoE enterprise switches.
  • 2. High-Power PTZ Speed Domes & Outdoor Surveillance Powers demanding outdoor PTZ speed dome cameras, IR illuminators, and integrated climate-control heaters. Built-in 6kV surge immunity and 15kV ESD protection act as an electrical shield, protecting delicate indoor core switches from lightning transients originating from outdoor cable runs.
  • 3. Legacy Switch Cost-Effective Midspan Modernization Serves as a transparent Midspan injector for digital ceilings, PoE splitters, and edge AI equipment. Simply connect the non-PoE switch port to the Data-In port, connect internal AC power (100–240V), and run the PoE-Out cable to your terminal device. Featuring active smart auto-sensing, it delivers exact power requirements safely with zero configuration required.

Technical Specifications

Hardware Parameter Details / Specification Limits
Product Model PSE102-2.5G-90W
Equipment Type 2.5G Multi-Gigabit Single-Port 90W Ultra PoE++ Midspan Injector
Interface Configuration 1 × 10/100/1000/2500Mbps RJ45 Data Input Port
1 × 10/100/1000/2500Mbps RJ45 Data & Power Output Port (PoE Out)
Ethernet Data Rate 10Mbps / 100Mbps / 1Gbps / 2.5Gbps Multi-Gigabit Passthrough (Full Duplex wire-speed forwarding)
PoE Standard & Output Power IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE 802.3bt Class 8 (Max 90W); Downward compatible with IEEE 802.3af/at PDs
PoE Power Pin Assignment 4-Pair Power Delivery: 1/2(+), 3/6(-) and 4/5(+), 7/8(-)
Transmission Distance Up to 100 Meters (328 ft) via standard Cat5e/6/6a/7 Ethernet cables
Input Power Requirement AC 100V–240V, 50/60Hz Universal Internal Power Supply (Built-in Power Module; standard C14/C6 AC Inlet)
Surge & ESD Protection Integrated 6KV Common Mode Surge Protection; Air 8KV / Contact 6KV Electrostatic Discharge (ESD) Immunity
Safety & Circuit Protection Auto-detect PD power needs, Over-Current Protection (OCP), Over-Voltage Protection (OVP), Short-Circuit Protection (SCP)
Enclosure & Installation Compact Industrial-Grade Flame-Retardant ABS Enclosure; Supports Desktop Placement and Wall-Mounting
LED Indicators PWR (System Power), PoE (Power Output Status)
Operating Environment Operating Temperature: -20°C to +50°C (-4°F to 122°F); Storage Temp: -40°C to +85°C; Humidity: 5% ~ 95% RH non-condensing

Frequently Asked Questions (FAQ)



Addressing Technical, Compatibility, and Deployment Questions for 2.5G 90W PoE++ Injectors

Q1: Is this 90W Ultra PoE++ injector backward compatible with older 802.3af and 802.3at PoE devices?

Yes, absolutely. The injector utilizes an intelligent active hardware handshake algorithm based on the IEEE 802.3bt Class 8 standard. It automatically senses the exact power classification required by the connected Powered Device (PD). If you connect a standard 15.4W (802.3af) IP camera or a 30W (802.3at) access point, the injector will safely output only the required wattage without damaging lower-power devices.

Q2: Can this injector handle 2.5Gbps Multi-Gigabit throughput without packet loss or speed drops?

Yes. Featuring dedicated Multi-Gigabit hardware transformers, it supports 10/100/1000M and 2.5Gbps auto-negotiation across all 4 pairs. It provides full-duplex wire-speed data passthrough up to 100 meters (328 ft) over standard Cat5e or Cat6 copper cables, making it ideal for Wi-Fi 7 / Wi-Fi 6E APs and Multi-Gigabit edge networks without introducing latency or signal degradation.

Q3: Will this 90W injector power high-draw outdoor PTZ cameras with internal heaters and wipers?

Yes. Many high-power outdoor PTZ speed domes, IR illuminators, and enterprise Wi-Fi 7 APs require 60W to 90W during peak operation (e.g., when heaters start up in sub-zero environments). By delivering up to 90W continuous power via all 4 Ethernet pairs (1/2+, 3/6- and 4/5+, 7/8-), it supplies full operating current to eliminate power starvation, unexpected reboots, or night-vision failures.

Q4: What surge protection and safety features are built into this Midspan injector?

The injector is equipped with industrial-grade 6kV common mode lightning surge protection and 8kV Air / 6KV Contact ESD immunity. This creates a protective buffer between outdoor cabling and expensive core network switches. Additionally, it integrates over-current (OCP), over-voltage (OVP), and short-circuit protection (SCP) to prevent damage from power grid fluctuations.

Q5: Do you offer OEM/ODM customization, private labeling, and custom plug types for global distributors?

Yes. As a direct OEM/ODM Ethernet hardware manufacturer based in Shenzhen, China, we support global distributors and system integrators with low MOQ options. We provide custom logo printing, customized metal/plastic housings, regional AC power cords (US/EU/UK/AU), bespoke Web UI/firmware, and complete OEM packaging. All units strictly adhere to CE, FCC, and RoHS standards.

Resource Download Center



Access official technical datasheets, wiring schematics, and mechanical dimensions for PSE102-2.5G-90W network engineering deployment.


PDF



Product Technical Datasheet (PDF)

Includes complete technical specifications, IEEE 802.3bt Class 8 (90W) power management parameters, 2.5G Multi-Gigabit passthrough pinouts, 4-pair power pin definitions, 6kV surge immunity standards, mechanical dimensions, and compliance certifications (CE/FCC/RoHS) for Model: PSE102-2.5G-90W.
