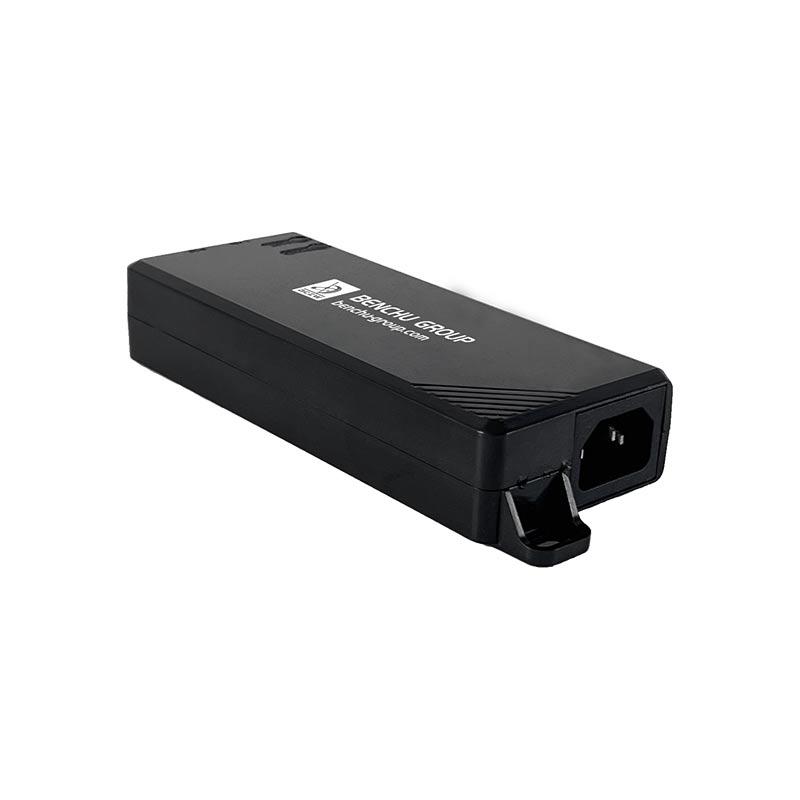

Single Port Gigabit Ultra PoE+ Injector, with 2-1Gb RJ45, 1-PoE++ Ports@90W, PSE102-GE-90W

Inquire Now

Designed for PTZ (Pan-Tilt-Zoom) speed dome cameras, outdoor wireless access points (APs), AIO (All-in-One) touch PCs,remote digital signage displays,LED lighting system

Product Highlights
    • P40 All-in-one compact size design
    • Compatible IEEE802.3af/IEEE802.3at/IEEE802.3bt compliant
    • Total power budget of 90W for singe PoE ports
    • Auto detection and protection of Non standard Ethernet terminals
    • 10/100/1000 Mbps supported
    • Plug & Play. No configuration required
    • Higher conversion efficiency(90%). Lower heat radiation



4 port gigabit poe switch authentication

Overview



PSE102-GE-90W, Single Ports Gigabit Ultra PoE+ Injector, with 2-1Gb RJ45, 1 PoE++ Ports@90W

The PSE102-GE-90W is an advanced Ultra PoE++ Injector designed to deliver up to 90W of power and high-speed Gigabit Ethernet data connectivity to a wide range of network devices. Ideal for use in environments where power outlets are limited, it simplifies installations by eliminating the need for separate power cables. This injector is particularly useful for powering high-demand devices like PTZ cameras, all-in-one PCs, and digital display systems, providing both power and data over a single Ethernet cable.



With its seamless integration into existing network infrastructures, the PSE102-GE-90W poe ++ single port injector ensures smooth operation and reliable performance, supporting a variety of network devices that require higher power than standard PoE+ injectors can provide. It is an excellent choice for locations that need flexible, high-performance networking solutions without additional wiring complexity. By reducing cable clutter and simplifying setup, it enhances operational efficiency while saving time and reducing costs.



The PSE102-GE-90W not only boosts the reach of your network but also improves its overall versatility. Users can confidently deploy this PoE injector in various industrial, commercial, or remote applications, where dependable power and data transmission are crucial for maintaining continuous operations and reducing downtime.







Features



Quick and Easy Gigabit Ultra Power PoE Network Deployment
PSE102-GE-90W is a Single-Port ultra Power over Ethernet Injector, it provides the capability to source up to 90 watts of power by using all the four pairs of standard Cat.5e/Cat. It is designed specifically to meet the demand for growing higher power required network equipment such as: PTZ Speed Dome,outdoo Wireless access point，AIO (All-in-One) touch PC,Remote digital signage display,LED Lignting

IP40 Protection and Compact Size Design

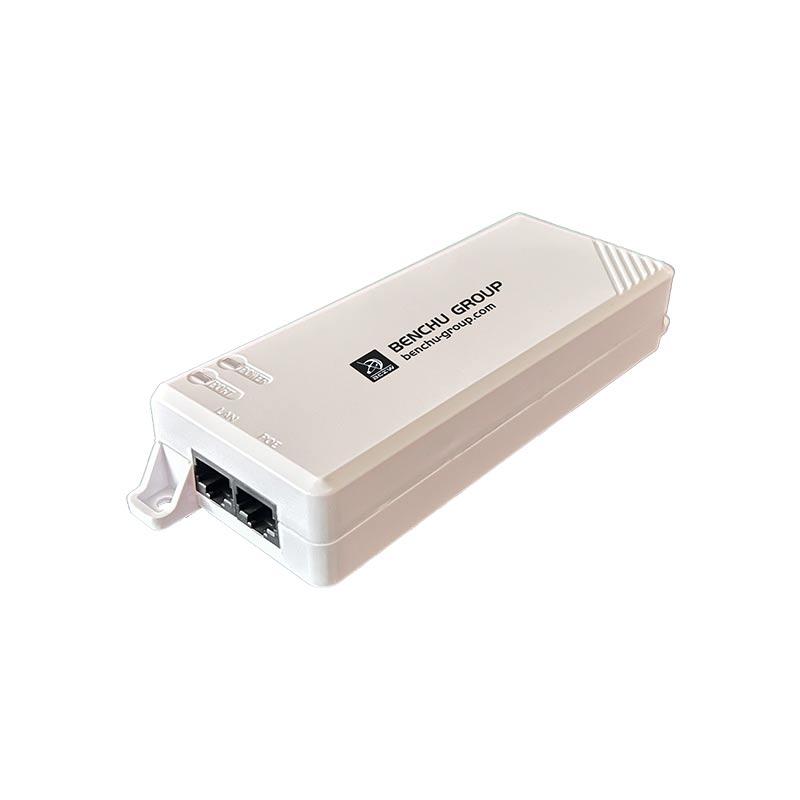

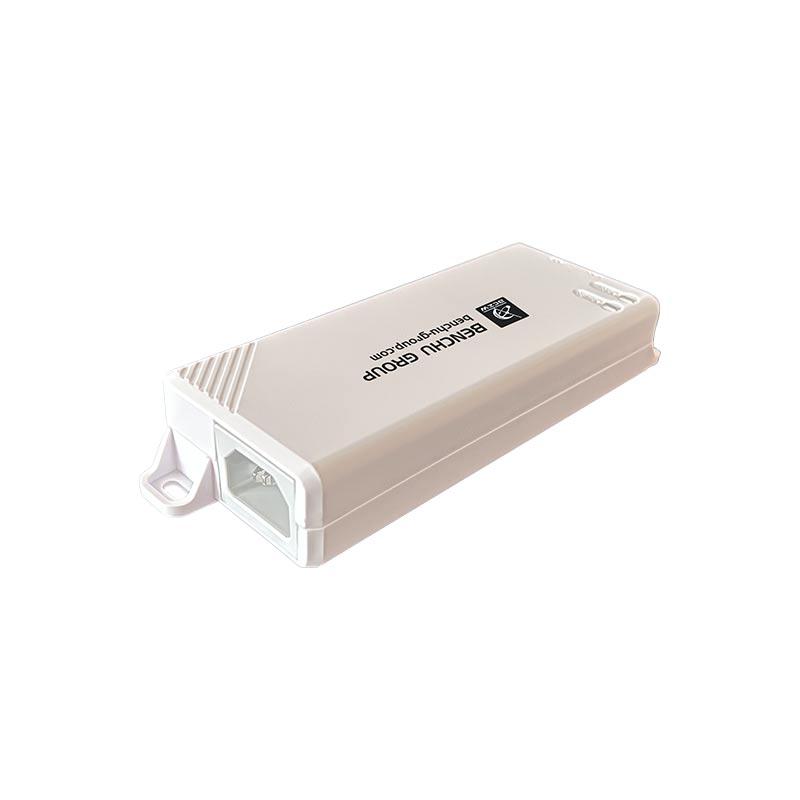

Embracing the principles of "Easy to install", "Plug and Play", and "Simple troubleshooting" for both business and home users, the Benchu Group UPoE+ Injector is a comprehensive, single-port PoE+ injector with an internal power supply. Encased in a compact housing, it features a 100-240V AC input socket on the front panel, two LEDs (System POWER and PoE ACTIVE) on the top, and two RJ45 ports (PoE port and LAN port) on the rear panel. By connecting the Ethernet cables and power cord, this PoE injector adapter is immediately operational, offering high-speed network communication and ultra power PoE injector functionality without any software configuration.

6KV Lightning Protection Increased Network Reliability
Implementing 6KV lightning protection in Benchu group's Single Ports Gigabit Ultra PoE network adapter ensures continuous network operation during adverse weather conditions, such as thunderstorms. This level of protection minimizes the likelihood of network outages caused by electrical surges, maintaining stable data transmission and power supply to connected devices. Reliable network performance is critical for businesses and organizations that depend on constant connectivity for their operations. By reducing downtime and disruptions, lightning-protected PoE++ Injector support uninterrupted access to essential services, ensuring that networks remain functional and dependable even during severe weather events.

Wide temperature design are built to withstand harsh conditions
Wide temperature range PoE switches are built to withstand harsh conditions, leading to higher network uptime. Their resilience to temperature extremes reduces the likelihood of temperature-induced failures, ensuring continuous operation. This increased uptime is critical for mission-critical applications where network downtime can result in significant disruptions and financial losses. Industries such as telecommunications, transportation, and emergency services benefit from the enhanced reliability, as it ensures that their networks remain operational, providing uninterrupted services and maintaining the integrity of essential operations.



Connectivity Solutions

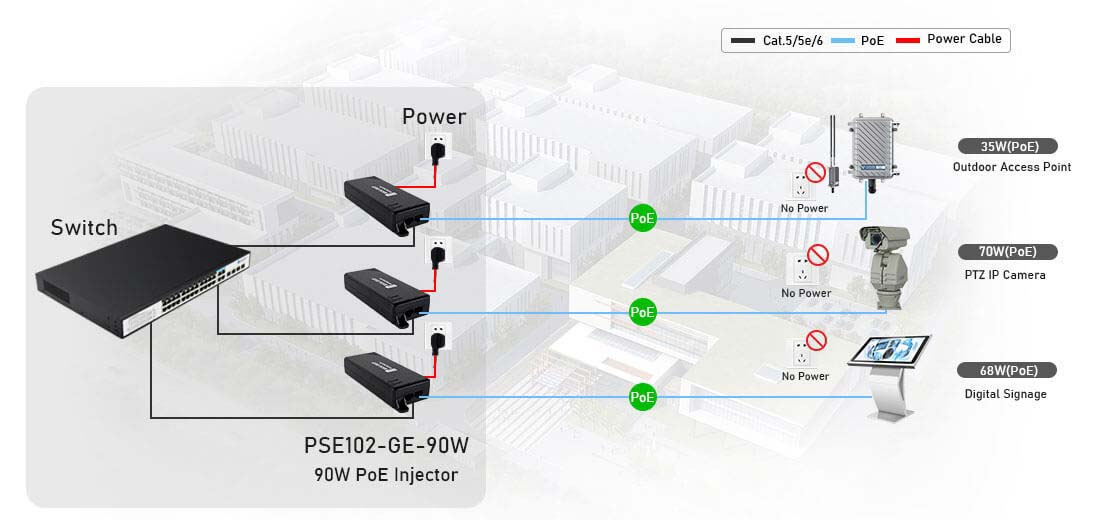

Single Ports Gigabit UPoE+ Injector Connection Diagram



POE++ injector connection diagram





Specification



  • Technical Specifications :

    PSE102-GE-90W

  • 10M/100M/1G RJ45 copper ports :

    2

  • PoE / PoE+ / PoE++ / UPoE+ ports :

    1 (90-watt)

  • Power over Ethernet :

    *

  • PoE Power Supply Type :

    1/2/4/5 (+), 3/6/7/8 (-)

  • PoE Power Output :

    48V DC, 1900mA. max. 90 watts

  • Performance Specification :

    *

  • Forwarding modes :

    Forward

  • 100M Copper Latency :

    8.312µs; 8.413µs; 8.454µs (64-byte; 1518-byte; 9216-byte frames)

  • 1G Copper Latency :

    3.515µs; 3.546µs; 3.627µs (64-byte; 1518-byte; 9216-byte frames)

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    60 x 148 x 30mm (2.36 x 5.83 x 1.18 in)

  • Weight :

    0.95 kg (2.09 lb)

  • Max power :

    7W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005； (ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale) ； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Commercial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged

Questions & Answers

What devices can the PSE102-GE-90W power?

It powers high-demand devices such as PTZ cameras, all-in-one PCs, and digital displays, providing both power and data over a single Ethernet cable.



How does the PSE102-GE-90W simplify installation?

It eliminates the need for separate power cables, reducing installation complexity and cable clutter by delivering both power and data via one Ethernet cable.



What is the maximum power output of the PSE102-GE-90W?

The injector provides up to 90W of power, making it ideal for powering devices that require more power than standard PoE+ injectors can supply.



Can this Single Ports Gigabit PoE++ Injector be used in remote or industrial locations?

Yes, it’s perfect for environments where power outlets are scarce, offering a flexible and efficient solution for remote installations and industrial applications.



How does the PSE102-GE-90W improve network efficiency?

It enhances network flexibility and reach while simplifying setup, reducing wiring complexity, and saving both time and installation costs.
