Key Product Features & Capabilities

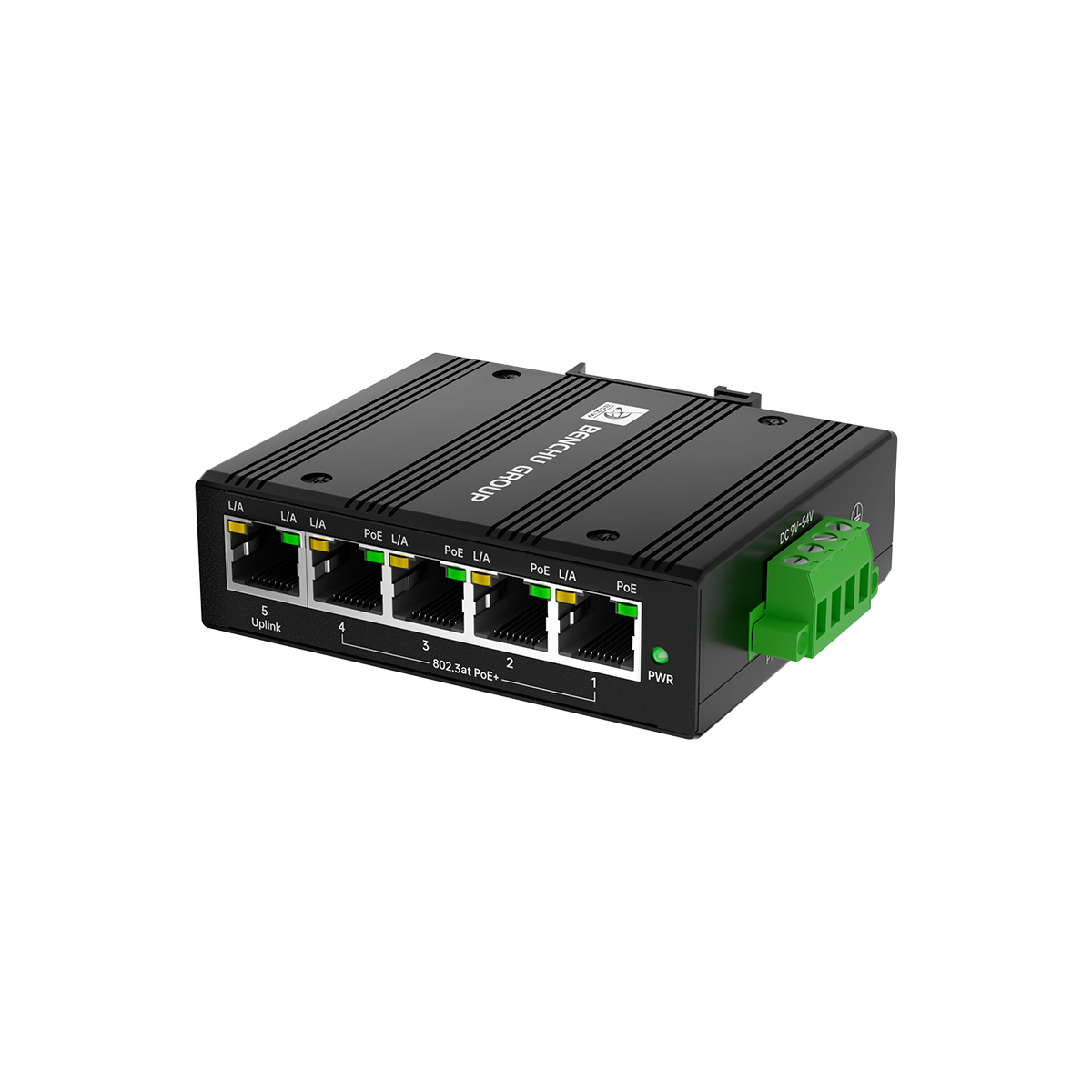

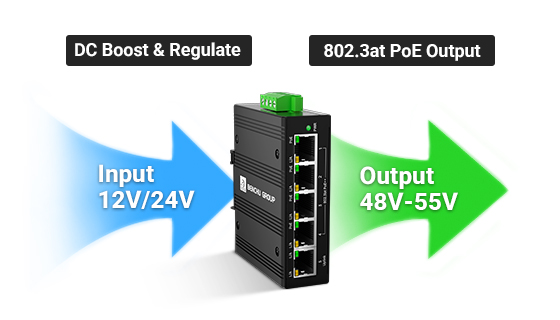

12V/24V Voltage Booster
Integrated step-up module converts low-voltage DC input into stable IEEE 802.3at 48V PoE output directly.

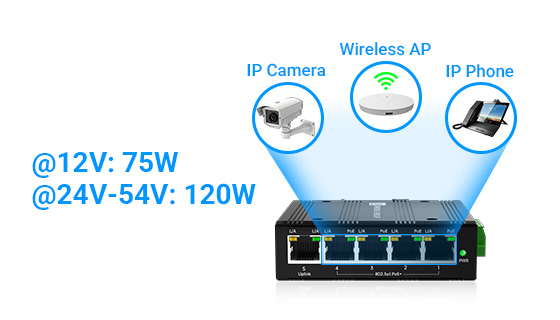

120W High Power Budget
Supplies a massive 120W total power budget, delivering full 30W PoE+ on all 4 network ports simultaneously.

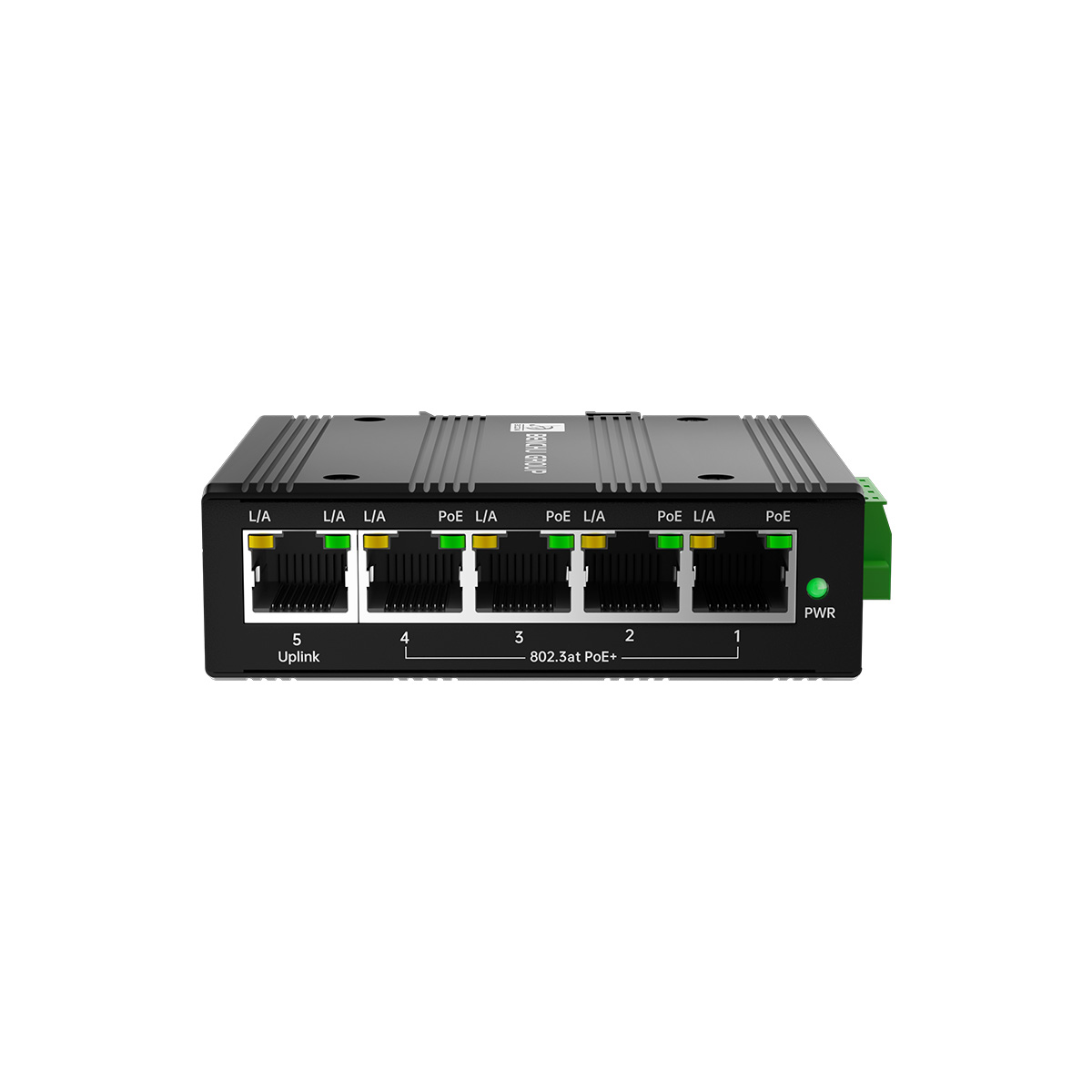

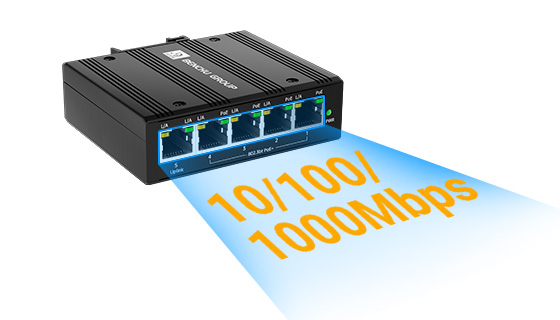

Full Gigabit Speed
Features 5 full-gigabit ports ensuring zero-latency, high-bandwidth data transmission for HD IP surveillance.

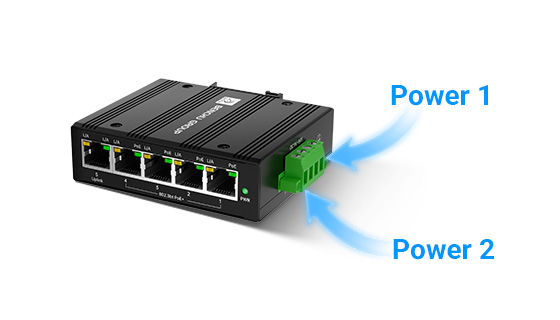

Dual Power Redundancy
Supports dual DC power inputs for seamless failover protection, ensuring zero downtime for critical networks.

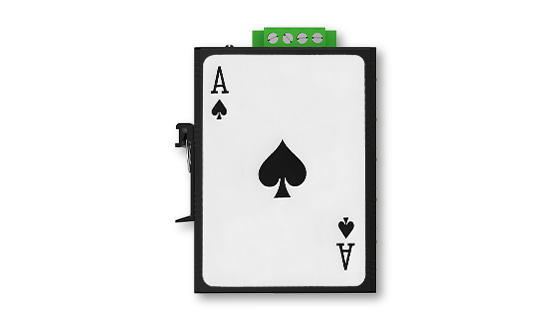

Ultra-Compact Size
Slightly larger than a deck of playing cards, saving valuable space in crowded outdoor enclosures and cabinets.
-40°C to 75°C Hardened
Industrial-grade fanless components endure extreme heat and sub-zero freezing climates flawlessly.
6KV Surge Protection
Built-in 6KV common mode surge protection shields network backbones against outdoor lightning spikes.

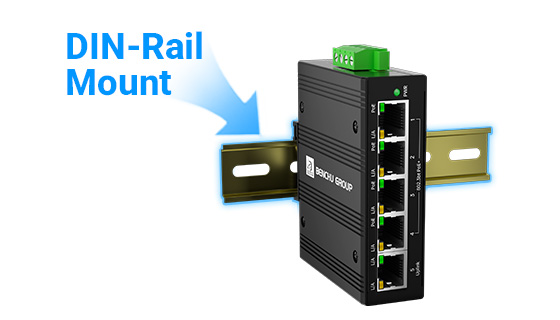

DIN-Rail Plug & Play
Standard 35mm DIN-rail mount design requires zero software configuration, ensuring quick deployment.
Industrial Connectivity Solutions
How to integrate the boost PoE switch into your low-voltage networks.
Seamless Deployment in 3 Core Networks

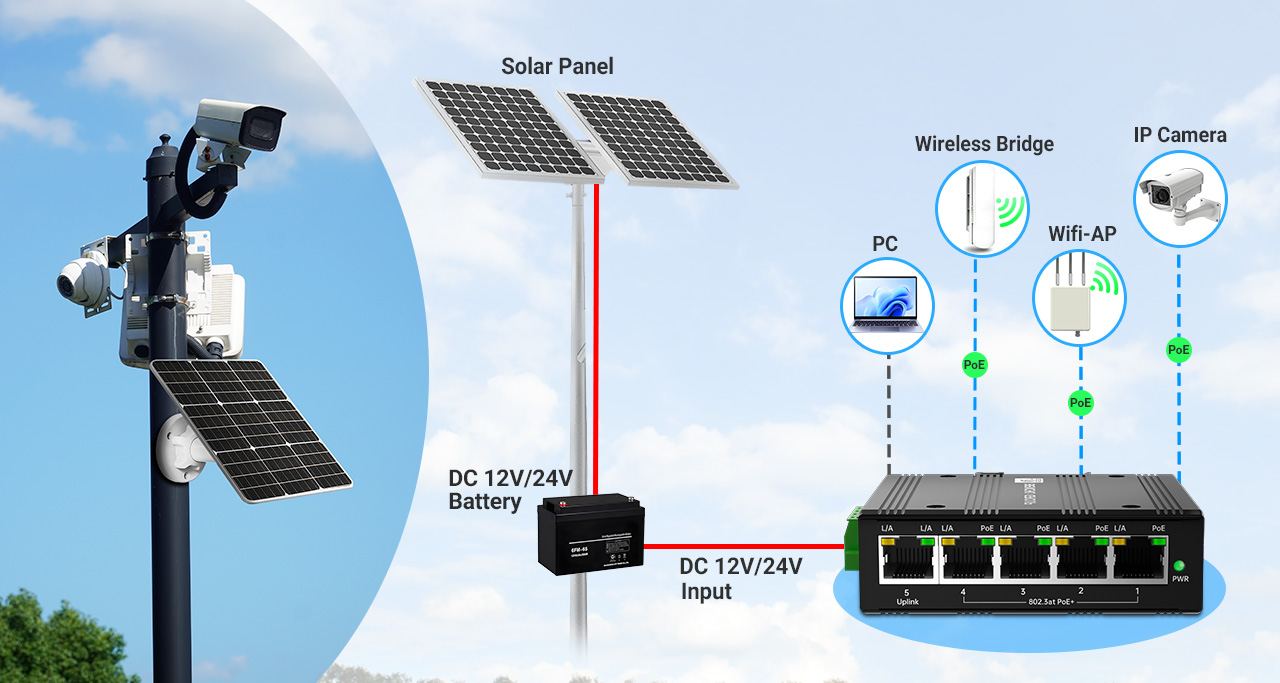

- 1. Solar-Powered Off-Grid Security Connect the dual DC inputs directly to a 12V/24V solar battery bank. The built-in booster steps up power to run up to 4 high-power outdoor IP cameras or wireless bridges with up to 75W/120W budget.
- 2. Vehicle Fleet Transit Surveillance Hook up to the 12V or 24V mobile battery of buses, trucks, or trains. The rugged, pocket-sized switch fits tight enclosures to power mobile NVRs, interior dome cameras, and routing gateways seamlessly.
- 3. 24V DC Factory Automation & ITS Mount directly onto standard 35mm DIN-rails inside standard industrial 24V cabinets. Provide a non-blocking Gigabit backbone for PLCs, HMIs, and heavy industrial IoT sensors.
Industrial Boost PoE Switch Selection Guide
Compare technical features across our premium 9V-54V step-up PoE series to find the exact model for your infrastructure.
| Model Name | IES7211-5PGE1GE-BOS 5-Port RJ45 Edition |
IES7211-4PGE1GF-BOS 5-Port SFP Edition |
IES7511-4PGE2GF-BOS 6-Port Dual SFP Ring (L2 Managed) |
IES7511-8PGE2GF-BOS 10-Port Dual SFP Ring (L2 Managed) |
|---|---|---|---|---|
| Product Image | ||||
| PoE Downlink | 4 x 10/100/1000M PoE+ | 4 x 10/100/1000M PoE+ | 4 x 10/100/1000M PoE+ | 8 x 10/100/1000M PoE+ |
| Uplink Ports | 1 x 10/100/1000M RJ45 | 1 x 10/100/1000M SFP Slot | 2 x 1.25G RJ45 | 2 x 1.25G SFP Slots |
| Fiber Ring | ❌ Not Supported | Point-to-Point Only | ✔ Supported (Fiber Loop) | ✔ Supported (Fiber Loop) |
| Voltage Input | DC 9V - 54V Wide Input | DC 9V - 54V Wide Input | DC 9V - 54V Wide Input | DC 9V - 54V Wide Input |
| Max PoE Budget | @12V: 75W @24V-54V: 120W |
@12V: 75W @24V-54V: 120W |
@12V: 75W @24V-54V: 120W |
@12V: 75W; @24V: 140W @48V-54V: 240W |
| Ideal Applications |
• Small Solar Battery Hubs • In-Vehicle Mobile CCTV
|
• Off-Grid Solar CCTV Nodes • Long-Distance Transit Fiber
|
• Multi-Camera Transit Hubs • Heavy Factory Floor Grids
|
• Smart City ITS Fiber Loops • Long-Distance Pipeline CCTV
|
| Details Page | Learn More → | Learn More → | Learn More → | Learn More → |
🚀 OEM/ODM & White Label Services
Empower your brand with Benchu's 10+ years of PoE++ & Industrial Networking manufacturing expertise. We provide more than just hardware; we provide your brand's competitive edge.
Branding & ID
- Laser-etched Logo & Custom Labels
- Brand-specific Packaging (Giftbox/Carton)
- Unique Housing Colors (RAL/Pantone)
Software & Tech
- Custom Default IP/Login Credentials
- Private MIBs & Specialized Firmware
- PCBA-only Options for System Integration
Ready to Build Your Own Brand?
Standard OEM Lead Time: 1-3 Weeks | Low MOQ Branding
