IES7211-16PGE2GF-DC, 16 Ports Gigabit Industrial PoE+ Switch,with 2 Gigabit SFP Uplink,16 PoE+ Ports@120W power budget, DIN-Rail mount
Features

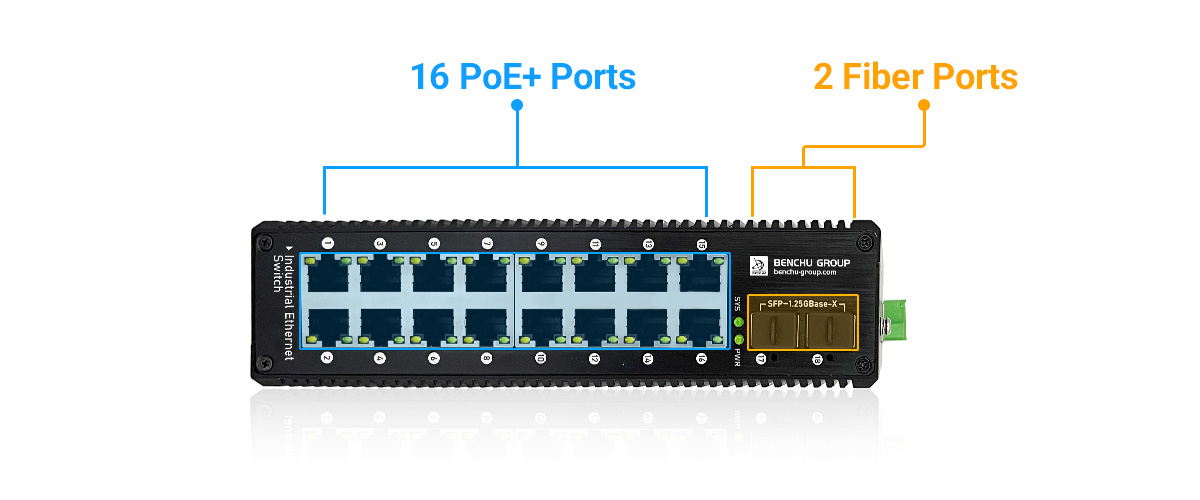

Gigabit Ethernet Port and Gigabit Fiber Port Configuration
Bench group's IES7211-16PGE2GF-DC gigabit industrial PoE switch provide 16 PoE+ 10/100/1000Mbps RJ45 ports and 2-1.25G SPF, Support IEEE820.3af/at provide up to 30W per PoE port, Support redundant power. IP40 protection, DIN-Rail mounting
Two Gigabit SFP Uplink
Benchu Group’s 16 Port DIN-rail Industrial PoE switch IES7211-16PGE2GF-DC features two SFP port uplinks, which can extend network links from 100 meters with copper cables to up to 120 kilometers with fiber optics. This extended reach is ideal for remote locations like electronic police and outdoor surveillance, ensuring reliable communication. The hot-swappable SFP ports allow for easy transceiver replacement or upgrades without network interruption, enhancing reliability and uptime. This feature also simplifies troubleshooting and minimizes downtime in case of transceiver failure.
IP40 High-strength Aluminum Case Gives to Optimal Heat Dissipation
Benchu group's 16 ports giabit industrial PoE switch IES7211-16PGE2GF-DC with IP40 high-strength aluminum case,The aluminum material used in the high-strength case is excellent for heat dissipation. In industrial applications, where devices often operate continuously and generate significant heat, efficient thermal management is crucial. The aluminum case helps dissipate heat more effectively than plastic or other materials, maintaining optimal operating temperatures and preventing overheating. This not only ensures stable performance but also protects the switch from thermal-related malfunctions. Effective heat management is particularly important in industrial settings where ambient temperatures can vary widely, ensuring the switch operates reliably under various conditions.
Redundant power gives to Operational Safety
Benchu group's 16 ports gigabit Industrial PoE Switch IES7211-16PGE2GF-DC with redundant power input contribute to operational safety by ensuring that network devices continue to receive power even during power supply issues. This continuous power delivery prevents sudden shutdowns, protecting sensitive equipment from damage and maintaining the integrity of ongoing processes. Operational safety is vital in industries such as manufacturing, healthcare, and utilities.
Wide Operating Temperature Design gives to Reduced Cooling and Heating Costs
Benchu group' 16 Ports gigabit industrial Gigabit PoE switch IES7211-16PGE2GF-DC use wide operating temperature range design minimizes the need for additional cooling or heating solutions to maintain optimal switch performance. This reduction in auxiliary climate control lowers energy consumption and operational costs. In environments where controlling ambient temperature is challenging or expensive, these switches offer a cost-effective and energy-efficient solution.
8kV Lightning Protection Gives to Cost Savings
Investing in an industrial PoE switch with 8kV lightning protection reduces long-term costs associated with equipment damage and network outages. Benchu group’s 16 Ports Gigabit Industrial PoE Switch SP7211-16PGE2GF with 8kV lightning protection,By preventing surge-related failures, organizations save on repair, replacement, and downtime expenses. Cost savings extend to avoiding potential revenue losses and operational disruptions caused by network interruptions.
Connectivity Solutions
16 Port Gigabit Industrial PoE Switch with 2 Gigabit SFP Uplink of Connection Solution
Gigabit Industrial Switch 16 Port PoE with 2 Gigabit SFP Uplink of Connection Solution
Specification
Technical Specifications :
IES7211-16PGE2GF-DC10M/100M/1G RJ45 copper ports :
161.25G SFP (fiber) ports :
2PoE / PoE+ ports :
16Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
4.2 MbForwarding modes :
Store-and-forwardBandwidth :
24 GbpsPacket forwarding rate :
26.79Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
163,116 hours (MTBF) @ 25°C100M Copper Latency :
8.532µs; 8.613µs; 8.712µs1G Copper Latency :
3.435µs; 3.541µs; 3.643µs1G Fiber Latency :
2.993µs; 3.112µs; 3.183µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
170 x 135 x 48 mm (6.69 x 5.31 x 1.89 in)Weight :
1.1Kg (2.43IB)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 48~56V, redundant power with reverse polarity protectionPower Consumption :
240WMax power :
9WIddle power consumption :
7WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
Questions & Answers
What is the power budget of this 16 port Gigabit Industrial PoE swtich?
The switch has a 120W power budget, with each of its 16 PoE+ ports capable of delivering up to 30W, suitable for powering devices like IP cameras, wireless access points, and VoIP phones.
What uplink options does the IES7211-16PGE2GF-DC offer?
The IES7211-16PGE2GF-DC features 2 Gigabit SFP uplink ports, providing high-speed fiber-optic connections for extended distances and high-bandwidth applications.
Is the IES7211-16PGE2GF-DC suitable for harsh industrial environments?
Yes, it’s designed for industrial environments with an IP40-rated metal casing, protection against dust, moisture, and physical impacts, and an operating temperature range from -40°C to 85°C.
How easy is it to install the IES7211-16PGE2GF-DC?
The IES7211-16PGE2GF-DC features a DIN-Rail mount, allowing easy and secure installation in industrial control panels, with a plug-and-play, unmanaged design that simplifies deployment.
What protection features are included in the IES7211-16PGE2GF-DC?
The switch comes with built-in surge protection and electrostatic discharge (ESD) protection, ensuring reliable operation even in electrically noisy environments.
