IES7211-4PGE1GE1GF-DC, 4 Ports Gigabit Industrial PoE+ Switch,with 1 Gigabit RJ45 and 1 Gigabit SFP Uplink,4 PoE+ Ports@75W power budget, DIN-Rail mount
Physical Port
Power over Ethernet
Switching
Hardware
|
Lightning Protection
Mechanical Properties
|
Features
Gigabit Ethernet Port and Gigabit Fiber Port Configuration
Bench group's IES7211-4PGE2GF-DC gigabit industrial PoE switch provide 4 PoE+ 10/100/1000Mbps RJ45 ports, 1 gigabit RJ45 and 1-1.25G SFP Uplink, support IEEE820.3af/at provide up to 30W per PoE port, support redundant power .

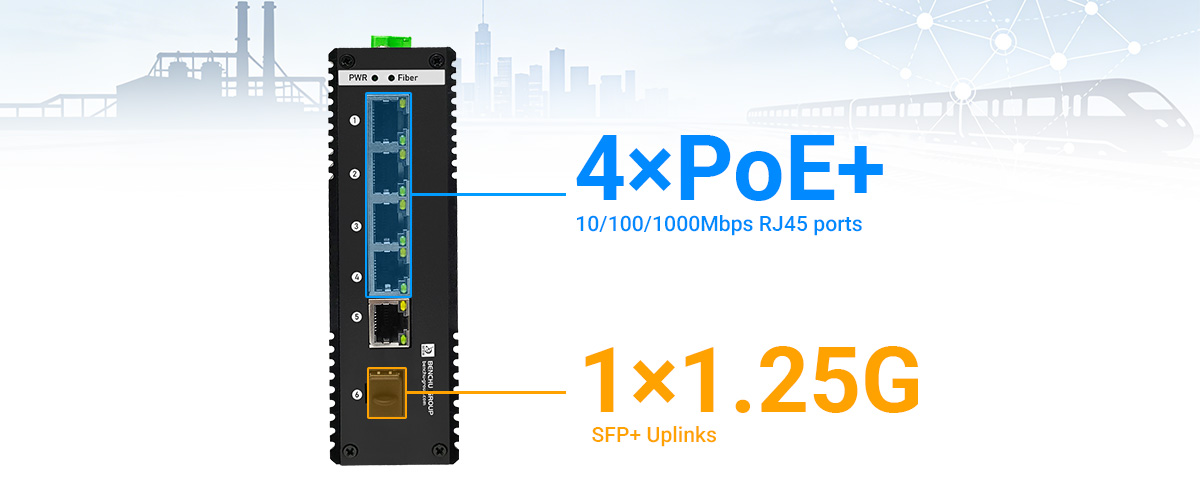

One Gigabit RJ45 and One SFP Uplink

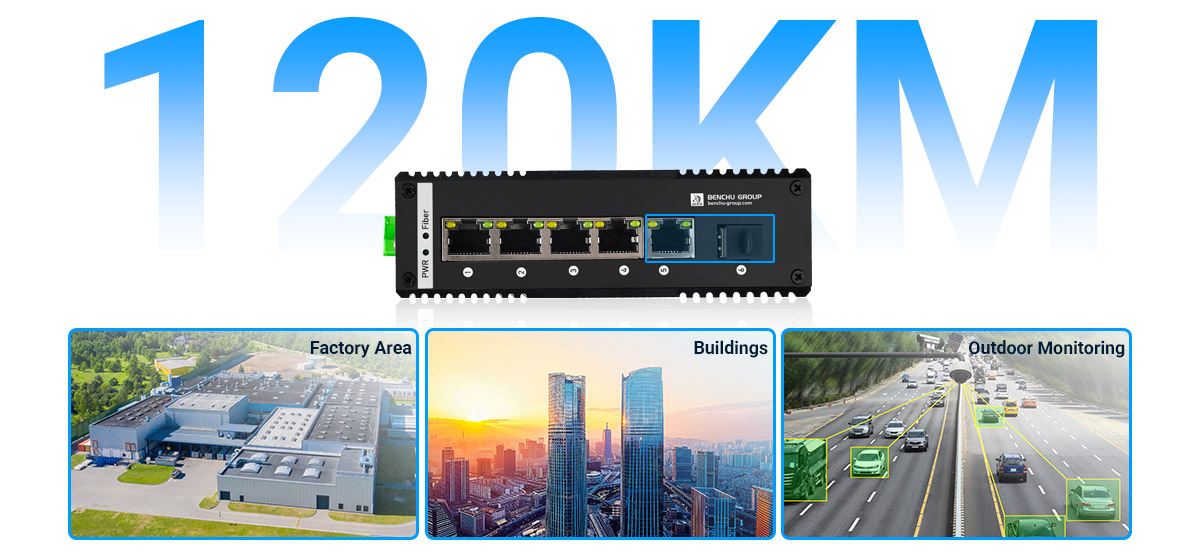

Benchu group's IES7211-4PGE1GF-DC with 1 Gigabit RJ45 and 1 Gigabit SFP Uplink rate to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the four PoE+ ports can be used to their full potential.Fiber-Optic Link Capability Enables Extension of Network Deployment,The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.
IP40 High-strength Aluminum Case Gives to Lightweight and Strong
Benchu group's 4 ports gigabit industrial PoE switch IES7211-4PGE1GE1GF-DC with IP40 high-strength aluminum case,Aluminum is a lightweight yet strong material, making it ideal for industrial PoE switches. The high-strength aluminum case provides the necessary protection without adding excessive weight, which is particularly beneficial for installations where weight is a concern, such as on DIN rails or other mounting systems. Despite its lightness, aluminum offers excellent structural integrity, ensuring that the switch can endure the rigors of industrial use, including vibrations and mechanical stress. This combination of lightness and strength simplifies installation and handling while providing robust protection.
Redundant power gives to Operational Safety
Benchu group's IES7211-4PGE2GF gigabit Industrial PoE Switch with redundant power input contribute to operational safety by ensuring that network devices continue to receive power even during power supply issues. This continuous power delivery prevents sudden shutdowns, protecting sensitive equipment from damage and maintaining the integrity of ongoing processes. Operational safety is vital in industries such as manufacturing, healthcare, and utilities.

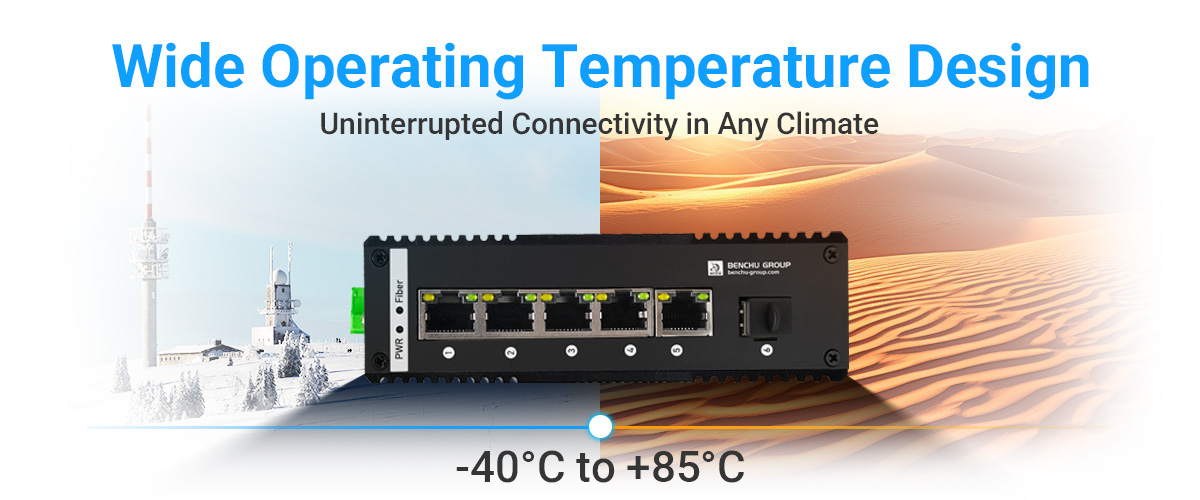

Wide Operating Temperature Design gives to Longevity and Durability
Designed to withstand harsh temperature extremes, Benchu group' 8 Ports gigabit industrial Gigabit PoE switch IES7211-8PGE2GF-DC is built with high-quality components and rugged construction. This durability translates into a longer lifespan and reduced risk of temperature-induced failures. Industrial environments benefit from lower total cost of ownership and fewer interruptions due to equipment breakdowns, ensuring stable network connectivity.
8kV Lightning Protection Gives to Compliance with Safety Standards
Benchu group’s 8 Ports Gigabit Industrial PoE Switch SP7211-8PFE1GE1GF with 8kV lightning protection ensures the industrial PoE switch meets stringent safety and industry standards. Compliance with these standards guarantees the switch’s suitability for deployment in hazardous or high-risk environments, providing peace of mind to operators. Adhering to safety regulations is crucial for industries such as manufacturing, energy, and transportation, where electrical safety is paramount.
Connectivity Solutions
4 port Gigabit Industrial PoE switch with 1 Gigabit RJ45 and 1 Gigabit SFP Uplink of connectivity Solution
Specification
Technical Specifications :
IES7211-4PGE1GE1GF-DC10M/100M/1G RJ45 copper ports :
51.25G SFP (fiber) ports :
1PoE / PoE+ ports :
4Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
1.2 MbForwarding modes :
Store-and-forwardBandwidth :
24 GbpsPacket forwarding rate :
8.93Mpps (64 byte packet size)MAC address database size :
4K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
158,113 hours (MTBF) @ 25°C100M Copper Latency :
8.535µs; 8.612µs; 8.716µs1G Copper Latency :
3.434µs; 3.542µs; 3.645µs1G Fiber Latency :
2.996µs; 3.113µs; 3.188µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
38 x 95 x 135mm (1.5 x 3.75 x 5.31 in)Weight :
0.55 kg (1.2 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 48~56V, redundant power with reverse polarity protectionPower Consumption :
75WMax power :
6WIddle power consumption :
4WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial PoE Switch;Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
