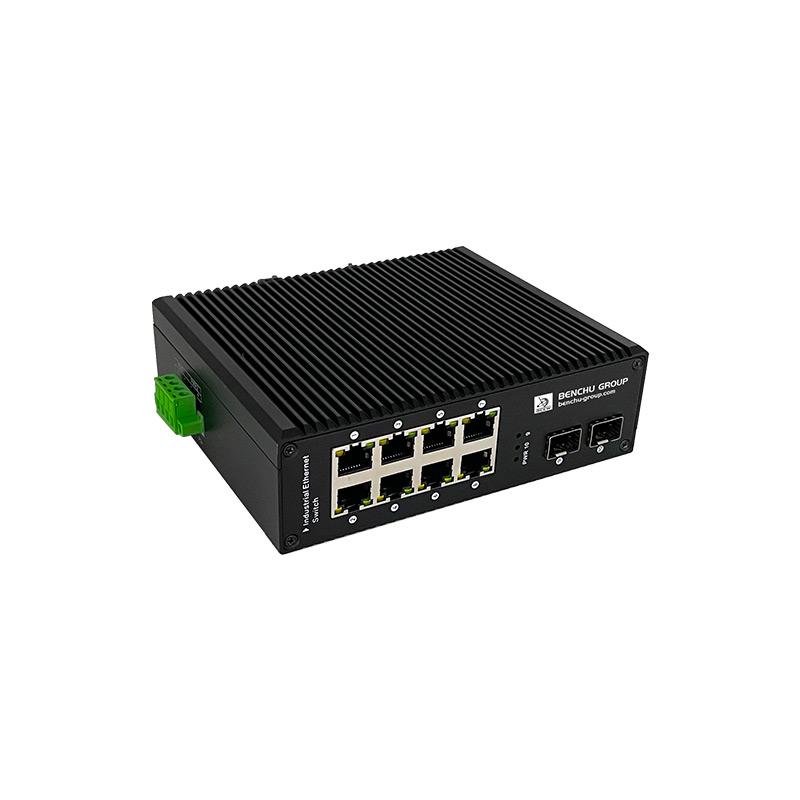

IES7211-8PFE2GF-DC, 8 Ports 10/100M Industrial PoE+ Switch,with 2 Gigabit SFP Uplink,8 PoE+ Ports@120W power budget, DIN-Rail mount
Physical Port
Power over Ethernet
Switching
Hardware
|
Lightning Protection
Mechanical Properties
|
Features
Fast Port and gigabit port and fiber Port Configuration

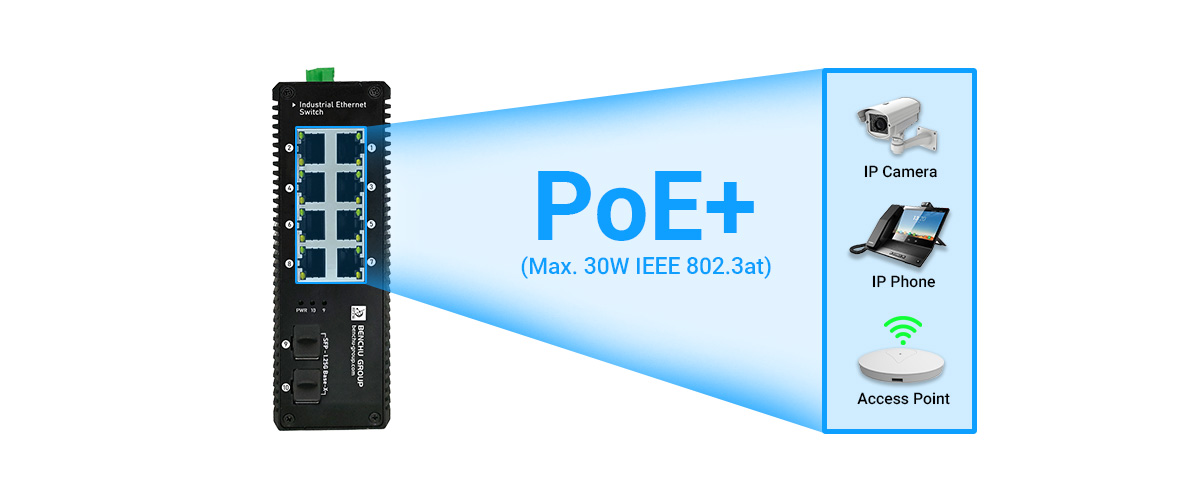

Bench group's IES7211-8PFE2GF-DC Industrial PoE Switch provide 8 PoE+ 10/100Mbps RJ45 ports and 2-1.25G SPF, support IEEE820.3af/at provide up to 30W per PoE port , support redundant power .
Two Gigabit SFP Uplink
Benchu Group's IES7211-8PGE2GF-DC Industrial PoE switch is equipped with two SFP port uplinks. These SFP transceivers extend network links from 100 meters using copper cables to up to 120 kilometers using fiber optics. This extended reach is perfect for connecting remote locations like electronic police and outdoor surveillance, ensuring reliable communication. The hot-swappable SFP ports allow for easy transceiver replacement or upgrades without disrupting the network, enhancing reliability and uptime. This feature also simplifies troubleshooting and minimizes downtime in the event of a transceiver failure.
IP40 High-strength Aluminum Case Gives to Enhanced Durability and Protection
Benchu group's 8 Ports 10/100M industrial PoE switch IES7211-8PFE2GF-DC with IP40 high-strength aluminum case offers unparalleled durability and protection. The robust aluminum casing can withstand harsh industrial environments, providing a solid barrier against physical impacts, dust, and other contaminants. This ensures the internal components are protected from potential damage, extending the lifespan of the switch. The IP40 rating means it is protected against solid objects larger than 1 mm, such as wires and tools, which are common in industrial settings. This makes the switch highly reliable, minimizing downtime caused by environmental factors and reducing maintenance costs.
Redundant power gives to Increased Uptime
benchu group's IES7211-8PGE2GF gigabit Industrial PoE Switch with redundant power input, the risk of network outages due to power supply failure is significantly reduced. This feature enhances the overall uptime of the network, providing continuous service in environments where constant connectivity is critical. Increased uptime is especially beneficial in industrial automation, security systems, and other applications where downtime can lead to significant operational disruptions.
Wide Operating Temperature Design gives to Versatility Across Applications
The ability to operate in a wide temperature range(-40~85℃) makes Benchu group' IES7211-8PGE2GF-DC industrial Gigabit PoE switch suitable for various applications, from freezing storage facilities to hot manufacturing plants. This versatility allows for standardization on a single switch model across different environmental conditions, simplifying inventory management and reducing the complexity of deployment.
8KV lightning protection gives to Improved Network Uptime
Benchu group’s 8 Ports Gigabit Industrial PoE Switch SP7211-8PFE2GF with 8kV lightning protection, the S7211-8PFE2GF Industrial PoE switch ensures high network availability by preventing downtime caused by power surges. Reliable surge protection keeps critical network services running smoothly during and after electrical disturbances. Improved uptime is crucial for industrial applications, such as surveillance, automation, and communication, where consistent connectivity is essential.
Connectivity Solutions
8 port 10/100M Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution
Specification
Technical Specifications :
IES7211-8PFE2GF-DC10M/100M RJ45 copper ports :
81.25G SFP (fiber) ports :
2PoE / PoE+ ports :
8Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)PoE Power Budget :
112 WattsPerformance Specification :
*Packet buffer memory :
1.2 MbForwarding modes :
Store-and-forwardBandwidth :
7.6 GbpsPacket forwarding rate :
5.66Mpps (64 byte packet size)MAC address database size :
4K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
170,214 hours (MTBF) @ 25°C100M Copper Latency :
8.521µs; 8.622µs; 8.735µs1G Copper Latency :
3.443µs; 3.552µs; 3.633µs1G Fiber Latency :
2.995µs; 3.113µs; 3.181µsIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
48 x 110 x 150mm (1.89 x 4.33 x 5.91 in)Weight :
0.95 kg (2.09 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 48~56V, redundant power with reverse polarity protectionPower Consumption :
120WMax power :
8WIddle power consumption :
5WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Switch; AC Power cord with C13 connector (localized to region of sale) ; Brackets and screws for rack mounting; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
100M+1GMore Filters :
Unmanaged
