IES7211-P75-48V, Industrial DIN Rail PoE Power Supply, 75-watt PoE Power adaptor，DC 48V 1.6A
BENCHU GROUP's IES7211-P75-48V Industrial PoE Power Adapter is a specialized device designed to convert standard AC power (100~240V) into a stable 48V DC output, ideal for powering industrial PoE switches. This adapter is engineered for use in harsh environments, offering reliable power delivery even under extreme conditions such as high temperatures, dust, and moisture.
Its robust design ensures consistent performance, making it essential for industrial applications where stable power is critical. The adapter's primary function is to enable seamless power delivery to industrial PoE Switch, by converting available AC power to the required 48V DC output.
The value of IES7211-P75-48V Industrial PoE Power Adapter lies in its ability to provide a reliable and efficient power source for industrial networks, reducing downtime and maintenance costs. Its durable design ensures longevity, while built-in safety features such as overvoltage and short-circuit protection safeguard both the adapter and connected devices. For businesses, this means enhanced network stability, lower operational costs, and the ability to maintain high-performance networks in even the most demanding environments.
|
DIN Rail PoE Power Supply
|
Features
Stable Performance under Difficult Environments
BENCHU GROUP's IES7211-P75-48V Industrial power adapter are engineered to provide consistent and reliable power in challenging environments. Whether subjected to fluctuating temperatures, high humidity, or dusty conditions, the IES7211-P75-48V maintain stable performance, ensuring that connected equipment receives uninterrupted power. This stability is crucial for industrial applications where even a brief power disruption can lead to significant operational downtime. By providing a dependable power source, BENCHU GROUP's Industrial DIN-Rail power adapter help maintain the efficiency and productivity of critical systems, ensuring continuous operation in environments where power stability is often compromised.
Enhanced Safety for Connected Equipment
The IES7211-P75-48V Industrial power adapter come equipped with advanced safety features such as overvoltage, overcurrent, and short-circuit protection. These safeguards are essential in protecting both the adapter and the connected equipment from electrical faults that could cause damage or operational failure. In industrial settings, where equipment is often expensive and critical to operations, the enhanced safety provided by these adapters minimizes the risk of costly repairs and downtime, offering peace of mind and ensuring that operations continue smoothly.
Withstand Harsh Conditions
Designed to endure harsh industrial conditions, the IES7211-P75-48V DIN-rail power adapters are built with rugged housings that protect against environmental stressors such as extreme temperatures, moisture, and dust. Their robust construction ensures they can operate effectively in outdoor installations or within industrial facilities where conditions are less than ideal. This durability extends the lifespan of the power adapters, reducing the need for frequent replacements and providing long-term reliability, which is essential in environments where equipment is exposed to continuous wear and tear.
Good Safety and Stability
The combination of solid-state components and protective features ensures that BENCHU GROUP's industrial power adapters deliver stable power without fluctuations. This stability is crucial for the smooth operation of sensitive industrial equipment, which can be adversely affected by inconsistent power supply. Additionally, the IES7211-P75-48V DIN-rail power adapters are designed to minimize the risk of overheating and electrical surges, further enhancing the safety and stability of the connected systems. By providing a steady and safe power output, these adapters help prevent unexpected shutdowns and maintain the continuous operation of critical industrial processes.
Durability & Built to last
Built to last,BENCHU GROUP's industrial power adapters are constructed with high-quality materials that can withstand the rigors of demanding industrial environments. Their durable design ensures they continue to function effectively over long periods, even in conditions that would typically degrade standard power supplies. This durability translates into lower maintenance costs and fewer replacements, providing a cost-effective power solution for industrial applications. Their long operational life also means reduced downtime, as businesses can rely on these adapters to keep their systems running without frequent interruptions due to power failures or equipment malfunctions.
Connectivity Solutions
75-watt Industrial DIN Rail PoE Power Supply Connection Diagram
Specification
MODEL :
IES7211-P75-48VOUTPUT :
*DC VOLTAGE :
48VRATED CURRENT :
1.6ACURRENT RANGE :
0 ~ 1.6ARATED POWER :
76.8WRIPPLE & NOISE (max.) Note.2 :
150mVp-pVOLTAGEADJ. RANGE :
48 ~ 55VVOLTAGE TOLERANCENote.3 :
±1.0%LINE REGULATION :
±0.5%LOAD REGULATION :
±1.0%SETUP, RISE TIME :
1200ms, 60ms/230VAC; 2000ms, 60ms/115VAC at full loadHOLD UPTIME (Typ.) :
60ms/230VAC; 12ms/115VAC at full loadINPUT :
*VOLTAGE RANGE Note.6 :
90 ~ 264VAC; 127 ~ 370VDC [DC input operation possible by connectingAC/L(+),AC/N(-)]FREQUENCYRANGE :
47 ~ 63HzEFFICIENCY(Typ.) :
89%AC CURRENT (Typ.) :
1.45A/115VAC; 0.9A/230VACINRUSH CURRENT (Typ.) :
20A/115VAC; 35A/230VACLEAKAGE CURRENT :
<1mA/ 240VACPROTECTION :
*OVERLOAD :
105 ~ 130% rated output power [Protection type :Constant current limiting, recovers automatically after fault condition is removed]OVER VOLTAGE :
56 ~ 65V [Protection type : Shut down o/p voltage, re-power on to recover]OVER TEMPERATURE :
Protection type : Shut down o/p voltage, re-power on to recoverENVIRONMENT :
*WORKING TEMP. :
-20 ~ +70 (Refer to "Derating Curve")WORKING HUMIDITY :
20 ~ 95% RH non-condensingSTORAGE TEMP., HUMIDITY :
-40 ~ +85 , 10 ~ 95% RHTEMP. COEFFICIENT :
士0.03%/℃(0-50℃)VIBRATION :
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X,Y, Z axes; Mounting: Compliance to IEC60068-2-6SAFETY& EMC (Note 4) :
*SAFETYSTANDARDS :
UL508,TUV BS EN/EN62368-1, EAC TP TC 004 approved;(meet BS EN/EN60204-1)WITHSTAND VOLTAGE :
I/P-O/P:3KVAC; I/P-FG:2KVAC; O/P-FG:0.5KVACISOLATION RESISTANCE :
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RHEMC EMISSION :
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3,EAC TP TC 020EMC IMMUNITY :
Compliance to BS EN/EN61000-4-2.3,4,5.6,8,11,BS EN/EN55035,BS EN/EN61000-6-2(BS EN/EN50082-2).BS EN/EN61204-3, heavy industry level, EAC TP TC 020OTHERS :
*MTBF :
2757.3K hrs min. Telcordia SR-332 (Bellcore) ; 486.2K hrs min. MIL-HDBK-217F (25℃)DIMENSION :
32*125.2*102mm (W*H*D)PACKING :
0.51Kg; 28pcs/15.3Kg/1.22CUFTNOTE 1 :
All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.NOTE 2 :
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 μ F & 47 μ F parallel capacitor.NOTE 3 :
Tolerance : includes set up tolerance, line regulation and load regulation.NOTE 4 :
The power supply is considered a component which wll be installed into a final equipment. The final equipment must be re-conirmed that it stll meets EMC directives.NOTE 5 :
Installation clearances : 40mm on top, 20mm on the botom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adiacent device is a heat source, 15mm clearance is recommended.NOTE 6 :
Derating may be needed under low input voltage. Please check the derating curve for more details.NOTE 7 :
The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operaing altitude higher than 2000m(6500ft).Business Type :
Industrial
Questions & Answers
Downloads
- 75-watt Industrial DIN Rail PoE Power Supply Datasheet (IES7211-P75-48V)
Related Products
-
IES7211-P240-48VIndustrial DIN Rail PoE Power Supply, 240-Watt PoE Power Adaptor -
IES7211-P480-48VIndustrial DIN Rail PoE Power Supply, 480-Watt PoE Power Adaptor -
POE-EX011 Channel Fast PoE Extender -

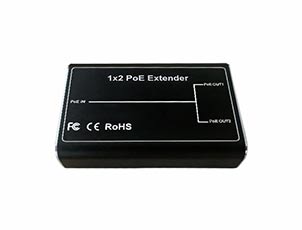

POE-EX022 Channel Fast PoE Extender
