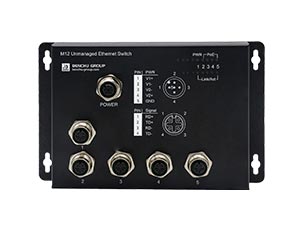

4 Ports M12 Gigabit PoE Switch, Industrial Protection IP67 Rating, Wall Mount, IES7231D-4PGE1GE-M12
Features
M12 Ruggedized Ports
The IES7231D-4PGE1GE-M12 features four M12 Ethernet ports designed for harsh environments. M12 connectors are ideal for applications in industries like transportation, railways, and factories due to their robust physical structure, ensuring secure data transmission even in environments prone to vibration, moisture, or dust. The M12 interface ensures that network connections remain stable and reliable, even under heavy stress, making it suitable for moving vehicles or equipment in motion.
PoE+ Power Delivery
Each of the four M12 ports supports PoE+ (IEEE 802.3af/at), providing up to 30W of power per port. This allows the M12 PoE switch to simultaneously deliver both data and power over a single Ethernet cable, eliminating the need for additional power supplies. This feature is especially useful for devices such as IP cameras, wireless access points, and industrial sensors that require both power and data connectivity in environments where running separate power lines is difficult or costly.
Gigabit Uplink Port
In addition to the four M12 PoE ports, the IES7231D-4PGE1GE-M12 includes one Gigabit Ethernet uplink port. This uplink port allows for fast, high-speed connections to other parts of the network, ensuring that large amounts of data can be transmitted efficiently. This feature is essential for connecting the switch to the core network, enabling seamless data flow from field devices to central servers or control centers in industrial environments.
Wide Operating Temperature Range
The 4-Port M12 PoE Switch is designed to operate in extreme temperatures ranging from -40°C to 85°C. This wide operating temperature range makes the switch suitable for deployment in outdoor environments, factories, or moving vehicles where temperature fluctuations are common. It ensures reliable performance under harsh conditions, preventing device failure due to temperature extremes.
High Electrostatic Discharge (ESD) Protection
The IES7231D-4PGE1GE-M12 is equipped with robust ESD protection, offering ±8KV DC contact discharge and ±15KV air discharge protection. This high level of protection ensures that the switch can withstand sudden electrical surges, safeguarding connected devices from potential damage. In industrial environments where electrical disturbances are common, such protection ensures continuous and stable operation.
IP67-Rated Industrial Design
With an IP67 rating, the IES7231D-4PGE1GE-M12 is fully protected against dust and water ingress, making it suitable for outdoor use or areas with high humidity, water exposure, or dust. The rugged enclosure provides extra durability, ensuring the switch continues to function reliably in harsh environments such as factories, transport systems, or marine applications, where exposure to the elements is a concern.
Efficient Data Handling
This 4 Port Gigabit M12 PoE switch offers a backplane bandwidth of 16Gbps and a packet forwarding rate of 7.45Mpps, ensuring that it can handle large amounts of data traffic without bottlenecks. This level of performance is crucial in environments with high data demand, such as video surveillance networks, industrial automation, or public transportation systems where uninterrupted data flow is critical.
Flexible Wall-Mount Installation
Designed with flexible installation options, the IES7231D-4PGE1GE-M12 supports wall-mount installation, making it easy to deploy in a wide range of environments. Whether mounted in a control room, a moving vehicle, or an industrial setting, the switch’s compact design allows for space-efficient installation without sacrificing performance, offering greater flexibility for network designers and engineers.
Connectivity Solutions
4 Port Gigabit M12 PoE switch connectivity solution
Specification
Technical Specifications :
IES7231-4PGE1GF-M1210/100/1000M M12 copper ports :
5PoE / PoE+ ports :
4Power over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE；Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
1.2 MbForwarding modes :
Store-and-forwardBandwidth :
16 GbpsPacket forwarding rate :
7.44MppsMAC address database size :
4K (48-bit MAC ad-dresses)Jumbo frame support :
9KIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerDimensions (Width * Depth * Height) :
170 × 108 × 29 mm (6.69 x 4.25 x 1.14 in)Weight :
1.1 kg (2.43 lb)Shell protection :
IP40 high-strength aluminum casePower Requirements :
DC 48~56V, with reverse polarity protectionPower Consumption :
*Max power :
7W (worst case, all ports used, line-rate traffic) (Watts)Iddle power consumption :
4W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
M12 Industrial PoE Switch；Manual；Screws for Wall mounting；Business Type :
IndustrialBandridth :
1GMore Filters :
Unmanaged
