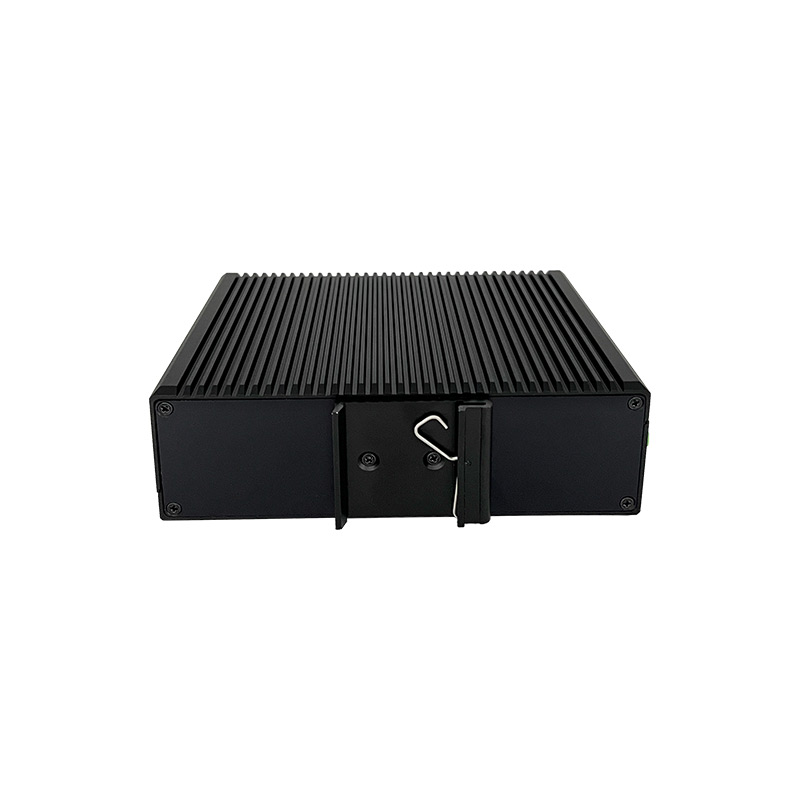

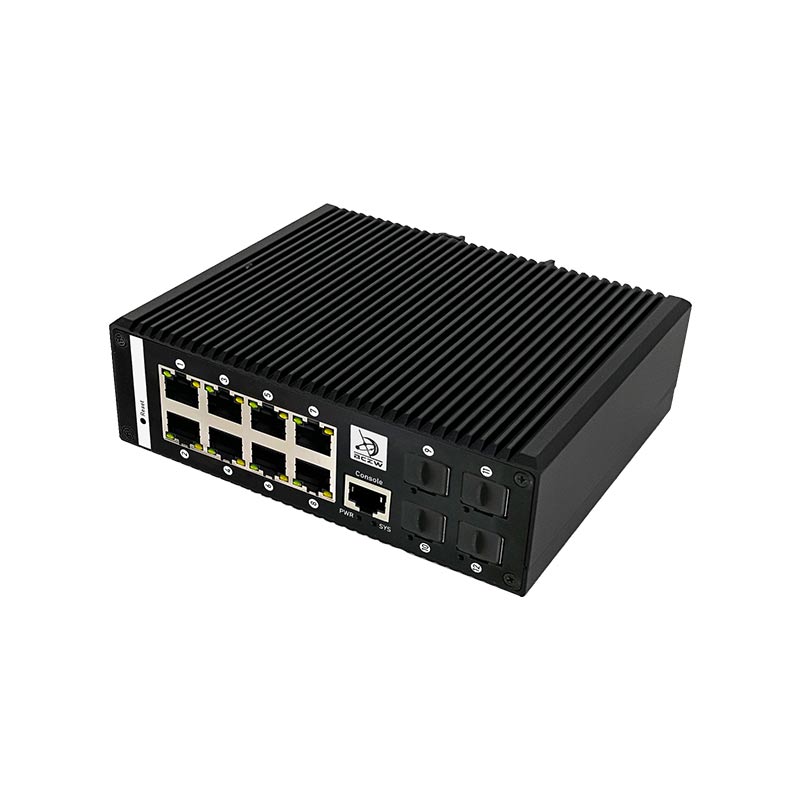

IES7211-8GE4GF-DC, 12 Ports Gigabit Managed Industrial Switch,Provide 4 Gigabit SFP Uplink,DIN-Rail Mount, With Redundant Power Input
Physical Port
Switching
Hardware
Lightning Protection
Mechanical Properties
|
Layer 2 Features
Security
Management
|
Features
Comprehensive Network Management
The IES7511-8GE4GF-DC offers extensive management capabilities through a user-friendly web interface, CLI (Command Line Interface), and SNMP (Simple Network Management Protocol). This flexibility allows network administrators to configure settings, monitor performance, and troubleshoot issues effectively. With access to real-time analytics, users can quickly identify bottlenecks, evaluate network health, and make informed decisions to optimize performance. This comprehensive management reduces downtime and enhances overall network efficiency, making it suitable for critical industrial applications where reliability is paramount.
Quality of Service (QoS)
The IES7511-8GE4GF-DC includes Quality of Service (QoS) features that prioritize critical network traffic. By allowing administrators to set priorities for different types of data, QoS ensures that time-sensitive applications, such as VoIP and video surveillance, receive the necessary bandwidth for optimal performance. This capability minimizes latency and improves the quality of service for high-demand applications, making it an essential feature in environments where performance is crucial. Administrators can easily configure QoS settings to align with the organization’s operational needs, ensuring that critical processes run smoothly.
Ethernet Ring Protection Switching (ERPS)
This 12 port industrial switch supports ERPS, which provides robust protection against link failures within ring topologies, enabling rapid recovery and minimizing downtime. By automatically rerouting traffic around a failed link, ERPS maintains uninterrupted service and enhances network reliability. With ERPS, network administrators can confidently deploy ring topologies without worrying about potential disruptions, ensuring that the network remains resilient and responsive even in the face of hardware failures.
Link Aggregation Control Protocol (LACP)
This 12 port industrial switch supports LACP, which enables the bundling of multiple network connections into a single logical link. This feature increases bandwidth and provides redundancy, enhancing network reliability and performance. In industrial applications, where network reliability is vital, LACP ensures that if one link fails, traffic can automatically reroute through the remaining active connections without interruption. This capability not only improves performance but also simplifies network management, as it reduces the number of physical connections needed.
Advanced Security Features
This 12 port industrial switch incorporates various advanced security protocols, including SSH (Secure Shell), ACLs (Access Control Lists), 802.1X authentication, RADIUS, and TACACS+. These features provide robust security measures that protect against unauthorized access and ensure that only legitimate devices and users can connect to the network. By implementing these security protocols, organizations can create a secure environment for sensitive data and critical operations. This is particularly important in industrial settings, where security breaches can have serious consequences.
Redundant Power Input
Designed for industrial environments, this switch features dual power inputs to ensure continuous operation. This redundancy is critical in applications where uptime is essential. If one power source fails, the switch automatically switches to the backup source without any disruption to service. This capability enhances reliability and minimizes the risk of downtime due to power issues. For organizations operating in critical settings, this feature is invaluable, ensuring that network operations remain stable and uninterrupted.
Connectivity Solutions
8 Port Gigabit Managed Industrial Switch with 4 Gigabit SFP Connectivity Solution
8 Port Gigabit Managed Industrial Switch with 4 Gigabit SFP Ring Network Connectivity Solution
Specification
Technical Specifications :
IE7511-8GE4GF-DC10M/100M/1G RJ45 copper ports :
81.25G SFP (fiber) ports :
4Console Port (For config ) :
YesReset button :
YesPerformance Specification :
*Packet buffer memory :
1.6 MbForwarding modes :
Store-and-forwardBandwidth :
32 GbpsPacket forwarding rate :
17.86Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
159,631 hours (MTBF) @ 25°C100M Copper Latency :
8.532µs; 8.613µs; 8.712µs1G Copper Latency :
3.435µs; 3.541µs; 3.643µs1G Fiber Latency :
2.993µs; 3.112µs; 3.183µsL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesQinQ VLAN tagging :
YesIP-based VLANs :
YesMAC-based VLANs :
YesProtocol-based VLAN :
YesVoice VLAN :
YesVLAN mapping :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE 802.3x :
YesRing (ERPS,complies with G.8032) :
Yes, Recovery time < 50msIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesIEEE 802.1s Multiple Spanning Tree Protocol :
YesLayer 2 DHCP Relay :
YesL2 Services - Multicast Filtering :
YesIGMP snooping (v1, v2 and v3) :
YesMLD snooping support (v1 and v2) :
YesIGMP snooping querier (v2) :
YesMLD snooping querier (v1) :
YesMulticast VLAN Registration (MVR) :
YesL3 Services - Routing :
*IPv4 static routing :
100IPv6 static routing :
100Link Aggregation :
*Manual LAG :
Yes# of LAGs / # of members in each LAG :
8 LAGs with max 8 members in each LAGNetwork Monitoring and Discovery Services :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3RMON group 1,2,3,9 :
YesNetwork Security :
YesIEEE 802.1x :
YesRADIUS accounting :
YesAccess Control Lists (ACLs) :
YesIP-based ACLs (IPv4 and IPv6) :
L2 / L3 / L4MAC-based ACLs :
YesTCP/UDP-based ACLs :
YesControl MAC # static entries :
48Port-based security by locked MAC addresses :
YesDynamic ARP inspection :
YesDoS protection :
YesDoS attacks prevention :
YesNetwork storm protection, DoS :
YesQuality of Service (QoS) :
*Port-based rate limiting :
Yes ingress and egressPort-based QoS :
YesSupport for IPv6 fields :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
YesDestination MAC and IP :
YesIPv4 and v6 DSCP :
YesTCP/UDP-based :
YesWeighted Round Robin (WRR) :
YesStrict priority queue technology :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocols 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning TManagement, Monitoring & Troubleshooting :
*Password management :
YesAccess control via RADIUS and TACACS+ :
YesIPv6 management :
YesSNMP v1/v2c/v3 :
YesPort mirroring :
Yes ingress and egressMany-to-one port mirroring :
6Cable test utility :
YesTLS/HTTPS Web-based access (version) :
Yes (v1.2)File transfers (uploads, downloads) :
TFTP / HTTPHTTP upload/download (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
150 x 130 x 48 mm (5.91 x 5.12 x 1.89 in)Weight :
0.95 kg (2.09 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 12~54V, redundant power with reverse polarity protectionMax power :
12W (worst case, all ports used, line-rate traffic) (Watts)Iddle power consumption :
7W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
L2+ Managed
Questions & Answers
Downloads
Related Products
-
IES7511-10GE4GF-DC14 Ports Gigabit Managed Industrial Switch With 4 Gigabit SFP Uplink
-
IES7511-12GE4GF-DC12 Port Gigabit Managed Industrial Ethernet Switch With 4 Gigabit SFP Uplink
-

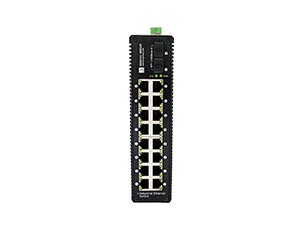

IES7511-16GE2GF-DC16 Port Gigabit Managed Industrial Ethernet Switch With 2 Gigabit SFP Uplink
-
