Industrial 6-Port Gigabit PoE++ Switch | 4-Port 90W 802.3bt | 2-1000Mbps SFP Fiber Uplink (IES7211-4PGE2GF-4BT)

Close-up of 4 ports supporting IEEE 802.3bt 90W PoE power output for high-power PTZ cameras and Wi-Fi 6 APs.

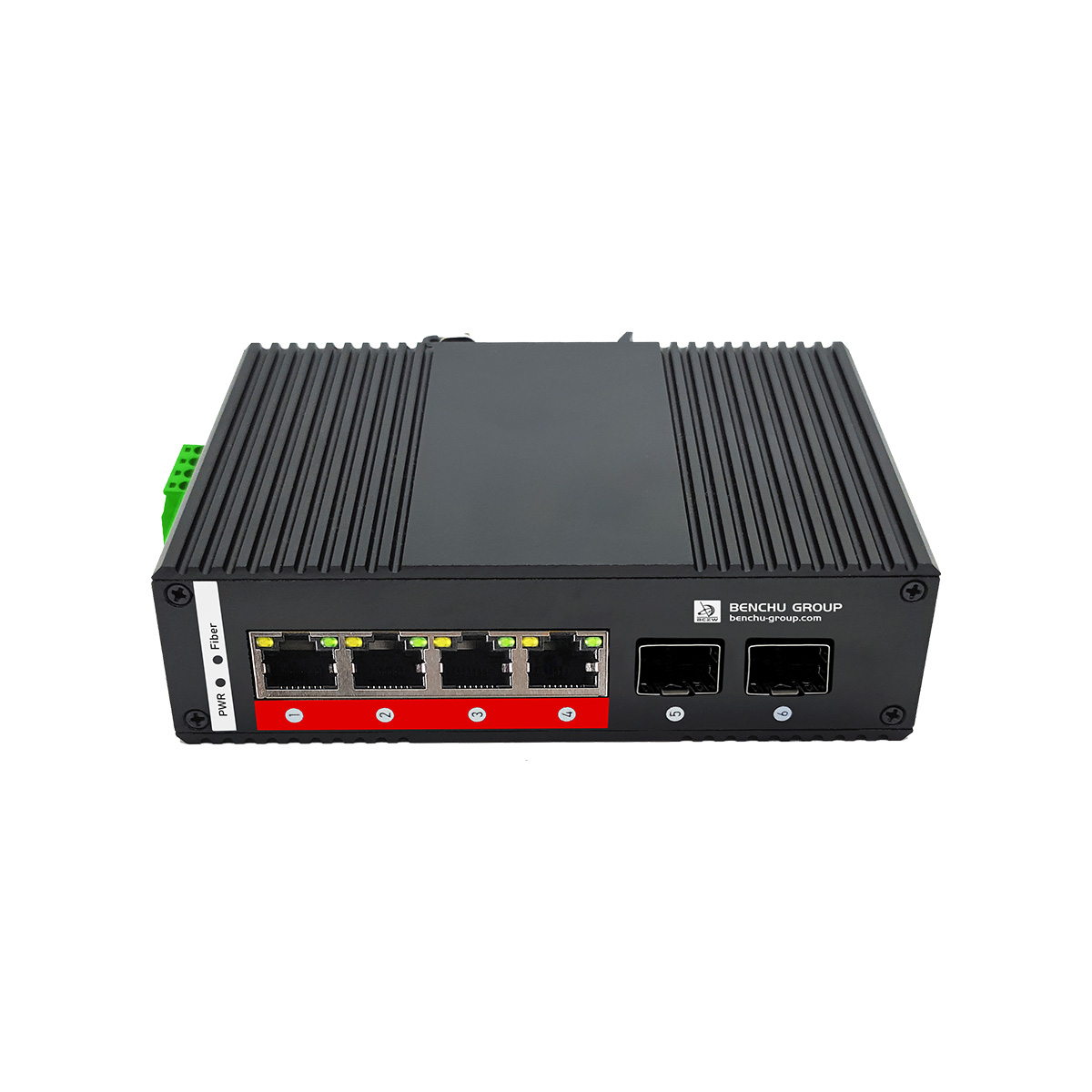

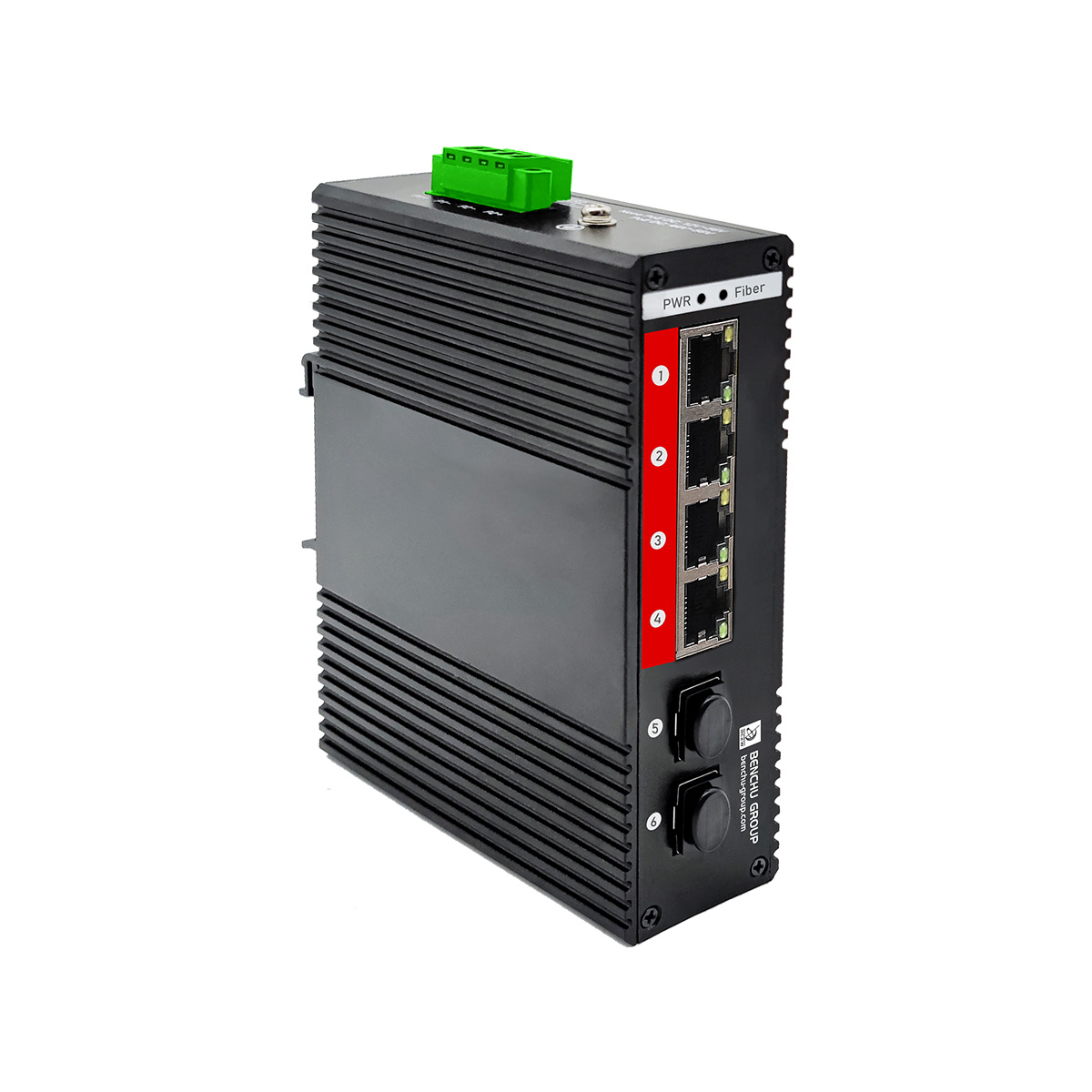

Front view of 6-port industrial unmanaged gigabit PoE++ switch with 4 ports 90W BT and 2 SFP slots for fiber uplink.
2 Gigabit SFP fiber slots of the industrial switch for long-distance data transmission up to 100km via fiber optic cable.

Industrial 6-Port Gigabit PoE++ Switch | 4-Port 90W 802.3bt | 2-1000Mbps SFP Fiber Uplink (IES7211-4PGE2GF-4BT)

Inquire Now

A ruggedized industrial 6-port solution featuring 4-port 90W PoE++ (IEEE 802.3bt) and dual Gigabit SFP uplinks, specifically engineered to provide high-power connectivity and long-distance fiber backhaul for demanding applications like PTZ cameras, Wi-Fi 6 APs, and smart city infrastructure in extreme environments.

Product Highlights

    90W High-Power PoE++: Supports IEEE 802.3bt on all 4 ports. Perfectly powers high-draw devices like PTZ cameras with heaters and Wi-Fi 6 APs without extra AC wiring.

    Gigabit Fiber Uplink: Dual 1000Base-X SFP slots provide high-speed, long-distance backhaul, ensuring your high-definition video streams reach the control center without latency or interference.

    Scalable Power Budget: Supports up to 360W total budget. Tailor your power supply choice to your specific project needs for maximum cost-efficiency and flexibility.

    Ruggedized Reliability: Hardened IP40 aluminum shell with -40°C to +85°C operating range and 6kV surge protection for non-stop performance in any climate.

    Plug-and-Play Simplicity: Unmanaged design means zero configuration required. Ideal for field deployments where rapid installation and maintenance-free operation are critical for project timelines.

8 Port POE++ industrial switch

Overview



IES7211-4PGE2GF-4BT, 6-Port Gigabit Industrial PoE++ Switch | 4 x 90W PoE++ Ports | 2 x SFP Uplinks | Unmanaged DIN-Rail | -40°C to 75°C

This Industrial-grade Unmanaged PoE++ Switch is a high-performance solution designed for power-hungry applications in harsh environments. Featuring 4 Gigabit Ethernet ports with IEEE 802.3bt (90W) support and 2 Gigabit SFP slots, it provides seamless connectivity and massive power for devices like high-speed PTZ cameras, Wi-Fi 6 APs, and IoT sensors. With its rugged IP40 metal housing and fanless design, it ensures 24/7 stable operation in extreme temperatures, making it the perfect "plug-and-play" backbone for smart cities and industrial automation.





Features

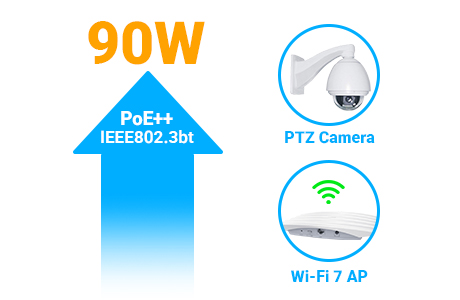

90W PoE++ Power

90W PoE++ Power

Support IEEE 802.3bt 90W for high-power PTZ and Wi-Fi 7 APs.

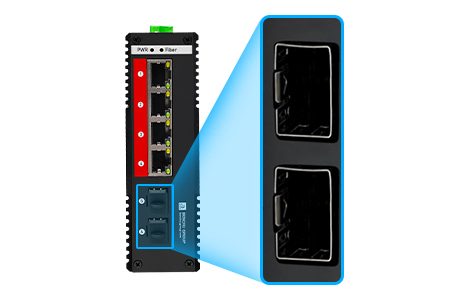

Dual Gigabit SFP

Dual Gigabit SFP

Fiber uplinks for long-distance data transmission up to 120km.

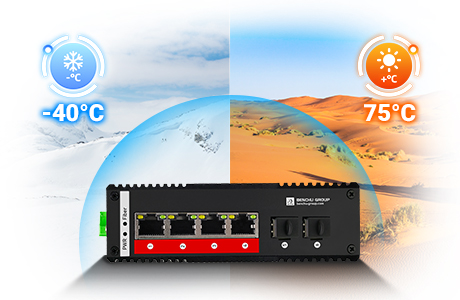

Wide Temperature

Wide Temperature

Stable operation in extreme climates from -40°C to +75°C.

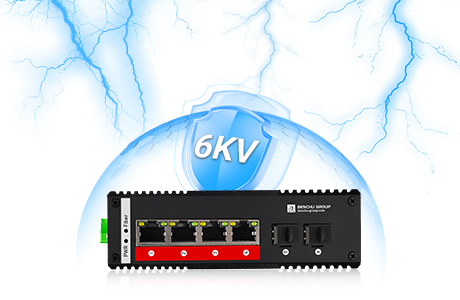

6KV Surge Protection

6KV Surge Protection

Industrial lightning protection ensures network safety and uptime.

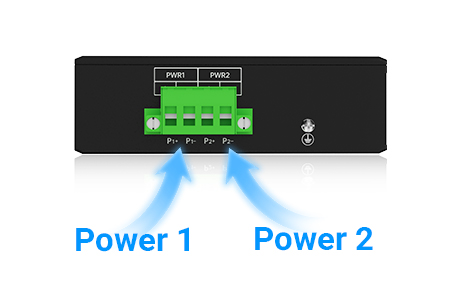

Redundant Power

Redundant Power

Dual DC inputs for power failover to maintain mission-critical tasks.

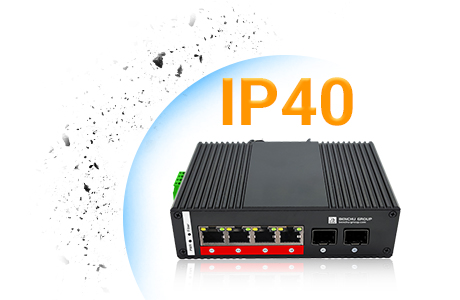

IP40 Fanless Design

IP40 Fanless Design

Hardened aluminum casing with efficient natural heat dissipation.

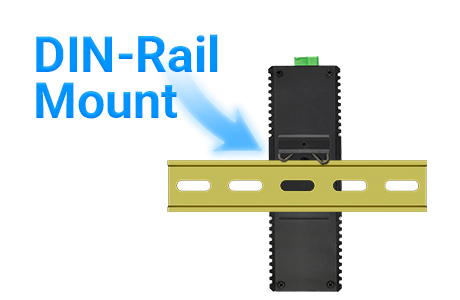

Easy Installation

Easy Installation

Supports DIN-Rail and wall mounting for flexible industrial deployment.

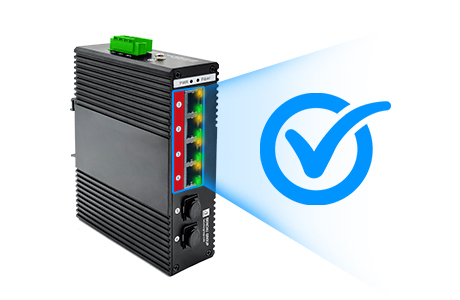

Plug & Play

Plug & Play

Unmanaged design requires no configuration for instant use.



Versatile Applications

Reliable connectivity for high-power devices in mission-critical environments.

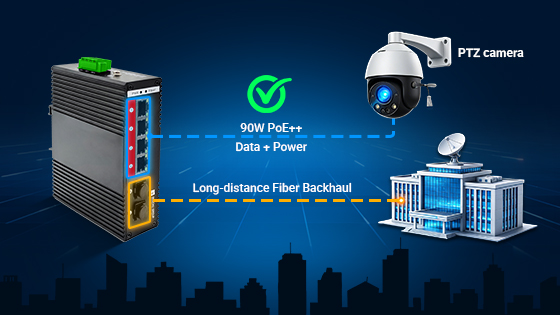

90W PoE++ Switch for Smart City Surveillance

Smart City & Public Security

In modern smart cities, high-speed PTZ cameras with built-in heaters and wipers require massive power. Our 90W PoE++ ports ensure these devices operate stably even in freezing winters, while dual SFP uplinks provide long-distance data backhaul to the command center.

Industrial Automation & Manufacturing

Designed for harsh factory floors, this switch thrives in high-vibration and electromagnetic interference zones. Its -40°C to +75°C wide temperature range and DIN-rail mounting make it perfect for industrial control cabinets and automated production lines.

Industrial Ethernet Switch for Factory Automation

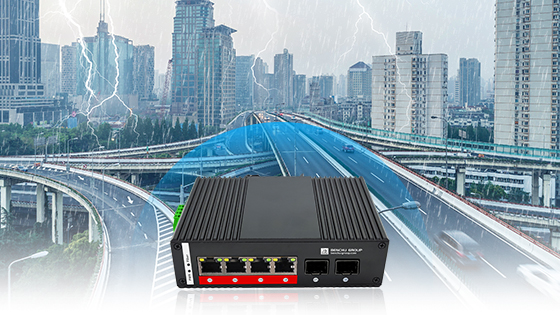

Outdoor Industrial Switch for Intelligent Transportation

Intelligent Transportation (ITS)

From roadside traffic monitoring to tunnel communication systems, the 6KV surge protection and dual redundant power inputs guarantee 24/7 mission-critical connectivity, protecting the network from lightning strikes and power fluctuations.

Specificatiions

Technical Specifications Details / Parameters
Product Model IES7211-4PGE2GF-4BT (Industrial 4-Port Gigabit 90W BT PoE Switch with 2 SFP )
Fixed Ports 4 * 10/100/1000Base-TX PoE (Downlink) + 2 * 1.25GBase-X SFP Slots (Uplink)
PoE Standards IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt (PoE++)
PoE Power Output Single Port Max 90W; Total Power Budget: 360W
Switching Capacity 12 Gbps
Forwarding Rate 8.93Mpps
MAC Address Table 4 K
Surge Protection 6KV Surge protection, 8KV ESD protection
Power Input DC 48~54V (Dual redundant inputs)
Dimensions 135mm * 95mm * 35mm (DIN-Rail mount)
Certifications CE, FCC, RoHS,CB compliant



  • Business Type :

    Industrial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged

Frequently Asked Questions

1. What devices can I power with the 90W PoE++ ports?
The 90W output (IEEE 802.3bt) is ideal for high-power devices such as outdoor PTZ speed dome cameras (with heaters), Wi-Fi 6/7 Access Points, 5G small cells, and PoE lighting systems.
2. Is this switch backward compatible with 30W or 15W PoE devices?
Yes. It features an intelligent auto-sensing chip that automatically detects the power requirement of the connected device. It is fully backward compatible with IEEE 802.3af (15.4W) and IEEE 802.3at (30W) standards.
3. Can it be used in extreme outdoor environments?
Absolutely. With an industrial-grade fanless design and high-quality components, it operates reliably in temperatures ranging from -40°C to +75°C. The IP40 metal shell also provides excellent heat dissipation and dust protection.
4. What is the benefit of Dual Redundant Power Inputs?
Redundancy ensures network stability. By connecting two independent power sources, the switch will automatically switch to the backup power if the primary source fails, ensuring zero downtime for your critical devices.
5. Do I need to configure the switch before use?
No. This is an unmanaged, "Plug and Play" switch. It requires no software or complex configuration. Simply mount it, connect the power and cables, and it’s ready to work.
6. Do you support OEM/ODM services for bulk orders?
Yes. We provide custom labeling, packaging, and technical adjustments. Our factory supports scalable production to meet specific project requirements. Contact our team for a professional proposal.

Downloads

PDF


Benchu-4-Port-90W-BT-Industrial-PoE-switch-with-2-SFP-IES7211-4PGE2GF-4BT-Datasheet.pdf

Technical Specifications | PDF Format | 908 KB



Selection Guide



Models 30W-poe+ industrial switch
IES7211-4PGE2GF-DC
(30W PoE+ Industrial)
 industrial 4 port poe switch with 2 sc fiber uplink
IES7211-4PGE2GFx-DC
(SC Fiber Uplink Industrial)
 industrial 4 port 90w poe++ switch with 2 sfp uplink
IES7211-4PGE2GF-4BT
(90W PoE++)
 industrial 4 port web managed poe switch with 2 sfp uplink
IES7512-4PGE2GF-DC
(WEB Managed)
 industrial 4 port L2 managed 90w poe++ switch with 2 sfp uplink
IES7511-4PGE2GF-DC
(L2+ Managed)
Max PoE Output 30W Per Port (PoE+) 30W Per Port (PoE++)
 90W Per Port  (PoE++) 30W Per Port  (PoE++) 90W Per Port  (PoE++)
POE Standard 802.3at 802.3bt 802.bt 802.3bt 802.3bt
Interface 4 * RJ45 (PoE+) + 2 * SFP 4 * RJ45 (PoE+) + 2 * SC 4 * RJ45 (PoE++) + 2 * SFP 4 * RJ45 (PoE+) + 2 * SFP 4 * RJ45 (PoE++) + 2 * SFP
Power Input DC 48~54V DC 48~54V DC 48~54V DC 48~54V DC 48~54V
Housing / IP Aluminum / IP40 Aluminum / IP40 Aluminum / IP40 Aluminum / IP40 Aluminum / IP40
Operating Temp -40°C to +75°C -40°C to +75°C -40°C to +75°C -40°C to +75°C -40°C to +75°C
Surge / ESD 6KV / 15KV 6KV / 15KV 6KV / 15KV 6KV / 15KV 6KV / 15KV
Action View Detail View Detail Current Page View Detail View Detail
