Gigabit 24 Port Unmanaged Ethernet Switch with 4 Gigabit RJ45/SFP Combo, S7200-24GE4GC

Gigabit 24 Port Unmanaged Ethernet Switch
Gigabit 24 Port Ethernet Switch with 4 SFP
24 Port Gigabit Unmanaged Ethernet Switch
24 Port Unmanaged Ethernet Switch Factory

Gigabit 24 Port Unmanaged Ethernet Switch with 4 Gigabit RJ45/SFP Combo, S7200-24GE4GC

Get Editable Specs & Price List →

Designed for IP Camera/Wireless Access Point/Computer/Office network/Home network

Product Highlights
    • 24-10/100/1000Mbps gigabit ethernet ports
    • 4-gigabit RJ45/SFP ports combo
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV
    • DC for Ethernet ESD protection
    • -20 to 55 degrees operating temperature
    • Rack-mounting installation
    • Backplane bandwidth 64Gbps，Packet forwarding rate 47.62Mpps，MAC address 8k

24 Port network switch

Overview

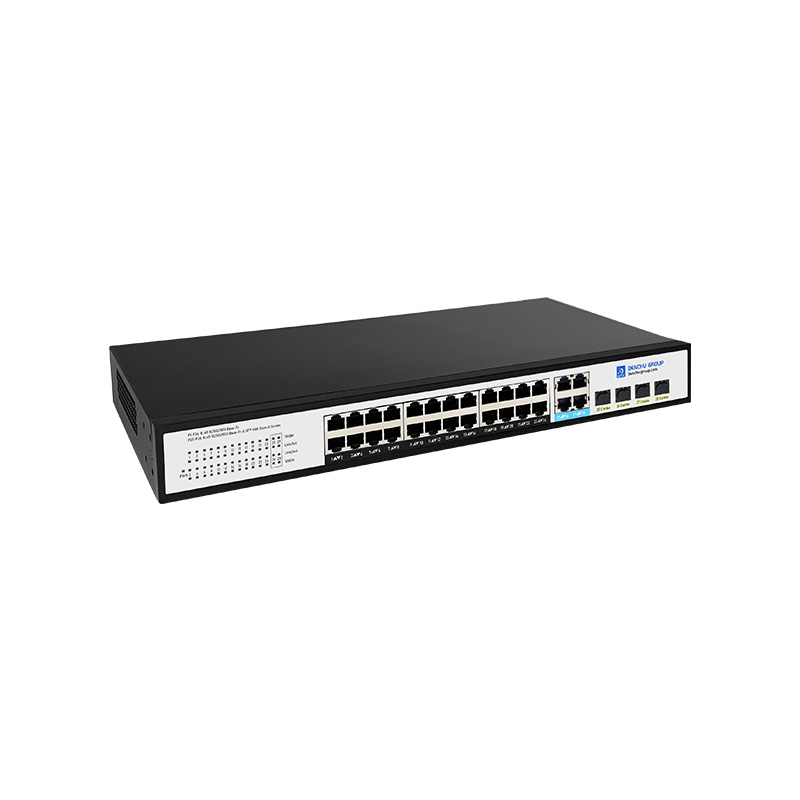

S7200-24GE4GC, 24 Port Gigabit Unmanaged Ethernet Switch with 4 RJ45/SFP Combo, Rack-mounting, Fanless silent design

The BENCHU GROUP 24-port gigabit network switch with 4 RJ45/SFP combo ports is designed to offer superior performance, flexibility, and scalability for diverse networking needs. Featuring 32 high-speed gigabit ethernet ports, it supports seamless data transfer up to 1Gbps while enabling flexible connectivity through either copper or fiber options. This makes it ideal for small to medium businesses, educational institutions, and data-intensive environments.

The 32 port network switch offers energy-efficient technology to reduce power consumption while maintaining optimal performance, ensuring cost savings and sustainability. Its durable metal housing ensures stability and longevity, even in demanding operational environments. Additionally, the plug-and-play functionality simplifies installation, minimizing setup time and allowing businesses to expand their networks with ease.

With its scalable design, it accommodates growth, ensuring future-proof networking solutions. Whether you need reliable performance for streaming, VoIP, or enterprise applications, this switch enhances network efficiency and guarantees smooth, uninterrupted connectivity.





Features



24 Gigabit Ethernet Ports and 4 RJ45/SFP Uplinks

Equipped with 24 high-speed Ethernet ports and 4 combo uplink ports, this switch ensures flexible connectivity options, supporting both copper and fiber configurations. With speeds up to 1Gbps, it efficiently handles data-heavy applications, making it ideal for businesses requiring robust network performance and scalability.



Plug-and-Play Installation

Designed for ease of use, this 32 port network switch offers a plug-and-play setup. No complicated configurations are necessary, enabling rapid deployment in expanding networks. This feature is especially beneficial for users seeking efficient solutions with minimal setup time.



Durable Metal Housing

Constructed with a rugged metal casing, the 32 port ethernet switch provides excellent durability and heat dissipation, ensuring long-term reliability even in challenging environments. Its robust build protects against wear and tear, safeguarding performance under heavy workloads.



Energy-Saving Technology

Integrated energy-efficient technology minimizes power consumption without compromising performance. This ensures cost-effective operation, contributing to reduced operational expenses while supporting environmentally sustainable practices.



Enhanced Network Reliability

With support for 6KV ESD surge protection and advanced traffic management features, this 32 port network switch ensures stable and reliable network performance. It prevents interruptions and provides robust protection against electrical surges, enhancing overall network security.



Rack-Mountable Design

This 32 port switch’s rack-mountable design ensures easy integration into existing IT infrastructures. Its compact and standardized dimensions optimize space in server rooms, offering convenient management and scalability for expanding networks.





Connectivity Solutions



32 port ethernet switch connection solution



32 port ethernet switch connection solution





  • Technical Specifications :

    S7200-24GE4GC

  • 10M/100M/1G RJ45 copper ports :

    24

  • Gigabit R4J5 and SFP Combo :

    4 Combo

  • Performance Specification :

    *

  • Packet buffer memory :

    2.1 Mb

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    64 Gbps

  • Packet forwarding rate :

    47.62Mpps (64 byte packet size)

  • MAC address database size :

    8K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    9K

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity;

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    440 x 190 x 44.5mm (17.32 x 7.48 x 1.75 in)

  • Weight :

    2.2 kg (4.85 lb)

  • Max power :

    15W (worst case, all ports used, line-rate traffic) (Watts)

  • Iddle power consumption :

    8W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20°C to 55°C (-4°F to 131°F)

  • Operating Humidity :

    95% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    -40° to 85°C (-40° to 185°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    *

  • All models :

    Network Switch；AC Power cord with C13 connector (localized to region of sale)； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Business Type :

    Enterprise

  • Bandridth :

    1G

  • More Filters :

    Unmanaged

Questions & Answers

1. What is the function of the 4 RJ45/SFP combo ports on this 32-port gigabit network switch?

The 4 RJ45/SFP combo ports offer flexible connectivity options, allowing you to choose between copper (RJ45) or fiber (SFP) connections, depending on your network requirements, making it ideal for both short and long-distance connections.



2. Is the S7200-24GE4GC suitable for small businesses?

Yes, with 32 high-speed Gigabit Ethernet ports and flexible connectivity options, the switch is perfect for small to medium businesses, educational institutions, and environments that need efficient, scalable networking.



3. How energy-efficient is the S7200-24GE4GC?

The S7200-24GE4GC is equipped with energy-efficient technology, reducing power consumption while maintaining high performance, which helps businesses save on energy costs and support sustainability efforts.



4. Is the S7200-24GE4GC easy to install?

Yes, it offers plug-and-play functionality, meaning installation is quick and easy with minimal setup required, even for users without technical expertise.



5. How durable is the S7200-24GE4GC in demanding environments?

The S7200-24GE4GC is built with a durable metal housing that ensures stability and longevity, making it reliable for use in demanding environments, such as data centers, offices, or schools.
