Solar-Powered Off-Grid Surveillance Solution: Complete Wireless Coverage for Rural Farms

Introduction: The Rural Connectivity Challenge

Imagine managing a 200-hectare farm. You need to monitor livestock, secure equipment, and oversee entry points. But deep in the countryside, there's no power grid. No internet connection. The nearest utility line is 3 kilometers away.

Running trenches and laying cables? That costs $5-10 per meter — and you'd have to cross roads, streams, and cultivated fields. Fiber optics? Even more expensive and labor-intensive.

This isn't just a cost problem. It's a feasibility problem.

Today, we're sharing a truly cable-free, self-powered surveillance solution — combining solar power, wireless bridges, and a FusionPoE Switch to deploy monitoring points anywhere you need them.

Three Major Challenges of Traditional Solutions

Before we dive into the solution, let's understand why traditional approaches fall short:

The result: High costs, low efficiency, difficult maintenance.

Our Solution: Solar + Wireless + Hybrid PoE

Stop trenching. Stop inverters. Start monitoring

One Switch. Solar Powered. Cameras, Wi-Fi, and Wireless Bridge — All in One.

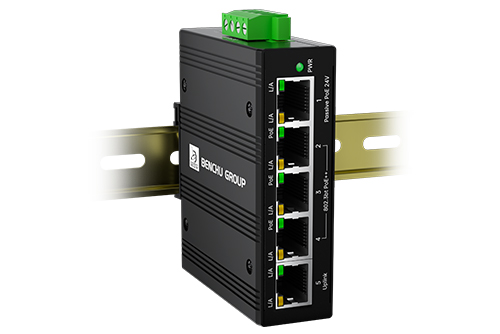

The Core Component: 5-Port FusionPoE Switch

This is our purpose-built device for off-grid applications:

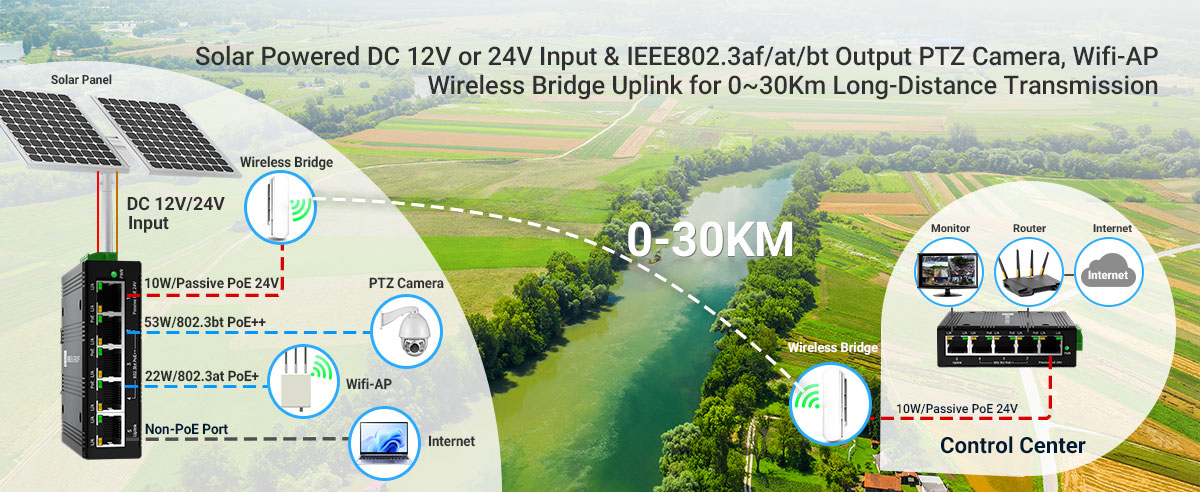

System Architecture

Wireless Bridges: Spanning the Distance

Each monitoring point uses a pair of wireless bridges:

• Remote bridge: Powered by the switch's Port 4 (24V Passive PoE), connected to local network devices

• Central bridge: Connects to the main network, aggregating data from all monitoring points

Setup options:

• Simple deployment: Wireless Bridges Use DIP switches for channel pairing — FusionPoE Switch plug and play

Result: Real-time data transmission from monitoring points kilometers away — no cables, no trenches, no digging.

Typical Deployment Scenarios

Scenario 1: Small Farm (1-2 Monitoring Points)

Requirements: Monitor livestock barn and main entrance

Equipment per point:

• 1 solar system (sized based on local sunlight conditions)

• 1 5-port FusionPoE Switch

• 1 PTZ camera (connected to Port 1)

• 1 wireless bridge (connected to Port 4 + Port 5)

• 1 central bridge at farmhouse

Best for: Budget-conscious small farms needing essential coverage.

Scenario 2: Medium Farm (3-5 Monitoring Points)

Requirements: Cover pastures, equipment sheds, entry points, and remote water sources

Equipment per point:

• 1 solar system

• 1 5-port FusionPoE Switch

• 1-2 cameras or APs (connected to Ports 1-3)

• 1 wireless bridge (connected to Port 4 + Port 5)

Network topology: Star network — all remote points wirelessly backhauled to central station.

Scenario 3: Large Farm + Staff Wi-Fi Coverage

Requirements: Surveillance plus internet access for staff housing

Equipment:

• Monitoring points: Same as Scenario 2

• Staff area: Add Wi-Fi AP powered by Port 2 of the local switch — no additional power source needed

Result: One monitoring point delivers both security surveillance and staff internet connectivity.

Equipment List

Below is a typical bill of materials for one monitoring point:

Technical Specifications

Parameter	Specification
Name	5 Ports FusionPoE Switch
Input Voltage	DC 12-54V
Ports 2-4 Output	802.3bt PoE++, up to 90W per port, backward compatible with 802.3at/af
Port 1 Output	24V Passive PoE,12W, pinout 4/5(+), 7/8(-) — ideal for Ubiquiti,MikroTik,TP-Link, and more
Port 5	Uplink port
Operating Temperature	-40°C to 75°C
Protection Rating	IP40
Surge Protection	6kV built-in
Mounting	Desktop / DIN-rail (optional accessory)
Size	95mm*70mm*29mm



Why Choose Us?

PoE Technology Specialists

We're not a generalist hardware vendor. We specialize in PoE power solutions — from wide-voltage input to hybrid output configurations. Every product is designed to solve real-world deployment challenges.

Factory Direct, Engineer Support

Manufacturer-direct pricing. Technical support comes directly from our engineering team — fast, accurate, and responsive.

Global Project Experience

Our solutions have been deployed in:

• Wildlife reserves in Africa (solar-powered camera networks)

• Rural farms across Southeast Asia (wireless coverage)

• Remote border monitoring in South America (off-grid surveillance)

Conclusion & Partner with Us

Rural farm surveillance and network coverage no longer require expensive trenching and cabling. With our 5-port  FusionPoE Switch, you can offer your clients a truly cable-free, solar-powered solution.
