Overview
IES7511-16PGE4GF-DC, Layer 2 Managed 16 Ports Gigabit Industrial PoE Switch,with 4 Gigabit SFP Uplink,16 PoE+ Ports@240W power budget, DIN-Rail mount
-
Physical Port
16-10/100/1000BASE-TX Gigabit Ethernet RJ45 ports with PoE+4-1.25GBASE-X mini-GBIC/SFP ports slot1-RJ45 console interface for switch management and setup1-Reset button for system factory default and rebootPower over EthernetComplies with IEEE 802.3at Power over Ethernet PlusBackward compatible with IEEE 802.3af Power over EthernetUp to 16 ports of IEEE 802.3af/802.3at devices poweredSupports PoE power up to 30 watts for each PoE portAuto detects powered device (PD)Remote power feeding up to 100 metersBackplane bandwidth 48Gbps,Packet forwarding rate 29.76Mpps,MAC address 8kHardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operationIndustrial Case and InstallationIP40 High- strength Aluminum caseDIN-rail mount design48~56V DC, redundant power with reverse polarity protectionSupports 8KV DC Ethernet ESD protection-40 to 85 degrees C operating temperatureLED indicators for Power,PoE Working and LINK/ACT -
Lightning ProtectionIEC61000-4-3 (RS):10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022):Class BIEC61000-6-2:Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :1000A/mIEC61000-4-10 (Damped oscillation) :30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kVIEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :30V, 300V, 1sIEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kVMechanical PropertiesIEC60068-2-6:Anti VibrationIEC60068-2-32:Free FallIEC60068-2-27:Anti ShockSecuritySupport IEEE 802.1xSupport RADIUS accountingSupport Access Control Lists (ACLs)Support MAC SecuritySupport IP Source Guard prevents IP spoofing attacksSupport DoS Attack PreventionSupport aaa authentication
-
Layer 2 Features
Support IEEE 802.1Q VLANSupport MAC VLANSupport Surveillance VLANSupport Voice VLANSupports Spanning Tree ProtocolSupports Link Aggregation (LACP)Supports port mirrorSupports Multicast Filtering (IGMP)Supports DHCPSupports ERPSSupports RMONSupports MLD snoopingSupports MVRSupports Quality of Service (Qos)Supports Static routingSupports Port Error DisableSupports Rate LimitSupports Storm ControlSupports PoE ManagedManagementIPv4 and IPv6 dual stack managementWeb switch managementConsole/Telnet Command Line InterfaceSNMP v1 and v2c switch managementSSHv2, TLSv1.2 and SNMP v3 secure accessFirmware upload/download via HTTP/TFTPConfiguration upload / download through Web interfaceHardware reset button for system reboot or reset to factory defaultSNTP Network Time ProtocolNetwork DiagnosticLink Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
Features
Gigabit Ethernet Port and Gigabit Fiber Port Configuration

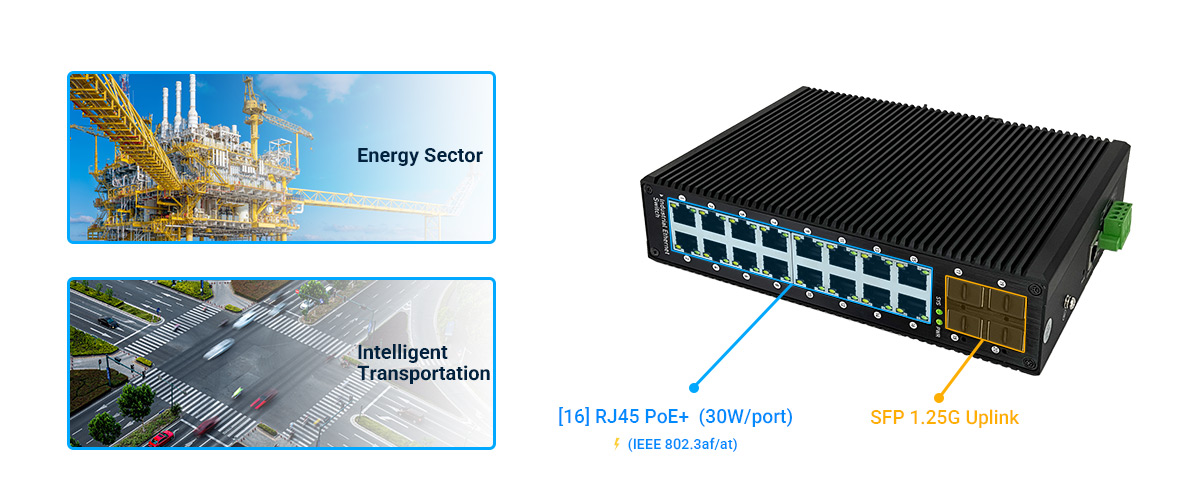

Benchu group's IES7511-16PGE4GF-DC layer 2 managed gigabit industrial PoE switch provide 16-10/100/1000Mbps RJ45 support IEEE820.3af/at and provide up to 30W per PoE port, with 4-1.25G SFP Uplink for flexible and high-speed connections to the network core or other switches,with 1-RJ45 console interface for switch management and setup, with 1-Reset button for system factory default and reboot, support redundant power .
With Four Gigabit SFP Uplink

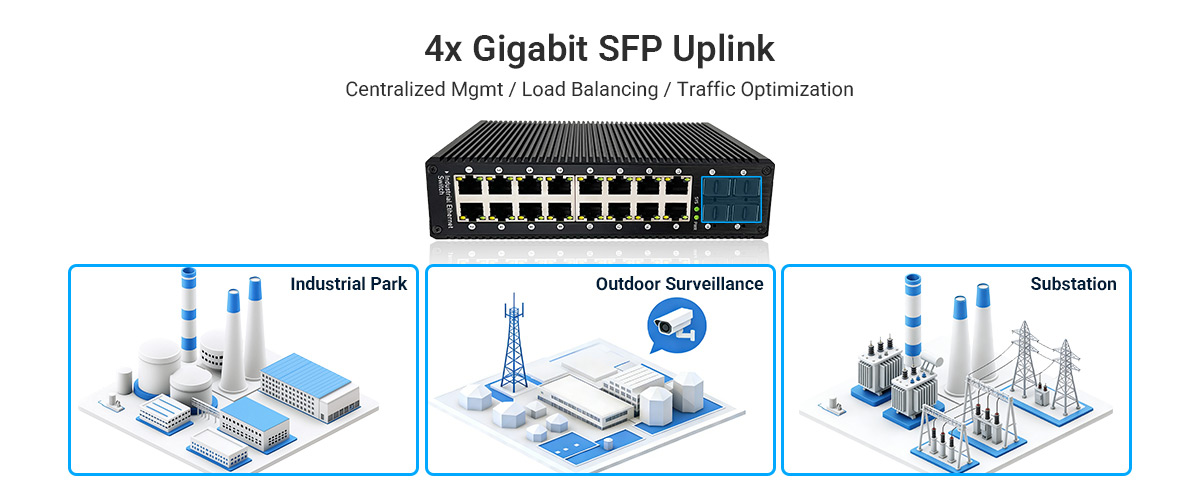

Benchu group's IES7511-16PGE4GF-DC industrial PoE switch with 4 gigabit SFP uplink is straightforward and efficient. The SFP uplinks facilitate easy integration with other networking equipment, such as routers, core switches, and network storage devices. Simplifies the network topology and streamlines management tasks. Advanced management features, often found in such switches, allow for centralized control and monitoring of the network, enabling administrators to quickly identify and resolve issues. The IES7511-16PGE4GF-DC industrial PoE switch’s capability to support multiple uplinks also aids in load balancing and traffic optimization, further simplifying network management and ensuring consistent performance across the network.
Ethernet Ring Protection Switching (ERPS) Gives to Cost-Effective Solution
Benchu group's 16 Ports Gigabit layer 2 Managed PoE Switch IES7511-16PGE4GF-DC Support G.8032 ERPS (Ethernet Ring Protection Switching) , Implementing ERPS G.8032 in CCTV networks can be a cost-effective solution compared to traditional redundant network designs. By leveraging ring topologies, ERPS reduces the need for extensive cabling and additional hardware required for mesh or star topologies. This reduction in infrastructure costs is particularly advantageous for large surveillance networks. Moreover, the quick recovery times and high reliability of ERPS minimize the need for costly network maintenance and downtime, further enhancing its cost-effectiveness.
SSH (Secure Shell) Gives to Secure File Transfers
The 16 port gigabit industrial PoE Switch IES7511-16PGE4GF-DC support SSH (Secure Shell),Industrial networks often require firmware updates, configuration backups, and log file transfers. SSH supports secure file transfer protocols like SCP (Secure Copy Protocol) and SFTP (SSH File Transfer Protocol), which encrypt files during transit. This ensures that sensitive data, such as configuration files and system logs, are not exposed to potential attackers during transfer. Regular firmware updates are crucial for patching security vulnerabilities and enhancing switch performance. With SSH-enabled secure file transfers, The industrial PoE switch IES7511-16PGE4GF-DC can be updated and maintained without risking data security.
SNMP (Simple Network Management Protocol) Gives to Enhanced Security
Benchu group' 16 port gigabit industrial PoE switch IES7511-16PGE4GF-DC support SNMP applications enhance the security of industrial switches by providing detailed monitoring and management of network devices. Security features such as authentication, encryption, and access controls can be implemented to protect against unauthorized access and cyber threats. SNMP also allows for the monitoring of security parameters and detection of suspicious activities, enabling proactive measures to safeguard critical industrial systems and data from potential breaches.
IPV4/IPV6 Dual Stack Protocol Improved Network Performance
The IPv4/IPv6 dual stack protocol ensures that The 16 port gigabit industrial PoE switch is future-proofed, allowing them to operate seamlessly in both current and future network environments. IPv6 includes features that enhance network performance, such as simplified header structures and improved routing efficiency. Dual stack industrial switches can leverage these improvements to optimize data flow and reduce latency. This is particularly important in industrial environments where real-time data transmission is critical for operations. Enhanced performance ensures that data from sensors and control systems is delivered promptly and reliably.
Connectivity Solutions
Layer 2 Managed Industrial Switch with 16 Port Gigabit PoE and 4 Gigabit SFP Uplink Connectivity Solution
16 Port Gigabit PoE Managed Industrial Switch Connectivity Solution
Specification
Technical Specifications :
IE7511-16PGE4GF-DC10M/100M/1G RJ45 copper ports :
161.25G SFP (fiber) ports :
4PoE / PoE+ ports :
16Console Port (For config ) :
YesReset button :
YesPower over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 48V DC, 320mA. max. 15.4 watts (IEEE 802.3af); Per port 48V DC, 625mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
4.2 MbForwarding modes :
Store-and-forwardBandwidth :
48 GbpsPacket forwarding rate :
29.76Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KMean Time Between Failures :
163,662 hours (MTBF) @ 25°C100M Copper Latency :
8.532µs; 8.613µs; 8.712µs1G Copper Latency :
3.435µs; 3.541µs; 3.643µs1G Fiber Latency :
2.993µs; 3.112µs; 3.183µsL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesQinQ VLAN tagging :
YesIP-based VLANs :
YesMAC-based VLANs :
YesProtocol-based VLAN :
YesVoice VLAN :
YesVLAN mapping :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE 802.3x :
YesRing (ERPS,complies with G.8032) :
Yes, Recovery time < 50msIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesIEEE 802.1s Multiple Spanning Tree Protocol :
YesLayer 2 DHCP Relay :
YesL2 Services - Multicast Filtering :
YesIGMP snooping (v1, v2 and v3) :
YesMLD snooping support (v1 and v2) :
YesIGMP snooping querier (v2) :
YesMLD snooping querier (v1) :
YesMulticast VLAN Registration (MVR) :
YesL3 Services - Routing :
*IPv4 static routing :
100IPv6 static routing :
100Link Aggregation :
*Manual LAG :
Yes# of LAGs / # of members in each LAG :
8 LAGs with max 8 members in each LAGNetwork Monitoring and Discovery Services :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3RMON group 1,2,3,9 :
YesNetwork Security :
YesIEEE 802.1x :
YesRADIUS accounting :
YesAccess Control Lists (ACLs) :
YesIP-based ACLs (IPv4 and IPv6) :
L2 / L3 / L4MAC-based ACLs :
YesTCP/UDP-based ACLs :
YesControl MAC # static entries :
48Port-based security by locked MAC addresses :
YesDynamic ARP inspection :
YesDoS protection :
YesDoS attacks prevention :
YesNetwork storm protection, DoS :
YesQuality of Service (QoS) :
*Port-based rate limiting :
Yes ingress and egressPort-based QoS :
YesSupport for IPv6 fields :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
YesDestination MAC and IP :
YesIPv4 and v6 DSCP :
YesTCP/UDP-based :
YesWeighted Round Robin (WRR) :
YesStrict priority queue technology :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocols 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning TManagement, Monitoring & Troubleshooting :
*Password management :
YesAccess control via RADIUS and TACACS+ :
YesIPv6 management :
YesSNMP v1/v2c/v3 :
YesPort mirroring :
Yes ingress and egressMany-to-one port mirroring :
6Cable test utility :
YesTLS/HTTPS Web-based access (version) :
Yes (v1.2)File transfers (uploads, downloads) :
TFTP / HTTPHTTP upload/download (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
170 x 135 x 48 mm (6.69 x 5.31 x 1.89 in)Weight :
1.1 kg (2.43 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 48~56V, redundant power with reverse polarity protectionPower Consumption :
240WMax power :
12WIddle power consumption :
9WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
L2+ Managed
