Overview

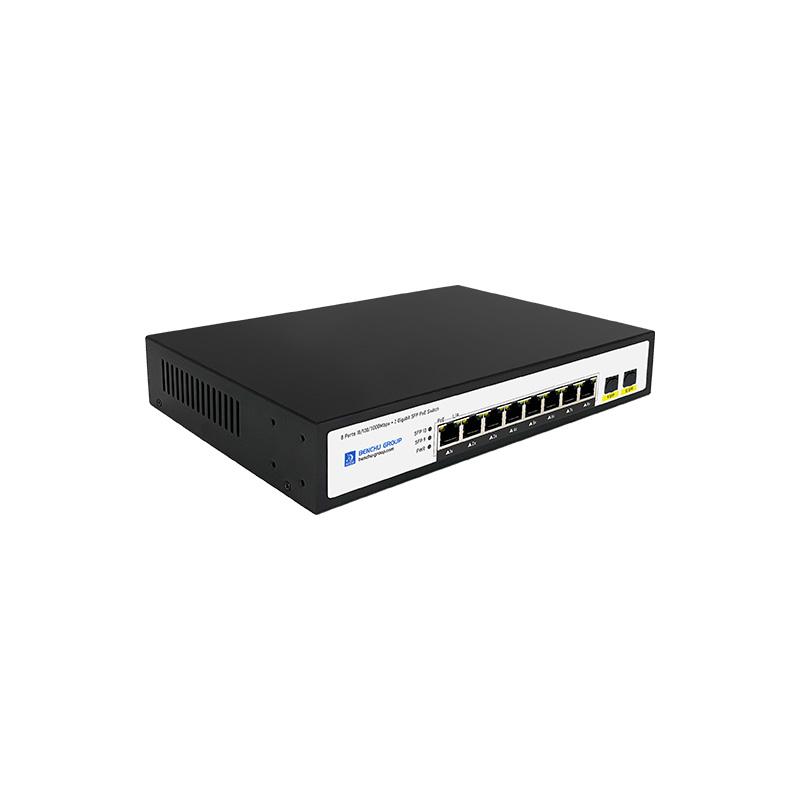

SP5210-8PGE2GF, 8 Ports Gigabit PoE+ Switch,with 2-1Gb SFP,8-PoE+ Ports@120W Power Budget,Suppout PoE Extend 250m,Fanless , Rack-Mount
The SP5210-8PGE2GF Benchu group’s 8 Port Gigabit Unmanaged PoE+ Switches offers a high speed, High performance and low cost gigabit network solution. The Gigabit PoE Swtiches provides sisteen 30-watt 802.3at PoE+ ports ,2 gigabit SFP uplink.
The SP5210-8PGE2GF optimizes the installation and power management of network devices such as wireless access points, VoIP phones, and security cameras. It also eliminates time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring.
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features
Gigabit port and fiber port configuration
8 × PoE+ 10/100/1000Mbps RJ45 ports provide up to 30W per port and Power budget of 120W, together with 2 x 1.25G SFP uplink,SFP fiber port to extend the network transmission distance.
Protect terminal devices from the risk of burning
This 8 port gigabit poe switch, abide by the process for providing power over Ethernet. It allows up to 30W of power per port to be delivered to compatible devices. The process begins with detection, where the switch identifies a PoE-enabled device. Once detected, the switch performs a classification to determine the device's power requirements. The power is then safely delivered over the Ethernet cable while continuously monitoring the connection to ensure proper power levels. This standard supports powering devices such as IP cameras, wireless access points, and VoIP phones, When connecting non POE devices such as computers and printers, there will be no power supply and only data transmission will be carried out.
6KV Lightning protection design Improved safety for connected devices
6KV lightning protection not only safeguards the 8 Port gigabit PoE switch themselves but also protects all connected devices from surge-induced damage. This comprehensive protection ensures that endpoints like IP cameras, wireless access points, and other PoE devices remain safe during electrical surges. By mitigating the risk of surge damage, the protection extends to the entire network ecosystem, preserving the functionality and longevity of all connected equipment. This holistic approach to surge protection enhances the overall safety and reliability of the network, providing peace of mind to users who rely on consistent device performance.
Connectivity Solutions
Gigabit 8 port PoE switch with 2 SFP Connectivity Solution
Gigabit 8 port PoE switch with 2 SFP Connectivity Solution 2
Specification
Technical Specifications :
SP5210-8PGE2GF10M/100M/1G RJ45 copper ports :
81.25G SFP (fiber) ports :
2PoE / PoE+ ports :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPower over Ethernet :
*PoE Standard :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)PoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
*PoE Power Budget :
120 WattsNumber of PDs, 7 watts :
8Number of PDs, 15 watts :
7Number of PDs, 30 watts :
3Performance Specification :
*Chip :
RealtekPacket buffer memory :
1.7 MbForwarding modes :
Store-and-forwardBandwidth :
24 GbpsPacket forwarding rate :
14.88Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
Up to 9K packet sizeMean Time Between Failures :
126,215 hours100M Copper Latency :
8.314µs; 8.423µs; 8.460µs (64-byte; 1518-byte; 9216-byte frames)1G Copper Latency :
3.421µs; 3.532µs; 3.613µs (64-byte; 1518-byte; 9216-byte frames)1G Fiber Latency :
2.982µs; 3.112µs; 3.180µs (64-byte; 1518-byte; 9216-byte frames)IEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow ControlMonitoring :
*LEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
256x 160 x 44.5mm (10.08 x 6.30 x 1.75 in)Weight :
1.3 kg (2.87 lb)Power Consumption :
112W (when all ports used, line-rate traffic and max PoE)Max power :
8W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Iddle power consumption :
6W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-20° to 50°C (-4° to 122°F)Operating Humidity :
90% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
–20° to 70°C (– 4° to 158°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005; (ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Switch; AC Power cord with C13 connector (localized to region of sale) ; Brackets and screws for rack mounting; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
CommercialBandridth :
1GMore Filters :
Unmanaged
