5-Port Solar Powered PoE++ Switch | 12V/24V DC Input to 48V/54V PoE++ 90W Out | Outdoor Unmanaged Gigabit Switch for Solar Surveillance (IES7211-4PGE1GE-BT-SOL)

Front view of a rugged 5-port BT PoE switch designed for solar-direct or battery DC input, delivering up to 90W per port with 12V-to-48V boost technology, ideal for powering high-demand devices in remote off-grid locations.

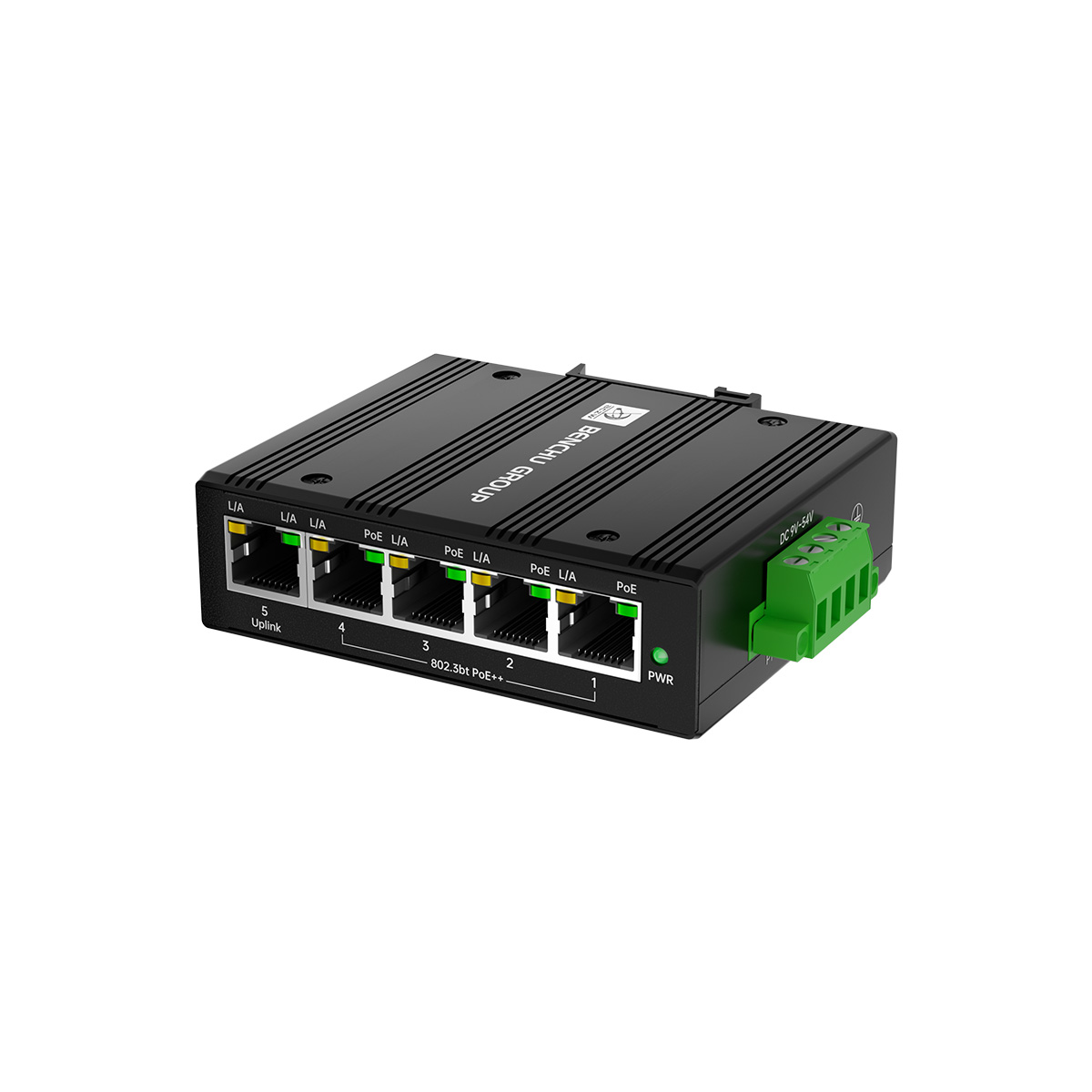

Right-front 45-degree view of a 5-port solar-powered industrial PoE switch, showing both the front panel with Gigabit PoE ports and LED indicators, and the side green power terminal block for solar/battery DC input – all housed in a fanless IP40 aluminum

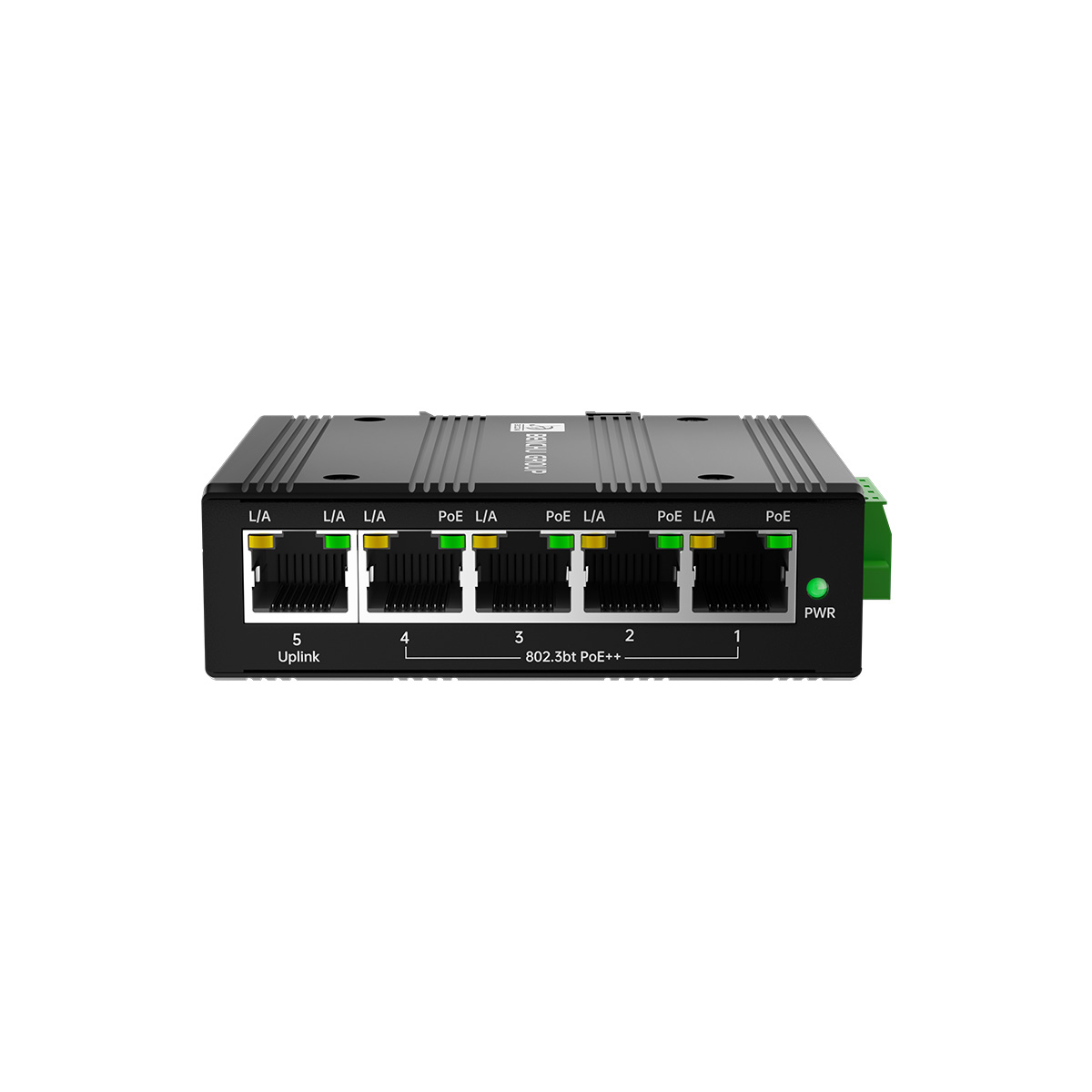

Front panel view of a 5-port solar-powered industrial PoE switch, showing the port configuration with IEEE 802.3bt 90W PoE output, DC power input terminals for solar/battery connection, and LED status indicators for power, link/activity, and PoE mode per

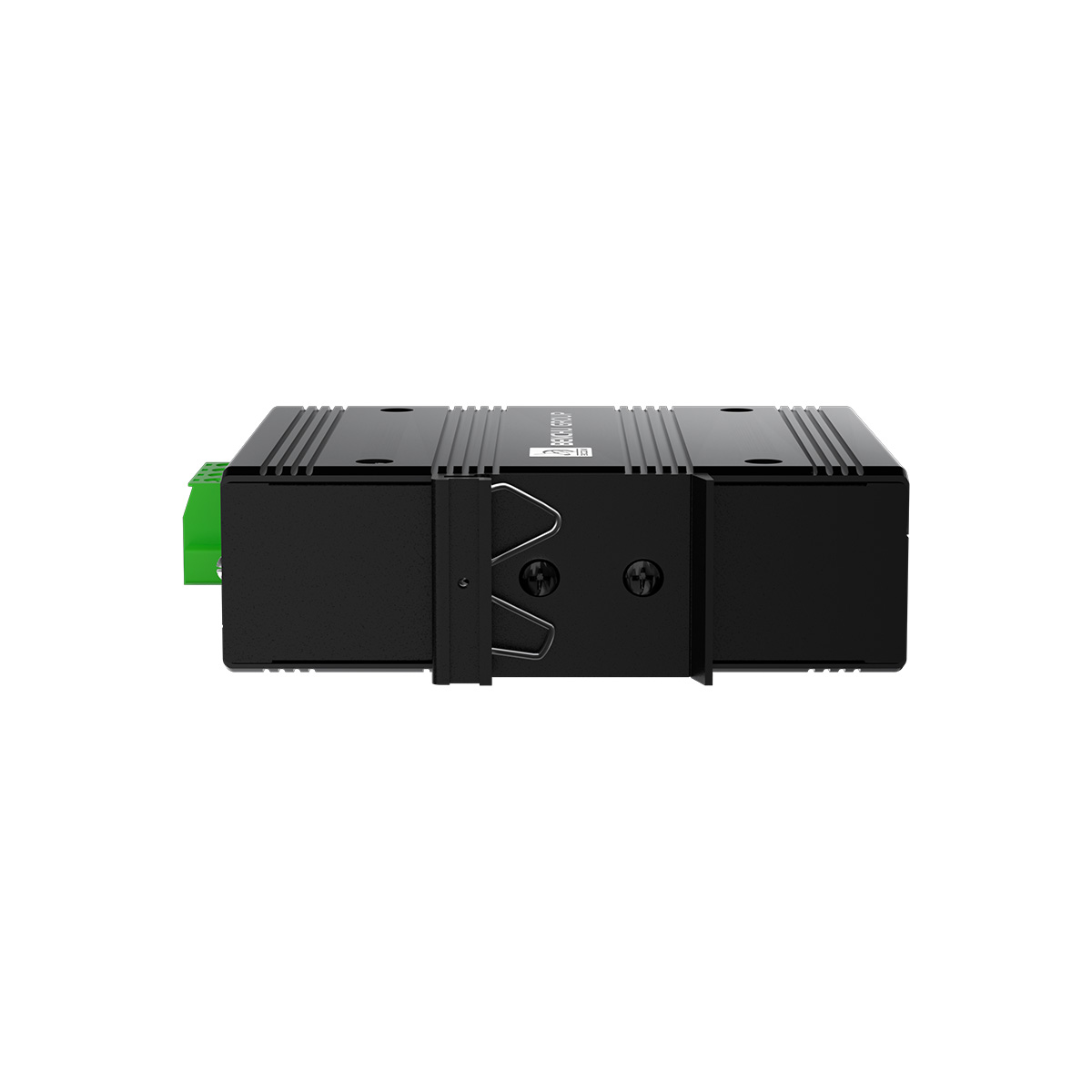

Rear view of a 5-port solar-powered industrial PoE switch, showing the integrated DIN-rail mounting bracket and rear panel design. The rugged metal clip secures the switch firmly onto standard 35mm DIN rails for reliable cabinet installation in off-grid a

5-Port Solar Powered PoE++ Switch | 12V/24V DC Input to 48V/54V PoE++ 90W Out | Outdoor Unmanaged Gigabit Switch for Solar Surveillance (IES7211-4PGE1GE-BT-SOL)

Inquire Now

Specifically designed for off-grid solar power systems, features a built-in 12V/24V to 48V voltage booster to power standard PoE cameras directly from solar batteries.

Product Highlights
    • Designed for Solar: Wide DC input (9V-54V) with integrated 48V~54V boost technology to power standard PoE devices from solar batteries.
    • High Efficiency: 4 Gigabit PoE ports + 1 Gigabit Uplink, ideal for remote IP cameras and wireless bridges.
    • Rugged Reliability: Fanless design with -40°C to +75°C operating range and 6KV surge protection.
    • Plug & Play: No complex configuration needed; optimized for outdoor cabinet installations.
    • OEM/ODM Support: Custom branding and industrial-grade housing options available.

5 port Solar powered PoE++ switch bt 90w Obtained certification icon

Product Overview

The Benchu 5-Port Solar Industrial PoE++ Switch is a high-efficiency networking solution specifically engineered for off-grid, battery-powered surveillance and remote IoT connectivity. This model is designed to bridge the gap between low-voltage renewable energy and high-power edge devices, acting as the reliable heart of autonomous network stations.

Featuring an integrated Intelligent Voltage Booster, the switch accepts a wide DC input range from 12V or 24V solar battery systems and boosts it to a stable 48V-54V PoE output. This version is equipped with 4*Gigabit PoE++ ports and 1*Gigabit RJ45 Ethernet uplink, providing high-bandwidth copper connectivity for localized network expansion.

90W Ultra PoE++ (802.3bt)

Supports the latest IEEE 802.3bt standard, delivering up to 90 Watts per port. It is capable of driving heavy-duty PTZ speed dome cameras, Wi-Fi 7 Access Points, and IoT gateways directly from solar power.

Industrial Hardened Design

Built with a fanless IP40 aluminum housing for extreme environments. It operates reliably in temperatures ranging from -40°C to +75°C and features 6KV surge protection against lightning strikes.

Gigabit Copper Uplink

The dedicated Gigabit Ethernet RJ45 uplink ensures seamless integration with local NVRs, routers, or wireless bridges, providing a stable high-speed data backhaul for remote sites.

Applications: Smart Agriculture, Remote Mining Security, Forest Fire Monitoring, and Off-grid Highway Surveillance.



Features

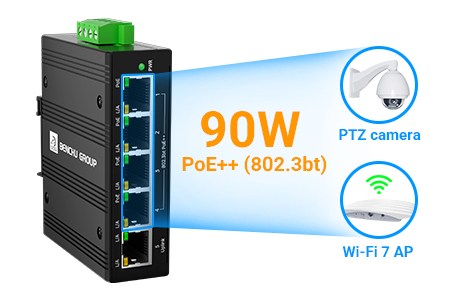

90W PoE++ Output

90W PoE++ Output

Supports IEEE 802.3bt standard to power high-demand PTZ cameras and Wi-Fi 7 APs.

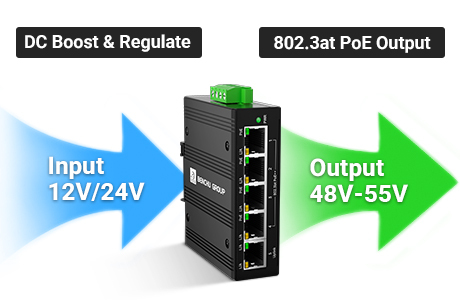

12V/24V Boost

12V/24V Voltage Boost

Integrated booster converts solar battery input to stable 48V-55V PoE output.

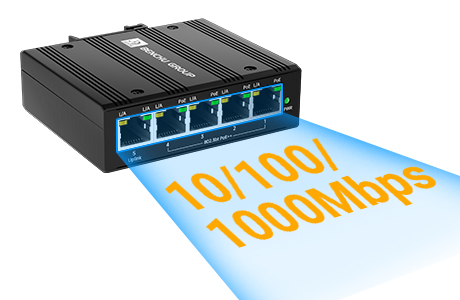

Gigabit Speed

Full Gigabit Ports

5*10/100/1000Mbps ports for high-speed, non-blocking data transmission.

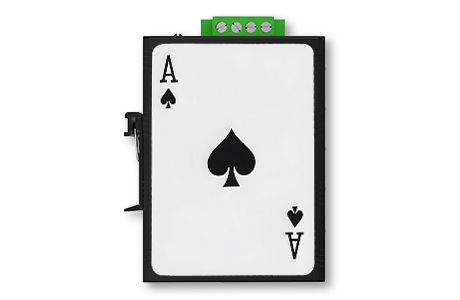

Ultra-Compact Size

Ultra-Compact Size

Extremely small footprint—smaller than a deck of cards—ideal for solar cabinets.

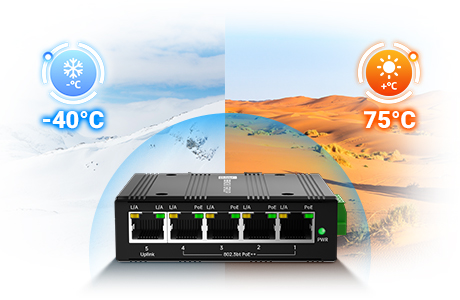

Extreme Temperature

Extreme Temperature

Industrial-hardened design operates reliably from -40°C to +75°C.

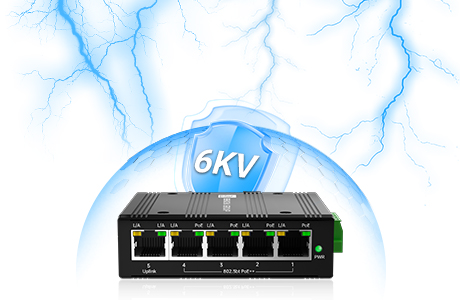

6KV Surge Protection

6KV Surge Protection

Professional lightning protection ensures system safety during thunderstorms.

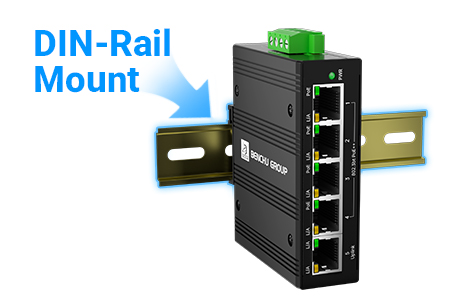

DIN-Rail Mount

DIN-Rail Mount

Rugged aluminum shell supports secure mounting on standard industrial rails.

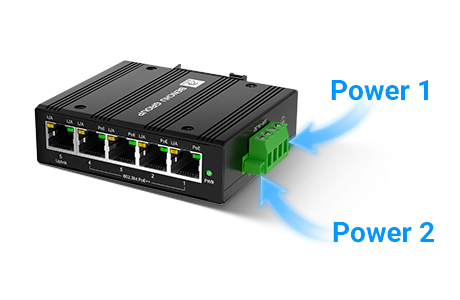

Redundant Power

Redundant DC Input

Dual power inputs provide failover protection for 24/7 operation.

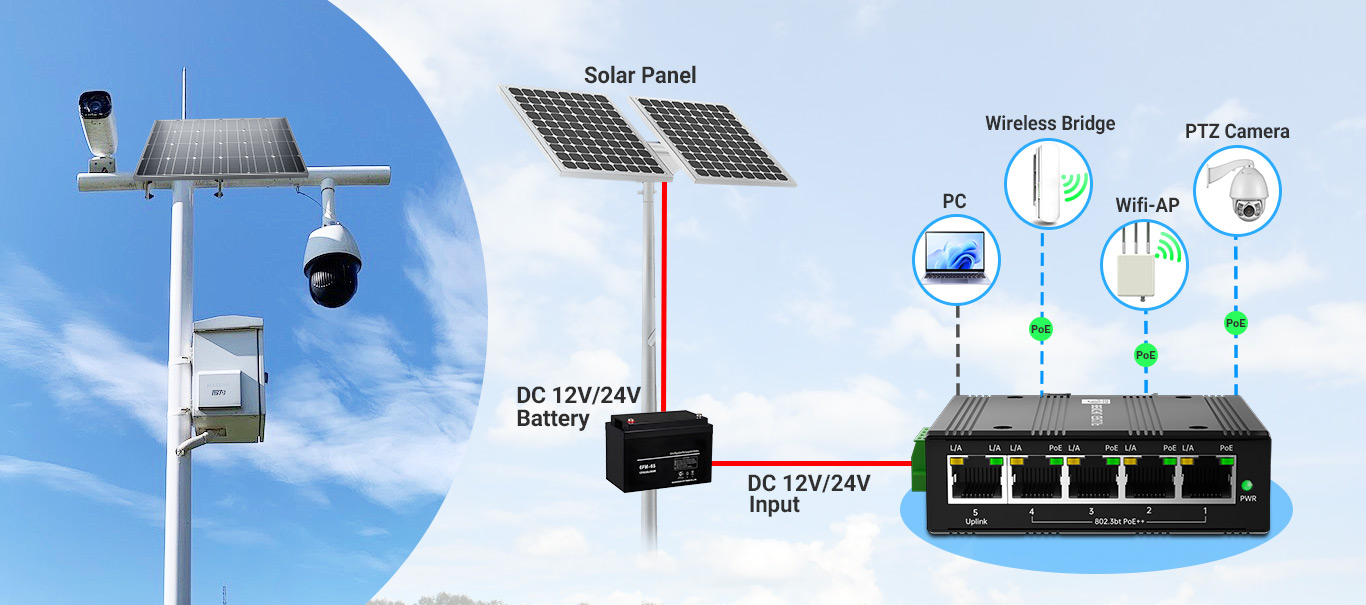

Connectivity Solutions



5 Port Industrial Solar Powered PoE Switch Connectivity Solution



5 Port Industrial Solar Powered PoE Switch bt 90w Connectivity Solution





Specification



Technical Specifications Details / Parameters
Product Model IES7211-4PGE1GE-BT-SOL (5-Port Gigabit Solar PoE++ Switch)
Power Input DC 12V - 54V Wide Voltage Input (Ideal for 12V/24V Solar Systems)
PoE Output Integrated 48V~54V Boost; 4*Gigabit PoE++ (802.3af/at/bt)
Interface 4*10/100/1000M PoE++ Ports + 1*10/100/1000M Uplink Port
Max PoE Budget 60W - 240W (Depends on Input Power)
Working Temp -40°C to +75°C (Industrial Grade)
Protection 6KV Surge Protection; ESD 15KV
Mounting DIN-Rail / Wall-mount (Compact Size)



  • Business Type :

    Industrial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged



Questions & Answers
Q: Can I connect a 12V solar battery directly to this switch?
A: Yes! Our solar PoE switch has a built-in voltage booster. It accepts 12V or 24V DC input and converts it to stable 48V~54V PoE for your cameras.

Q: Is this switch waterproof for outdoor use?
A: It is designed for outdoor cabinets with an industrial operating temperature of -40°C to 75°C. For direct outdoor exposure, we offer IP67 waterproof versions as part of our OEM/ODM service.

Q: What is the maximum power output per port?
A: Each PoE port supports up to 90W (IEEE 802.3bt), suitable for most IP cameras and wireless bridges.



Downloads

PDF


Benchu-90W-BT-Industrial-Solar-Powered-PoE-Switch-IES7211-4PGE1GE-BT-SOL-Datasheet.pdf

Technical Specifications | PDF Format | 908 KB



Selection Guide



Models Solar-off-grid-POE-switch
FusionPoE-5P
Multi-Service Hybrid Ports
 4-port-solar-powered-poe-switch-with-sfp-fiber-uplink
IES7211-4PGE1GF-BT-SOL
SFP Fiber Uplink
 5-PORT-SOLAR-POE-POWERED-SWITCH
IES7211-4PGE1GE-BT-SOL
(90W Industrial)
 4-PORT-SOLAR-POE-POWERED-SWITCH-MANAGED
IES7511-4PGE2GF-SOL
(L2 Managed)
 8-PORT-SOLAR-POE-POWERED-SWITCH-MANAGED
IES7511-8PGE2GF-SOL
(L2 Managed)
Max PoE Output 90W(PoE++) & 12W（24V）
 90W (PoE++) 90W (PoE++) 30W (PoE+) 30W (PoE+)
POE Standard 802.3at & 24V Passive PoE 802.3bt 802.bt 802.3at 802.3at
Ports 3* 90W PoE +  1*24V PoE + 1*RJ45
 4* 90W PoE +  1*SFP 4* 90W PoE +  1*RJ45 4* 30W PoE +  2*SFP 8* 30W PoE +  2*SFP
Power Input DC 9~54V Wide Voltage DC 9~54V Wide Voltage DC 9~54V Wide Voltage DC 9~54V Wide Voltage DC 9~54V Wide Voltage
Housing / IP Aluminum / IP40 Aluminum / IP40 Aluminum / IP40 Aluminum / IP40 Aluminum / IP40
Operating Temp -40°C to +75°C -40°C to +75°C -40°C to +75°C -40°C to +85°C -40°C to +85°C
Surge / ESD 6KV / 15KV 6KV / 15KV 6KV / 15KV 6KV / 15KV 6KV / 15KV
Action View Detail View Detail Current Page View Detail View Detail
