90W Solar PoE Switch with SFP, 4-Port Gigabit PoE++ & 12/24V to 48V Boost, IES7211-4PGE1GF-BT-SOL

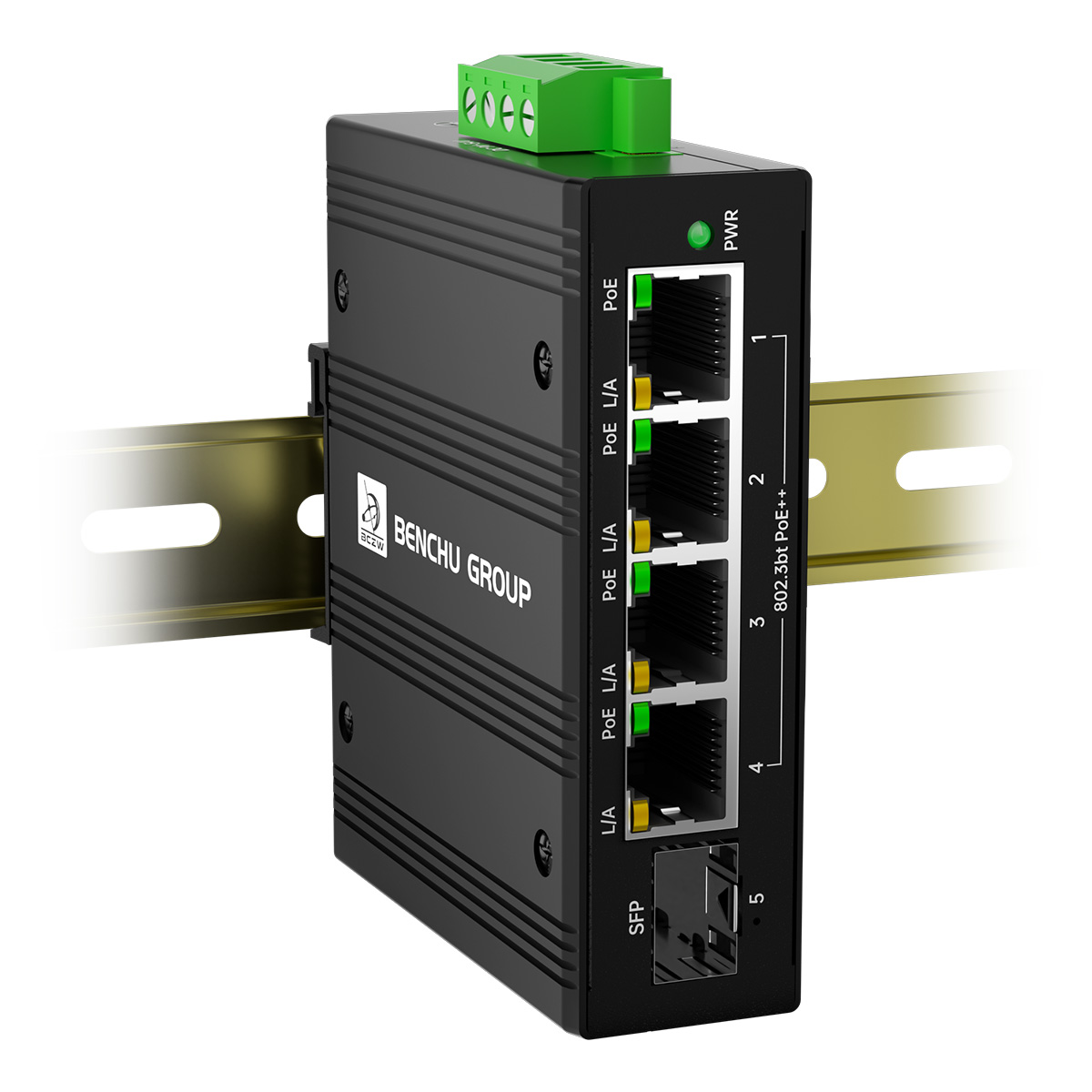

Main product image of a 5-port solar-powered industrial PoE switch featuring one Gigabit SFP slot for fiber uplink and four 90W BT PoE ports, built in a fanless IP40 aluminum housing with DIN

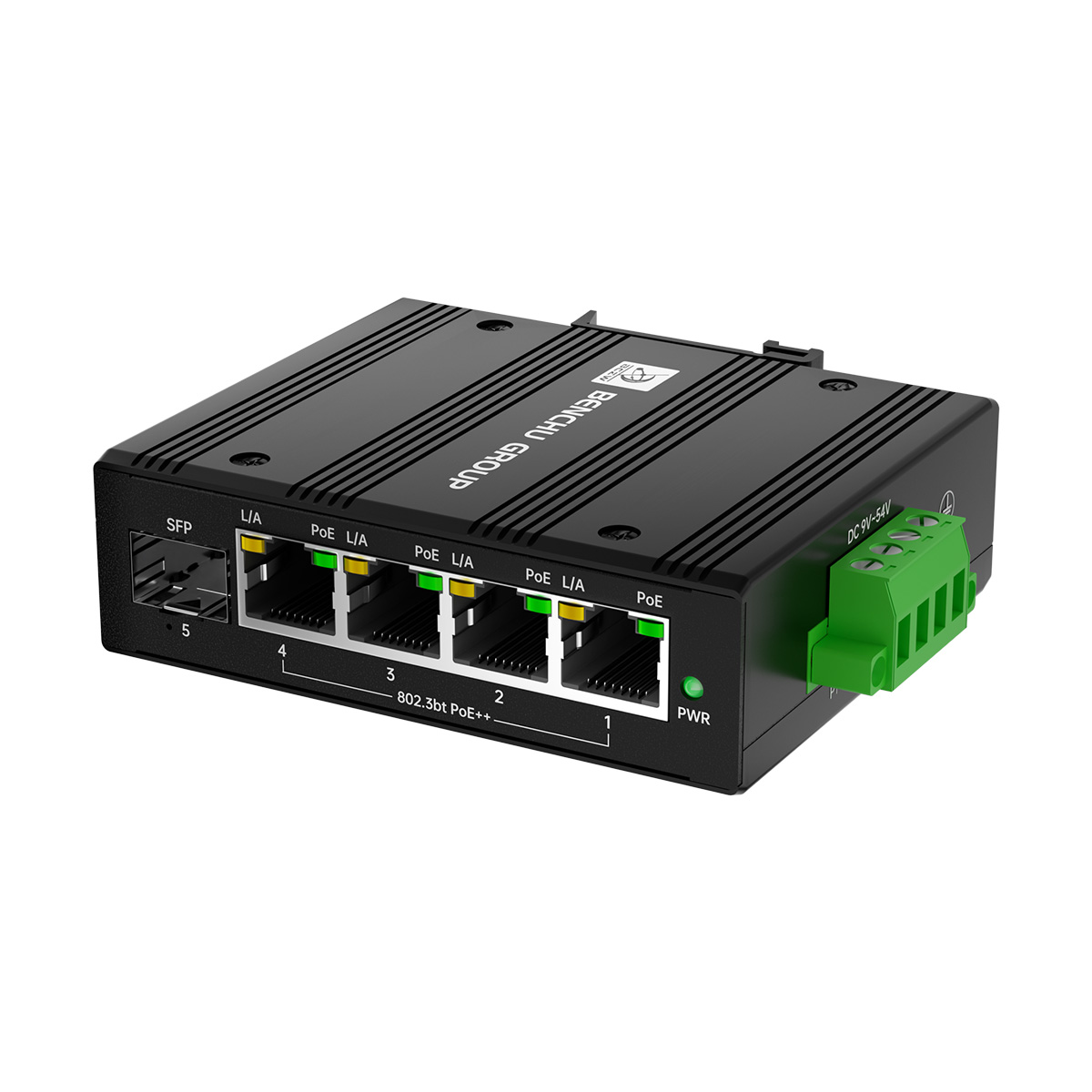

Right-front 45-degree view of a 5-port solar-powered industrial PoE switch with SFP fiber uplink, capturing both the front panel with four 90W BT PoE ports, one Gigabit SFP slot, and LED indi

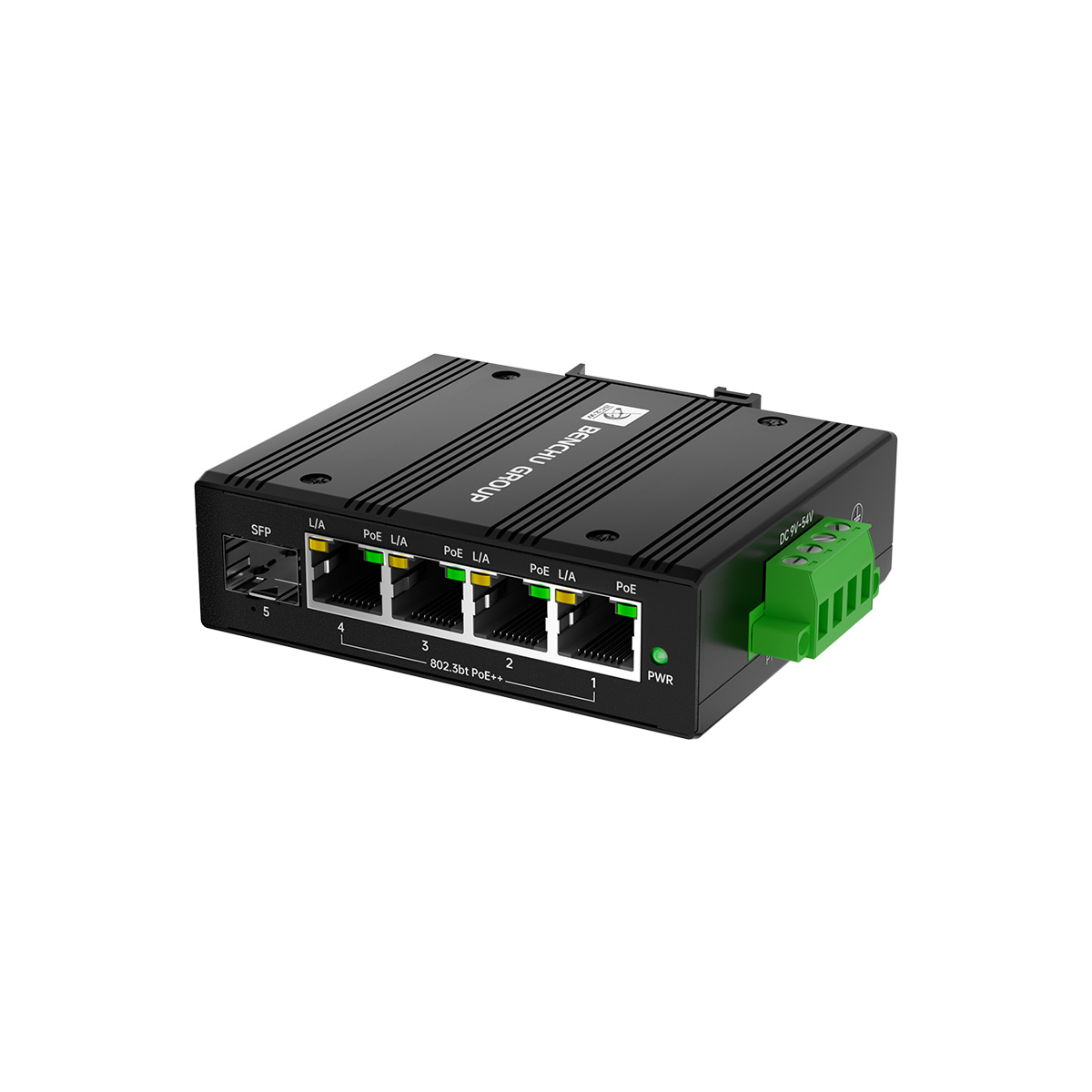

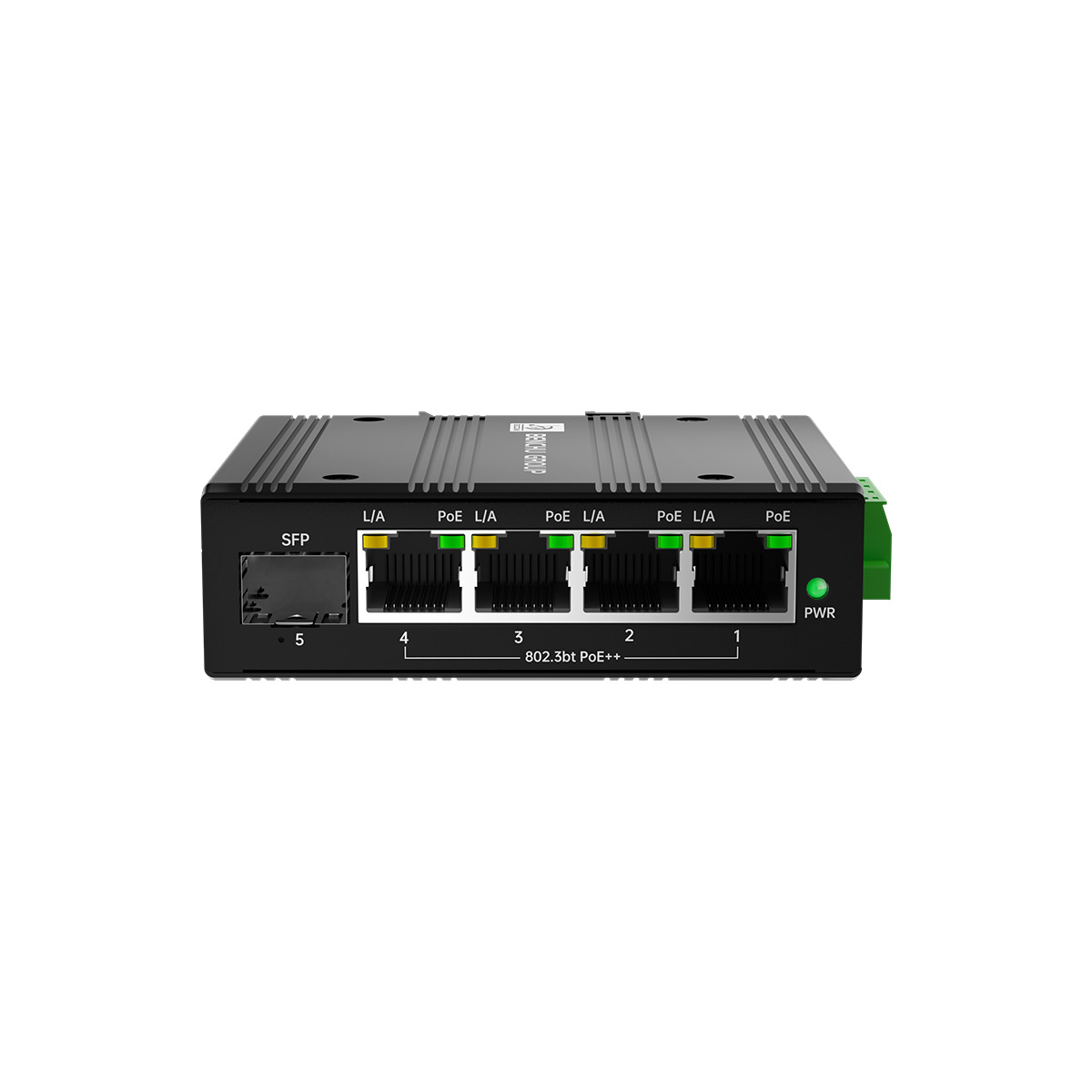

Front panel view of a 5-port solar-powered industrial PoE switch, showing four Gigabit PoE ports with up to 90W BT output, one Gigabit SFP slot for fiber uplink, DC power input terminals for

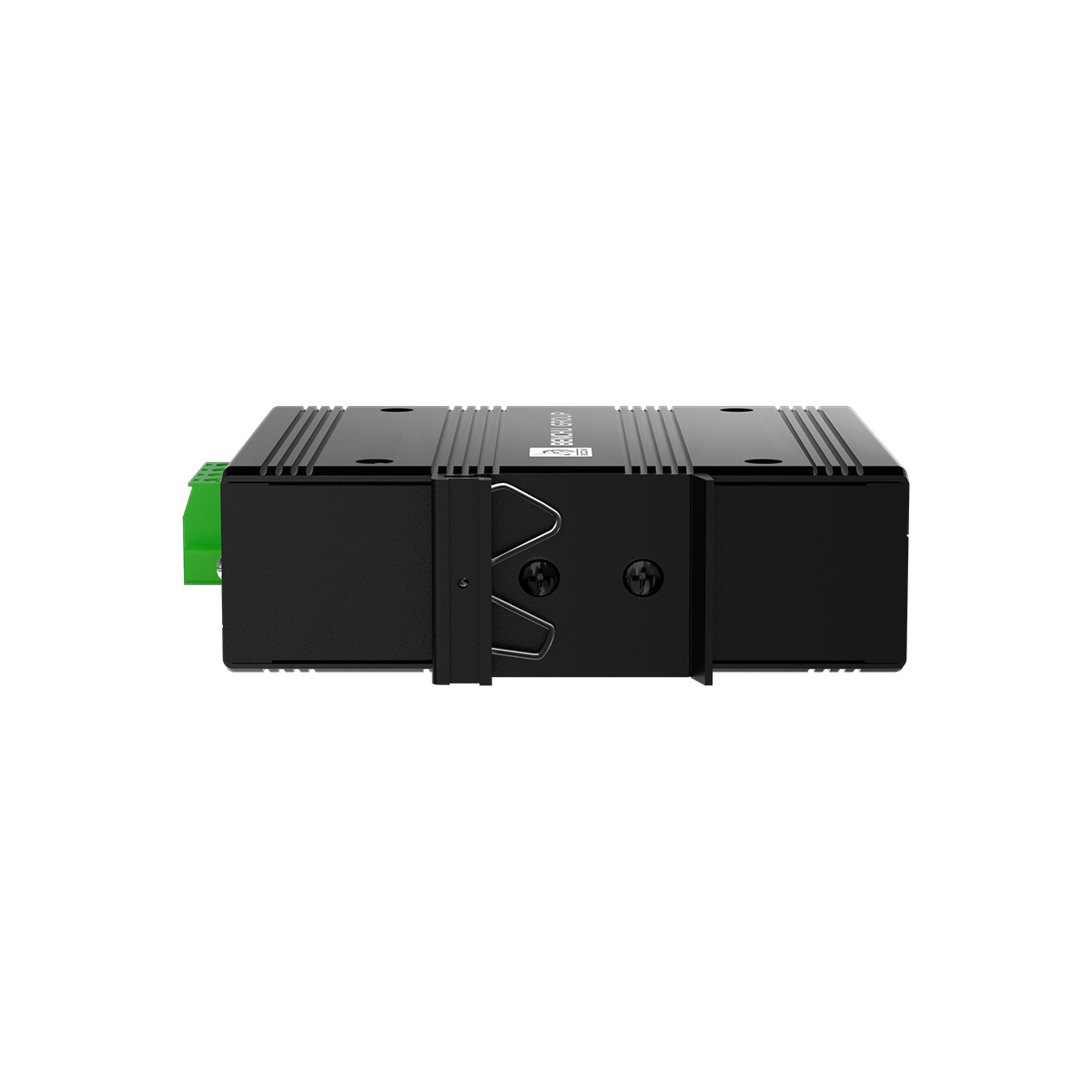

Rear view of a 5-port solar-powered industrial PoE switch with SFP, showing the integrated DIN-rail mounting bracket and flat aluminum back panel. The rugged metal clip ensures secure attachm

90W Solar PoE Switch with SFP, 4-Port Gigabit PoE++ & 12/24V to 48V Boost, IES7211-4PGE1GF-BT-SOL

Get Editable Specs & Price List →

This Solar PoE Switch is designed for off-grid surveillance and wireless networks, converting 12V or 24V solar battery power to 48V PoE output to power high-power devices through four Gigabit PoE++ ports, with a Gigabit SFP uplink for long-distance fiber backhaul.

Product Highlights

    Intelligent 12V/24V to 48V PoE Voltage Boost : Specifically designed for solar systems, the integrated booster converts 12V or 24V DC battery input into stable 48V-54V PoE output, eliminating the need for expensive external converters.

    90W Ultra PoE++ (IEEE 802.3bt): Features 4*Gigabit PoE++ ports delivering up to 90W each. Perfect for high-load devices like Wi-Fi 7 APs, 4K PTZ laser cameras, and outdoor IoT gateways in remote areas.

    Gigabit SFP Port for Long-Range Backhaul: The dedicated Gigabit SFP slot supports fiber optic connectivity, enabling high-speed data transmission over several kilometers, ideal for massive-scale farm or forest monitoring.

    Extreme-Temperature Industrial Design: Fanless IP40-rated aluminum housing ensures reliable performance from -40°C to +75°C. Equipped with 6KV surge protection to withstand outdoor thunderstorms.

    Ultra-Compact & Versatile Mounting: The tiny footprint (smaller than a deck of cards) saves critical space in solar cabinets. Supports standard DIN-rail and wall-mount for flexible, rapid deployment.

POE switch authentication icon

Overview

The IES7211-4PGE1GF-BT-SOL is a professional Solar Industrial PoE++ Switch with SFP built for the most challenging off-grid network environments. By combining a wide-range DC booster (12V-54V) with 90W Ultra PoE output, it allows you to build a powerful surveillance or wireless station using only a standard solar battery array.

This "Fiber-to-Ethernet" industrial bridge is the perfect link between long-distance fiber backhaul and high-power edge devices. With its fanless cool-running design and hardened shell, it provides an uncompromised solution for Smart Agriculture, Remote Mining, and Border Security projects where stability is the only option.

Features

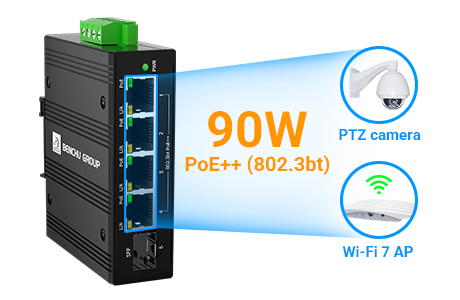

90W PoE++ Output

90W PoE++ (802.3bt)

Supports IEEE 802.3bt to power high-load PTZ cameras and Wi-Fi 7 APs directly.

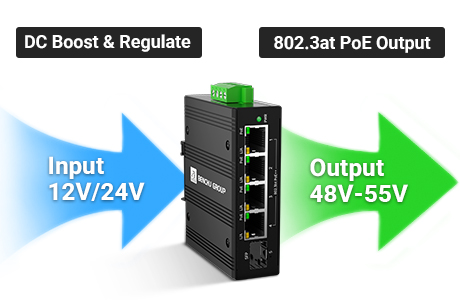

Voltage Booster

Solar Voltage Boost

Integrated booster converts 12V/24V solar battery input to stable 48V-54V PoE output.

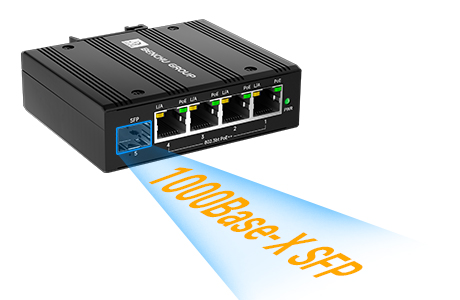

Gigabit SFP Uplink

Long-Range Fiber Uplink

1000Base-X SFP slot enables high-speed data backhaul over several kilometers via fiber.

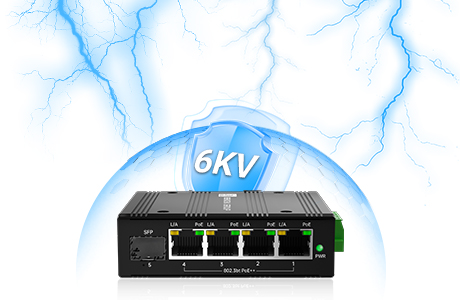

6KV Surge Protection

6KV Surge Protection

Industrial-grade lightning protection ensures system safety during severe thunderstorms.

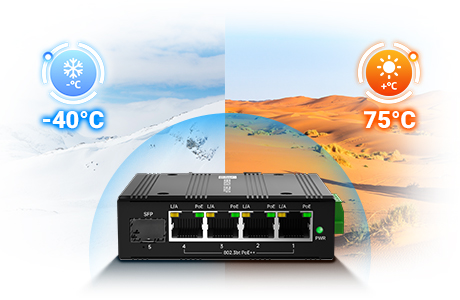

Wide Temperature

-40°C to +75°C Working

Rugged fanless design operates reliably in extreme cold or heat without downtime.

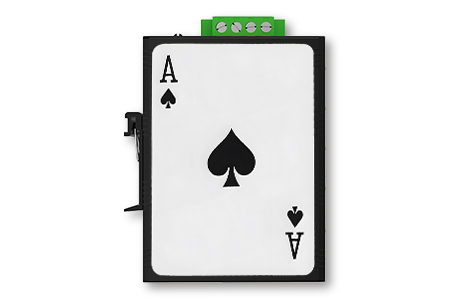

Ultra-Compact Design

Ultra-Compact Footprint

Extremely small size (smaller than a deck of cards) saves space in outdoor cabinets.

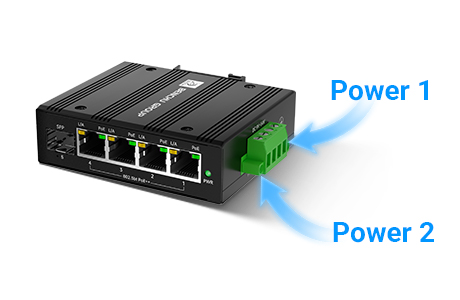

Dual Power Input

Dual DC Power Input

Supports redundant power inputs to ensure 24/7 continuous operation for critical nodes.

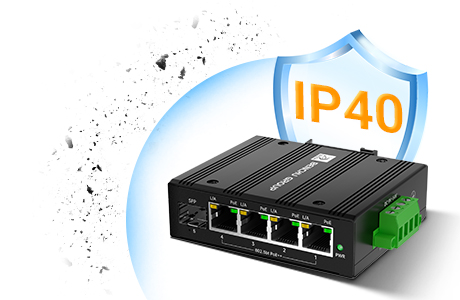

IP40 Aluminum Shell

Rugged Aluminum Shell

IP40-rated metal housing provides excellent heat dissipation and dust protection.



Connectivity Solutions

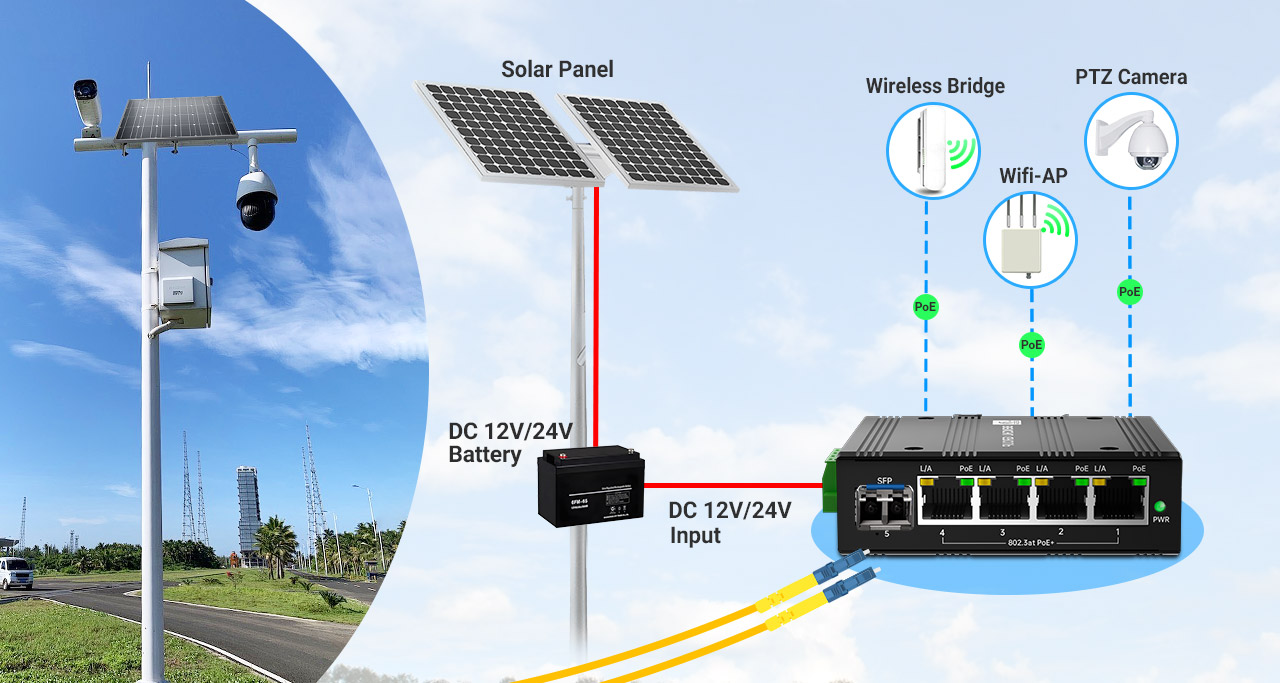

90W-Solar-Powered-Industrial-PoE-Switch-with-SFP-application-topology

Specification

Technical Specifications Details / Parameters
Product Model IES7211-4PGE1GF-BT-SOL (5-Port Gigabit Solar PoE++ Switch with SFP Uplink)
Power Input DC 12V - 54V Wide Voltage Input (Ideal for 12V/24V Solar Systems)
PoE Output Integrated 48V~54V Boost; 4*Gigabit PoE++ (802.3af/at/bt)
Interface 4*10/100/1000M PoE++ Ports + 1*1.25G SFP Slot Uplink
Max PoE Budget 60W - 240W (Depends on Input Power)
Working Temp -40°C to +75°C (Industrial Grade)
Protection 6KV Surge Protection; ESD 15KV
Mounting DIN-Rail (Compact Size)



  • Business Type :

    Industrial

  • Bandridth :

    1G

  • More Filters :

    Unmanaged

.

Frequently Asked Questions

1. Can I power 48V PoE cameras using a 12V or 24V solar battery?
Yes. The IES7211-4PGE1GF-BT-SOL features an integrated intelligent voltage booster. It automatically converts 12V/24V DC input from solar batteries to a stable 48V-55V PoE output, eliminating the need for complex external power converters.
2. Does it support high-power devices like PTZ cameras or Wi-Fi 7 APs?
Absolutely. This switch supports the latest IEEE 802.3bt (PoE++) standard, providing up to 90W per port. It is designed to drive high-load devices such as speed dome cameras with heaters and flagship Wi-Fi 7 access points.
4. How far can the fiber port transmit data?
With the dedicated Gigabit SFP uplink, the transmission distance depends on your SFP module. It can easily cover 20km, 40km, or even 80km, making it ideal for remote farm, forest, or border surveillance projects.
4. Is it reliable for outdoor use in extreme weather?
Yes. It is an industrial-hardened switch with an IP40 aluminum shell and -40°C to +75°C operating temperature range. It also includes 6KV surge protection to ensure 24/7 uptime during thunderstorms.
5. Is this switch energy-efficient for off-grid solar sites?
Designed for solar efficiency, the switch features low idle power consumption and a high-efficiency DC-DC boost circuit, ensuring that most of your battery power is delivered to the cameras rather than wasted as heat.

Downloads

PDF


Benchu-90W-BT-Industrial-Solar-Powered-PoE-Switch-with-SFP-Uplink-IES7211-4PGE1GF-BT-SOL-Datasheet.pdf

Technical Specifications | PDF Format | 908 KB



Selection Guide



Models Solar-off-grid-POE-switch
FusionPoE-5P
Multi-Service Hybrid Ports
 4-port-solar-powered-poe-switch-with-sfp-fiber-uplink
IES7211-4PGE1GE-BT-SOL
90W Industrial
 5-PORT-SOLAR-POE-POWERED-SWITCH
IES7211-4PGE1GF-BT-SOL
(SFP Fiber Uplink)
 4-PORT-SOLAR-POE-POWERED-SWITCH-MANAGED
IES7511-4PGE2GF-SOL
(L2 Managed)
 8-PORT-SOLAR-POE-POWERED-SWITCH-MANAGED
IES7511-8PGE2GF-SOL
(L2 Managed)
Max PoE Output 90W(PoE++) & 12W（24V）
 90W (PoE++) 90W (PoE++) 30W (PoE+) 30W (PoE+)
POE Standard 802.3at & 24V Passive PoE 802.3bt 802.bt 802.3at 802.3at
Ports 3* 90W PoE +  1*24V PoE + 1*RJ45
 4* 90W PoE +  1*RJ45 4* 90W PoE +  1*SFP 4* 30W PoE +  2*SFP 8* 30W PoE +  2*SFP
Power Input DC 9~54V Wide Voltage DC 9~54V Wide Voltage DC 9~54V Wide Voltage DC 9~54V Wide Voltage DC 9~54V Wide Voltage
Housing / IP Aluminum / IP40 Aluminum / IP40 Aluminum / IP40 Aluminum / IP40 Aluminum / IP40
Operating Temp -40°C to +75°C -40°C to +75°C -40°C to +75°C -40°C to +85°C -40°C to +85°C
Surge / ESD 6KV / 15KV 6KV / 15KV 6KV / 15KV 6KV / 15KV 6KV / 15KV
Action View Detail View Detail Current Page View Detail View Detail
