IES7511-8PGE4TF-DC, Layer 3 Managed 8 Ports Gigabit Industrial PoE Switch,with 4-10Gb SFP+ Uplink,DIN-Rail Mount
Physical Port
Power over Ethernet
Switching
Hardware
Lightning Protection
Mechanical Properties
|
Layer 3 Features
Layer 2 Features
Security
Management
|
Features

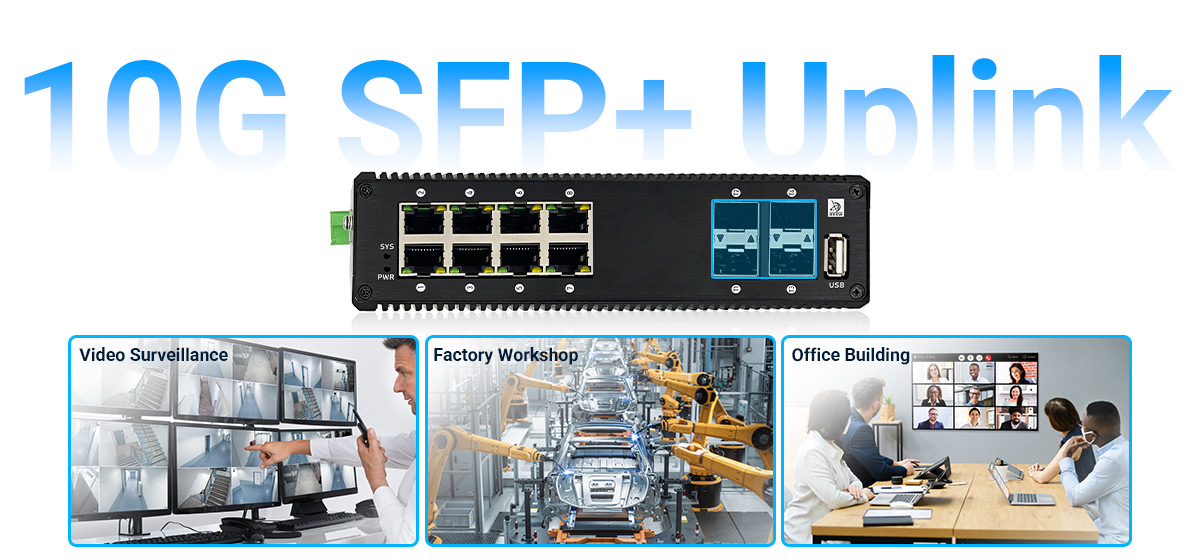

High-Speed 10G SFP+ Uplink Ports
Four 10G SFP+ uplink ports provide ultra-fast data transmission and reduce latency for heavy-traffic industrial applications. These uplinks ensure uninterrupted connections between devices and backbone networks, allowing for superior performance in real-time monitoring or large-scale data transfers. Supporting fiber and copper modules, the uplinks adapt to various deployment needs, ensuring scalability for growing network demands.

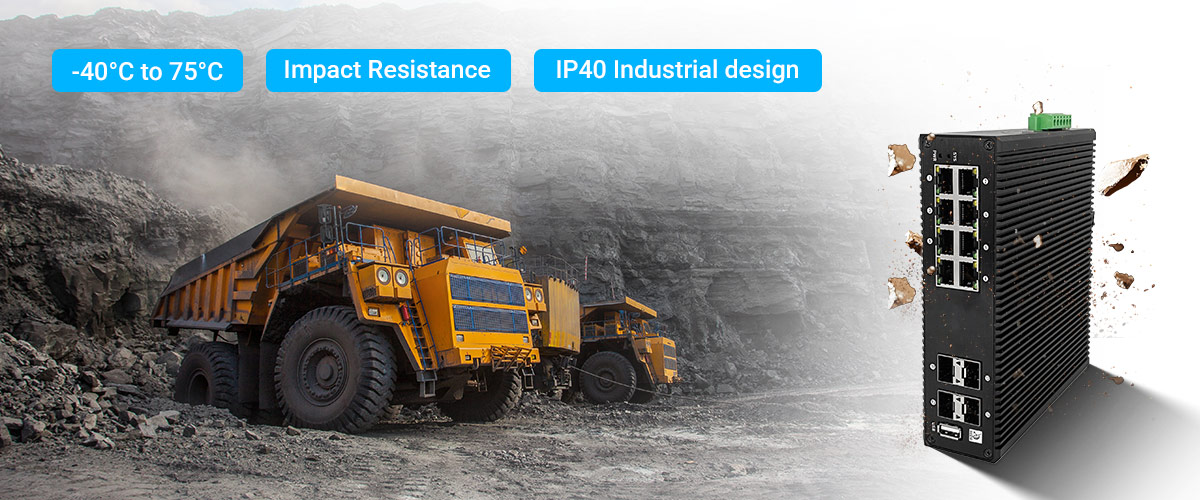

Rugged Industrial Design
The IES7511-8PGE4TF-DC features a robust metal housing and fanless design to operate reliably in harsh environments. It withstands wide temperature ranges (-40°C to 75°C) and is resistant to vibration and shock, making it suitable for demanding industrial applications such as transportation, mining, and factory automation. Its durable construction minimizes downtime, ensuring consistent network availability even in extreme conditions.
Layer 2/Layer 3 Network Management
Advanced network management capabilities include VLAN, QoS, and IGMP snooping, enabling optimized traffic flow and enhanced network security. Layer 3 static routing further simplifies network segmentation, ensuring efficient resource allocation. These features give users precise control over network configuration, making the switch a flexible and intelligent choice for industrial deployments.
Enhanced Network Security
This 8 port industrial PoE switch offers a variety of security protocols, including port security, DHCP snooping, and 802.1X authentication, to safeguard network infrastructure. By protecting against unauthorized access and potential cyber threats, it ensures safe and secure industrial operations. These features provide peace of mind for users managing critical data in high-risk environments.
Wide Voltage Input
Supporting a wide voltage input range of 48–56V DC, the switch accommodates diverse power systems. This flexibility ensures compatibility with industrial setups and enhances operational resilience. Users benefit from reduced power constraints and reliable connectivity even in environments with fluctuating or unconventional power supplies.
Intelligent PoE Management
The industrial PoE switch offers smart PoE management, including power scheduling and prioritization. It ensures optimal power allocation to essential devices, reducing power waste and preventing overloads. This feature enhances energy efficiency while maximizing device uptime, particularly for mission-critical applications like surveillance and automation.
Connectivity Solutions
Layer 3 Managed 8 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Connection Solution
Layer 3 Managed 8 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Ring Network Connection Solution
Specification
Technical Specifications :
IE7511-8PGE4TF-DC10M/100M/1G RJ45 copper ports :
81G/2.5G/10G SFP+ (fiber) ports :
4PoE / PoE+ ports :
8Console Port (For config ) :
YesUSB port :
Yes (for firmware and config upload/ download)Reset button :
YesPower over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
12 MbForwarding modes :
Store-and-forwardBandwidth :
128 GbpsPacket forwarding rate :
71.43Mpps (64 byte packet size)MAC address database size :
16K (48-bit MAC ad-dresses)Jumbo frame support :
12KMean Time Between Failures :
155,432 hours (MTBF) @ 25°CL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesQinQ VLAN tagging :
YesIP-based VLANs :
YesMAC-based VLANs :
YesProtocol-based VLAN :
YesVoice VLAN :
YesVLAN mapping :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE 802.3x :
YesRing (ERPS,complies with G.8032) :
Yes, Recovery time < 50msIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesIEEE 802.1s Multiple Spanning Tree Protocol :
YesLayer 2 DHCP Relay :
YesL2 Services - Multicast Filtering :
YesIGMP snooping (v1, v2 and v3) :
YesMLD snooping support (v1 and v2) :
YesIGMP snooping querier (v2) :
YesMLD snooping querier (v1) :
YesMulticast VLAN Registration (MVR) :
YesL3 Services - DHCP :
*DHCP client :
YesDHCP snooping :
YesDHCP Server :
YesL3 Services - Routing :
*IPv4 static routing :
100IPv6 static routing :
100VLAN routing :
YesRIP V1/V2 :
YesOSPF V2 :
YesNumber of IP VLAN interfaces :
YesPolicy routing :
YesVRRP :
YesLink Aggregation :
*Manual LAG :
Yes# of LAGs / # of members in each LAG :
8 LAGs with max 8 members in each LAGNetwork Monitoring and Discovery Services :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3RMON group 1,2,3,9 :
YesNetwork Security :
YesIEEE 802.1x :
YesRADIUS accounting :
YesAccess Control Lists (ACLs) :
YesIP-based ACLs (IPv4 and IPv6) :
L2 / L3 / L4MAC-based ACLs :
YesTCP/UDP-based ACLs :
YesControl MAC # static entries :
48Port-based security by locked MAC addresses :
YesDynamic ARP inspection :
YesDoS protection :
YesDoS attacks prevention :
YesNetwork storm protection, DoS :
YesQuality of Service (QoS) :
*Port-based rate limiting :
Yes ingress and egressPort-based QoS :
YesSupport for IPv6 fields :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
YesDestination MAC and IP :
YesIPv4 and v6 DSCP :
YesTCP/UDP-based :
YesWeighted Round Robin (WRR) :
YesStrict priority queue technology :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocols 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D (STP) • IEEE 802.1s (MSTP) • IEEE 802.1w (RSTP) • ITU-TG.8032 (ERPS)Management, Monitoring & Troubleshooting :
*Password management :
YesAccess control via RADIUS and TACACS+ :
YesIPv6 management :
YesSNMP v1/v2c/v3 :
YesPort mirroring :
Yes ingress and egressMany-to-one port mirroring :
12Cable test utility :
YesTLS/HTTPS Web-based access (version) :
Yes (v1.2)File transfers (uploads, downloads) :
TFTP / HTTPHTTP upload/download (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
170 x 148 x 48 mm (6.69 x 5.83 x 1.89 in)Weight :
1.2 kg (2.65 lb)Shell protection :
P40 high-strength aluminum casePower Requirements :
DC 48~56V, redundant power with reverse polarity protectionMax power :
12WIddle power consumption :
9WEnergy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-40° to 85°C (-40° to 185°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1G+10GMore Filters :
L3 Managed
