Overview
IES7521-16PGE4GC-AC, Layer 2+ Managed 16 Ports Industrial PoE Switch,with 4 Gigabit RJ45/SFP Combo Uplink,16 PoE+ Ports@300W Power Budget, DIN-Rail Mount
-
Physical Port16-10/100/1000BASE-TX Gigabit Ethernet RJ45 ports with PoE+4-1.25GBASE-X mini-GBIC/SFP ports slot1-RJ45 console interface for switch management and setup1-Reset button for system factory default and rebootPower over EthernetComplies with IEEE 802.3at Power over Ethernet PlusBackward compatible with IEEE 802.3af Power over EthernetUp to 16 ports of IEEE 802.3af/802.3at devices poweredSupports PoE power up to 30 watts for each PoE portAuto detects powered device (PD)Remote power feeding up to 100 metersSwitchingBackplane bandwidth 64Gbps,Packet forwarding rate 35.72Mpps,MAC address 8kHardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operationHardwareIndustrial Case and InstallationRack mount design48~56V DC, redundant power with reverse polarity protectionSupports 8KV DC Ethernet ESD protection-40 to 85 degrees C operating temperatureLED indicators for Power,PoE Working and LINK/ACT -
Layer 2 FeaturesSupport IEEE 802.1Q VLANSupport MAC VLANSupport Surveillance VLANSupport Voice VLANSupports Spanning Tree ProtocolSupports Link Aggregation (LACP)Supports port mirrorSupports Multicast Filtering (IGMP)Supports DHCPSupports ERPSSupports RMONSupports MLD snoopingSupports MVRSupports Quality of Service (Qos)Supports Static routingSupports Port Error DisableSupports Rate LimitSupports Storm ControlSupports PoE ManagedSecuritySupport IEEE 802.1xSupport RADIUS accountingSupport Access Control Lists (ACLs)Support MAC SecuritySupport IP Source Guard prevents IP spoofing attacksSupport DoS Attack PreventionSupport aaa authentication -
Lightning ProtectionIEC61000-4-3 (RS):10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022):Class BIEC61000-6-2:Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :1000A/mIEC61000-4-10 (Damped oscillation) :30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kVIEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :30V, 300V, 1sIEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kVMechanical PropertiesIEC60068-2-6:Anti VibrationIEC60068-2-32:Free FallIEC60068-2-27:Anti Shoc
Features
Rapid Failover Recovery
This Managed 16 Port industrial PoE switch support ERPS ensures minimal network downtime with failover recovery times as fast as 50ms. In the event of a link failure, the ring topology quickly reroutes traffic, maintaining uninterrupted communication. This feature is essential for industrial networks, ensuring high availability for critical applications like surveillance, automation, and control systems.ERPS supports large-scale ring networks and is compatible with Ethernet standards, enabling seamless integration with other devices. This scalability ensures future-proof network expansion.
PoE Power Scheduling
With PoE power management, the IES7521-16PGE4GC-AC allows administrators to schedule power delivery to specific ports. This feature improves energy efficiency by powering down devices during non-operational hours. For industrial setups, it enables control over connected devices like sensors and cameras, extending their lifespan and reducing energy consumption without compromising functionality.
Link Aggregation
Link aggregation combines multiple physical connections into a single logical link, increasing bandwidth and providing redundancy in case of a link failure. This feature enhances network reliability and scalability, ensuring stable operation for industrial systems that require high-speed communication between devices and uplink connections.
Centralized Management Interface
The switch offers a user-friendly management interface accessible via web GUI, CLI, or SNMP. Administrators can monitor network performance, configure settings, and troubleshoot issues remotely. This centralized management simplifies network administration in industrial environments where efficiency and uptime are critical for operations.
Surge and ESD Protection
This 16 port industrial PoE switch includes advanced protection against electrical surges and electrostatic discharge (ESD). This safeguards both the switch and connected devices from power anomalies, reducing the risk of hardware failure. It is particularly beneficial in outdoor or industrial installations prone to power fluctuations or lightning strikes.

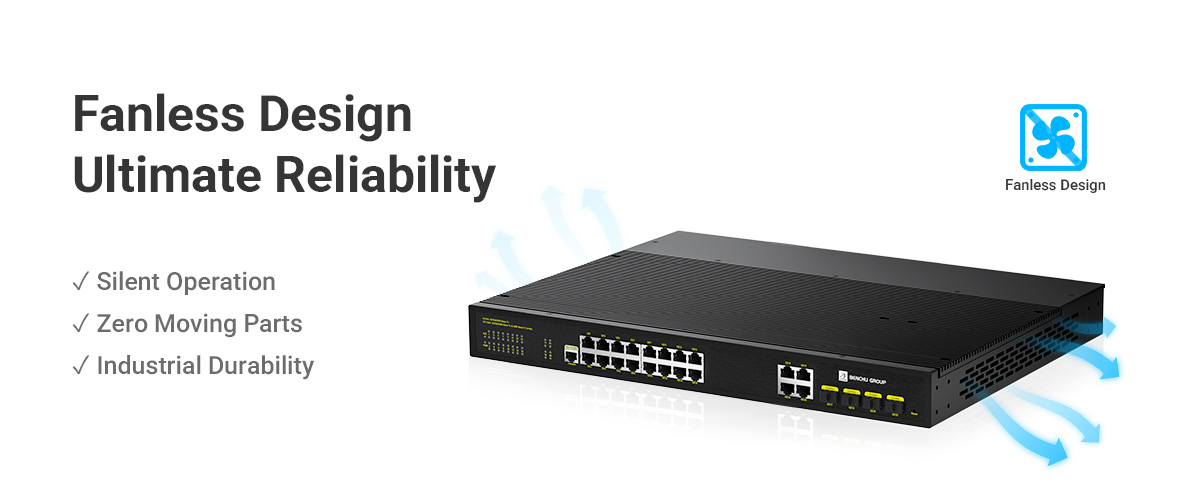

Fanless Design with Heat Dissipation
The fanless design ensures silent operation and reduces maintenance needs, as there are no moving parts to fail. Its advanced heat dissipation technology allows it to operate efficiently in high-temperature environments, making it reliable for industrial applications where consistent uptime is critical.
Industrial EMC Compliance
Complying with stringent electromagnetic compatibility (EMC) standards, this 16 port industrial PoE switch performs reliably in environments with heavy electrical noise, such as factories or transportation hubs. EMC compliance ensures uninterrupted communication between devices, even in areas with powerful machinery or fluctuating power supplies.
Connectivity Solutions
Layer 2 Managed 16 Port Industrial PoE Switch 4 Gigabit SFP Uplink Connectivity Solution
Layer 2 Managed 16 Port Industrial PoE Switch 4 Gigabit SFP Uplink Ring Network Connectivity Solution
Specification
Technical Specifications :
IE7511-16PGE4GC-DC10M/100M/1G RJ45 copper ports :
16Gigabit R4J5 and SFP Combo :
4 ComboPoE / PoE+ ports :
16 PoE+Console Port (For config ) :
YesReset button :
YesPower over Ethernet :
*PoE Standard :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetPoE Power Supply Type :
End-span: 1/2 (+), 3/6 (-)PoE Power Output :
Per port 48V DC, 320mA. max. 15.4 watts (IEEE 802.3af); Per port 48V DC, 625mA. max. 30 watts (IEEE 802.3at)Performance Specification :
*Packet buffer memory :
4.2 MbForwarding modes :
Store-and-forwardBandwidth :
64 GbpsPacket forwarding rate :
35.72Mpps (64 byte packet size)MAC address database size :
8K (48-bit MAC ad-dresses)Jumbo frame support :
9KL2 Services - VLANs :
*IEEE 802.1Q VLAN tagging :
YesQinQ VLAN tagging :
YesIP-based VLANs :
YesMAC-based VLANs :
YesProtocol-based VLAN :
YesVoice VLAN :
YesVLAN mapping :
YesL2 Services - Availability :
*Storm control :
Yes (Broadcast, multicast, unknown unicast)IEEE 802.3ad - LAGs (LACP) :
YesIEEE 802.3x :
YesRing (ERPS,complies with G.8032) :
Yes, Recovery time < 50msIEEE 802.1D Spanning Tree Protocol :
YesIEEE 802.1w Rapid Spanning Tree Protocol :
YesIEEE 802.1s Multiple Spanning Tree Protocol :
YesLayer 2 DHCP Relay :
YesL2 Services - Multicast Filtering :
YesIGMP snooping (v1, v2 and v3) :
YesMLD snooping support (v1 and v2) :
YesIGMP snooping querier (v2) :
YesMLD snooping querier (v1) :
YesMulticast VLAN Registration (MVR) :
YesL3 Services - Routing :
*IPv4 static routing :
100IPv6 static routing :
100Link Aggregation :
*Manual LAG :
Yes# of LAGs / # of members in each LAG :
8 LAGs with max 8 members in each LAGNetwork Monitoring and Discovery Services :
*802.1ab LLDP :
YesSNMP :
v1, v2c, v3RMON group 1,2,3,9 :
YesNetwork Security :
YesIEEE 802.1x :
YesRADIUS accounting :
YesAccess Control Lists (ACLs) :
YesIP-based ACLs (IPv4 and IPv6) :
L2 / L3 / L4MAC-based ACLs :
YesTCP/UDP-based ACLs :
YesControl MAC # static entries :
48Port-based security by locked MAC addresses :
YesDynamic ARP inspection :
YesDoS protection :
YesDoS attacks prevention :
YesNetwork storm protection, DoS :
YesQuality of Service (QoS) :
*Port-based rate limiting :
Yes ingress and egressPort-based QoS :
YesSupport for IPv6 fields :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
YesDestination MAC and IP :
YesIPv4 and v6 DSCP :
YesTCP/UDP-based :
YesWeighted Round Robin (WRR) :
YesStrict priority queue technology :
YesIEEE Network Protocols :
*Protocols :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXProtocols 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning TManagement, Monitoring & Troubleshooting :
*Password management :
YesAccess control via RADIUS and TACACS+ :
YesIPv6 management :
YesSNMP v1/v2c/v3 :
YesPort mirroring :
Yes ingress and egressMany-to-one port mirroring :
20Cable test utility :
YesTLS/HTTPS Web-based access (version) :
Yes (v1.2)File transfers (uploads, downloads) :
TFTP / HTTPHTTP upload/download (firmware) :
YesSyslog (RFC 3164) :
YesLEDs :
YesPer port :
Speed, Link, Activity; PoE in different modePer device :
PowerPhysical Specifications :
*Dimensions (Width * Depth * Height) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Weight :
<6.2 kg (13.67 lb)Power Consumption :
300W (when all ports used, line-rate traffic and max PoE)Max power :
12W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Iddle power consumption :
9W (all ports link-down standby) (Watts)Energy Efficient Ethernet (EEE) :
Yes (deactivated by default)Fan :
FanlessEnvironmental Specifications :
*Operating Temperature :
-30° to 75°C (-22° to 167°F)Operating Humidity :
95% maximum relative humidity (RH), non-condensingOperating Altitude :
10,000 ft (3,000 m) maximumStorage Temperature :
-40° to 85°C (-40° to 185°F)Storage Humidity (relative) :
95% maximum relative humidity, non-condensingStorage Altitude :
10,000 ft (3,000 m) maximumExecutive Standard & Protection :
*Lightning Protection :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :
1000A/mIEC61000-4-10 (Damped oscillation) :
30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge): Power cable :
CM±4kV/ DM±2kV, Data cable: ±4kVMechanical Properties :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockElectromagnetic Emissions and Immunity :
*Certifications :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Safety :
*Safety Certifications :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Warranty and Support :
*Hardware Limited Warranty :
Limited Lifetime*Technical Support via Phone and Email* :
Limited Lifetime*24x7 Online Chat Technical Support :
Limited Lifetime*Package Contents :
*All models :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideBusiness Type :
IndustrialBandridth :
1GMore Filters :
L2+ Managed
