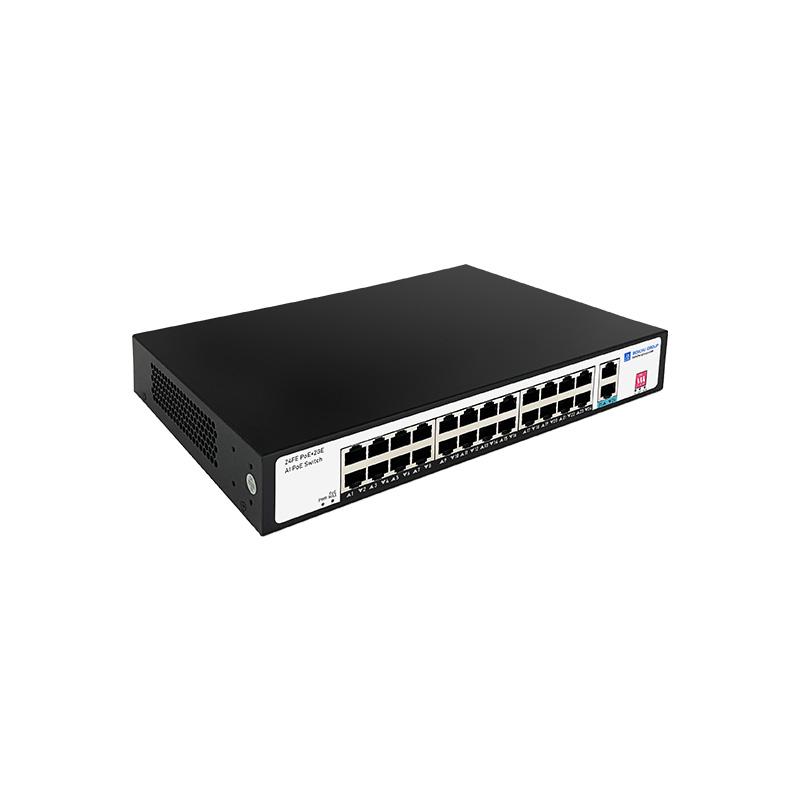

24 Ports 10/100M PoE+ Switch, 2-1Gb RJ45 Uplink, 24 PoE+ Ports@300W Power Budget, Three modes:AI/VLAN/250m, 11in Rack-Mount, Fanless, SP5210-24PFE2GE

Inquire Now

Designed for IP Camera/Wireless Access Point/IP Telephone

Product Highlights
    • 24-10/100Mbps RJ45 ports(Port1-Port24)
    • 2-10/100/1000Mbps RJ45 ports(Port25-Port26)
    • 24 ports supporting PoE to PD device
    • Complies with IEEE 802.3af/at Power over Ethernet
    • Supports PoE power up to 30 watts for each PoE port
    • 280-watt PoE budget，300-watt total power budget
    • Supports " Default " "AI""EXT" "VLAN"mode selection;
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV
    • DC for Ethernet ESD protection
    • Backplane bandwidth 10.8Gbps，Packet forwarding rate 6.55Mpps，MAC address 4k
    • 11-inch Rack-Mount size, 1U height，Internal AC power supply

24 port 10/100M PoE switch with 2 Gigabit RJ45 Uplink authentication

Overview



SP5210-24PFE2GE, 24 ports 100M PoE+ switch，with 2-1Gb RJ45 uplink，24-PoE+ ports@300W power budget，Three modes:AI/VLAN/250m,Rack-Mount,Fanless

Benchu group’s 24 Port 10/100M Unmanaged PoE Switches SP5210-24PFE2GE offers 24 Ports10/100M PoE Ports and 2-10/100/1000M RJ45 uplink. The 24-port 10/100M unmanaged PoE+ switch provides a robust solution for powering and connecting multiple network devices. Each of its 24 ports supports the IEEE 802.3at PoE+ standard, delivering up to 30W per port, sufficient to power IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices. The switch offers a combined power budget typically ranging from 370W to 400W, ensuring ample power supply for all connected devices.

This unmanaged switch is designed for plug-and-play operation, making it easy to deploy without the need for complex configurations. It's ideal for businesses and organizations seeking to expand their network quickly and efficiently, without the added complexity of managed switch features. The 10/100Mbps data rate per port ensures reliable connectivity for standard network applications, supporting smooth data transmission across the network.

In addition to its PoE capabilities, the switch is built with robust hardware to ensure durability and reliability. It often includes LED indicators for each port, allowing for easy monitoring of power and network activity. With its rack-mountable design, the switch can be easily integrated into existing network racks, optimizing space and organization.
The 24-port 10/100M unmanaged PoE+ switch offers a cost-effective, efficient, and scalable solution for expanding network infrastructure, particularly in environments that require numerous PoE-enabled devices and straightforward installation processes.



  • Physical Port
    24-10/100Mbps Fast Ethernet ports
    2-10/100/1000Mbps Gigabit Ethernet port

    Power over Ethernet
    24 ports supporting PoE to PD device (Port 1 to port 24)
    Complies with IEEE 802.3af/at Power over Ethernet
    Up to 24 IEEE 802.3af/at devices powered
    Supports PoE Power up to 30 watts for each PoE port
    280-watt PoE budget, 300-watt total power budget
    Supports PoE watch-dog: Realtime monitoring PoE load device's status and will automatically reboot PoE port when the connected device is not active.
    Auto detects powered device (PD)
    Circuit protection prevents power interference between ports
    Supports 25-watt PoE transmit distance of 250m in extend mode
    Remote power feeding up to 100m in standard mode
  • Switching
    Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
    Flow control for full duplex operation and back pressure for half duplex operation
    Integrates address look-up engine, supporting 4K absolute MAC addresses
    Automatic address learning and address aging
    Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
    Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
    11-inch Rack-Mount size, 1U height
    LED indicators for PoE ready/activity and LINK/ACT
    Fanless design
    Internal AC power supply





Features



Fast Port and gigabit port Configuration

24 × PoE+ 10/100Mbps RJ45 ports provide up to 30W per port and total Power budget of 300W, together with 2 × 10/100/1000M RJ45 for uplink connections.

24 port 10/100 poe switch



Two Gigabit RJ45 Uplink Ports

The SP5210-24PFE2GE with two uplink ports with 10/100/1000Mbps transfer rate to ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the 24 PoE+ ports can be used to their full potential. The gigabit uplink ports provide high-speed data transfer, ensuring efficient and seamless communication between the switch and the core network. This capability enhances overall network performance by supporting bandwidth-intensive applications and reducing bottlenecks. The gigabit ports allow for faster data uploads and downloads, improving the responsiveness of connected devices. Additionally, they enable better scalability, making it easier to integrate with other network equipment and expand the network infrastructure. This combination of 100Mbps PoE ports and gigabit uplinks ensures a balanced, high-performance network suitable for various applications.



24 Port 10/100M PoE Switch with 2Gigabit Uplink







Supports " Default " "AI""EXT" "VLAN"mode selection;

The "default" operation mode,the SP5210-24PFE2GE operates as a normal IEEE 802.3at/af PoE Switch.The "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps.The "AI" mode features the PoE Switch starts to detect whether the port is transmitting data. If the port does not transmit data and the duration exceeds a specific time, PoE will automatically power off and then re-power..The “VLAN” operation mode features port-based VLAN function that helps to prevent the multicast or broadcast storm from influencing each other.



24 port extend poe switch with 250meter







6KV Lightning Protection Enhance PoE Switch Longevity

6KV lightning protection significantly extends the lifespan of PoE switches by safeguarding them against high-voltage surges caused by lightning strikes. This protection reduces the risk of electrical damage to the internal components of the poe switch, ensuring stable performance over time. By preventing damage from power surges, the switches maintain their operational integrity, resulting in fewer replacements and repairs. This enhancement not only improves the durability of the switches but also ensures consistent network reliability, which is crucial for maintaining uninterrupted connectivity in various environments, particularly in outdoor installations.



10/100M poe switch 24 port lightning protection







Fanless, Quiet Operation

Fanless silent design eliminates the noise generated by cooling fans, providing a quieter working environment. This is especially beneficial in noise-sensitive settings such as offices, libraries, and home networks. The absence of fan noise ensures that the PoE switch operates discreetly, contributing to a more pleasant and undisturbed atmosphere.



24 Ports 10/100M PoE Switch Fanless design







Connectivity Solutions



24 port 10/100M PoE switch with 2 Gigabit RJ45 Uplink of Connectivity Solution for PoE IP Camera



24 port 10/100M PoE switch with 2 Gigabit RJ45 Uplink of Connectivity Solution





Specification



  • Technical Specifications :

    SP5200-24PFE2GE

  • 10M/100M RJ45 copper ports :

    24

  • 10M/100M/1G RJ45 copper ports :

    2

  • PoE / PoE+ ports :

    24

  • Power over Ethernet :

    *

  • PoE Standard :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • PoE Power Supply Type :

    End-span: 1/2 (+), 3/6 (-)

  • PoE Power Output :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • PoE Power Budget :

    280

  • Number of PDs, 7 watts :

    16

  • Number of PDs, 15 watts :

    11

  • Number of PDs, 30 watts :

    6

  • Performance Specification :

    *

  • Chip :

    Realtek

  • Packet buffer memory :

    1.6M

  • Forwarding modes :

    Store-and-forward

  • Bandwidth :

    10.8 Gbps

  • Packet forwarding rate :

    6.5Mpps (64 byte packet size)

  • MAC address database size :

    4K (48-bit MAC ad-dresses)

  • Jumbo frame support :

    9K

  • Mean Time Between Failures :

    110,232 hours

  • 100M Copper Latency :

    8.321µs; 8.422µs; 8.435µs

  • 1G Copper Latency :

    3.543µs; 3.552µs; 3.633µs

  • IEEE Network Protocols :

    *

  • Protocols :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX• IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Monitoring :

    *

  • LEDs :

    Yes

  • Per port :

    Speed, Link, Activity; PoE in different mode

  • Per device :

    Power

  • Physical Specifications :

    *

  • Dimensions (Width * Depth * Height) :

    285 x 190 x 44.5mm (11.22 x 7.48 x 1.75 in)

  • Weight :

    1.9 kg (4.19 lb)

  • Power Consumption :

    300W (when all ports used, line-rate traffic and max PoE)

  • Max power :

    17W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Iddle power consumption :

    12W (all ports link-down standby) (Watts)

  • Energy Efficient Ethernet (EEE) :

    Yes (deactivated by default)

  • Fan :

    Fanless

  • Environmental Specifications :

    *

  • Operating Temperature :

    -20° to 50°C (-4° to 122°F)

  • Operating Humidity :

    90% maximum relative humidity (RH), non-condensing

  • Operating Altitude :

    10,000 ft (3,000 m) maximum

  • Storage Temperature :

    –20° to 70°C (– 4° to 158°F)

  • Storage Humidity (relative) :

    95% maximum relative humidity, non-condensing

  • Storage Altitude :

    10,000 ft (3,000 m) maximum

  • Electromagnetic Emissions and Immunity :

    *

  • Certifications :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Safety :

    *

  • Safety Certifications :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005； (ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Warranty and Support :

    *

  • Hardware Limited Warranty :

    Limited Lifetime*

  • Technical Support via Phone and Email* :

    Limited Lifetime*

  • 24x7 Online Chat Technical Support :

    Limited Lifetime*

  • Package Contents :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale)； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • All models :

    Smart Switch； AC Power cord with C13 connector (localized to region of sale)； Brackets and screws for rack mounting；

  • Business Type :

    Commercial

  • Bandridth :

    100M+1G

  • More Filters :

    Unmanaged



Questions & Answers

Q: What is the power output per PoE port on the 24-port 10/100M PoE switch?
A1: Each PoE port delivers up to 30W, compliant with IEEE 802.3at (PoE+), providing sufficient power for devices like IP cameras, wireless access points, and VoIP phones.

Q: How do the two gigabit network ports benefit the switch?
A2: The two gigabit network ports provide high-speed uplink connections, ensuring efficient data transfer to the core network or other switches, enhancing overall network performance.

Q: Can the switch support simultaneous data and power transmission?
A: Yes, the 24 PoE ports support simultaneous data and power transmission over a single Ethernet cable, simplifying the installation of PoE-enabled devices.

Q: Is this switch suitable for large network deployments?
A: Yes, the switch is ideal for large network deployments, offering 24 PoE ports for device connectivity and gigabit uplink ports for efficient data transfer, ensuring network scalability.

Q: How do I monitor the power status of connected devices?
A: The 24 ports PoE switch features LED indicators next to each port, which light up when a device is connected and receiving power, allowing for easy monitoring of PoE status.

Q: Can this switch be used in a home network?
A: Yes, it can be used in a home network, especially for powering multiple PoE devices like IP cameras and wireless access points, simplifying the network setup.

Q: Does the switch require configuration before use?
A: No, as an unmanaged switch, it operates on a plug-and-play basis, requiring no configuration, making it easy to deploy and use in various network environments.
