The global shift toward smart cities demands an unprecedented level of network reliability, security, and scalability. At the core of these massive municipal deployments—which integrate critical systems like automated traffic control, high-definition IP surveillance, and IoT sensor arrays—is the network switch. For network architects, research engineers, and system integrators, selecting between a Layer 2 and a Layer 3 managed switch is one of the most foundational architectural decisions.
This technical white paper evaluates the architectural differences, functional boundaries, and optimization strategies for deploying Layer 2 and Layer 3 managed switches within a smart city infrastructure. By understanding where data link bridging ends and network routing begins, engineers can build highly resilient, low-latency, and cost-effective networks.
To optimize smart city topologies, engineers must first align hardware selection with the specific layers of the OSI model where traffic management is required.
Layer 2 managed switches operate at the Data Link layer (OSI Layer 2). They forward traffic based on hardware MAC addresses, creating a flat network topology within a single broadcast domain. Modern industrial-grade Layer 2 switches are highly sophisticated, featuring advanced traffic management tools such as VLAN (Virtual Local Area Network) tagging (802.1Q), Quality of Service (QoS/802.1p) prioritization, and Link Aggregation (LACP).
However, because they lack routing capabilities, they cannot pass traffic between different VLANs without an external router. They are inherently designed for localized data distribution where speed and low latency are paramount.
Layer 3 managed switches bridge the gap between traditional switching and routing. Operating at both the Data Link and Network layers (OSI Layers 2 and 3), these devices inspect incoming data packets at the IP address level. Unlike traditional software-driven routers, a Layer 3 switch utilizes specialized Application-Specific Integrated Circuits (ASICs) to perform hardware-based packet routing at wire-speed.
This enables support for advanced routing protocols such as Static Routing, RIP, and OSPF (Open Shortest Path First). By executing inter-VLAN routing directly on the switch fabric, Layer 3 devices eliminate the traffic bottlenecks associated with "router-on-a-stick" architectures.

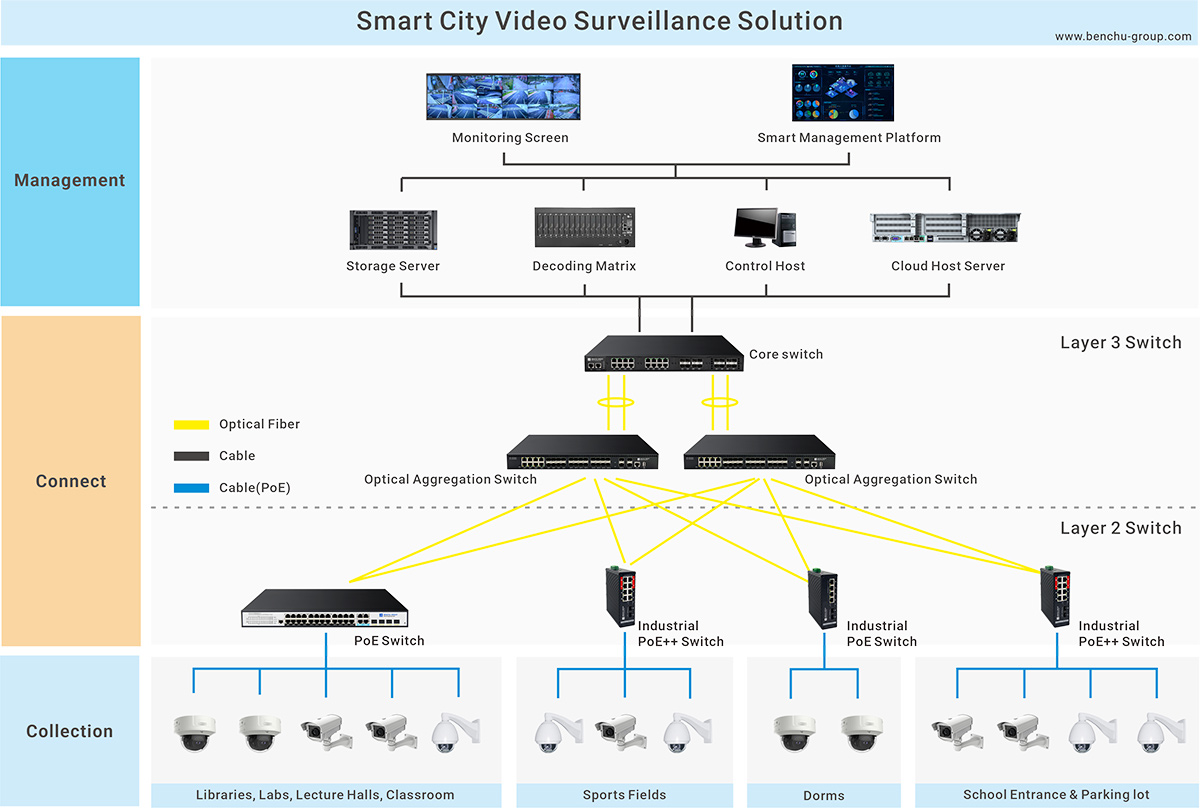

Smart city networks are inherently distributed, spanning edge sensor deployments to centralized municipal data centers. Deploying the right switch type at the correct network tier prevents structural performance degradation.
| Network Tier | Recommended Switch Type | Smart City Use Case | Key Technical Requirements |
|---|---|---|---|
| Edge / Access Tier | Layer 2 Managed Switch | IP Camera poles, environmental sensors, smart lighting controllers. | High-power PoE output, surge protection, wide operating temp. |
| Aggregation / Distribution Tier | Layer 3 Managed Switch | Traffic intersection hubs pooling data from multiple edge cabinets. | Inter-VLAN routing, static routing, high-density fiber uplinks. |
| Core / Command Center | Layer 3 Backbone Switch | Centralized municipal data centers, emergency response systems. | OSPF/BGP routing, ultra-high throughput (10G/40G), redundant power. |
At the network perimeter, the focus is on raw device onboarding and ruggedized durability. A specialized industrial PoE switch is the ideal candidate for this tier. Because thousands of outdoor endpoints (such as PTZ cameras and IoT gateways) require localized power, an access-tier Layer 2 switch with high-wattage IEEE 802.3bt capabilities ensures seamless integration without the overhead of complex routing tables.
As data flows from edge cabinets into regional distribution nodes, broadcast traffic scales exponentially. Left unmanaged, a single malfunctioning IP camera could trigger a broadcast storm that paralyzes an entire traffic sector. Here, an industrial gigabit switch with Layer 3 capabilities is deployed to segment networks into isolated subnets (e.g., separating public Wi-Fi from municipal surveillance) while routing critical telemetry data locally to minimize latency.
When drafting technical specifications for smart city RFPs, engineering groups must weigh three primary technical variables: network latency, security architecture, and system redundancy.
Layer 2 switching introduces near-zero latency because processing is limited to MAC-table lookups. This is critical for real-time applications like connected vehicle telemetry (V2X). However, if traffic must cross a subnet boundary via an external router, latency spikes. Layer 3 switches eliminate this penalty by executing routing inside the ASIC fabric at wire-speed.
In smart city environments, protecting critical operational technology (OT) from cyber threats is non-negotiable. While Layer 2 devices offer port security and basic Access Control Lists (ACLs), a layer 3 managed switch provides deep network isolation. It enforces IP-based and subnet-based ACLs, preventing unauthorized cross-departmental lateral movement if an edge device is physically compromised.
Layer 2 loops are managed via Spanning Tree Protocols (STP/RSTP/MSTP) or specialized industrial ring protocols (ERPS G.8032). While effective, recovery times scale with network size. At Layer 3, dynamic routing protocols like OSPF allow for instantaneous multi-path calculations, routing around network failures dynamically across diverse geographic paths. For mission-critical configurations, you can consult directly with our expert R&D engineering team.
High-performance OEM/ODM platforms ready for full visual and software stack customization.

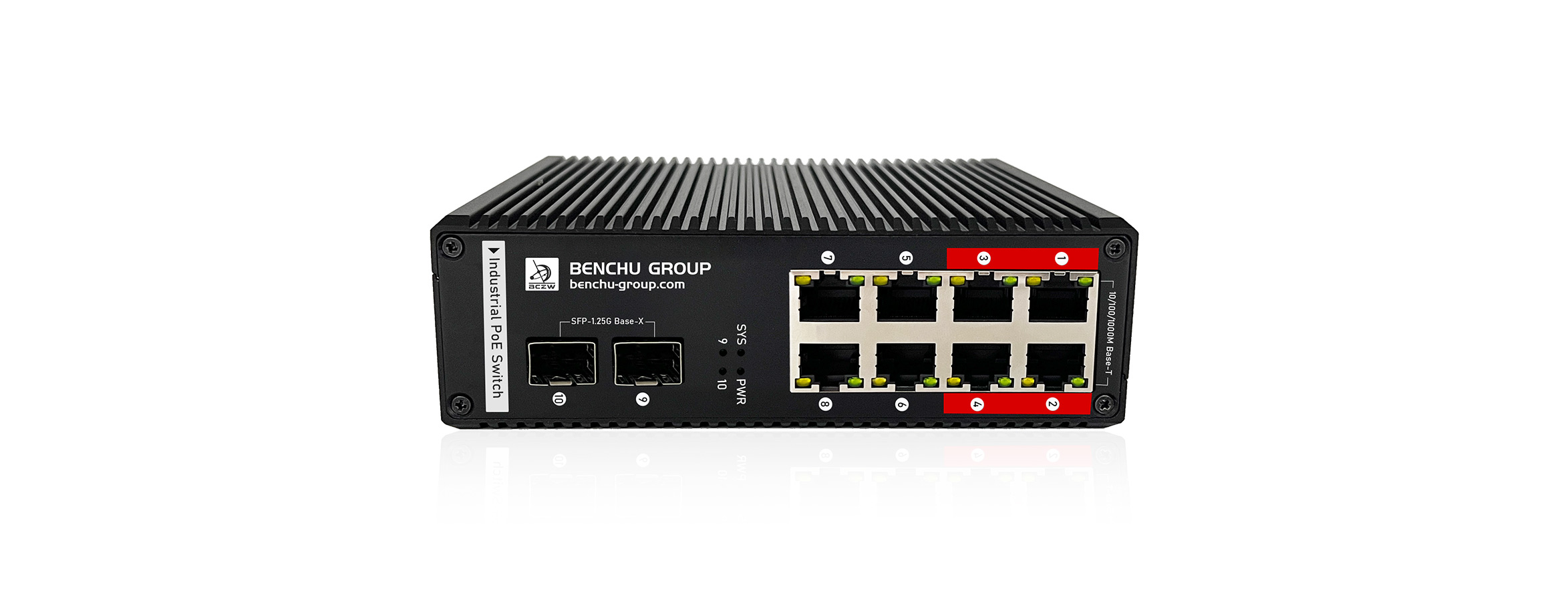

Managed 8 Port Gigabit Industrial PoE++ Switch With 2 Gigabit SFP Uplink

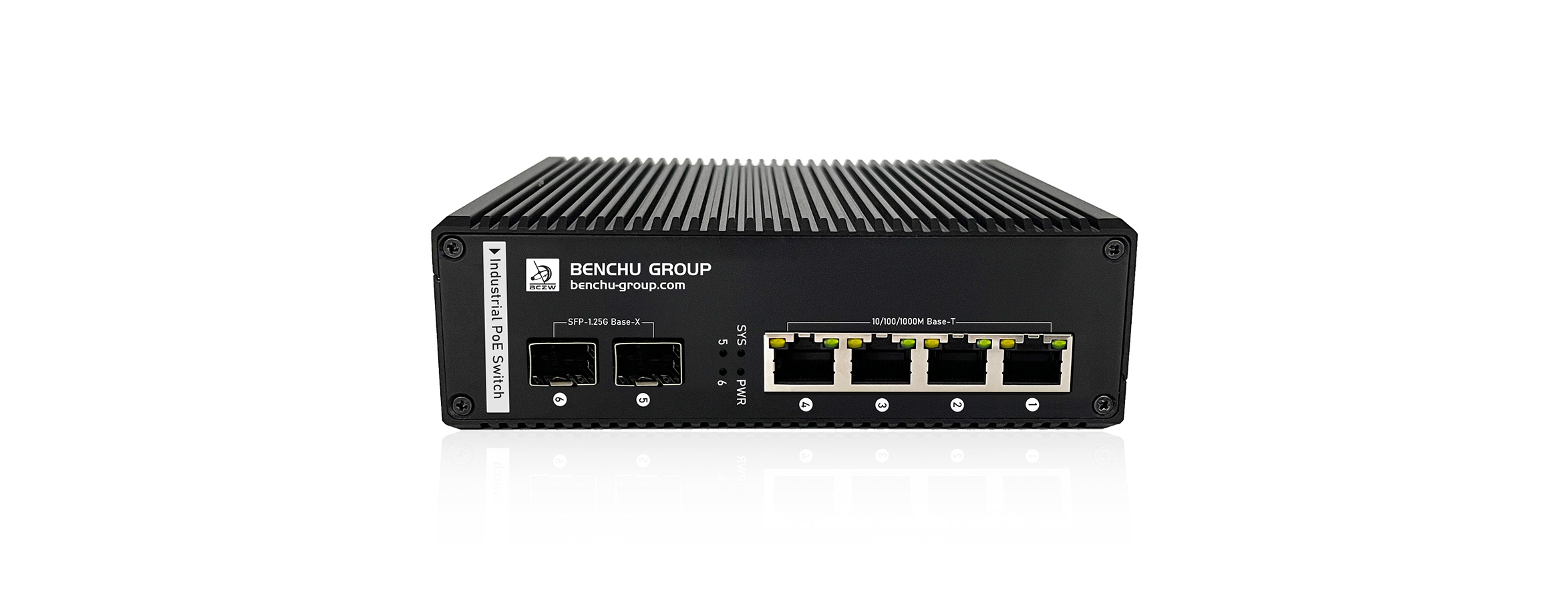

Managed 4 Port Gigabit Industrial PoE Switch With 2 Gigabit SFP Uplink

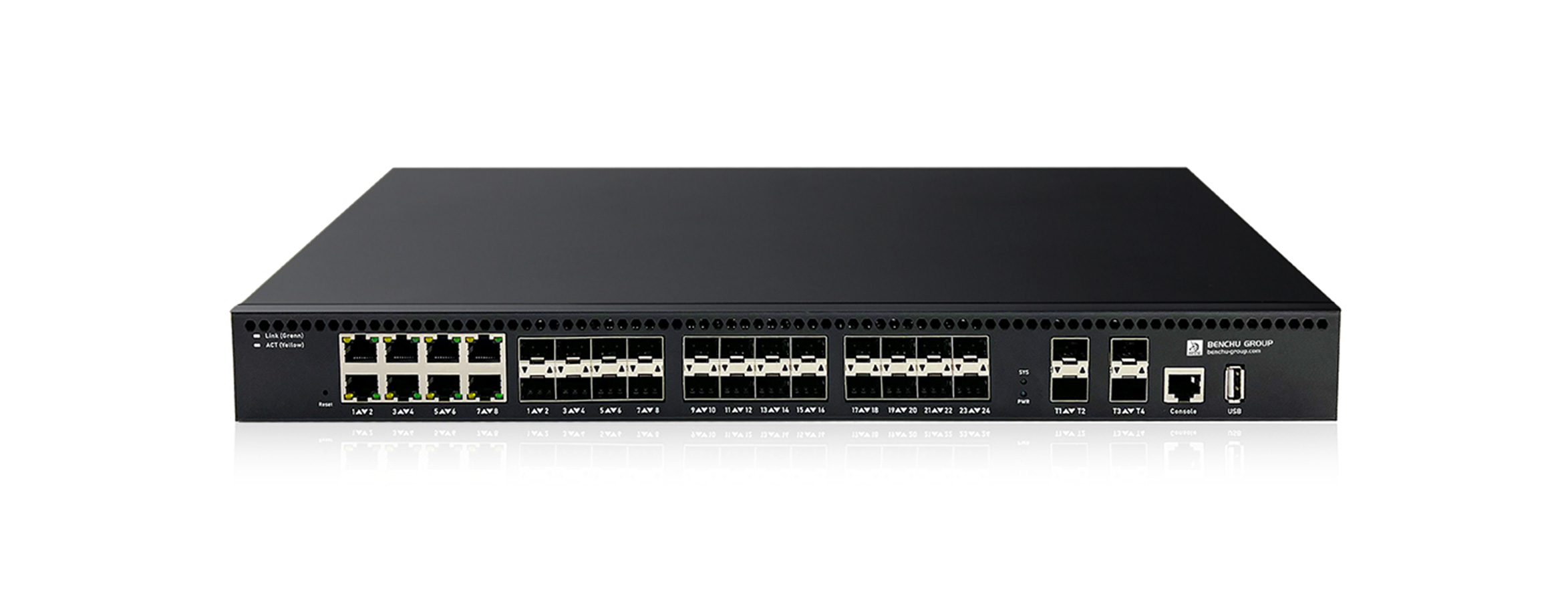

24 Port Gigabit SFP Fiber Managed Switch With 4-10G SFP+ Uplink

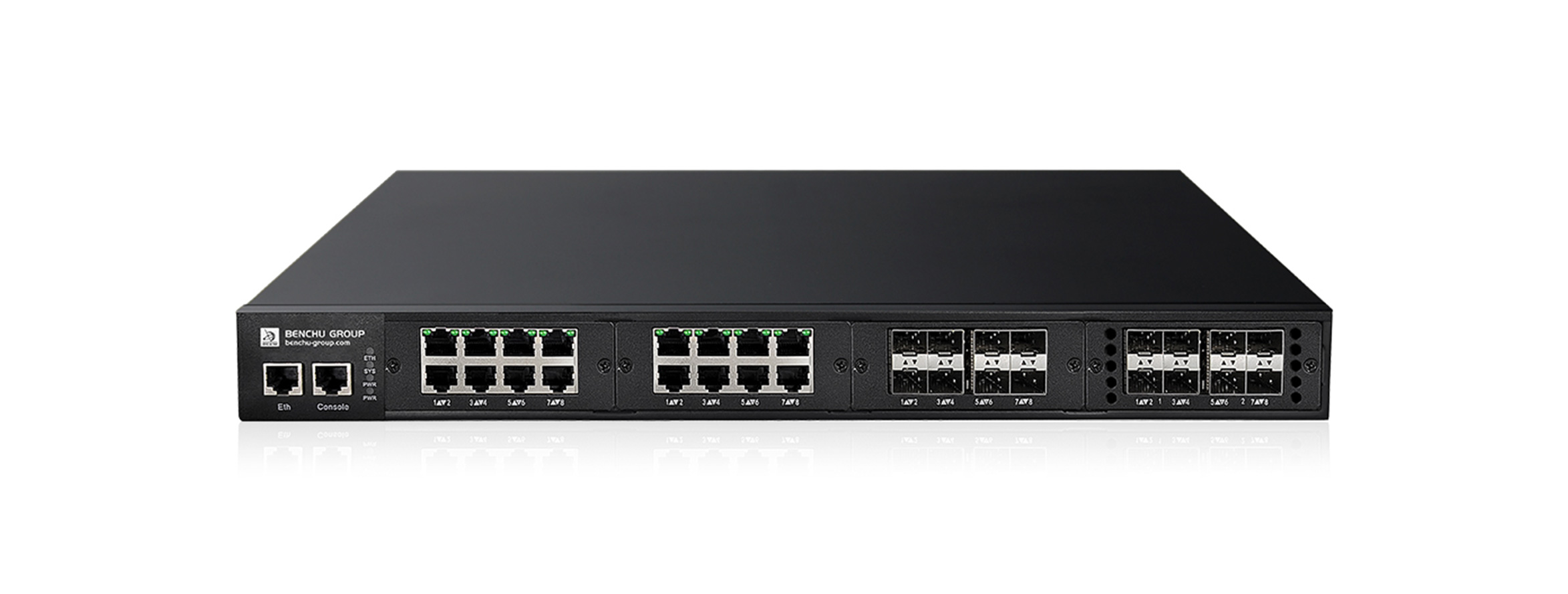

16 x 10Gbps RJ45, 12 x 10Gbps SFP+, 4 x 25Gbps SFP28 Hybrid Switch
Smart city networks are not monocultures; they require a hybrid, tiered approach to hardware selection. Access networks distributed across physical urban landscapes should leverage ruggedized Layer 2 switches to minimize cost and maximize edge density. Concurrently, the aggregation and core infrastructures must utilize high-performance Layer 3 architectures to maintain structural isolation and dynamic fault recovery.
For system integrators selecting an OEM/ODM manufacturing partner, ensuring access to a comprehensive portfolio—ranging from edge-optimized white label network switches to advanced Layer 3 distribution units—is critical. Aligning hardware capabilities directly with OSI model requirements allows municipalities to deploy scalable, secure, and future-proof urban infrastructure.
